Fass Filter Pack Xl Fp3000xl
In industrial fluid management and high-performance fuel systems, the efficiency of filtration components directly dictates the longevity of downstream equipment. The fass filter pack xl fp3000xl represents a specific category of high-capacity filtration solutions designed to handle significant flow rates while maintaining strict particulate capture standards. For engineers and procurement specialists in the industrial sector, understanding the technical specifications of such packs—and how they relate to broader Filter Discs & Packs technology—is essential for optimizing system performance and reducing total cost of ownership.
Industrial filtration requires a balance between flow resistance and contaminant retention. Whether dealing with hydraulic fluids, chemical processing, or fuel systems, the choice of filter media and the structural design of the filter pack determine the system's reliability. This guide examines the engineering principles behind high-capacity filter packs, the materials used in their construction, and the critical evaluation criteria for industrial applications.
Engineering Specifications of High-Capacity Filter Packs
The "XL" designation in products like the fass filter pack xl fp3000xl typically refers to extended life and increased surface area. In filtration engineering, surface area is the primary driver of dirt-holding capacity. By increasing the pleat density or the diameter of the filter media, manufacturers can extend the service interval without increasing the physical footprint of the filter housing beyond manageable limits.
Micron Ratings and Efficiency
For industrial applications, the micron rating is the first specification to confirm. Filter packs are often categorized as either nominal or absolute. A nominal rating refers to the filter's ability to retain a majority of particles of a certain size, whereas an absolute rating (often associated with high-precision stainless steel mesh) indicates that 99.9% of particles above a specific size are captured. The FP3000XL series is frequently utilized in environments where sub-10-micron filtration is necessary to protect sensitive injection systems or precision valves.
Flow Rate and Pressure Drop (Delta P)
Every filter introduces a pressure drop into the system. As the filter pack accumulates contaminants, this pressure drop increases. Engineers must calculate the "clean pressure drop" to ensure the pump system can maintain the required flow rate. High-capacity packs are engineered to minimize initial resistance, allowing for a longer operational window before the pressure drop reaches the bypass threshold.
Material Selection for Filter Discs & Packs

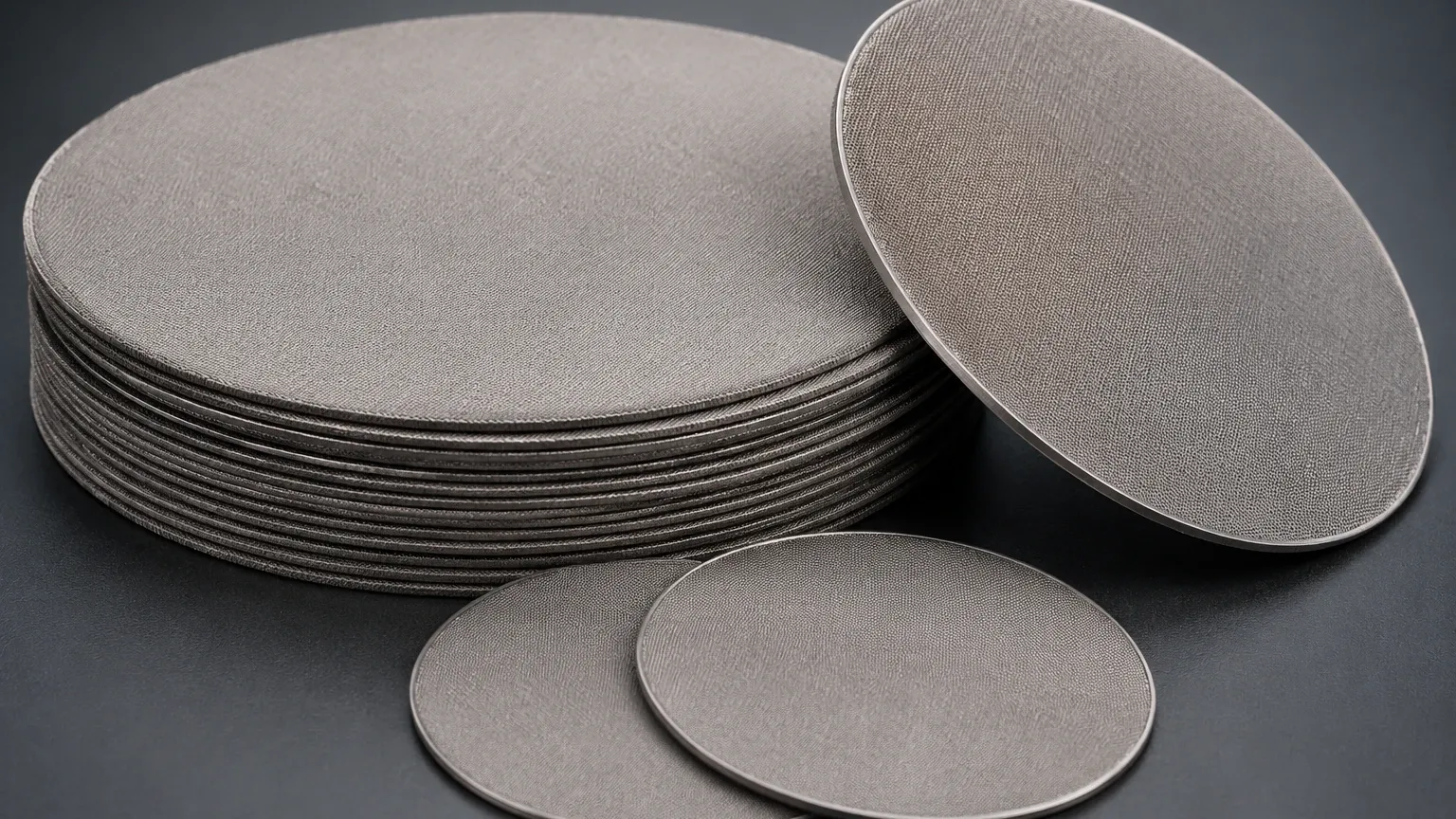

While many commercial filter packs use synthetic or cellulose media, industrial environments often demand the durability of metal. Stainless steel Filter Discs & Packs provide several advantages in demanding B2B applications, particularly where chemical compatibility and temperature resistance are concerns.
Stainless Steel Wire Mesh
Stainless steel (typically 304 or 316L) is the standard for precision industrial filtration. Unlike fiber-based media, stainless steel wire mesh does not shed fibers into the fluid stream—a phenomenon known as media migration. This is critical in pharmaceutical and food processing applications where purity is paramount. Furthermore, stainless steel packs can be cleaned and reused, whereas synthetic packs like the fass filter pack xl fp3000xl are typically consumable items.
Sintered Metal Media
For extreme pressure environments, sintered metal filter packs offer superior structural integrity. Sintering involves bonding multiple layers of wire mesh or metal powder under high heat and pressure. This creates a porous structure that is virtually immune to collapse under high differential pressures, making it suitable for high-viscosity fluids or high-pressure hydraulic systems.
Performance Evaluation Criteria for Industrial Filtration
When selecting a filter pack for an industrial system, technical teams must look beyond the basic part number. The following criteria are essential for a factual performance evaluation:
1. Chemical Compatibility: The filter media, seals, and adhesives must be compatible with the fluid being filtered. For example, certain fuel additives or industrial solvents can degrade standard rubber gaskets, necessitating Viton or PTFE seals.
2. Structural Integrity: In systems with pulsating flows or high-pressure spikes, the filter pack must resist deformation. Metal-reinforced end caps and center tubes are common features in industrial-grade packs to prevent bypass leakage.
3. Dirt-Holding Capacity (DHC): This is the total mass of a standard contaminant a filter can hold before reaching a terminal pressure drop. A higher DHC directly correlates to lower maintenance costs and less system downtime.
4. Temperature Limits: Standard cellulose filters may fail at temperatures exceeding 200°F (93°C). In contrast, stainless steel filter discs can operate effectively at temperatures exceeding 500°F, depending on the alloy and construction method.
Customization and OEM Solutions in Filter Design
Many industrial applications require filtration solutions that do not fit standard off-the-shelf specifications. This is where custom manufacturing becomes vital. For instance, an engineer might require the filtration efficiency of a fass filter pack xl fp3000xl but need it housed in a custom-sized stainless steel disc to fit a proprietary manifold.
Customization options include:
* Layering Configurations: Combining different mesh counts to create a graduated filtration effect, where the outer layers catch large debris and the inner layers provide fine filtration.
* Edge Treatments: Custom filter discs can be supplied with welded, framed, or bound edges to ensure a leak-proof fit within the housing.
* Shape and Geometry: While circular discs are common, industrial packs can be manufactured in rectangular, cone, or cylindrical shapes to optimize the available space within the machinery.
By working with a manufacturer capable of precision metal fabrication, purchasing teams can secure components that meet the exact mechanical and chemical requirements of their specific process.
Maintenance, Replacement, and Total Cost of Ownership
The total cost of a filtration system is not merely the purchase price of the filter pack. It includes the cost of replacement labor, the cost of disposal, and the potential cost of system downtime.
Monitoring Filter Health
In professional industrial setups, differential pressure gauges are used to monitor the health of the filter pack. A sudden drop in pressure may indicate a ruptured media (bypass), while a rapid increase suggests a surge in contamination or the end of the filter's service life. For high-capacity systems like those using the FP3000XL, consistent monitoring prevents the risk of unfiltered fluid reaching critical components.
Cleaning vs. Replacement
One of the primary decision points for engineers is whether to use disposable or cleanable filters. Disposable packs offer convenience and lower initial costs but generate more waste and higher long-term expenses. Stainless steel Filter Discs & Packs can often be cleaned via ultrasonic baths or back-flushing, making them a more sustainable and cost-effective choice for long-term industrial operations.
Addressing Common Risks in Industrial Filtration
Failure to select the correct filter pack can lead to catastrophic equipment failure. Common risks include:
* Bypass Leakage: If the filter pack does not seat perfectly within the housing, fluid will take the path of least resistance, bypassing the media entirely. This is often caused by incorrect tolerances in the filter's dimensions.
* Media Collapse: Under high differential pressure, inferior filter media can tear or collapse. This not only allows contaminants through but also introduces pieces of the filter media itself into the system.
* Incompatibility with Fluids: Using a filter designed for diesel (like some fuel-specific packs) in a chemical processing line can lead to the dissolution of binders or seals, contaminating the entire batch.
To mitigate these risks, engineers should confirm the ISO filtration standards and material certifications (such as 3.1 mill certificates for stainless steel) before finalizing a procurement contract.
Information Confirmation for Procurement Teams
Before purchasing or specifying a filter pack such as the fass filter pack xl fp3000xl or a custom metal equivalent, the following technical details should be confirmed with the manufacturer:
1. Exact Dimensions: Confirm the outer diameter (OD), inner diameter (ID), and thickness. Even a millimeter of variance can lead to bypass in high-pressure systems.
2. Operating Environment: Provide the manufacturer with the maximum operating pressure, temperature range, and the specific chemical composition of the fluid.
3. Filtration Goal: Define whether the priority is protecting a specific component (absolute filtration) or general fluid polishing (nominal filtration).
4. Certification Requirements: Determine if the application requires compliance with specific industry standards, such as FDA for food contact or ASME for pressure vessels.
By focusing on these factual engineering boundaries, technical professionals can ensure they select a filtration solution that provides reliable, long-term performance in demanding industrial environments. Whether utilizing standard high-capacity packs or custom-engineered stainless steel discs, the goal remains the same: precise, durable, and efficient contaminant removal.
