Filter Pack Office
In the landscape of industrial manufacturing and fluid processing, the "filter pack office" represents the critical intersection of engineering specification, quality assurance, and procurement strategy. This department or functional group is responsible for ensuring that the filtration components integrated into high-pressure systems—such as plastic extrusion, chemical processing, and hydraulic machinery—meet precise technical benchmarks. Selecting the right Filter Discs & Packs is not merely a purchasing task; it is a technical decision that impacts the longevity of downstream equipment, the purity of the final product, and the overall efficiency of the production line.
This guide serves as a technical resource for engineers and procurement professionals operating within the filter pack office, detailing the essential criteria for selecting, specifying, and managing stainless steel filtration components.
The Engineering Foundation of Filter Discs & Packs

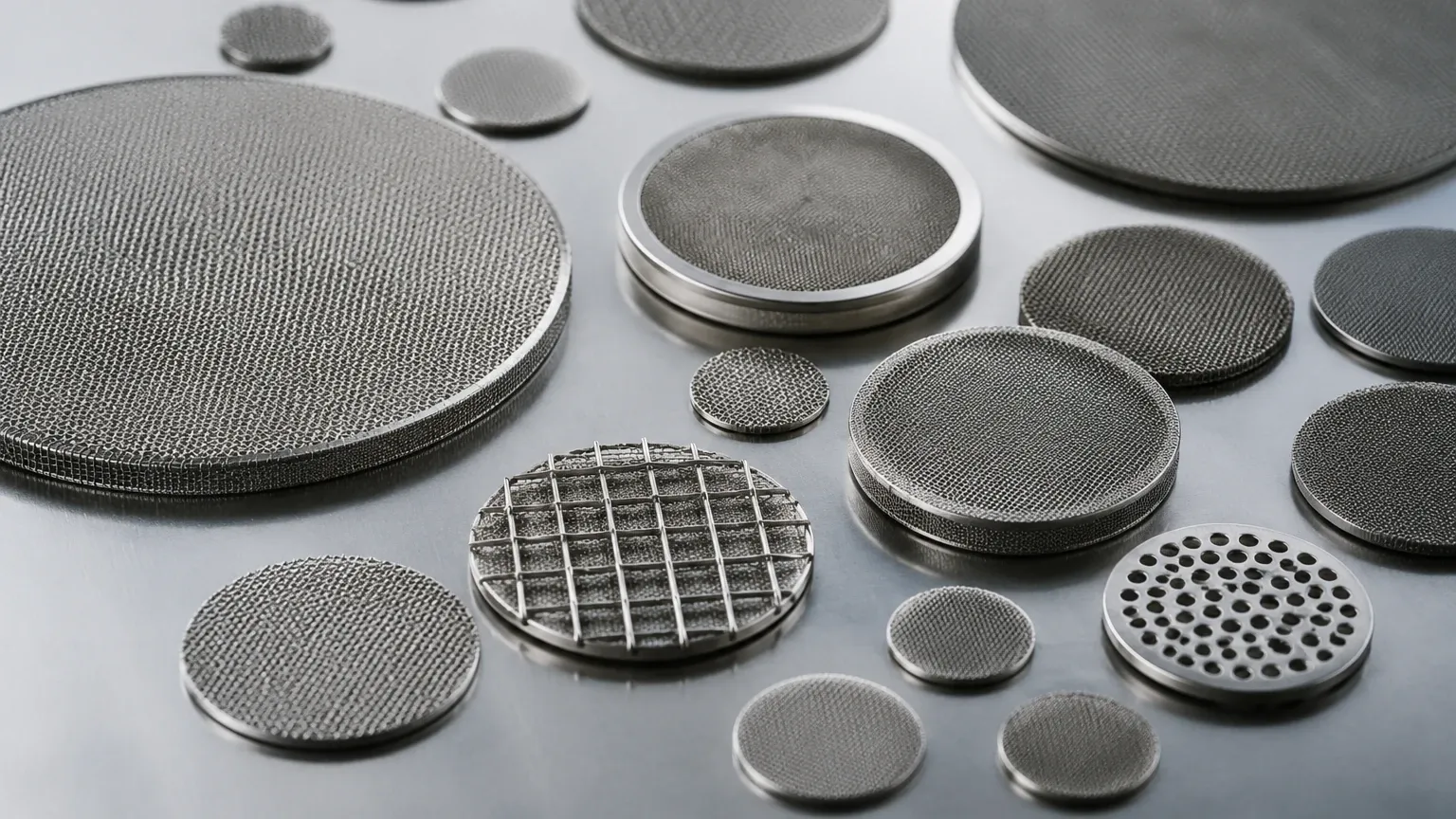

Industrial filter packs are typically composed of multiple layers of wire mesh, often of varying mesh counts and weave patterns, designed to provide graduated filtration. The complexity of these components requires a deep understanding of material science and fluid dynamics. When the filter pack office evaluates a design, they must consider how the assembly will behave under specific thermal and mechanical stresses.
Material Selection and Chemical Compatibility
The choice of material is the first hurdle in the specification process. Stainless steel is the industry standard due to its corrosion resistance and mechanical strength. However, the specific grade—commonly AISI 304, 316, or 316L—must be chosen based on the chemical environment.
* Grade 304: Suitable for general industrial applications where high-temperature resistance is required but corrosive exposure is minimal.
* Grade 316: Contains molybdenum, providing superior resistance to chlorides and acids, making it ideal for pharmaceutical and food-grade applications.
* Grade 316L: The low-carbon version of 316, preferred for components requiring welding, as it minimizes carbide precipitation that can lead to intergranular corrosion.
For specialized environments, the office may also specify exotic alloys like Hastelloy or Monel, though stainless steel remains the most cost-effective solution for the majority of B2B filtration needs.
Design Specifications for the Filter Pack Office
When designing or ordering Filter Discs & Packs, the technical office must define the physical structure of the pack. This involves more than just selecting a diameter; it requires a strategic layering approach to optimize flow and dirt-holding capacity.
Weave Types and Their Functions
The weave pattern of the wire mesh determines the filtration characteristics. The three most common types handled by the filter pack office include:
1. Plain Weave: The simplest pattern where wires cross over and under each other. It offers high flow rates but lower structural strength compared to denser weaves.
2. Twill Weave: Each shute wire passes successively over and under two warp wires. This allows for a heavier wire diameter in a given mesh count, increasing the pack's durability under high pressure.
3. Dutch Weave (Plain and Twill): These weaves use a larger diameter warp wire and a smaller diameter shute wire. This creates a dense, strong mesh with very fine openings, ideal for high-pressure filtration where precision is paramount.
Multi-Layer Configurations
A single layer of mesh is rarely sufficient for industrial applications. The filter pack office typically specifies multi-layer packs, which might include a fine filtration layer sandwiched between coarser support layers. This "depth" approach prevents the fine mesh from deforming under pressure and allows larger particles to be trapped by the outer layers, preventing premature blinding of the primary filter media.
Structural Integrity and Customization Options
For a filter pack to function effectively within a housing or extruder, its edges must be secured. The filter pack office must decide between rimmed (bound) or unrimmed designs based on the installation environment.
Rimming and Binding Materials
Bound filter packs feature a metal rim—usually aluminum, stainless steel, or copper—that is compressed around the edges of the mesh layers. This serves several purposes:
* Leak Prevention: It ensures a tight seal against the filter housing, preventing bypass.
* Structural Support: It holds multiple layers together, preventing shifting during high-pressure surges.
* Safety: It covers the sharp edges of the cut wire mesh, making the packs safer for operators to handle during replacement cycles.
Spot Welding
In applications where a rim is not feasible due to space constraints, spot welding is used to fuse the layers together. This maintains the profile of the pack while ensuring that the individual mesh layers remain aligned. The filter pack office must confirm that the welding process does not compromise the integrity of the mesh or introduce contaminants into the assembly.
Performance Evaluation and Quality Control
The filter pack office is responsible for verifying that the supplied components meet the micron rating required for the process. Filtration accuracy is not a static number; it is influenced by the pressure drop (differential pressure) and the viscosity of the fluid being filtered.
Understanding Micron Ratings
* Nominal Micron Rating: Refers to the ability of the filter to retain a majority of particles of a specific size. It is an indicative measure but not an absolute guarantee.
* Absolute Micron Rating: The diameter of the largest hard spherical particle that will pass through the filter under specified test conditions. For critical pharmaceutical or chemical processes, the office will almost always require absolute ratings to ensure process consistency.
Pressure Drop Considerations
A common mistake in the filter pack office is over-specifying the filtration fineness. A filter that is too fine will cause an excessive pressure drop, leading to increased energy consumption and more frequent system shutdowns for cleaning or replacement. Engineers must balance the need for purity with the hydraulic requirements of the system.
Total Cost of Ownership and Replacement Cycles
From a procurement perspective, the filter pack office must look beyond the initial unit price. The total cost of ownership (TCO) includes the cost of downtime, the labor required for replacement, and the potential for cleaning and reusing the packs.
Cleanability and Reusability
One of the primary advantages of stainless steel Filter Discs & Packs is their ability to be cleaned. Depending on the contaminant, packs can be cleaned using ultrasonic baths, chemical solvents, or burnout ovens (common in plastic extrusion). The office should establish a protocol for how many times a pack can be cleaned before the structural integrity of the mesh is compromised, necessitating a full replacement.
Managing the Supply Chain
For a filter pack office, maintaining a consistent supply of high-quality components is vital. Working with an OEM manufacturer like Kaifil allows the office to customize designs to exact specifications, ensuring that every batch of filters performs identically. This consistency is crucial for automated production lines where even a slight variation in mesh thickness or weave density can lead to pressure fluctuations.
Technical Checklist for the Filter Pack Office
Before finalizing a purchase or design specification, the technical team should confirm the following data points with their manufacturer:
1. Operating Temperature: Will the mesh or binding material degrade at the process temperature?
2. Differential Pressure (Max ΔP): What is the maximum pressure the pack will encounter before deformation?
3. Flow Direction: Is the pack designed for one-way flow, or must it withstand back-pulsing?
4. Contaminant Characteristics: Are the particles deformable or hard? This affects whether surface or depth filtration is more appropriate.
5. Regulatory Compliance: Does the material meet FDA or REACH standards if used in food, beverage, or pharmaceutical sectors?
Conclusion
The role of the filter pack office is to bridge the gap between theoretical engineering and practical manufacturing. By understanding the nuances of wire mesh weaves, material grades, and structural reinforcements, these professionals ensure that industrial processes remain efficient and uncontaminated. Whether specifying a simple single-layer disc or a complex, rimmed multi-layer assembly, the focus must remain on precision, durability, and the specific demands of the application environment.
For organizations looking to optimize their filtration processes, partnering with a manufacturer that understands these engineering boundaries is essential. Detailed technical consultation can prevent common pitfalls such as premature blinding, mechanical failure, or bypass, ultimately protecting the integrity of the entire production system.
