How to Filter Packs
In high-pressure industrial environments, particularly within polymer extrusion, chemical processing, and hydraulic systems, the efficiency of a production line often depends on the precision of its filtration components. Understanding how to filter packs effectively requires a deep dive into the engineering of multi-layer wire mesh assemblies. These components, often referred to as filter discs or screen packs, are not merely barriers; they are engineered systems designed to manage fluid dynamics, capture contaminants, and protect downstream equipment from damage.
For engineers and procurement specialists, the challenge lies in selecting a configuration that balances filtration fineness with structural integrity. A failure to optimize the filter pack can lead to frequent downtime, increased energy consumption due to excessive pressure drops, or compromised product quality. This guide examines the technical considerations of how to filter packs in industrial applications, focusing on material selection, structural design, and performance optimization.
The Role of Filter Packs in Industrial Extrusion and Processing
Filter packs serve as the primary defense mechanism in melt filtration and fluid processing. In the context of polymer extrusion, the "how to filter packs" question is answered by their ability to remove "gels," un-melted particles, and foreign contaminants from the polymer melt before it reaches the die.
Beyond simple particle removal, these packs play a critical role in pressure management. As the melt passes through the Filter Discs & Packs, the assembly creates a controlled backpressure. This backpressure is essential for ensuring the homogenization of the material, which directly impacts the consistency of the final product, whether it be thin films, fibers, or complex profiles.
In hydraulic and chemical systems, the role shifts slightly toward protecting sensitive valves and pumps. Here, the filter pack must withstand high flow velocities while maintaining a specific micron rating to prevent internal erosion and mechanical wear.
Anatomy of a Filter Pack: Components and Construction

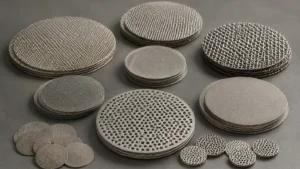

To understand how to filter packs, one must look at their physical construction. A standard industrial filter pack is rarely a single sheet of wire mesh. Instead, it is a multi-layered assembly optimized for specific mechanical loads.
Layer Sequencing
A typical pack consists of three to five layers, though complex applications may require more. The sequencing usually follows a coarse-fine-coarse pattern:
1. Support Layer (Coarse): Positioned at the downstream side, this heavy-duty mesh provides structural rigidity to prevent the finer layers from collapsing or migrating under high pressure.
2. Filtration Layer (Fine): This is the core of the pack, determined by the required micron rating. It captures the target particles.
3. Protector/Distributor Layer (Medium/Coarse): Positioned at the upstream side, this layer protects the fine mesh from initial impact and helps distribute the fluid flow evenly across the surface of the filtration layer.
Binding and Framing
To ensure the layers remain aligned and to prevent bypass (where fluid leaks around the edges), filter packs are often finished with a border. Common methods include:
* Spot Welding: Multiple points are welded to hold the layers together without a frame.
* Aluminum or Copper Rimming: A metal channel is compressed around the circumference of the disc. This provides a superior seal against the walls of the filter housing or breaker plate.
* Sintering: In high-performance applications, the layers are diffusion-bonded together, creating a monolithic structure that eliminates the risk of wire migration.
Technical Principles: How Filter Packs Manage Particle Retention
The mechanics of how to filter packs involve two primary filtration types: surface filtration and depth filtration.
Surface Filtration
Most wire mesh packs operate primarily on surface filtration principles. Particles larger than the mesh opening are trapped at the surface. This is highly effective for rigid contaminants but can lead to rapid "blinding" (clogging) if the contaminant load is high. The choice of weave—such as plain, twill, or Dutch weave—greatly influences the surface area and the shape of the pores.
Depth Filtration
When multiple layers of varying mesh counts are used, a degree of depth filtration occurs. Smaller particles that might pass through a single coarse screen become trapped within the interstitial spaces of the multi-layer assembly. This increases the "dirt-holding capacity" of the pack, allowing for longer run times before the pressure drop reaches a critical limit.
Selecting the Right Mesh Configuration for Specific Viscosities
Viscosity is a determining factor in how to filter packs for a specific process. High-viscosity fluids, such as molten polymers or heavy resins, exert significant shear stress on the filter media.
* Low Viscosity Fluids: Can utilize finer meshes with higher density without causing an immediate spike in differential pressure.
* High Viscosity Fluids: Require a robust support structure. If the mesh is too fine or the support is inadequate, the pressure required to push the fluid through the pack can exceed the mechanical limits of the wire, leading to "blowouts" or mesh distortion.
Engineers must calculate the expected pressure drop ($ΔP$) using the fluid's flow rate and viscosity. A well-designed filter pack should operate within a specific pressure window, providing enough resistance for homogenization without overworking the motor of the extruder or pump.
Material Engineering: Choosing Alloys for High-Temperature and Corrosive Environments
Material selection is a cornerstone of industrial filtration. Since many filter packs operate at temperatures exceeding 300°C or in contact with corrosive chemicals, the alloy must be chosen with care.
1. Stainless Steel 304: The industry standard for general-purpose applications. It offers good strength and basic corrosion resistance.
2. Stainless Steel 316/316L: Contains molybdenum, which provides superior resistance to chlorides and organic acids. This is the preferred choice for pharmaceutical and food-grade applications.
3. High-Nickel Alloys (Inconel, Monel, Hastelloy): Used in extreme environments where standard stainless steel would succumb to oxidation or severe chemical attack.
When considering how to filter packs for long-term use, the durability of the wire material directly impacts the total cost of ownership. While 316L may have a higher upfront cost than 304, its resistance to pitting and corrosion often extends the replacement cycle, providing better value in aggressive chemical environments.
Operational Best Practices: Managing Pressure Drop and Replacement Cycles
In a production environment, the performance of a filter pack is monitored via the differential pressure across the breaker plate. Understanding the lifecycle of the pack is essential for maintaining uptime.
Initial Pressure Drop
Every new filter pack will have an initial $ΔP$. If this is too high from the start, it indicates that the mesh is too fine for the current flow rate or viscosity, or that the pack design is too restrictive.
The Loading Phase
As contaminants accumulate, the pressure will rise gradually. This is the normal operating phase. Monitoring the rate of this rise helps engineers predict when the pack will reach its terminal pressure.
Terminal Pressure and Replacement
Once the pressure reaches a pre-defined limit, the pack must be replaced. Continuing to operate beyond this point risks forcing contaminants through the mesh (breakthrough) or causing a mechanical failure of the pack. In automated systems, such as continuous screen changers, this process is handled without stopping production. In manual systems, the timing of the change is critical to avoid unnecessary downtime.
Customization and Precision Manufacturing for OEM Applications
For many equipment manufacturers (OEMs), standard off-the-shelf filter discs do not meet the specific requirements of their proprietary designs. Customization is often necessary to achieve the desired balance of flow and filtration.
Customization options include:
* Variable Layering: Tailoring the number and order of layers to a specific resin or chemical compound.
* Unique Geometries: While circular discs are most common, many systems require oval, rectangular, or kidney-shaped packs.
* Precision Tolerances: Ensuring the outer diameter of the pack fits perfectly within the housing to prevent bypass.
Kaifil specializes in these customized solutions, providing the engineering expertise required to develop high-performance filtration components. By working closely with clients to understand their specific application requirements—from material selection to filtration accuracy—Kaifil delivers dependable components for the most demanding industrial environments.
Conclusion: Optimizing Filtration Performance
Mastering how to filter packs involves more than just selecting a micron rating. It requires a holistic view of the filtration process, including the mechanical stresses of the environment, the chemical nature of the fluid, and the structural requirements of the assembly. By selecting the correct material, weave, and layer configuration, industrial operators can significantly improve product purity, protect expensive machinery, and optimize their production efficiency. Whether for a standard hydraulic system or a complex high-temperature polymer extrusion line, the right filter pack is a critical investment in process stability.
