Nd Filter Pack Gopro
In the realm of precision engineering, the term "filter" encompasses a broad spectrum of technologies, ranging from the optical attenuation found in a high-quality nd filter pack gopro to the sophisticated mechanical separation provided by industrial Filter Discs & Packs. While the former is designed to manage light intensity for action cameras, the latter is engineered to manage particulate matter in high-pressure fluid and gas systems. For industrial engineers and procurement specialists, understanding the parallels in precision manufacturing and the distinct requirements of industrial-grade filtration is essential for optimizing system performance.
Industrial filter packs and discs are the backbone of various sectors, including polymer extrusion, chemical processing, and hydraulic systems. Much like an ND filter must maintain optical clarity while reducing light, an industrial filter pack must maintain flow rates while capturing specific micron-sized contaminants. This article explores the technical specifications, material considerations, and engineering principles behind high-performance metal filtration components.
The Engineering Principles of Precision Filter Discs & Packs
At its core, a filter pack is a multi-layered assembly of wire mesh designed to provide graduated filtration. Unlike a single-layer screen, a pack often utilizes a combination of different mesh counts to achieve a specific balance between filtration fineness and structural integrity.
Layering Strategy
In industrial applications, a typical pack consists of:
1. The Filtration Layer: The central layer (or layers) with the finest mesh count, responsible for the actual capture of particles at the required micron rating.
2. The Support Layer: Coarser mesh layers placed on either side of the filtration layer to prevent it from deforming under high pressure.
3. The Drainage Layer: Often the coarsest layer, designed to facilitate the even distribution of fluid across the entire surface area of the disc.
This layered approach is analogous to the construction of a high-end nd filter pack gopro, where multiple coatings or glass elements work in tandem to achieve a specific result. In industrial filtration, this results in a component that can withstand significant differential pressures while maintaining a precise cut-off point for contaminants.
Material Science in Industrial Filtration Components
Material selection is the most critical factor in determining the longevity and effectiveness of filter discs. While consumer optics use specialized glass and polymers, industrial filters rely on metallurgy to survive harsh environments.
Stainless Steel 304 and 316L
Stainless steel is the industry standard due to its corrosion resistance and mechanical strength.
* SS 304: Suitable for general industrial use where mild corrosion resistance is required. It is cost-effective and provides excellent structural stability.
* SS 316L: The "L" stands for low carbon, which makes this alloy superior for applications involving high temperatures and corrosive chemicals, such as in the pharmaceutical or food and beverage industries. It resists pitting and crevice corrosion more effectively than 304.
Exotic Alloys
For extreme environments—such as those found in desalination or specialized chemical synthesis—materials like Hastelloy, Monel, or Inconel may be utilized. These alloys offer exceptional resistance to acids, alkalis, and extreme thermal cycling that would cause standard stainless steel to fail.
Comparing Optical ND Filter Packs with Industrial Mesh Packs
Although a search for an nd filter pack gopro typically leads to photography equipment, the underlying manufacturing philosophy shares common ground with industrial Filter Discs & Packs. Both industries demand absolute consistency across the surface of the filter.
Precision and Uniformity
In an ND filter, any variation in the density of the coating results in "hot spots" or uneven exposure. In an industrial wire mesh disc, any variation in the weave—such as a shifted wire or an enlarged aperture—creates a path of least resistance. This allows oversized particles to pass through, potentially damaging downstream equipment like high-pressure pumps or precision spray nozzles.
Manufacturing Tolerances
Kaifil utilizes advanced stamping and cutting technologies to ensure that every disc in a pack is perfectly aligned. For multi-layer packs, spot welding or aluminum/stainless steel binding is used to secure the layers. This ensures that the edges are sealed, preventing "bypass," which is the industrial equivalent of light leakage in an optical filter housing.
Customization Options for Multi-Layer Filter Packs
Industrial systems are rarely "one size fits all." Customization is required to meet specific flow rates, pressure drops, and contaminant loading capacities.
Shape and Configuration

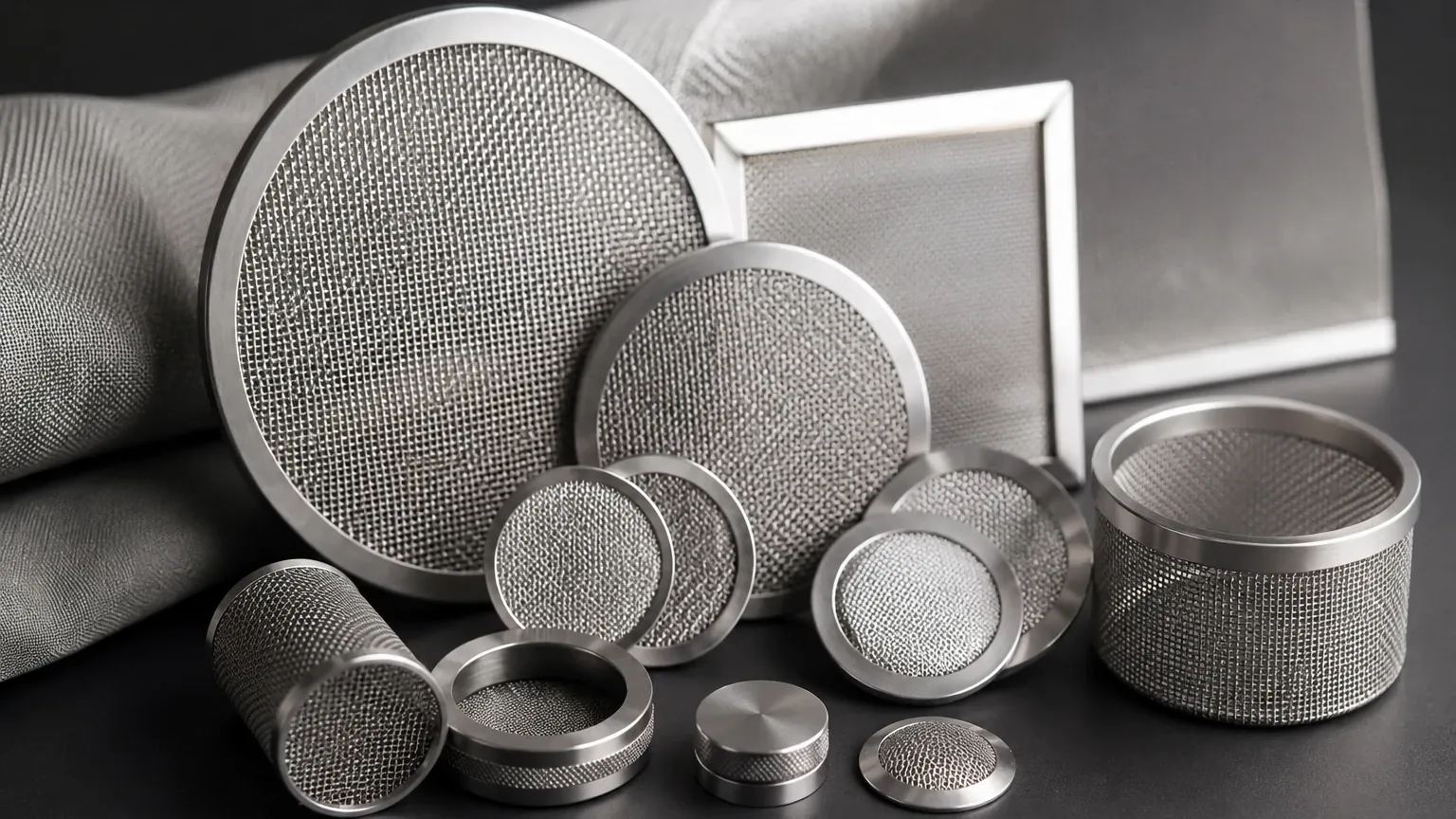

Filter discs can be manufactured in various shapes, including:
* Circular Discs: The most common form, used in pipe systems and extrusion heads.
* Oval and Rectangular Packs: Often used in specialized machinery where space is constrained.
* Annular (Donut) Discs: Designed for systems where a central shaft must pass through the filter assembly.
Binding and Edging
To ensure ease of installation and to prevent fraying of the wire mesh, several edging options are available:
* Spot Welded: The layers are fused at specific points. This is ideal for packs that will be housed within a tight-fitting recessed chamber.
* Rimmed/Framed: An aluminum, copper, or stainless steel rim is crimped around the edge. This provides a gasket-like seal and increases the structural rigidity of the pack.
* Sintered: For the most demanding applications, the layers are diffusion-bonded (sintered) together in a vacuum furnace. This creates a monolithic structure that cannot delaminate, even under extreme back-pressure or ultrasonic cleaning.
Performance Metrics: Filtration Accuracy and Pressure Resistance
When evaluating Filter Discs & Packs, engineers must focus on two primary metrics: the micron rating and the "clean" pressure drop.
Micron Rating (Absolute vs. Nominal)
* Nominal Rating: Refers to the ability of the filter to retain a majority of particles of a specific size (e.g., 95% of 20-micron particles).
* Absolute Rating: Refers to the diameter of the largest hard spherical particle that will pass through the filter under specified test conditions. For critical applications, an absolute rating is required to ensure system safety.
Pressure Drop (ΔP)
The pressure drop is the difference in pressure between the upstream and downstream sides of the filter. A well-designed pack minimizes the initial pressure drop to maximize the energy efficiency of the pump system. As the filter captures debris, the pressure drop increases. Engineers must calculate the "terminal pressure drop"—the point at which the filter must be cleaned or replaced to prevent system failure.
Selecting the Right Filter Configuration for Industrial Systems
Choosing the correct filter involves more than just matching a diameter. Procurement teams should confirm the following technical details before finalizing a specification:
1. Fluid Compatibility: Will the medium (liquid or gas) react with the mesh material or the binding metal?
2. Operating Temperature: High temperatures can cause thermal expansion, which may loosen a rimmed pack or alter the aperture size of the mesh.
3. Flow Velocity: High-velocity flows can cause "wire migration" if the mesh is not properly supported or sintered.
4. Cleaning Requirements: Is the filter intended to be a consumable (disposable), or must it withstand rigorous cleaning processes like pyrolysis or ultrasonic bathing for reuse?
While a consumer might look for an nd filter pack gopro to enhance a weekend video, industrial professionals look for filter packs that ensure 24/7 operational continuity. The precision required in both fields is high, but the stakes in industrial filtration involve preventing costly downtime and equipment damage.
Maintenance and Longevity of Metal Filter Packs
One of the primary advantages of stainless steel filter discs over polymer or paper alternatives is their cleanability. In many polymer recycling or chemical processing plants, filter packs are subjected to high-heat cleaning to remove organic build-up.
Inspection Protocols
Regular inspection of the mesh surface is vital. Engineers should look for:
* Blinding: Permanent clogging of the mesh pores that cannot be removed by standard cleaning.
* Deformation: "Cupping" or bowing of the disc, which indicates that the pressure limits of the support layers have been exceeded.
* Edge Breach: Any gaps between the mesh and the rim/frame that could allow unfiltered bypass.
By selecting high-quality, precision-manufactured components, facilities can significantly extend the intervals between maintenance cycles, thereby reducing the total cost of ownership. Whether you are designing a new hydraulic system or optimizing an extrusion line, the technical integrity of your filter discs is paramount to success.
