In the modern digital landscape, the phrase "photoshop filter pack free download" is a common search query for graphic designers and photographers seeking software-based tools to alter visual aesthetics. However, in the specialized world of industrial manufacturing and precision engineering, the term "filter pack" carries a vastly different, physical meaning. For engineers, procurement specialists, and plant managers, a filter pack is not a digital asset but a critical hardware component—specifically, a multi-layered assembly of wire mesh used to ensure the purity of fluids, gases, and polymers under extreme pressure and temperature.
While digital filters manipulate pixels, industrial Filter Discs & Packs manipulate physical matter, removing contaminants that could otherwise compromise the integrity of high-value production lines. Understanding the distinction between these two worlds is essential for technical professionals who must source reliable filtration solutions for chemical processing, plastic extrusion, and pharmaceutical manufacturing.
The Industrial Definition: What are Filter Discs & Packs?

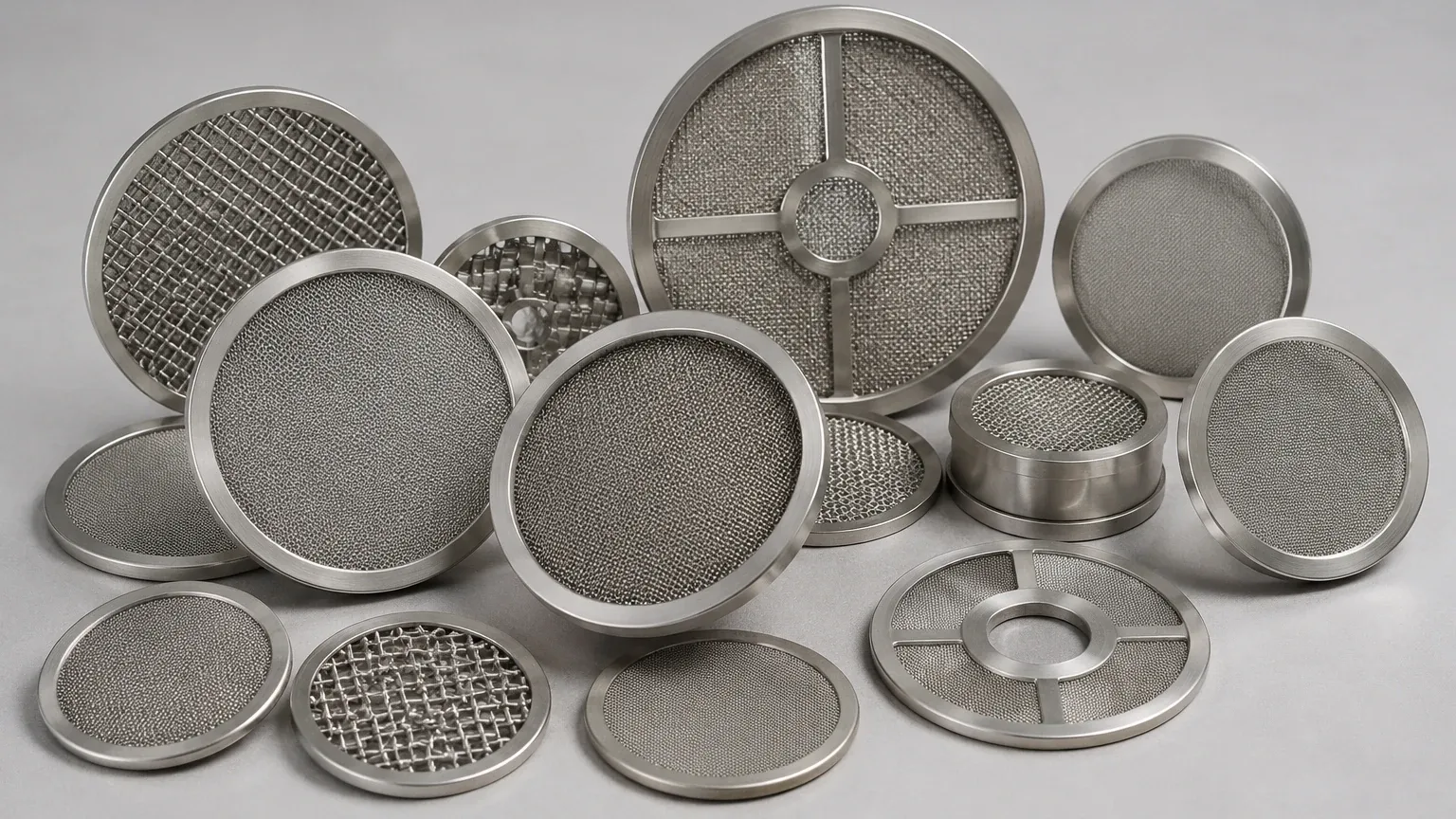

In an industrial context, filter discs and packs refer to precision-cut circular or shaped components made from stainless steel wire mesh. These components are often used in "packs"—multiple layers of mesh with varying micron ratings stacked together to provide graduated filtration. This configuration allows for the capture of larger particles on the outer layers while the inner, finer layers perform the final, high-precision separation.
Unlike a digital "photoshop filter pack free download" which can be replicated infinitely at no cost, industrial filter packs are engineered products that require significant material science and manufacturing expertise. They are designed to withstand differential pressures that would collapse standard filters and to resist corrosive environments that would degrade lesser materials.
Key Components of an Industrial Filter Pack
1. Filter Media: Usually woven stainless steel wire mesh (304, 316, or 316L). In some specialized applications, sintered metal fiber or wedge wire may be used.
2. Support Layers: Coarser mesh layers that provide structural rigidity to the finer filtration layers, preventing them from deforming under high flow rates.
3. Binding/Edges: To prevent fraying and ensure a proper seal within the machinery, filter packs are often bound with an aluminum, copper, or stainless steel rim. Alternatively, they may be spot-welded at the edges.
Material Engineering and Selection Criteria
When specifying Filter Discs & Packs for industrial use, material selection is the most critical factor influencing performance and longevity. Most industrial applications demand the use of stainless steel due to its mechanical strength and chemical resistance.
Stainless Steel 304 vs. 316L
* Grade 304: This is the standard "18/8" stainless steel. It offers excellent strength and good corrosion resistance for general industrial applications, such as water treatment and food processing where high acidity is not a factor.
* Grade 316L: The "L" stands for low carbon. This grade includes molybdenum, which significantly enhances resistance to chlorides and industrial solvents. It is the preferred choice for marine environments, pharmaceutical production, and chemical processing where the risk of pitting corrosion is high.
Specialized Alloys
In extreme cases where even 316L stainless steel may fail—such as in highly acidic or high-temperature environments—manufacturers like Kaifil can provide filter packs made from Hastelloy, Inconel, or Monel. These alloys are essential for petrochemical refining and aerospace applications where failure is not an option.
Engineering Considerations: Weave Types and Micron Ratings
The performance of a filter pack is largely determined by the weave of the wire mesh. Engineers must choose a weave that balances filtration accuracy (micron rating) with flow capacity (permeability) and mechanical strength.
Common Weave Patterns
* Plain Weave: The simplest and most common weave, where each warp wire crosses over and under each shute wire. It provides high flow rates but is generally limited to coarser filtration levels.
* Dutch Weave: This weave uses a heavier warp wire and a finer shute wire, resulting in a dense, strong mesh with very small triangular openings. This is ideal for high-pressure filtration and fine particle separation.
* Twilled Dutch Weave: By passing wires over two and under two, this weave allows for the use of even finer wires, enabling filtration ratings down to the 5-10 micron range while maintaining a robust structure.
Understanding Micron Ratings
The micron rating defines the size of the particles the filter is designed to trap. When selecting Filter Discs & Packs, it is vital to distinguish between "nominal" and "absolute" ratings. A nominal rating indicates the filter can trap a large percentage of particles of a certain size, while an absolute rating guarantees that no particles larger than the specified size will pass through. For critical applications like hydraulic systems or pharmaceutical synthesis, absolute ratings are mandatory.
Manufacturing Processes and Quality Control
Producing high-quality Filter Discs & Packs involves more than just cutting mesh. Precision manufacturing ensures that the discs are perfectly flat, free of burrs, and dimensionally accurate to fit snugly into filter housings.
Precision Cutting
Modern facilities use CNC die-cutting or laser cutting to ensure that every disc meets exact tolerances. This is particularly important for multi-layer packs, where the alignment of the layers can affect the overall pressure drop across the filter.
Assembly Techniques
* Spot Welding: For packs that do not require a rim, layers are spot-welded at strategic points to keep them aligned during installation. This is a cost-effective method for many extrusion applications.
* Aluminum/Copper Binding: A metal rim is crimped around the edge of the mesh stack. This provides a superior seal and makes the pack easier to handle and install without damaging the delicate mesh edges.
* Sintering: In some high-performance packs, the layers are sintered (diffusion bonded) together in a vacuum furnace. This creates a monolithic structure that cannot migrate or shift, even under extreme vibration or back-pressure.
Industrial Applications for Filter Packs
While a "photoshop filter pack free download" serves the creative industry, physical filter packs are workhorses in the following sectors:
1. Plastic and Polymer Extrusion
In the production of plastic films, fibers, and resins, molten polymer is forced through a "screen pack." This pack removes un-melted gels and contaminants that would cause defects in the final product. Filter packs are essential in the production of everything from plastic bags to high-performance synthetic fibers.
2. Chemical and Petrochemical Processing
Filter discs are used to protect sensitive catalysts in reactors and to ensure the purity of liquid chemicals. Their ability to withstand high temperatures and aggressive solvents makes stainless steel packs the only viable option in these environments.
3. Food and Beverage Industry
From filtering cooking oils to clarifying fruit juices, stainless steel filter discs provide a hygienic, reusable solution. Because they can be cleaned and sterilized, they offer a lower total cost of ownership compared to disposable paper or fabric filters.
4. Oil and Gas Filtration
In hydraulic systems and fuel lines, even microscopic particles can cause catastrophic component failure. Multi-layer filter packs ensure that fluids remain within the strict cleanliness levels required by modern machinery.
Sourcing and Customization: Why OEM Expertise Matters
For engineers, the challenge is rarely finding "a" filter, but rather finding the *right* filter for a specific set of operating conditions. This is where working with an experienced manufacturer like Kaifil becomes invaluable.
The Limitations of Off-the-Shelf Solutions
Standard filter sizes may not always account for the unique pressure drops or flow characteristics of a custom-built machine. Using an incorrectly specified filter can lead to:
* Premature Blinding: The filter clogs too quickly, leading to excessive downtime for replacement.
* Media Migration: Under high pressure, individual wires from a low-quality mesh can break off and enter the downstream flow, contaminating the product.
* Bypass: If the filter disc does not fit perfectly within its housing, unfiltered fluid will leak around the edges.
The Value of Customization
Customized Filter Discs & Packs allow engineers to specify the exact combination of layers, materials, and edge treatments needed for their application. Whether it is a unique diameter for a legacy extrusion line or a specific mesh combination to handle high-viscosity fluids, OEM manufacturing ensures that the filter performs as intended.
Maintenance and Total Cost of Ownership
One of the primary advantages of stainless steel filter packs over disposable alternatives is their cleanability. Depending on the contaminant, filter packs can be cleaned using ultrasonic baths, chemical solvents, or burnout furnaces.
When to Replace vs. Clean
While cleaning can extend the life of a filter pack, there is a point of diminishing returns. Repeated cleaning cycles can eventually fatigue the wire mesh or lead to "permanent blinding," where particles become deeply embedded in the weave and cannot be removed. Monitoring the pressure differential (the difference in pressure before and after the filter) is the most effective way to determine when a pack needs to be cleaned or replaced.
Calculating Total Cost
When evaluating the cost of filter packs, procurement teams should look beyond the initial purchase price. Factors such as the frequency of replacement, the cost of production downtime, and the potential for product loss due to contamination all contribute to the total cost of ownership. High-quality, durable filter packs from a reputable manufacturer often prove to be the most cost-effective solution over the long term.
Conclusion: Selecting the Right Tool for the Job
In conclusion, while the term "photoshop filter pack free download" may dominate the search results for digital creators, the industrial reality of filter packs is one of rigorous engineering and material science. For the technical professional, the priority is not a free download, but a reliable, high-performance physical component that ensures the safety and efficiency of industrial processes.
By focusing on material grade, weave type, and manufacturing quality, engineers can select filter discs and packs that provide optimal filtration performance and durability. Whether you are operating a polymer extrusion line or a complex chemical reactor, the right filtration solution is a cornerstone of operational success. For those seeking specialized guidance or custom manufacturing, reviewing professional product options and application support is the first step toward optimizing your filtration system.
