Poe Filter Sound Packs
In the landscape of industrial filtration, the term "POE" typically refers to Point-of-Entry systems—critical junctions where fluids or gases enter a processing facility or a specific piece of machinery. In these demanding environments, the integration of specialized "sound packs," or multi-layered filter disc assemblies designed to manage fluid harmonics and turbulence, is essential for maintaining system longevity. For engineers and procurement specialists, understanding the technical nuances of Filter Discs & Packs is the first step toward optimizing process efficiency and reducing mechanical fatigue caused by acoustic resonance.
Industrial poe filter sound packs are not merely simple screens; they are precision-engineered components that combine multiple layers of stainless steel wire mesh to achieve specific micron ratings while simultaneously dampening the vibrations inherent in high-velocity fluid streams. This guide explores the engineering principles, material considerations, and selection criteria necessary for implementing these components in professional B2B applications.
The Engineering Behind Point-of-Entry (POE) Filter Discs & Packs
Point-of-Entry filtration serves as the primary defense mechanism for downstream equipment, such as high-pressure pumps, sensitive valves, and precision nozzles. When fluid enters a system, it often carries a mix of particulate matter and kinetic energy that can lead to "noise"—both literal acoustic noise and mechanical vibration.

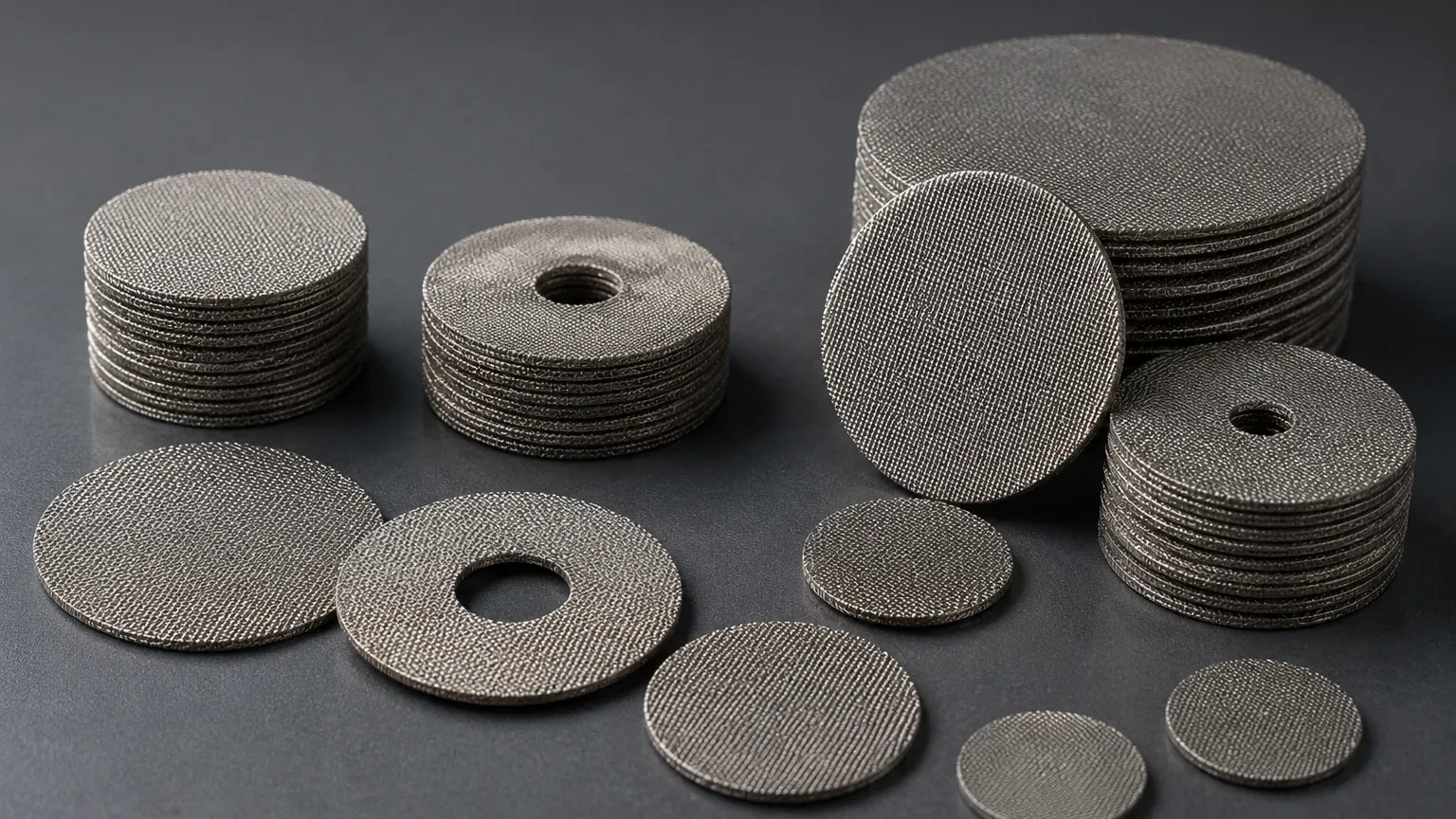

A "pack" in this context refers to a multi-layer assembly of filter discs. These are often composed of a fine filtration layer sandwiched between coarser support layers. The structural design of these packs is critical for several reasons:
1. Pressure Drop Management: By utilizing a graduated density (coarse to fine), the filter pack can capture larger particles on the outer layers, preventing the inner fine mesh from blinding prematurely. This maintains a stable pressure differential across the POE junction.
2. Flow Laminarization: High-velocity intake often results in turbulent flow. A well-designed filter pack acts as a flow straightener, converting turbulent energy into laminar flow, which significantly reduces the "sound" or vibration signature of the system.
3. Mechanical Rigidity: Unlike single-layer screens, multi-layer packs are often spot-welded or rim-bound with aluminum or stainless steel edges. This ensures that the filter does not deform under the high-pressure surges common at entry points.
Acoustic Performance and Fluid Dynamics in Industrial Filtration
The "sound" aspect of poe filter sound packs relates to the management of fluid-induced vibration (FIV). In large-scale chemical processing or hydraulic systems, the passage of fluid through a restrictive orifice can create high-frequency oscillations. If these oscillations match the natural frequency of the piping system, resonance occurs, leading to catastrophic hardware failure.
Engineers specify these filter packs to serve as acoustic attenuators. The tortuous path created by the woven wire mesh dissipates the energy of pressure waves. When selecting a pack for sound-sensitive applications, the weave type—such as Plain Dutch Weave or Twilled Dutch Weave—plays a significant role. Dutch weaves provide a dense, compact structure that is particularly effective at breaking up pressure pulses, thereby "quieting" the system entry point.
Furthermore, in applications involving ultrasonic cleaning or monitoring, the integrity of the filter pack is paramount. A loose mesh layer can create parasitic noise that interferes with ultrasonic sensors. Precision-manufactured packs from Kaifil ensure that every layer is securely bonded, providing a consistent acoustic profile that does not degrade over time.
Structural Integrity: Sintered vs. Mesh Filter Packs
When evaluating Filter Discs & Packs, engineers must choose between traditionally bonded packs and sintered metal packs. This choice directly impacts the durability and performance of the POE system.
Multi-Layer Mesh Packs
These are typically held together by a metal rim or spot welding. They are cost-effective and offer excellent flexibility for customization. They are ideal for applications where the flow direction is consistent and the pressure pulses are moderate. The rim-binding process is crucial here; a high-quality rim prevents the fraying of wire ends, which could otherwise enter the fluid stream as secondary contaminants.
Sintered Filter Discs
For extreme environments, sintering is the preferred method. In this process, multiple layers of wire mesh are bonded together through heat and pressure without the use of binders. This creates a monolithic structure where the individual wires are fused at every contact point. Sintered poe filter sound packs offer the highest level of mechanical strength and are virtually immune to the vibration-induced fatigue that can plague lower-quality components. They are also easier to backwash, as the fixed pore structure does not shift under reverse pressure.
Material Selection for Demanding Industrial Environments
The efficacy of a POE filter pack is heavily dependent on the metallurgy of the wire mesh. While Stainless Steel 304 is the standard for many general industrial applications, more demanding environments require specialized alloys:
* Stainless Steel 316L: The addition of molybdenum provides superior resistance to chlorides and acids, making it the industry standard for pharmaceutical and food-grade POE systems.
* 904L and Hastelloy: In highly corrosive chemical processing, these nickel-based alloys are used to prevent pitting and crevice corrosion, ensuring the filter pack does not become a point of failure in the system.
* High-Temperature Alloys: For steam filtration or hot gas entry points, materials that maintain their tensile strength at elevated temperatures are required to prevent the mesh from sagging or breaking.
Beyond the alloy, the wire diameter and weave density must be balanced. A thicker wire increases the pack's lifespan and resistance to physical impact but reduces the open area, which increases the initial pressure drop. Engineers must calculate the "Effective Filtration Area" (EFA) to ensure the poe filter sound packs meet the required flow rates without exceeding the pump's capacity.
Customization and OEM Solutions for Industrial POE Systems
No two industrial systems are identical, and off-the-shelf filtration components often fall short of specific engineering requirements. Customization is a core advantage when sourcing from a professional manufacturer like Kaifil.
Customization options for poe filter sound packs include:
* Geometric Precision: Discs can be produced in diameters ranging from a few millimeters to over a meter, with tolerances held to strict engineering standards to ensure a bypass-free fit in the housing.
* Layer Configuration: Depending on the particulate load and the desired acoustic dampening, a pack might consist of 3, 5, or even 7 layers. Engineers can specify the exact micron rating for the inner layer while using outer layers for structural reinforcement.
* Edge Treatment: Options include aluminum, stainless steel, or copper binding, as well as specialized gaskets (such as PTFE or Viton) integrated directly into the filter rim to simplify installation and ensure a perfect seal.
For OEM manufacturers, having a reliable partner who can provide consistent quality across thousands of units is essential. This consistency ensures that every machine produced has the same filtration and sound-dampening characteristics, which is vital for brand reputation and warranty management.
Evaluating Total Cost of Ownership (TCO)
When purchasing industrial filters, procurement teams often focus on the initial unit price. However, for POE components, the Total Cost of Ownership (TCO) is a much more accurate metric. A low-quality filter pack that fails prematurely can cause downstream damage to pumps or lead to unscheduled downtime, the costs of which far outweigh the savings on the filter itself.
Factors influencing TCO for poe filter sound packs include:
1. Cleaning Cycles: Can the filter be cleaned and reused, or is it a disposable component? Stainless steel packs are generally cleanable via ultrasonic baths or back-pulsing, extending their service life significantly compared to polymer-based alternatives.
2. Energy Consumption: A filter with a high pressure drop forces the system's pumps to work harder, increasing energy costs. Precision-woven mesh optimizes the open area to minimize this drag.
3. Replacement Frequency: Durable materials and robust construction (like sintering) reduce the frequency of replacements, lowering both labor costs and the risk of installation errors.
Conclusion: Selecting the Right Partner for Filtration Excellence
Implementing the correct poe filter sound packs is a strategic decision that affects the reliability, noise levels, and efficiency of an entire industrial process. By focusing on high-quality Filter Discs & Packs, engineers can ensure that their Point-of-Entry systems are protected against both particulate contamination and fluid-induced mechanical stress.
Kaifil’s expertise in custom stainless steel filtration allows for the development of tailored solutions that meet the specific demands of the chemical, pharmaceutical, and food and beverage industries. Whether the requirement is for a simple mesh disc or a complex, multi-layer sintered pack designed for acoustic attenuation, selecting a manufacturer with deep technical knowledge and advanced production capabilities is the key to long-term operational success. When evaluating your next filtration project, consider the mechanical, chemical, and acoustic requirements of your POE system to choose a solution that delivers lasting value.
