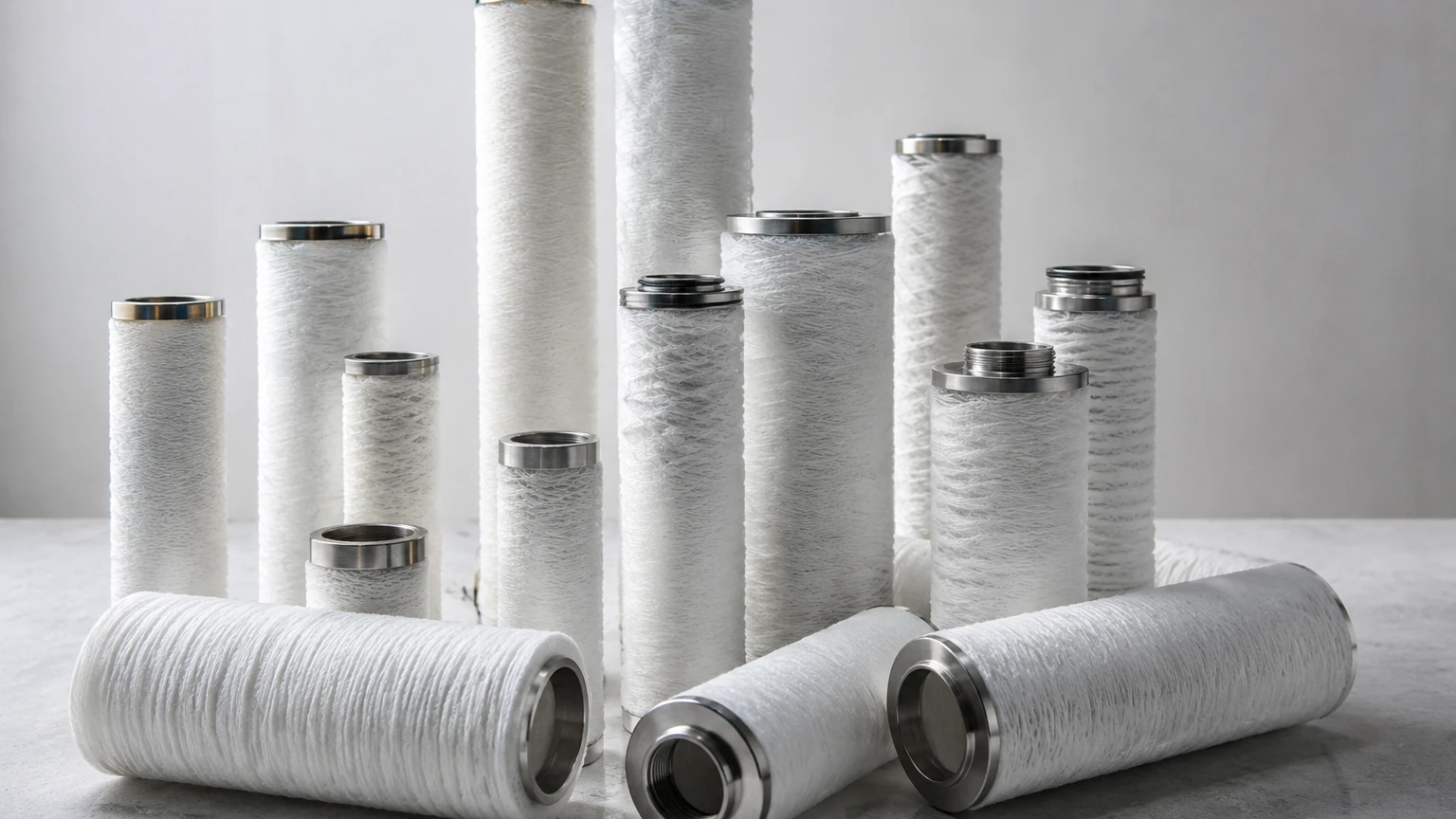

Depth Filter Cartridge
In the landscape of industrial separation technology, the depth filter cartridge represents a critical component for achieving high-efficiency fluid clarification and protection of downstream equipment. Unlike surface filtration, which captures contaminants on a single plane, depth filtration utilizes the entire volume of the filter medium to trap particles. This multi-dimensional approach allows for a significantly higher dirt-holding capacity, making it a preferred choice for processes involving high solids loading or a broad range of particle sizes.
For engineers and procurement professionals, selecting the right depth filter cartridge involves more than just matching a micron rating. It requires a comprehensive understanding of the media’s structural integrity, chemical compatibility, and the specific dynamics of the fluid being processed. As a professional manufacturer, Kaifil specializes in providing high-performance filtration solutions that address these complex industrial requirements through precision engineering and advanced material selection.
The Mechanics of Depth Filtration
The fundamental principle of a depth filter cartridge is the creation of a "tortuous path." As fluid passes through the filter media, particles are trapped within the complex, interconnected pores of the material. This process occurs through several mechanisms:
1. Mechanical Entrapment: Particles larger than the pore spaces are physically blocked as they attempt to navigate the internal structure.
2. Adsorption: Finer particles are often attracted to the surface of the filter fibers through molecular forces, allowing the filter to capture contaminants smaller than the actual pore size.
3. Gradient Density: High-quality depth filters often feature a graded pore structure, where the outer layers are more open to capture large debris, while the inner layers become progressively tighter to trap finer particles. This prevents the surface from blinding prematurely and ensures the entire thickness of the cartridge is utilized.
This volumetric capture method stands in contrast to surface filters, such as plain square weave wire mesh, which are typically used for coarser filtration or where backwashing is required. For applications requiring the removal of deformable particles or a wide distribution of contaminant sizes, the depth filter cartridge offers superior performance and longer service life.
Material Science and Construction
The performance of a depth filter cartridge is heavily dictated by its material composition. While many disposable options utilize polymers like polypropylene or polyester, demanding industrial environments often require the durability of metallic media. Kaifil provides specialized solutions including sintered metal fiber media, which functions as a high-end, permanent depth filter.
Polymeric Media
Polypropylene is the most common material for standard depth filters due to its broad chemical resistance and cost-effectiveness. These are often produced as melt-blown or string-wound cartridges. However, they are limited by temperature and pressure constraints, often losing structural integrity above 80°C or under high differential pressures.
Sintered Metal Fiber
For high-temperature applications, corrosive chemical processing, or high-pressure hydraulic systems, sintered stainless steel fiber felt is the pinnacle of depth filtration technology. These cartridges consist of non-woven stainless steel fibers that are sintered together to create a rigid, porous structure. They combine the high dirt-holding capacity of a traditional depth filter cartridge with the mechanical strength and thermal resistance of stainless steel.
Engineering Considerations for Materials
When specifying a cartridge, engineers must confirm:
* Chemical Compatibility: Does the media or the bonding agent react with the process fluid?
* Thermal Stability: Will the material maintain its pore structure at operating temperatures?
* Structural Strength: Can the cartridge withstand the maximum expected differential pressure without collapsing or bypassing?
Evaluating Filtration Performance: Micron Ratings and Efficiency
One of the most common points of confusion in filter procurement is the distinction between nominal and absolute micron ratings. A depth filter cartridge is frequently rated nominally, meaning it will retain a major percentage (typically 60% to 95%) of particles at a specific size.
To ensure process consistency, technical teams should look for the following metrics:
The Beta Ratio
In critical applications, such as pharmaceutical or fine chemical production, the Beta Ratio (β) provides a more accurate picture of efficiency. It is the ratio of particles of a given size in the upstream fluid versus the downstream fluid. A depth filter with a high Beta ratio provides more predictable results and better protection for sensitive downstream components.
Dirt-Holding Capacity (DHC)
The DHC defines how much contaminant a cartridge can retain before reaching its terminal pressure drop. A depth filter cartridge with a well-engineered gradient density will always outperform a uniform density filter in terms of DHC. This directly impacts the Total Cost of Ownership (TCO) by reducing the frequency of filter changes and system downtime.
Flow Rate vs. Pressure Drop
Every filter introduces a pressure drop (Delta P) into the system. It is essential to size the filtration system so that the initial pressure drop is low, allowing for a longer "run time" as the filter loads with contaminants. Factors affecting this include fluid viscosity, flow velocity, and the effective filtration area of the cartridge.
Industrial Applications and Selection Criteria
Depth filter cartridges are utilized across a vast array of sectors, each with unique challenges. Understanding these applications helps in selecting the appropriate configuration from the Main Page of a supplier's catalog.
Chemical and Petrochemical Processing
In these environments, filters must resist aggressive solvents and high temperatures. Sintered metal depth media are often used here to remove catalysts or protect high-pressure pumps. The ability to clean and reuse stainless steel depth filters provides a significant environmental and economic advantage over disposable polymer units.
Food and Beverage Industry
Filtration in this sector requires materials that comply with FDA or equivalent food-safety standards. Depth filters are used for clarifying syrups, juices, and oils. The focus here is on removing haze and organic particulates without stripping away essential flavors or colors.
Hydraulic and Lube Oil Systems
Precision hydraulic systems are highly sensitive to particulate contamination. A depth filter cartridge is often used as a polishing filter to maintain ISO cleanliness codes. In these applications, the filter must handle high-viscosity fluids and potential pressure surges without media migration (the shedding of filter fibers into the effluent).
Operational Best Practices and Maintenance
To maximize the utility of a depth filter cartridge, industrial operators should implement standardized monitoring and maintenance protocols.
1. Differential Pressure Monitoring: The most reliable indicator of a filter’s status is the pressure gauge. Filters should be replaced or cleaned when they reach the manufacturer’s recommended terminal pressure drop, typically between 15 and 25 psi for many systems, though this varies by housing design.
2. Avoid Excessive Flow Surges: Rapid changes in flow rate can cause "particle unloading," where trapped contaminants are forced through the depth media by the sudden increase in pressure. Utilizing variable frequency drives (VFDs) on pumps can help mitigate this risk.
3. Correct Installation: Ensure that seals and O-rings (typically made of Viton, EPDM, or PTFE) are properly seated. Even the highest quality depth filter cartridge will fail to perform if fluid can bypass the media through a faulty seal.
Customization and OEM Solutions
Standard off-the-shelf filters do not always meet the rigorous demands of specialized industrial machinery. Customization is often necessary to optimize performance. When working with a manufacturer like Kaifil, engineers can specify unique dimensions, end-cap configurations (such as DOE, Code 7, or threaded connections), and specialized media blends.
Customized depth filtration solutions allow for:
* Optimized Housing Fit: Eliminating the need for expensive housing modifications.
* Tailored Micron Grades: Developing specific gradient structures for unique contaminant profiles.
* Enhanced Durability: Utilizing reinforced cores or outer cages for high-pressure environments.
By focusing on the technical requirements of the specific application rather than a generic commodity approach, purchasing teams can ensure they receive a filtration component that enhances process reliability and reduces long-term operational costs.
Conclusion
The depth filter cartridge remains an indispensable tool in industrial fluid management. Its ability to provide high-efficiency filtration while maintaining a large dirt-holding capacity makes it superior to surface-only alternatives in many complex scenarios. Whether the requirement is for a standard polypropylene melt-blown filter or a high-performance sintered stainless steel fiber cartridge, understanding the underlying engineering principles is key to making an informed decision.
For technical professionals seeking to optimize their filtration systems, evaluating the relationship between media structure, material compatibility, and operational efficiency is the first step toward achieving superior process results. Reviewing the available product options and application support on the Main Page can provide the necessary technical foundation for selecting the ideal filtration solution for any demanding industrial environment.
