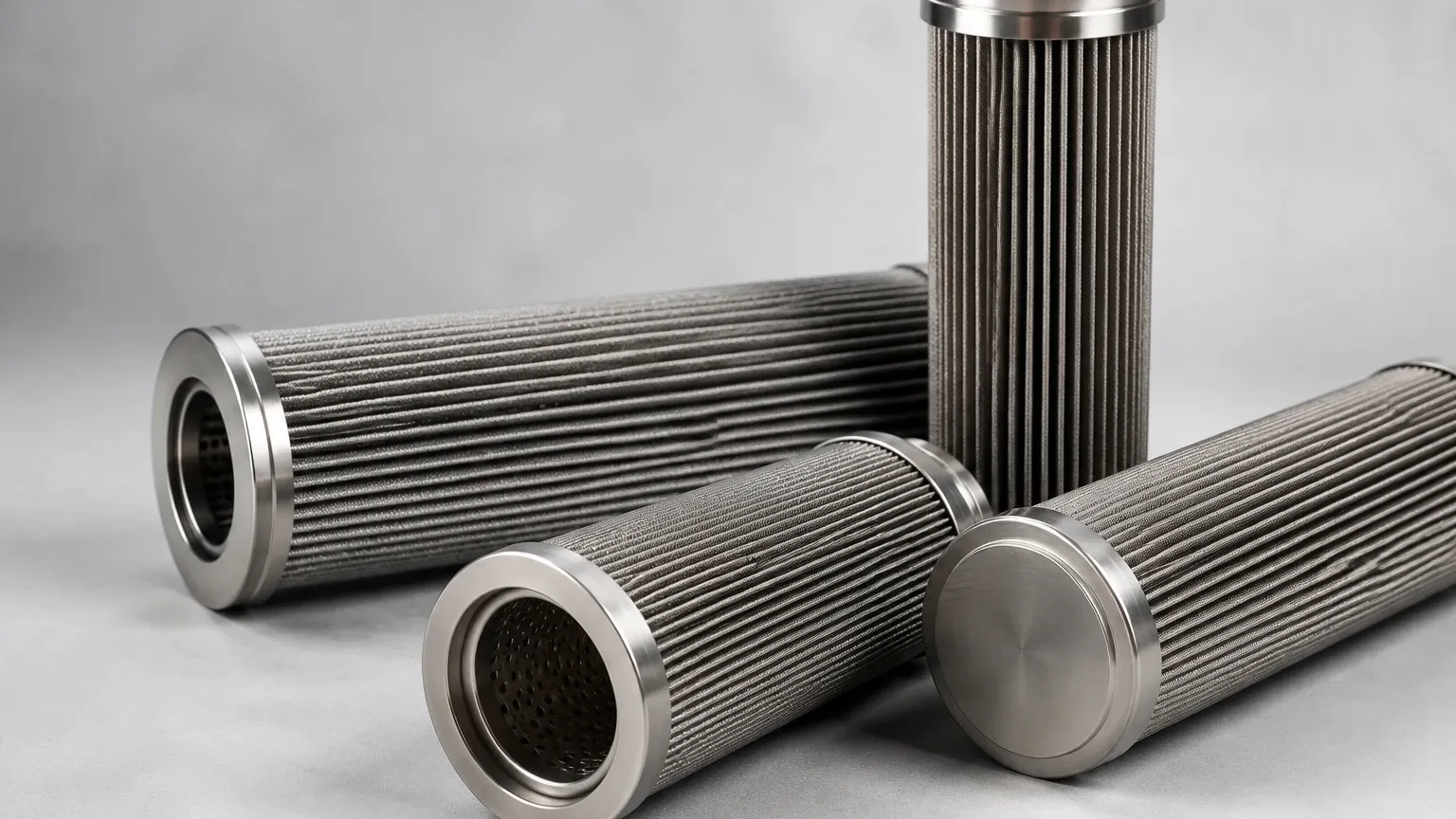

Cartridge Filter 73112
In the landscape of industrial fluid management, selecting the correct filtration component is a critical decision that impacts system longevity, product purity, and operational efficiency. The cartridge filter 73112 represents a specific class of high-performance filtration media designed to meet the rigorous demands of industrial processing. Whether utilized in water treatment, chemical manufacturing, or hydraulic systems, understanding the technical nuances of this specification is essential for engineers and procurement professionals aiming to optimize their filtration stages.
Industrial Filter Cartridges are more than simple consumables; they are engineered components that must withstand varying pressures, temperatures, and chemical exposures. For facilities moving away from standard disposable options toward more durable, cleanable, and sustainable solutions, the transition to stainless steel media provides a significant technical advantage. This guide examines the engineering considerations, performance metrics, and selection criteria associated with the 73112 specification and its high-durability alternatives.
Technical Specifications and Design Architecture
The cartridge filter 73112 is typically characterized by its physical dimensions and its ability to handle high flow rates within a compact footprint. In industrial applications, the "73112" designation often refers to a specific geometry—usually a large-diameter, high-surface-area design that allows for significant dirt-holding capacity.
Material Composition and Structural Integrity
While many standard 73112-style filters utilize polypropylene or pleated paper media, industrial environments often necessitate a shift toward metallic construction. Stainless steel (specifically 304 or 316L grades) offers superior structural integrity. Unlike polymer-based filters, stainless steel cartridges do not suffer from media migration or bypass caused by structural collapse under high differential pressure.
Micron Ratings and Filtration Efficiency
The effectiveness of a cartridge filter is defined by its micron rating, which can be either nominal or absolute. For the 73112 specification, common requirements range from 1 micron to 100 microns. An absolute-rated stainless steel mesh ensures that 99.9% of particles larger than the specified pore size are captured, providing a level of consistency that is vital in pharmaceutical and food-grade applications.
Engineering Considerations for High-Flow Systems
When integrating a cartridge filter 73112 into an existing system, engineers must evaluate the fluid dynamics at play. The relationship between flow rate, viscosity, and pressure drop (ΔP) is the primary determinant of a filter's suitability.
Pressure Drop and Flow Capacity
Every filter introduces a degree of resistance to the flow. A well-engineered 73112 cartridge minimizes the initial pressure drop by maximizing the effective filtration area. This is often achieved through pleating. By pleating stainless steel wire mesh, manufacturers can increase the surface area by several times compared to a standard cylindrical element. This increased area results in:
* Lower Flux Rates: Lowering the velocity of the fluid through the media, which improves particle capture efficiency.
* Extended Service Life: More surface area means more space for contaminant accumulation before the terminal pressure drop is reached.
* Energy Savings: Reducing the resistance in the line lowers the demand on pumps, leading to lower energy consumption over the lifecycle of the equipment.
Temperature and Chemical Compatibility
One of the most significant limitations of standard cartridge filters is their temperature ceiling. Polymer-based filters often lose structural rigidity above 60°C (140°F). In contrast, stainless steel filter cartridges can operate in environments exceeding 250°C (480°F), depending on the seal materials used (such as Viton or PTFE). Furthermore, for applications involving aggressive solvents, acids, or alkaline cleaning agents, the corrosion resistance of 316L stainless steel ensures that the filter does not leach contaminants into the process stream.
Applications Across Industrial Sectors
The versatility of the 73112 configuration makes it a staple in several critical industries. Each sector has unique requirements that dictate the final design of the filtration element.
Chemical and Petrochemical Processing
In the chemical industry, filters must handle fluids with varying viscosities and corrosive properties. The cartridge filter 73112 is frequently used to remove catalysts, protect downstream high-pressure pumps, and ensure the clarity of final liquid products. The ability to use sintered metal or multi-layered wire mesh allows these filters to survive the aggressive backwashing cycles often required in these plants.
Food and Beverage Production
Filtration in the food and beverage sector requires strict adherence to hygiene standards. Stainless steel cartridges are preferred here because they are biologically inert and can be sterilized using steam-in-place (SIP) or clean-in-place (CIP) protocols. The 73112 specification is often found in large-scale water filtration, syrup clarification, and carbonation protection stages.
Water Treatment and Desalination
For municipal and industrial water treatment, high-flow cartridges are used as pre-filtration for Reverse Osmosis (RO) membranes. By capturing silt, sand, and organic debris, the 73112 cartridge prevents the premature fouling of expensive membranes. In these high-volume settings, the durability of the filter housing and the cartridge core is paramount to prevent system downtime.
Evaluating Total Cost of Ownership (TCO)
A common pitfall in procurement is focusing solely on the initial purchase price of a cartridge filter. For a technical professional, the Total Cost of Ownership (TCO) is a much more accurate metric for performance evaluation.
Disposable vs. Cleanable Media
Standard 73112 cartridges are often treated as disposables. While the unit cost is lower, the cumulative costs of frequent replacements, labor for change-outs, and disposal fees for contaminated media can be substantial. Stainless steel Filter Cartridges offer a different economic model. Although the initial investment is higher, these filters are cleanable via ultrasonic baths, chemical cleaning, or backflushing. Over a period of 2 to 5 years, a cleanable stainless steel filter often proves to be the more cost-effective solution, especially in high-contaminant load environments.
Impact on Downstream Equipment
Failure to use a high-quality filter can lead to catastrophic damage to downstream components like spray nozzles, heat exchangers, and precision valves. The 73112 filter acts as a safeguard. Investing in a precision-manufactured cartridge with a guaranteed micron rating reduces the risk of unplanned maintenance and production halts, which are far more expensive than the filtration components themselves.
Maintenance and Performance Monitoring
To ensure the cartridge filter 73112 operates at peak efficiency, a proactive maintenance strategy must be implemented. This involves monitoring the differential pressure across the filter housing.
1. Baseline ΔP: Establish the pressure drop when the filter is clean and the system is at operating flow and temperature.
2. Alarm Setpoints: Set a terminal pressure drop (usually between 15 and 25 psi) at which the filter must be cleaned or replaced. Operating beyond this point risks "breakthrough," where contaminants are forced through the media or the media itself deforms.
3. Cleaning Protocols: For stainless steel elements, the cleaning method must be compatible with the contaminant. For example, organic buildup may require a caustic wash, while mineral scale may require an acid dip. Proper cleaning restores the filter to near-original baseline pressure drops.
Customization and OEM Solutions
Not all 73112 applications are standard. Often, an off-the-shelf solution does not meet the specific constraints of a custom-built machine or a unique chemical process. This is where professional manufacturing expertise becomes invaluable.
Customization options for the cartridge filter 73112 include:
* End Cap Configurations: Adapting the filter to fit specific housing styles, such as DOE (Double Open End), Code 7 (226 O-ring with bayonet), or custom threaded connections.
* Reinforced Cores: For high-viscosity fluids or high-pressure surge environments, an inner support core can be added to prevent collapse.
* Hybrid Media: Combining different layers of wire mesh to achieve a specific depth-filtration effect, which improves the capture of deformable particles like gels or oils.
By working with a manufacturer that understands these engineering variables, purchasing teams can secure filtration solutions that are tailored to their specific operational parameters rather than settling for a "one size fits all" approach.
Conclusion
The cartridge filter 73112 is a vital component in the industrial filtration toolkit. By moving beyond basic specifications and considering the materials of construction, fluid dynamics, and long-term maintenance requirements, engineers can significantly improve their process reliability. Stainless steel alternatives to standard 73112 filters provide the durability and precision required for modern industrial standards, ensuring that systems remain clean, efficient, and cost-effective over their entire service life. When selecting these components, prioritize technical data, material certifications, and the ability to customize the design to your specific environmental challenges.
