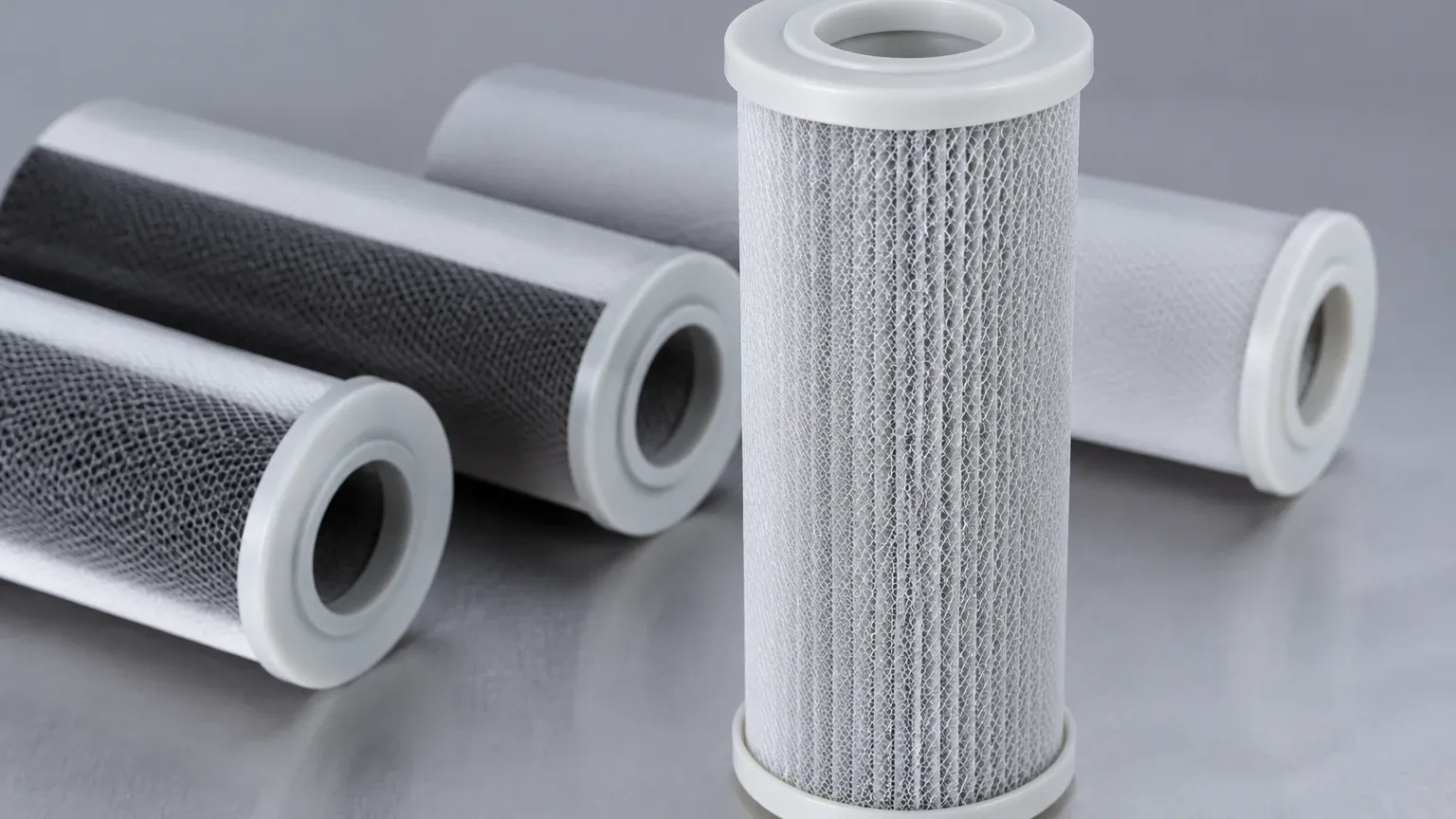

Ciano Filter Cartridge Xl
In industrial filtration, the demand for high-capacity solutions often leads engineers and procurement specialists to evaluate specific formats like the ciano filter cartridge xl. While frequently associated with smaller-scale applications, the "XL" designation in the filtration industry signifies a critical shift toward increased surface area, extended service life, and optimized flow rates. For industrial operations—ranging from chemical processing to food and beverage production—selecting the right high-capacity Filter Cartridges is a decision that impacts both operational efficiency and long-term maintenance costs.
At Kaifil, we specialize in transitioning these high-capacity requirements into robust, industrial-grade stainless steel solutions. Understanding the engineering behind the ciano filter cartridge xl format allows technical teams to make informed decisions when upgrading from standard polymer-based media to more durable, precision-engineered metal components.
Understanding the Engineering of XL Filter Cartridges
The "XL" or extra-large format in filter cartridges is primarily designed to address the limitations of standard-sized units in high-flow or high-sediment environments. From a B2B perspective, the engineering of a ciano filter cartridge xl focuses on maximizing the internal volume and the external surface area of the filtration media.
Surface Area and Flow Dynamics
By increasing the physical dimensions of the cartridge, manufacturers can incorporate more pleats or a thicker depth of media. In fluid dynamics, a larger surface area directly correlates to a lower face velocity across the filter medium. This reduction in velocity is crucial because it allows for finer particle capture without a corresponding spike in differential pressure. For engineers managing hydraulic systems or water treatment plants, this means the system can handle higher GPM (gallons per minute) without stressing the pump or compromising the integrity of the filter housing.
Void Volume and Dirt Holding Capacity
The dirt holding capacity (DHC) is perhaps the most significant advantage of the XL format. In industrial settings where downtime for filter replacement is costly, a ciano filter cartridge xl provides a larger "void volume." This is the space within the filter media available to trap and hold contaminants before the pressure drop reaches its terminal limit. High-capacity cartridges ensure that the interval between maintenance cycles is maximized, directly supporting lean manufacturing goals.
Material Selection: Stainless Steel vs. Polymer Media
When evaluating the ciano filter cartridge xl for industrial use, a primary consideration is the material of construction. Many standard XL cartridges utilize polypropylene, polyester, or foam media. While these are cost-effective for light-duty applications, industrial environments often require the resilience of stainless steel.
Thermal and Chemical Resistance
Industrial processes often involve high temperatures or aggressive chemical solvents that would degrade standard polymer cartridges. Kaifil’s stainless steel Filter Cartridges are engineered to withstand temperatures exceeding 500°F (depending on the alloy and seal material) and are resistant to a wide spectrum of pH levels. If an application involves steam sterilization (SIP) or caustic cleaning (CIP), a stainless steel version of the XL format is the only viable long-term solution.
Structural Integrity under Pressure
Polymer cartridges can suffer from "unloading" or bypass when subjected to high differential pressures or pressure surges. In contrast, a stainless steel ciano filter cartridge xl manufactured with a reinforced inner core and a sintered or pleated wire mesh outer layer maintains its pore structure even under extreme mechanical stress. This ensures consistent filtration accuracy throughout the entire life of the cartridge.
Technical Evaluation Criteria for High-Capacity Filtration
Before integrating a ciano filter cartridge xl into a B2B workflow, engineers must confirm several technical parameters to ensure the component meets the specific needs of the application.
Micron Ratings: Absolute vs. Nominal
It is essential to distinguish between nominal and absolute micron ratings. A nominal rating refers to an approximate efficiency (e.g., 90% of particles at a certain size), while an absolute rating implies a 99.9% efficiency. For pharmaceutical or precision chemical applications, an absolute-rated stainless steel cartridge is often required to prevent downstream contamination. When sourcing an XL cartridge, technical teams should request the Beta Ratio data to verify performance.
Pressure Drop ($ΔP$) Characteristics
The initial pressure drop is the resistance the filter offers to the fluid flow when it is clean. A well-designed ciano filter cartridge xl should have a low initial $ΔP$. If the initial pressure drop is too high, it indicates that the filter media is too restrictive for the desired flow rate, which will lead to a very short service life as the filter begins to load with contaminants.
Compatibility with Filter Housings
Standardization is key in industrial procurement. While the ciano filter cartridge xl follows a specific size profile, it is vital to ensure that the end-cap configurations (such as Code 7, 222, or 226 O-rings) are compatible with existing industrial housings. Kaifil provides customized end-cap designs to ensure that high-performance metal cartridges can seamlessly replace standard XL units without requiring expensive hardware modifications.
Customization and OEM Solutions for Industrial Cartridges
One of the primary challenges with off-the-shelf products like the ciano filter cartridge xl is that they are designed for a "broadest possible use" case, which may not be optimized for a specific industrial fluid. This is where OEM and customization capabilities become a strategic advantage.
Tailored Wire Mesh Weaves
Depending on the nature of the contaminant—whether it is hard, abrasive sand or soft, deformable organic matter—the type of wire mesh weave used in the cartridge can be adjusted. Plain weave provides simple, straight-through filtration, while Dutch weave or Twill weave offers higher strength and finer filtration levels. For an XL format, a pleated stainless steel mesh is often preferred because it multiplies the available surface area by up to 10 times compared to a cylindrical wrap.
Specialized Coatings and Treatments
In some B2B applications, such as food processing, the filter media may require specialized treatments to enhance its release properties during cleaning. Electropolishing the stainless steel surfaces of a ciano filter cartridge xl can reduce particle adhesion, making the cleaning process more efficient and preventing the buildup of biofilms in water treatment applications.
Maintenance, Lifecycle, and Total Cost of Ownership (TCO)
From a purchasing perspective, the initial cost of a ciano filter cartridge xl is only one part of the equation. The Total Cost of Ownership (TCO) includes the cost of replacement units, labor for change-outs, disposal costs of contaminated filters, and the cost of lost production during downtime.
Cleanability and Reusability
The most significant advantage of upgrading to a stainless steel Filter Cartridges solution is reusability. While polymer XL cartridges are typically disposable, stainless steel versions can be cleaned via ultrasonic baths, backwashing, or chemical cleaning. This shift from a consumable model to a capital equipment model significantly reduces the long-term TCO and aligns with corporate sustainability initiatives by reducing waste.
Monitoring Replacement Cycles
To optimize the use of a ciano filter cartridge xl, industrial systems should be equipped with differential pressure gauges. By monitoring the $ΔP$, maintenance teams can replace or clean the cartridge at the exact moment it reaches its capacity, rather than relying on a fixed schedule. This prevents the risk of filter failure due to over-pressurization and ensures that the system always operates at peak efficiency.
Key Considerations Before Purchasing
When engineers are ready to source or specify a ciano filter cartridge xl for their facility, they should confirm the following details with their manufacturer:
1. Fluid Characteristics: What is the viscosity, temperature, and chemical composition of the fluid being filtered?
2. Contaminant Profile: What is the particle size distribution and the concentration of solids?
3. Flow Requirements: What is the maximum and minimum flow rate the cartridge must handle?
4. Regulatory Compliance: Does the cartridge need to meet FDA, 3A, or other industry-specific certifications for food or pharmaceutical contact?
5. Sealing Requirements: Are the O-rings or gaskets compatible with the process fluid (e.g., Viton, EPDM, or PTFE)?
By addressing these factors, technical teams can ensure that their choice of a ciano filter cartridge xl—or its industrial stainless steel equivalent—will provide the reliability and performance required for demanding industrial environments.
Conclusion
The ciano filter cartridge xl represents a high-capacity approach to filtration that is essential for maintaining throughput in various industrial sectors. Whether you are looking for a direct replacement or an upgrade to a more durable stainless steel Filter Cartridges solution, focusing on engineering specifications, material compatibility, and total cost of ownership is vital.
At Kaifil, we combine manufacturing expertise with a deep understanding of industrial filtration challenges to provide customized solutions that exceed standard expectations. By selecting the right high-capacity cartridge and ensuring it is tailored to your specific operational needs, you can achieve superior filtration accuracy, reduced downtime, and enhanced process stability.
