Cuisinart Water Filter Cartridges
Filtration technology is a critical component in both consumer appliances and heavy industrial processes. While the scale and materials differ, the fundamental engineering principles remain the same: removing contaminants to ensure the purity of the final output. In the context of small-scale water treatment, such as the use of cuisinart water filter cartridges, the focus is primarily on charcoal-based adsorption to improve taste and remove chlorine. However, for engineers and procurement professionals in the industrial sector, the requirements for Filter Cartridges extend far beyond simple odor removal, involving complex fluid dynamics, high-pressure tolerance, and material compatibility.
Understanding the mechanics behind basic water filtration helps in appreciating the sophisticated engineering required for industrial-grade filtration solutions. This article explores the technical aspects of cartridge filtration, from consumer-level applications to the precision-engineered stainless steel components used in chemical processing, food and beverage production, and pharmaceutical manufacturing.
The Fundamentals of Cartridge Filtration Technology

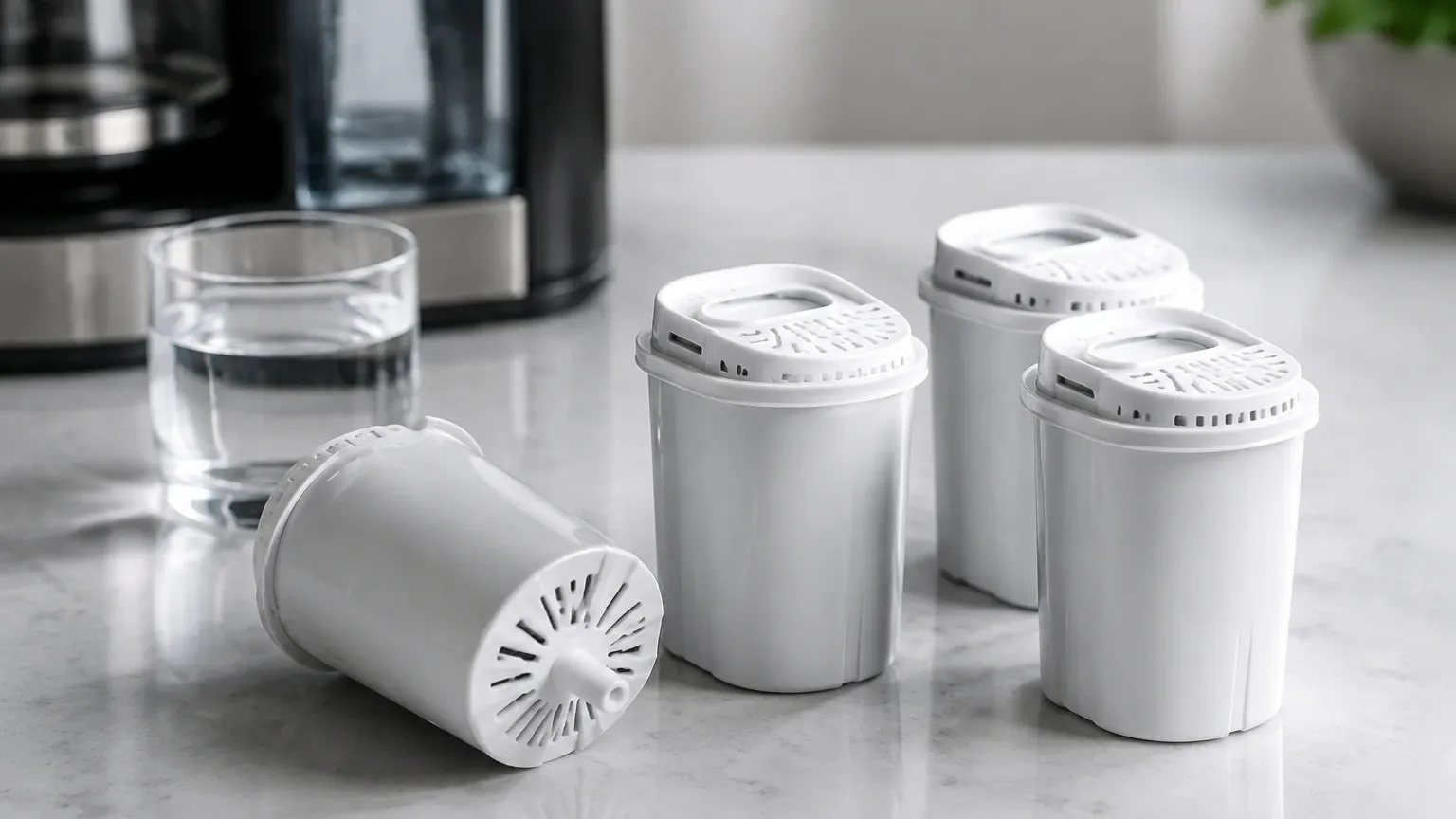

At its core, a filter cartridge is a modular piece of equipment designed to remove particles or specific chemicals from a fluid stream. In consumer applications like coffee makers, cuisinart water filter cartridges typically utilize activated charcoal. This material works through a process called adsorption, where organic compounds and chlorine molecules adhere to the porous surface of the carbon.
In industrial settings, the mechanical filtration of solid particles is often the primary goal. This is achieved through various media, including:
* Depth Filtration: Utilizing a thick layer of material (such as wound yarn or melt-blown polymers) to trap particles throughout the entire thickness of the media.
* Surface Filtration: Using a thin, precise layer (such as stainless steel wire mesh) to stop particles at the surface. This is the preferred method for applications requiring high precision and the ability to clean and reuse the filter.
When selecting a filtration system, engineers must evaluate the nature of the fluid, the size of the contaminants (measured in microns), and the required flow rate. While a consumer filter might only need to handle a few liters per hour at atmospheric pressure, industrial cartridges must often withstand significant differential pressures and flow rates exceeding hundreds of gallons per minute.
Material Selection: From Polymers to Stainless Steel
The material of a filter cartridge dictates its suitability for specific environments. Many consumer-grade cuisinart water filter cartridges use plastic housings and carbon-impregnated fibers. These are cost-effective for low-temperature, low-pressure domestic water use but are unsuitable for the rigors of industrial processing.

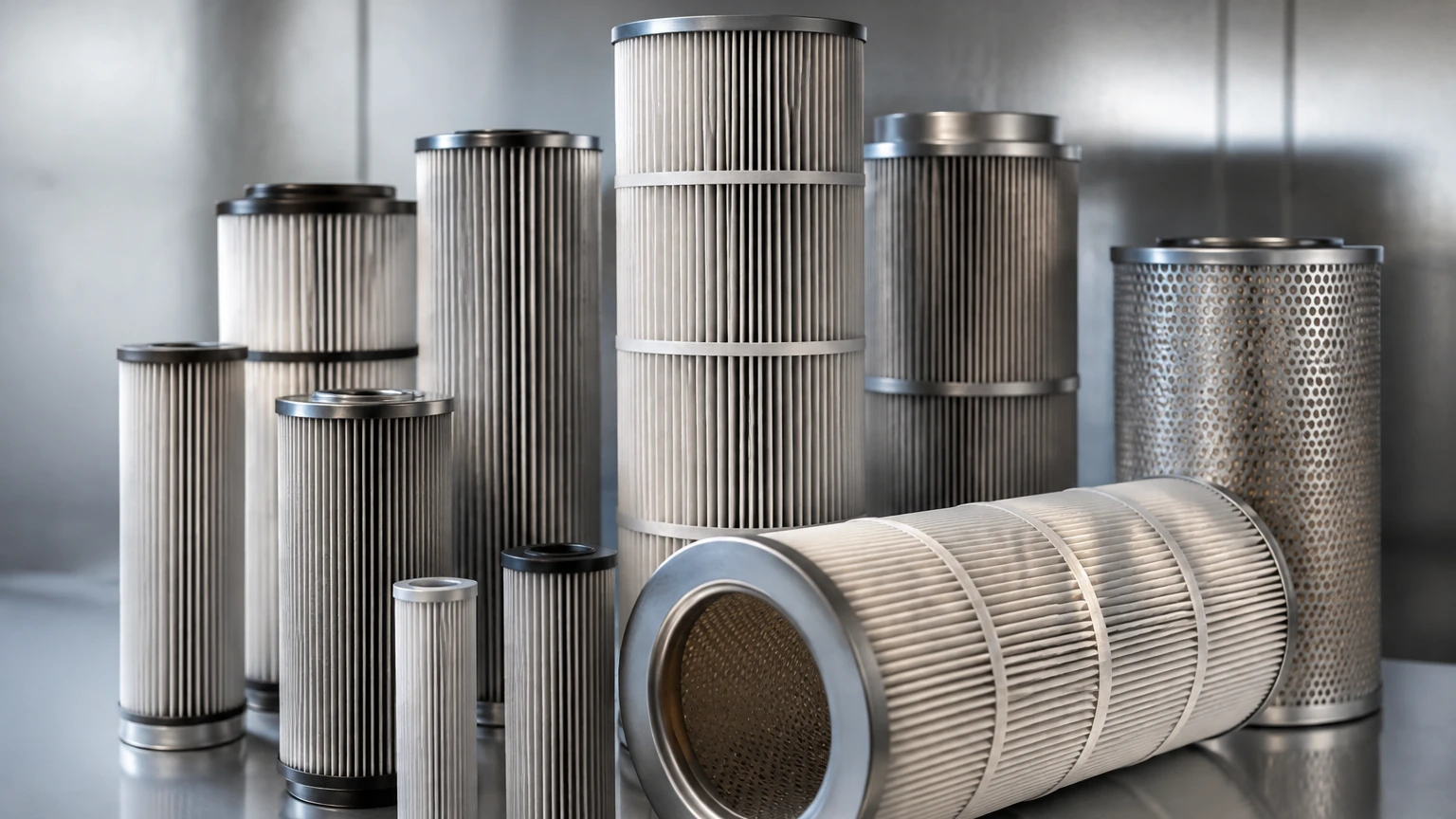

For demanding applications, stainless steel is the gold standard. Industrial Filter Cartridges manufactured from 304 or 316L stainless steel offer several technical advantages:
1. Thermal Stability: Stainless steel can operate in temperatures exceeding 500°F (260°C), where plastic filters would melt or lose structural integrity.
2. Chemical Resistance: In chemical processing, filters are often exposed to solvents, acids, and bases. Stainless steel provides the necessary corrosion resistance to prevent media migration and fluid contamination.
3. Structural Strength: High-viscosity fluids or high-pressure systems create significant differential pressure across the filter media. Metal cartridges resist collapsing or bursting under these stresses.
4. Hygiene and Sterilization: In the food, beverage, and pharmaceutical industries, filters must be sterilized (often via Steam-in-Place or Autoclaving). Stainless steel mesh and sintered metal components are ideal for these sanitary requirements.
Engineering Considerations: Micron Ratings and Flow Dynamics
A critical specification for any filter is its micron rating. This defines the size of the particles the filter is capable of removing. There are two primary types of ratings that engineers must distinguish:
Nominal Micron Rating
This is an arbitrary value indicating a filter's ability to remove a certain percentage of particles of a given size. For example, a nominal 10-micron filter might remove 85% of 10-micron particles. Consumer products like cuisinart water filter cartridges often use nominal ratings because the stakes of a few bypass particles are low.
Absolute Micron Rating
In industrial filtration, an absolute rating is often required. This signifies that the filter will remove 99.9% (or higher) of particles at the specified micron size. This is achieved through precision-woven wire mesh or sintered metal powder, where the pore sizes are strictly controlled during manufacturing.
Pressure Drop (Delta P)
Every filter introduces resistance to the flow. The difference in pressure between the upstream and downstream sides of the filter is known as the pressure drop. As the filter collects contaminants, the pressure drop increases. Engineers must design systems that can handle the initial "clean" pressure drop while allowing for a functional "dirty" pressure drop before the cartridge requires replacement or cleaning.
Maintenance and Total Cost of Ownership (TCO)
One of the most significant differences between consumer and industrial filtration is the approach to maintenance. A consumer using cuisinart water filter cartridges will typically follow a time-based replacement schedule (e.g., every 60 days). In an industrial environment, this approach can be inefficient and costly.
Disposable vs. Cleanable Cartridges
Many industrial systems use disposable cartridges made of polypropylene or cellulose. While the initial purchase price is low, the ongoing cost of replacement, labor, and disposal can be high. Furthermore, disposable filters contribute to industrial waste.
In contrast, stainless steel Filter Cartridges are often designed to be cleanable. Methods such as ultrasonic cleaning, backwashing, or chemical baths can restore the filter to its original performance levels. While the initial investment in a metal filter is higher, the total cost of ownership over several years is often significantly lower due to the elimination of frequent replacements.
Monitoring Performance
Industrial systems utilize differential pressure gauges to monitor the health of the filter. When the pressure drop reaches a predetermined limit, the system alerts operators that maintenance is required. This data-driven approach ensures that filters are used to their maximum capacity without risking bypass or system failure.
Customization and OEM Solutions in Filtration
Standardized filters work well for common applications, but many industrial processes require custom-engineered solutions. Factors that may necessitate a custom filter cartridge include:
* Non-Standard Housing Sizes: Retrofitting older equipment often requires custom lengths or diameters.
* Specific End-Cap Configurations: Ensuring a leak-proof seal requires precise matching of end-caps (e.g., 222 O-ring, 226 O-ring, or NPT threaded connections).
* Specialized Media Layers: Combining different types of mesh to achieve both pre-filtration and fine filtration in a single cartridge.
Manufacturers like Kaifil specialize in these custom requirements, providing the technical expertise needed to develop filtration components that meet exact performance specifications. Whether it is a pleated wire mesh design to maximize surface area or a robust sintered metal cylinder for high-pressure gas filtration, customization ensures the filtration system is optimized for the specific application.
Common Risks in Industrial Filtration Procurement
When purchasing filtration components, there are several risks that technical professionals must mitigate:
1. Media Migration: In low-quality filters, the filter material itself can break off and enter the downstream fluid. This is catastrophic in pharmaceutical or food production.
2. Bypass: If the cartridge does not fit perfectly within the housing, fluid will take the path of least resistance, bypassing the filter media entirely.
3. Chemical Incompatibility: Using a seal or O-ring material that is not compatible with the process fluid can lead to leaks and contamination.
4. Inaccurate Ratings: Relying on unverified micron ratings can lead to inadequate filtration, resulting in damage to downstream equipment like pumps and spray nozzles.
To avoid these risks, it is essential to work with manufacturers who provide transparent material certifications and rigorous quality control processes.
Conclusion: Selecting the Right Solution
Whether you are maintaining a small-scale system using cuisinart water filter cartridges or managing a large-scale industrial plant, the quality of your filtration components directly impacts the quality of your results. For industrial applications, the shift toward high-performance, durable, and cleanable Filter Cartridges is a strategic move that enhances process reliability and reduces long-term costs.
When evaluating your next filtration project, consider the environmental conditions, the required purity levels, and the potential for custom-engineered solutions. By focusing on technical specifications and material integrity, you can ensure that your filtration system provides consistent, dependable performance in even the most demanding industrial environments.
