Filter Cartridge Type H
In industrial filtration, the selection of the correct cartridge geometry and material is fundamental to ensuring process efficiency, protecting downstream equipment, and maintaining product purity. The filter cartridge type h represents a specific size and configuration often utilized in low-flow applications or specialized equipment housings. While frequently recognized in commercial and light-industrial water treatment, the engineering principles governing its performance—such as micron rating, material compatibility, and structural integrity—are critical for technical professionals managing fluid systems.
For engineers and procurement teams, understanding the technical boundaries of the type h format is essential when determining whether a standard off-the-shelf solution or a customized stainless steel alternative is required. As industrial processes become more demanding, the transition from disposable media to durable, cleanable Filter Cartridges has become a focal point for reducing long-term operational costs and environmental impact.
Technical Specifications and Dimensions
The "Type H" designation typically refers to a compact cartridge format. In standardized sizing, these cartridges generally feature an outer diameter of approximately 3.6 inches (91 mm) and a height of roughly 4 inches (101 mm). However, in industrial contexts, the "Type H" label may also refer to specific proprietary housing designs or high-performance classifications within a manufacturer’s lineup.
Dimensional Accuracy
When sourcing a filter cartridge type h, dimensional precision is paramount. Even a variance of a few millimeters in the inner diameter or the height of the end caps can lead to bypass—a condition where unfiltered fluid escapes around the cartridge rather than passing through the media. For industrial applications, end caps are often designed with specific gaskets or O-ring seals to ensure a leak-proof fit within the housing.
Surface Area and Pleat Geometry
The filtration capacity of a cartridge is directly proportional to its effective surface area. In a pleated type h configuration, the number of pleats and the depth of each pleat determine how much particulate matter the filter can hold before the differential pressure reaches a critical limit. Engineers must balance the desire for high surface area with the need for structural stability; pleats that are too tightly packed can restrict flow and cause premature blinding.
Material Selection for Industrial Environments
While many standard type h filters are constructed from synthetic fibers like polyester or polypropylene, industrial environments often necessitate more robust materials. The choice of material impacts chemical resistance, temperature tolerance, and the ability of the filter to be cleaned and reused.
Synthetic Media
Polypropylene and polyester are common for general water filtration and non-aggressive chemical applications. These materials are cost-effective but have limited temperature ranges (typically up to 140°F or 60°C) and can degrade when exposed to certain solvents or high-pH cleaning agents.
Stainless Steel Wire Mesh

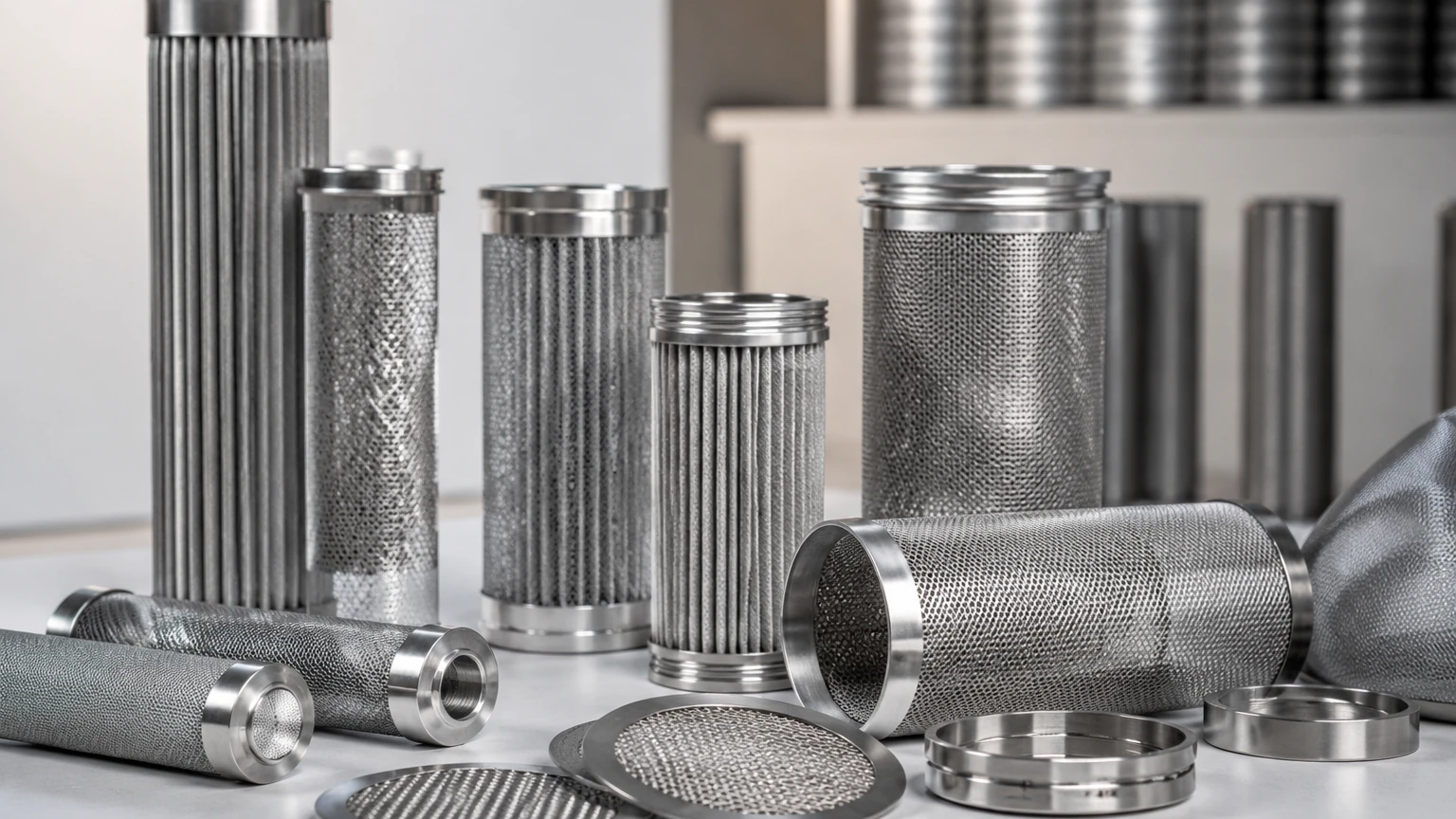

For high-temperature applications or processes involving aggressive chemicals, stainless steel (AISI 304 or 316L) is the preferred material. Stainless steel filter cartridges offer several advantages:
* Thermal Stability: Capable of operating in environments exceeding 500°F (260°C).
* Chemical Compatibility: Resistance to a wide array of acids, bases, and organic solvents.
* Durability: High mechanical strength allows the cartridge to withstand significant differential pressures without collapsing.
* Cleanability: Unlike disposable synthetic filters, stainless steel mesh can be backwashed, ultrasonically cleaned, or chemically treated for reuse, significantly lowering the total cost of ownership.
Filtration Efficiency and Micron Ratings
Understanding the difference between nominal and absolute micron ratings is critical when evaluating a filter cartridge type h.
Nominal vs. Absolute Filtration
* Nominal Rating: This indicates the filter's ability to retain a majority (typically 60% to 90%) of particles of a specific size. It is a general guideline but does not guarantee 100% removal.
* Absolute Rating: This refers to the diameter of the largest hard spherical particle that will pass through the filter under specified test conditions. In critical pharmaceutical or chemical processing, an absolute rating is often required to ensure process consistency.
For a type h cartridge used in industrial sampling or fine chemical filtration, the micron rating typically ranges from 5 to 25 microns. Selecting a rating that is too fine for the application will result in frequent clogging and increased maintenance, while a rating that is too coarse may allow contaminants to damage downstream components like high-pressure pumps or precision nozzles.
Flow Dynamics and Differential Pressure
Every filter cartridge introduces a degree of resistance to the fluid flow, measured as pressure drop or differential pressure (ΔP). For the filter cartridge type h, which has a relatively small surface area compared to larger industrial formats, managing flow velocity is essential.
Clean Pressure Drop
The initial pressure drop across a clean filter should be minimized to allow for maximum dirt-holding capacity. If the initial ΔP is too high, the filter will reach its terminal pressure drop (the point at which it must be replaced or cleaned) much faster. Factors influencing ΔP include fluid viscosity, flow rate, and the porosity of the filter media.
Terminal Pressure Drop
In most industrial systems, a filter cartridge is considered spent when the differential pressure reaches 15 to 25 psi (1.0 to 1.7 bar). Monitoring this metric via pressure gauges installed upstream and downstream of the filter housing is the most reliable way to schedule maintenance. Ignoring terminal pressure drop can lead to media migration, where the pressure forces contaminants through the filter, or structural failure of the cartridge core.
Industrial Applications for Type H Form Factors
Despite its smaller size, the type h configuration serves vital roles in various industrial sectors where space is limited or flow rates are low.
1. Laboratory and Pilot Plants
In research and development, small-scale filtration is necessary for processing batches of experimental chemicals or pharmaceuticals. The type h format allows for precise filtration without the need for large, expensive housing systems.
2. Cooling Systems for Precision Equipment
High-end machinery, such as laser cutters or medical imaging equipment, often requires closed-loop cooling systems. A filter cartridge type h can effectively remove scale and debris from the cooling fluid, protecting sensitive heat exchangers.
3. Point-of-Use (POU) Filtration
In large facilities, while centralized filtration handles the bulk of the fluid, POU filters are installed immediately before sensitive equipment to catch any pipe scale or secondary contaminants introduced during transport through the facility's piping.
4. Oil and Hydraulic Sampling
Before performing oil analysis, samples may need to be pre-filtered to remove large particulates. The compact nature of the type h cartridge makes it suitable for integration into portable sampling kits or small hydraulic bypass lines.
Engineering Considerations for Customization
Standardized cartridges do not always meet the rigorous demands of specialized industrial processes. When a standard filter cartridge type h fails to perform—either due to chemical degradation or insufficient pressure ratings—customization becomes necessary.
End Cap Configurations
Customizing the end caps is a common requirement. While many type h filters use a simple Double Open End (DOE) design, industrial housings may require Single Open End (SOE) configurations with specific locking mechanisms like 222 or 226 O-rings to ensure a more secure seal.
Core Reinforcement
In high-viscosity applications or systems prone to pressure surges, the internal core of the cartridge must be reinforced. Using a perforated stainless steel center tube provides the necessary structural support to prevent the pleats from collapsing inward under high differential pressure.
Specialized Weaves
For metallic filters, the type of wire mesh weave—such as plain, twilled, or Dutch weave—can be customized to optimize the balance between flow rate and filtration fineness. A Dutch weave, for example, provides a much tighter pore structure and higher strength than a standard plain weave, making it ideal for high-pressure industrial filtration.
Maintenance and Replacement Cycles
The longevity of a filter cartridge type h depends heavily on the contaminant load of the influent. In a B2B environment, downtime for filter replacement translates directly to lost production.
Predictive Maintenance
Rather than replacing filters on a fixed calendar schedule, engineers should use differential pressure data to establish a predictive maintenance routine. This ensures that the filter is used to its maximum capacity without risking bypass or system failure.
Cleaning Protocols for Stainless Steel
If utilizing a stainless steel version of the type h cartridge, a standardized cleaning protocol should be established. This may involve:
* Ultrasonic Cleaning: Using high-frequency sound waves in a cleaning solution to dislodge particles from deep within the mesh.
* Chemical Soaking: Using specific solvents or acids to dissolve organic or inorganic deposits.
* Backwashing: Reversing the flow of clean fluid through the cartridge to push contaminants out of the media.
Total Cost of Ownership (TCO) Analysis
When deciding between a low-cost disposable filter cartridge type h and a higher-investment stainless steel alternative, a TCO analysis is required.
| Factor | Disposable (Polypropylene) | Reusable (Stainless Steel) |
| :— | :— | :— |
| Initial Purchase Price | Low | High |
| Replacement Frequency | High | Low (Years) |
| Disposal Costs | Significant (Hazardous waste) | Minimal |
| Maintenance Labor | Frequent change-outs | Periodic cleaning |
| Process Downtime | Moderate | Low |
For processes that run 24/7 or involve hazardous materials where disposal costs are high, the transition to durable Filter Cartridges typically yields a return on investment within the first year of operation.
Conclusion: Selecting the Right Solution
The filter cartridge type h is a versatile component in the industrial filtration landscape. Whether used in its standard form for light-duty water treatment or customized in stainless steel for aggressive chemical processing, its performance is dictated by the quality of its construction and the appropriateness of its specifications for the task at hand.
Engineers must look beyond the basic dimensions and evaluate the micron rating, material compatibility, and structural limits of the cartridge. By partnering with manufacturers capable of providing both standard and OEM customized solutions, purchasing teams can ensure they receive filtration components that optimize process uptime and maintain the highest standards of fluid purity. When the application demands more than a standard plastic filter can provide, the move toward precision-engineered metal filtration is a strategic step toward operational excellence.
