Filter Element Ui
In the complex landscape of industrial filtration, the term "filter element ui"—referring to both the Unit Identification (UI) of a component and the User Interface (UI) of the monitoring systems that track it—represents a critical intersection of physical engineering and data-driven maintenance. For engineers and procurement specialists, understanding the nuances of how a filter element is identified, interfaced with a system, and monitored is essential for ensuring operational continuity and process efficiency.
Industrial filtration is not merely about trapping particles; it is about maintaining precise flow dynamics under varying pressures and temperatures. Whether in chemical processing, pharmaceutical manufacturing, or hydraulic systems, the Filter Cartridges used must be perfectly matched to the application. This match is facilitated by robust identification systems and interface protocols that prevent installation errors and optimize replacement cycles.
The Role of Identification (UI) in Industrial Filtration
The physical "filter element ui" or Unit Identification is the first line of defense against operational failure. In high-stakes environments like food and beverage or pharmaceutical production, using the wrong filter media or micron rating can lead to batch contamination or equipment damage.
Traceability and Compliance
Professional manufacturers like Kaifil utilize laser etching and permanent marking to provide clear identification on the end caps or support cores of filter elements. This identification typically includes:
* Part Numbers and Serial Codes: For rapid reordering and inventory management.
* Micron Ratings: To ensure the filtration fineness meets the specific process requirements.
* Material Grades: Confirming the use of 304, 316, or 316L stainless steel to ensure chemical compatibility.
* Batch Tracking: Essential for regulatory compliance in industries governed by FDA or ISO standards.
Digital Integration and Monitoring
Beyond physical marking, the modern "filter element ui" extends to the digital interface of the filtration system. Integrated sensors monitor differential pressure (ΔP) across the filter element. This data is fed into a control system’s user interface, allowing operators to visualize the health of the filter in real-time. When the pressure drop reaches a predetermined threshold, the UI alerts the maintenance team, preventing bypass events or structural collapse of the element.

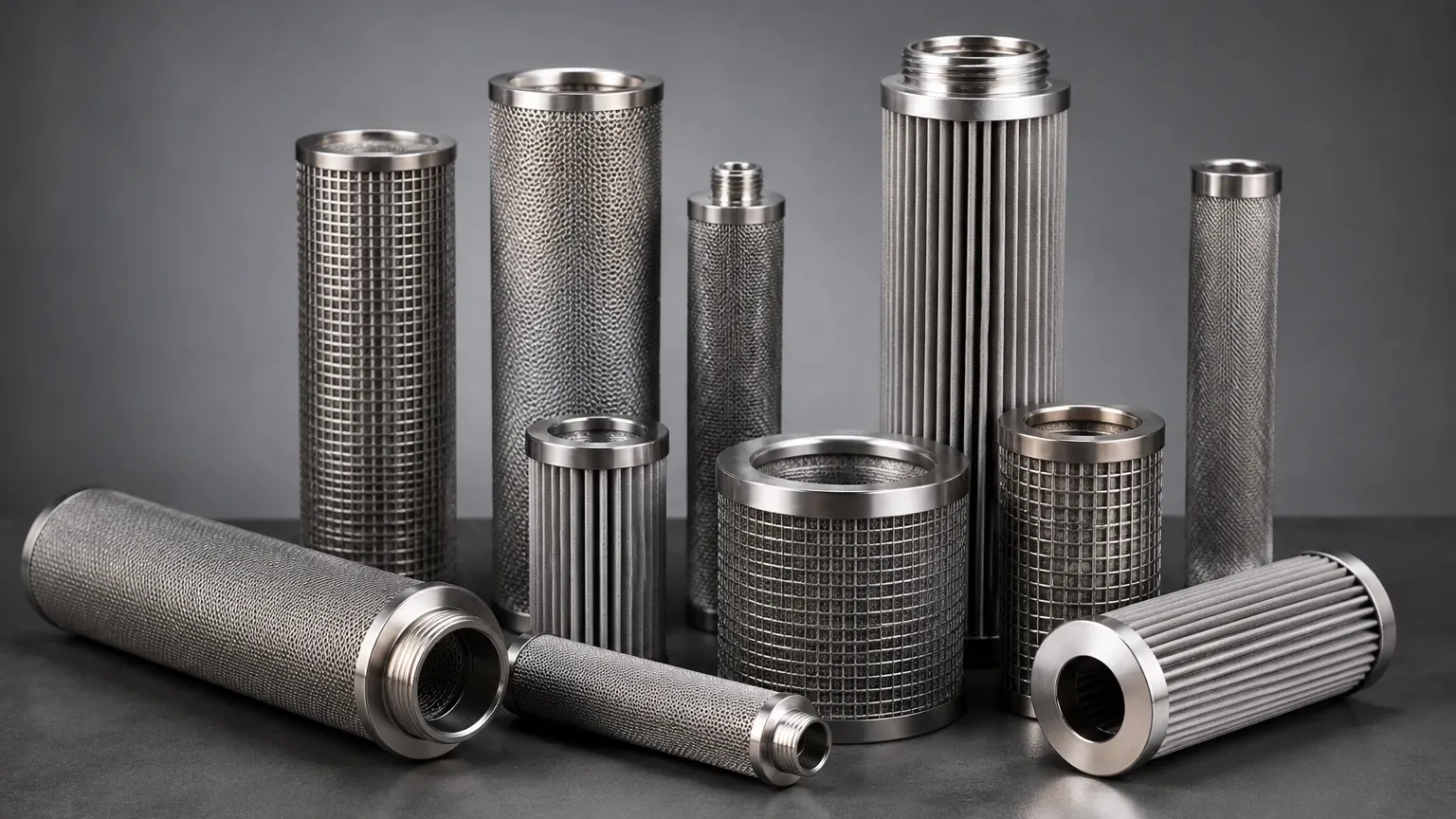

Technical Architecture of Stainless Steel Filter Cartridges
To understand how a filter element interfaces with its housing and the broader system, one must examine its structural components. Stainless steel filter cartridges are engineered for durability, high-temperature resistance, and cleanability, making them superior to disposable plastic or paper alternatives in demanding B2B applications.
Media Layers and Support Structures
Precision filtration relies on the configuration of the wire mesh. Kaifil specializes in various weave patterns, including plain, twilled, and Dutch weaves, each offering different balances of flow rate and particle retention. In many high-pressure applications, the filter media is sintered—a process where multiple layers of mesh are bonded together through heat and pressure without the use of binders. This creates a robust, monolithic structure that maintains its pore size even under extreme mechanical stress.
End Cap Configurations
The interface between the filter element and the housing is secured by end caps. Common configurations include:
* Double Open End (DOE): Features flat gaskets on both ends, suitable for basic housing designs.
* Single Open End (SOE): Often utilizes an O-ring (such as 222 or 226 styles) with a fin or flat top. These provide a high-integrity seal, critical for preventing fluid bypass in sensitive chemical processes.
* Threaded Connections: Used in high-pressure hydraulic systems where a mechanical lock is required to prevent movement during pressure surges.
Material Engineering and Chemical Compatibility
Selecting the correct material is a foundational aspect of the "filter element ui" specification process. Stainless steel is the industry standard for its corrosion resistance and mechanical strength, but the specific grade must be chosen based on the fluid being processed.
Grade 304 vs. 316L
* Type 304 Stainless Steel: Suitable for general industrial applications, including water treatment and some food processing. It offers good corrosion resistance but may be susceptible to chloride-induced pitting.
* Type 316L Stainless Steel: The "L" stands for low carbon, which improves weldability and resistance to intergranular corrosion. The addition of molybdenum makes 316L the preferred choice for pharmaceutical, marine, and aggressive chemical environments where acidic or saline solutions are present.
Thermal and Mechanical Limits
Unlike polymer-based filters, stainless steel cartridges can operate at temperatures exceeding 300°C (depending on the gasket material) and withstand high differential pressures. When specifying a filter element, engineers must confirm the maximum operating temperature and the collapse pressure. A well-designed filter element will have an internal support core capable of withstanding the full system pressure in the event of a total blockage, preventing downstream contamination.
Customization and OEM Solutions
In many industrial settings, off-the-shelf solutions do not meet the specific spatial or performance requirements of a custom-built machine. This is where the flexibility of a manufacturer’s "filter element ui" becomes a competitive advantage. Customization allows for the optimization of the filtration surface area within a fixed footprint.
Pleated vs. Cylindrical Designs
* Cylindrical Elements: Offer a simple, easy-to-clean surface. They are ideal for applications with low solids loading or where the filter must be manually scraped or backwashed frequently.
* Pleated Elements: By folding the wire mesh into pleats, the effective filtration area is significantly increased—often by a factor of two or three. This results in lower initial pressure drops, higher dirt-holding capacity, and longer service intervals. However, pleated elements require more sophisticated cleaning techniques, such as ultrasonic baths, to remove trapped contaminants from the deep folds.
Tailored Interface Dimensions
OEMs often require unique lengths, diameters, or specialized fittings to integrate into proprietary equipment. Kaifil works closely with engineering teams to develop custom filter cartridges that meet these exact mechanical interfaces, ensuring a leak-proof fit and optimal flow distribution.
Performance Metrics and Validation Protocols
Before a filter element is deployed, its performance must be validated against the application's requirements. The "filter element ui" in this phase involves the technical documentation and test reports that prove the component’s capabilities.
Filtration Accuracy (Micron Rating)
It is vital to distinguish between nominal and absolute micron ratings. A nominal rating indicates the filter's ability to retain a percentage of particles of a certain size, whereas an absolute rating (often defined by a Beta Ratio) indicates a high-efficiency retention (typically 99.9%) of all particles at that size. For critical applications, absolute-rated stainless steel mesh is mandatory.
Integrity Testing
To ensure there are no defects in the mesh or the welds, manufacturers perform integrity tests such as the Bubble Point Test. By submerging the element in a liquid and increasing internal air pressure, the point at which the first bubble appears indicates the largest pore size. This non-destructive test is a key part of the quality assurance UI, providing engineers with confidence in the filter’s consistency.
Procurement Strategy: Total Cost of Ownership
When evaluating filter elements, the initial purchase price is only one component of the Total Cost of Ownership (TCO). High-quality stainless steel cartridges offer a lower TCO over time compared to disposables due to their cleanability and longevity.
Cleanability and Reuse
One of the primary advantages of metal filtration is the ability to regenerate the media. Depending on the contaminant, filter elements can be cleaned via:
* Backpulsing/Backwashing: Using reverse flow to dislodge particles.
* Chemical Cleaning: Using solvents or acids to dissolve organic or inorganic buildup.
* Ultrasonic Cleaning: Using high-frequency sound waves in a liquid bath to remove fine particles from deep within the mesh layers.
Replacement Cycles and Maintenance UI
A robust maintenance strategy involves tracking the number of cleaning cycles each element has undergone. Over time, repeated cleaning and thermal cycling can lead to work hardening or mesh fatigue. By integrating the filter element's unique ID into a maintenance management system, companies can track performance degradation and schedule replacements before a failure occurs, thereby minimizing unplanned downtime.
Conclusion: Making Informed Selection Decisions
Selecting the right filter element requires a deep understanding of the intersection between mechanical design, material science, and system integration. The "filter element ui"—from the physical markings that ensure the correct part is installed to the digital data that monitors its performance—is central to modern industrial efficiency.
By focusing on high-quality materials, precision manufacturing, and clear technical specifications, engineers can ensure their filtration systems provide reliable protection for downstream equipment and maintain the purity of the final product. When partnering with a manufacturer like Kaifil, the emphasis on customized engineering and rigorous quality control ensures that every filter cartridge meets the demanding standards of the global industrial market.
