Pentair Quad De 60 Filter Cartridges
In the realm of high-clarity filtration, the Pentair Quad DE 60 system represents a hybrid approach that combines the exceptional water clarity of Diatomaceous Earth (DE) with the operational convenience typically associated with cartridge filtration. For engineers and facility managers, understanding the mechanics of pentair quad de 60 filter cartridges is essential when evaluating filtration surface area, flow dynamics, and maintenance cycles in commercial or large-scale residential water treatment environments.
While traditional DE filters utilize grids covered in fabric, the Quad DE 60 utilizes four large-capacity cartridges. This design significantly increases the available filtration area within a compact footprint, allowing for higher flow rates and longer periods between cleaning cycles. However, for industrial applications involving aggressive chemicals, high temperatures, or extreme pressures, the choice of Filter Cartridges often shifts from synthetic media to precision-engineered stainless steel components provided by manufacturers like Kaifil.
The Engineering Logic Behind Quad DE 60 Cartridges
The "Quad" designation refers to the four-cartridge internal configuration of the filter tank. Each of the pentair quad de 60 filter cartridges is designed to provide 15 square feet of filtration area, totaling 60 square feet for the entire unit. This high surface-to-volume ratio is a critical engineering metric. By distributing the fluid flow across a larger surface area, the face velocity (the speed at which the fluid passes through the filter media) is reduced.
Lower face velocity results in several technical advantages:
1. Enhanced Particle Capture: Slower flow allows for more effective depth filtration and better utilization of the DE cake.
2. Reduced Pressure Drop: A larger surface area minimizes the initial resistance to flow, which reduces the energy consumption of the circulation pumps.
3. Extended Service Life: With more area to trap debris, the time it takes for the differential pressure to reach a critical limit is extended, reducing the frequency of backwashing or manual cleaning.

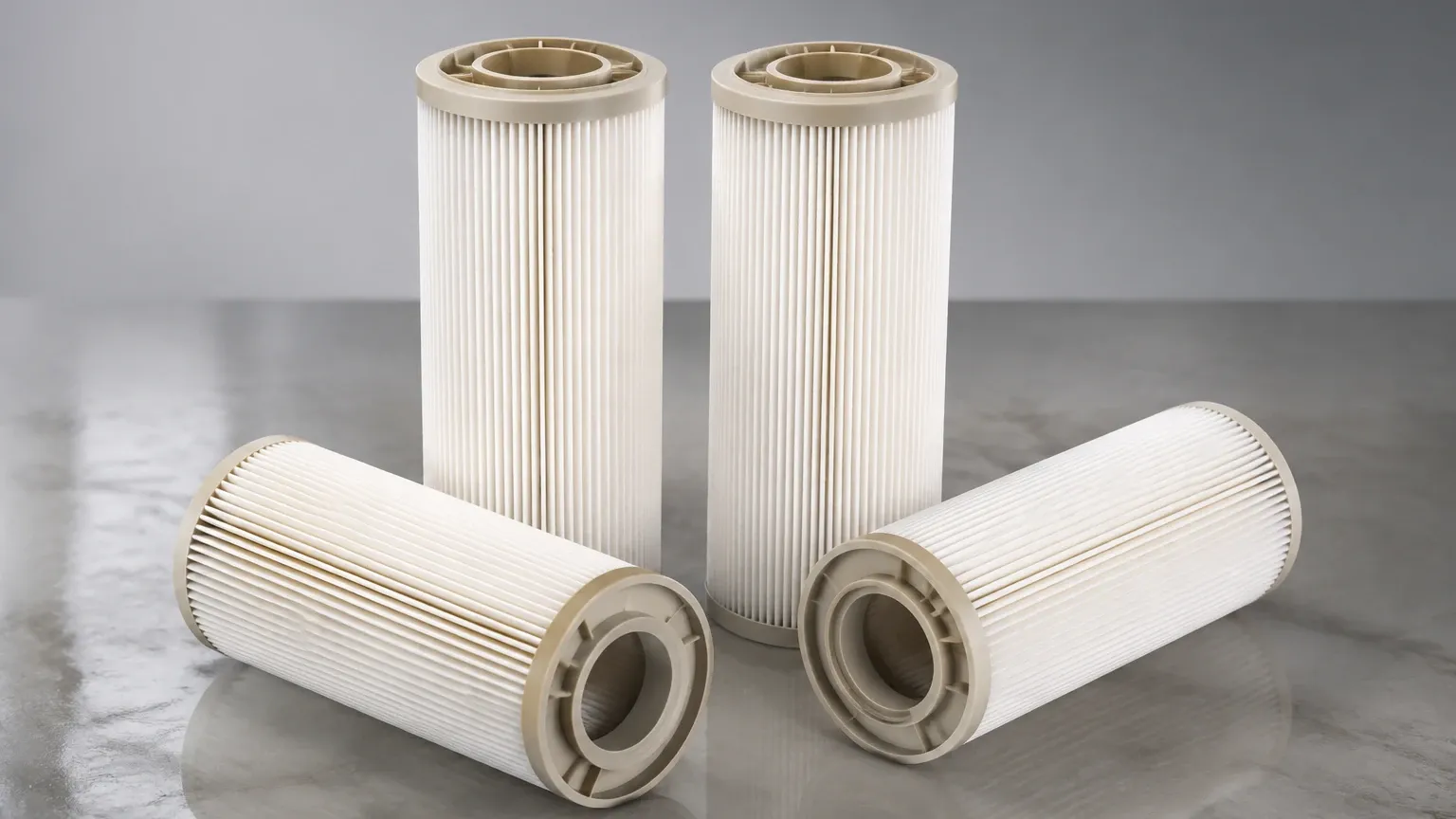

The cartridges in this system are typically constructed from a durable polyester fabric pleated around a central core. In the Quad DE system, these cartridges serve as a substrate for the DE powder. The DE attaches to the fabric, creating a "filter cake" that can trap particles as small as 1 to 5 microns.
Material Selection: Synthetic Media vs. Stainless Steel Filter Cartridges
When selecting filtration components, engineers must consider the chemical and thermal environment of the application. The pentair quad de 60 filter cartridges are optimized for chlorinated water and standard ambient temperatures. However, industrial processes often demand more robust materials.
Synthetic Cartridges (Polyester/Polypropylene)
Synthetic cartridges are cost-effective and provide excellent surface area through pleating. They are ideal for water treatment where the pH is relatively neutral and temperatures do not exceed 100-120°F. Their primary limitation is structural integrity under high differential pressure and susceptibility to chemical degradation in the presence of solvents or strong oxidizers.

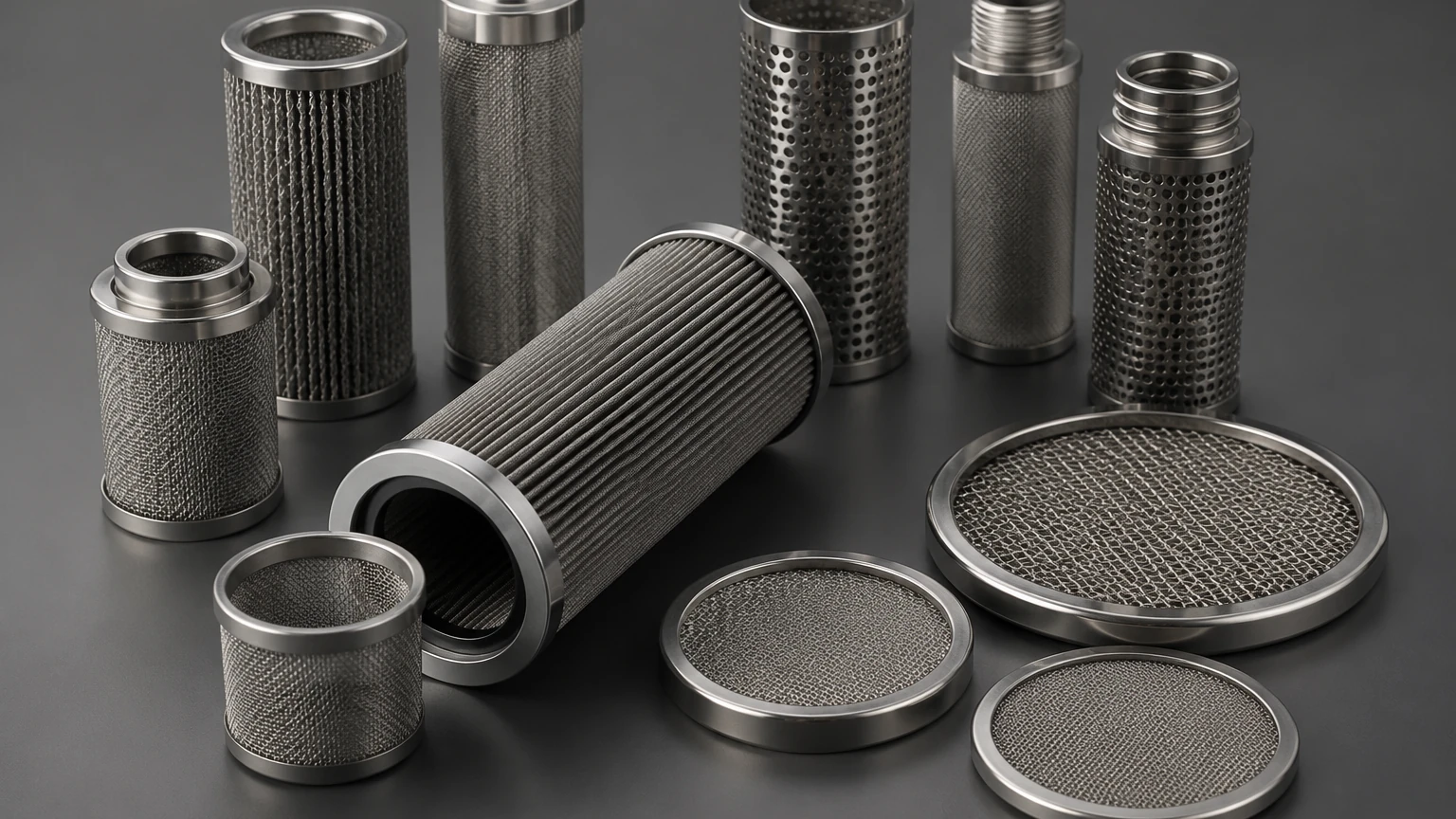

Stainless Steel Filter Cartridges
In industrial sectors such as chemical processing, pharmaceutical manufacturing, and food and beverage production, Filter Cartridges made from 304 or 316L stainless steel are often the standard. Unlike synthetic media, stainless steel cartridges offer:
* High Temperature Resistance: Capable of operating in environments exceeding 500°F.
* Chemical Compatibility: Resistance to a wide range of corrosive fluids and solvents.
* Permanent Service Life: Stainless steel mesh and sintered metal cartridges are cleanable and reusable, eliminating the waste and recurring costs associated with disposable synthetic elements.
* Structural Rigidity: They can withstand significant pressure shocks and high differential pressures without collapsing or bypassing.
Performance Metrics for High-Surface-Area Filtration
Evaluating the performance of pentair quad de 60 filter cartridges requires an analysis of several key metrics that are equally applicable to industrial filtration systems. Engineers must balance filtration fineness with hydraulic efficiency.
Micron Rating and Efficiency
The primary goal of using DE in a cartridge format is to achieve sub-micron or low-micron filtration. While the cartridge fabric itself might have a nominal rating of 10-20 microns, the addition of the DE cake brings the effective filtration down to approximately 2-5 microns. In industrial settings, achieving this level of precision without DE often requires multi-stage filtration or high-performance pleated stainless steel wire mesh cartridges.
Dirt Holding Capacity (DHC)
DHC defines how much contaminant a filter can retain before the pressure drop (Delta P) becomes unacceptable. The 60-square-foot area of the Quad DE 60 provides a high DHC, but this is contingent on the proper application of the DE pre-coat. If the pre-coat is uneven, "bridging" can occur, where certain areas of the cartridge become clogged prematurely, leading to inefficient use of the remaining surface area.
Flow Rate and Flux
Flux is the flow rate per unit of filter area (e.g., GPM/sq. ft.). For the pentair quad de 60 filter cartridges, maintaining a low flux is essential for preventing the DE cake from being compressed or forced through the media. In industrial design, calculating the optimal flux is critical to prevent premature blinding of the filter elements.
Maintenance and Operational Lifecycle
A significant advantage of the Quad DE 60 design is the ability to backwash the system, similar to a traditional DE filter, or to remove the cartridges for manual cleaning. However, backwashing a cartridge-based DE system is often less efficient than backwashing a grid-based system because the pleats can trap DE and debris.
Cleaning Protocols
For pentair quad de 60 filter cartridges, manual cleaning involves removing the cartridges and rinsing them with a high-pressure hose. In industrial environments using stainless steel Filter Cartridges, cleaning protocols may involve ultrasonic cleaning, chemical baths, or back-pulsing with high-pressure air or fluid. The ability to restore a filter to its original clean pressure drop is a major factor in the Total Cost of Ownership (TCO).
Replacement Cycles
Synthetic cartridges eventually suffer from fiber fatigue or permanent blinding. In commercial pool applications, these cartridges may last 2 to 5 years depending on the bather load and water chemistry. In contrast, industrial stainless steel cartridges are designed for years of continuous service, with replacement usually only necessary if the mesh is mechanically damaged.
Customization and OEM Solutions in Filtration
While the pentair quad de 60 filter cartridges are a standardized product for a specific market, many industrial applications require customized filtration solutions. Engineering teams often find that off-the-shelf products do not meet the specific dimensions, micron requirements, or connection types needed for specialized machinery.
Engineering Considerations for Custom Filters
When developing custom filtration components, manufacturers like Kaifil focus on several engineering variables:
* End Cap Configuration: Ensuring a leak-proof seal using DOE (Double Open End), SOE (Single Open End) with O-rings, or threaded connections.
* Core Strength: Designing internal support cores that can withstand the maximum pump pressure in the event of a total blockage.
* Media Selection: Choosing between plain square weave, dutch weave, or sintered metal fiber felt based on the particle morphology and fluid viscosity.
For facilities looking to upgrade from standard synthetic systems to more durable industrial-grade solutions, transitioning to custom-designed Filter Cartridges can significantly reduce downtime and improve process consistency.
Selecting the Right Solution: A Technical Checklist
Whether you are maintaining a system using pentair quad de 60 filter cartridges or designing a new industrial filtration loop, the following technical factors should guide your selection:
1. Fluid Properties: Determine the viscosity, temperature, and chemical composition of the fluid. This dictates whether polyester, polypropylene, or stainless steel is the appropriate media.
2. Contaminant Type: Are the particles deformable (organic) or rigid (inorganic)? Rigid particles are easier to remove from surface filters, while deformable particles may require depth filtration.
3. Target Clarity: Define the required micron rating. If sub-5-micron clarity is needed, consider DE-aided systems or high-density pleated metal cartridges.
4. Operational Flow Rate: Ensure the total filtration area is sufficient to keep the flux within the manufacturer's recommended limits to avoid media migration or premature clogging.
5. Regulatory Compliance: For food, beverage, or pharmaceutical applications, ensure the filter materials meet FDA or other relevant industry standards for food contact and extractables.
By carefully analyzing these parameters, purchasing teams and engineers can ensure they select filtration components that provide the best balance of performance, durability, and cost-effectiveness. While the Pentair Quad DE 60 offers a specialized solution for high-clarity water, the broader world of industrial Filter Cartridges provides the robust, customizable options necessary for the world's most demanding processing environments.
