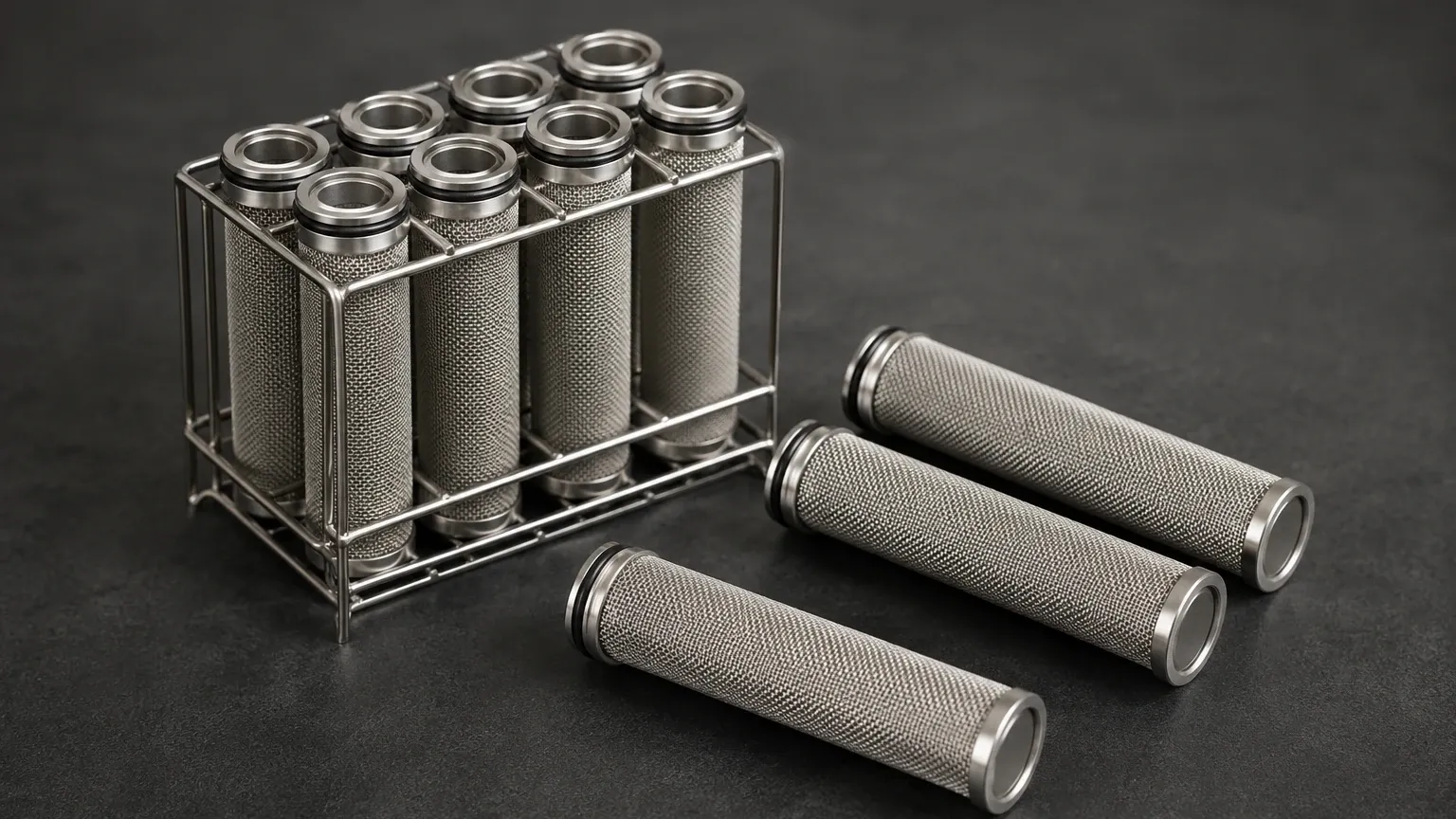

Spare Filter Cartridges Friend Holder
In industrial filtration, the reliability of a system is only as strong as its most vulnerable component. For facilities utilizing specialized filtration assemblies, the management of spare parts is a critical operational strategy. The term "spare filter cartridges friend holder" refers to the specific requirement for high-quality replacement media and the mechanical components that secure them within a housing. Whether in chemical processing, hydraulic systems, or high-precision industrial applications, ensuring that Filter Cartridges are compatible with their respective holders is essential for maintaining flow rates, preventing bypass, and protecting downstream equipment.
Industrial filtration relies on the precise interaction between the filter media and the structural holder. When engineers specify spare parts, they must look beyond simple dimensions. They must evaluate material compatibility, pressure thresholds, and the integrity of the sealing mechanism. This guide provides a technical overview of how to select and manage spare filter cartridges and their associated holders to optimize industrial performance.
The Engineering Role of Filter Cartridges and Holders
At its core, a filter cartridge is a replaceable piece of equipment designed to remove contaminants from a fluid stream. However, the cartridge cannot function in isolation; it requires a "holder" or housing that provides the structural framework and directs the fluid through the media. In many specialized systems, the "friend holder" refers to the retention mechanism or the specific housing design that ensures a leak-proof fit.
Structural Integrity
In high-pressure environments, such as hydraulic or steam filtration, the cartridge is subject to significant differential pressure. The holder must support the cartridge to prevent collapse or deformation. For stainless steel filtration solutions, this often involves a perforated inner core and an outer guard. The spare filter cartridges must match the original equipment manufacturer (OEM) specifications to ensure that the structural support provided by the holder remains effective.
Sealing and Bypass Prevention
The primary failure point in many filtration systems is not the media itself, but the seal between the cartridge and the holder. If the spare filter cartridges do not seat perfectly within the holder, fluid will take the path of least resistance—flowing around the media rather than through it. This "bypass" allows contaminants to reach sensitive downstream components, leading to premature wear or system failure. Common sealing methods include O-rings (typically Viton, EPDM, or Buna-N) and flat gaskets, which must be checked for compatibility with the process fluid.
Technical Specifications for Spare Filter Cartridges
When procuring a spare filter cartridges friend holder set, technical buyers must confirm several key parameters. Selecting the wrong specification can result in inefficient filtration or, in the worst case, catastrophic equipment damage.
Material Selection
Stainless steel is the gold standard for industrial filter cartridges due to its durability and resistance to extreme temperatures and corrosive chemicals.
* 304 Stainless Steel: Suitable for general industrial use, water treatment, and less aggressive chemical environments.
* 316L Stainless Steel: Preferred for pharmaceutical, food and beverage, and highly corrosive chemical applications due to its superior resistance to pitting and chloride corrosion.
Filtration Accuracy (Micron Rating)
The micron rating determines the size of particles the cartridge will capture. It is vital to distinguish between nominal and absolute ratings:
* Nominal Rating: An indicative value representing the filter's ability to retain a percentage of particles of a certain size.
* Absolute Rating: A mathematically determined value where the filter removes 99.9% (or higher) of particles at the specified micron size. For critical applications, absolute-rated stainless steel mesh or sintered metal cartridges are required.
Flow Rate and Pressure Drop
Every filter cartridge introduces a degree of resistance to the flow, known as the pressure drop ($ΔP$). As the filter collects contaminants, the $ΔP$ increases. Engineers must ensure that the spare cartridges provide a low initial pressure drop to maximize the service life before the terminal pressure drop is reached and the cartridge requires cleaning or replacement.
Understanding the "Friend Holder" Retention Mechanism
In the context of specialized filtration, the "holder" is more than just a container; it is a precision-engineered interface. The term "friend holder" often denotes a user-friendly or quick-change retention system designed to minimize downtime during maintenance.
Quick-Release and Threaded Connections
Many industrial cartridges utilize a threaded base or a bayonet-style (twist-lock) connection to secure the media to the holder. This ensures a consistent seal and prevents the cartridge from shifting under flow surges. When selecting spare parts, the thread pitch and connection type must be verified with extreme precision to avoid cross-threading or seal failure.
Alignment Guides
In multi-cartridge housings, the holder often includes alignment posts or "top plates" that keep the cartridges centered. A spare filter cartridges friend holder system that incorporates these guides reduces the risk of human error during installation. Proper alignment ensures that the compression force is distributed evenly across the gaskets, maintaining the integrity of the filtration barrier.
Selection Criteria for Industrial Spare Parts
Choosing the right supplier for spare filtration components involves evaluating more than just price. For B2B procurement, the total cost of ownership (TCO) is the most relevant metric.
Customization and OEM Compatibility
Many industrial systems require custom-sized cartridges or unique end-cap configurations. Working with a manufacturer like Kaifil allows for the development of bespoke solutions that fit existing holders perfectly. Whether you need a specific length, a unique mesh weave, or a reinforced core for high-viscosity fluids, customization ensures that the spare parts perform as well as, or better than, the original components.
Quality Assurance and Certification
In industries such as food processing or pharmaceuticals, spare filter cartridges must meet stringent regulatory standards. This includes material traceability (MTRs) and compliance with FDA or 3-A Sanitary Standards. Ensuring that the manufacturer adheres to ISO quality management systems provides confidence that every spare part will meet the required performance benchmarks.
Maintenance and Replacement Cycles
A robust maintenance strategy for spare filter cartridges friend holder systems involves both scheduled inspections and real-time monitoring. Waiting for a filter to fail can lead to expensive unplanned downtime.
Monitoring Differential Pressure
The most effective way to determine when to replace a cartridge is by monitoring the differential pressure across the housing. Most industrial systems are equipped with pressure gauges or sensors. A sudden drop in $ΔP$ may indicate a ruptured cartridge or a failed seal in the holder, while a rapid increase suggests heavy contaminant loading or a change in the process fluid's characteristics.
Cleaning vs. Replacement
One of the primary advantages of stainless steel filter cartridges is their cleanability. Unlike disposable polymer filters, stainless steel media can often be cleaned via backwashing, ultrasonic cleaning, or chemical soaking. However, there is a limit to how many times a cartridge can be regenerated. Eventually, "permanent" fouling or mechanical fatigue will necessitate the use of a brand-new spare cartridge. Maintaining a stock of spares ensures that the system can return to service immediately while the used cartridges are being cleaned.
Storage of Spare Parts
Proper storage is essential to prevent damage to spare filtration components. Cartridges should be kept in their original packaging in a clean, dry environment. For stainless steel components, protection from physical impact is crucial, as even a small dent in the mesh can create a localized high-velocity zone that leads to premature wear or bypass.
Total Cost Considerations in Filtration Procurement
When engineers and purchasing teams evaluate spare filter cartridges, they must consider the long-term economic impact. While a lower-cost alternative might seem attractive initially, it often results in higher costs over time due to:
1. Shorter Service Life: Lower-quality media may clog faster or lack the structural integrity to withstand cleaning cycles.
2. Increased Labor Costs: Frequent replacements require more maintenance hours and system downtime.
3. Risk of Downstream Damage: If a cheap spare cartridge fails, the cost of repairing a high-pressure pump or a precision nozzle far outweighs the savings on the filter.
Investing in high-quality, precision-engineered stainless steel cartridges ensures a lower TCO by providing extended service life, reliable performance, and the ability to withstand rigorous industrial cleaning processes.
Conclusion: Securing Your Filtration Supply Chain
Managing a specialized filtration system requires a deep understanding of the relationship between the media and its housing. The spare filter cartridges friend holder concept emphasizes the need for a perfect mechanical and functional match between these components. By focusing on technical specifications, material quality, and proper maintenance protocols, industrial facilities can ensure continuous operation and optimal product purity.
For engineers looking to optimize their filtration processes, the selection of spare parts should be treated with the same technical rigor as the initial system design. Whether you are dealing with standard sizes or require custom-engineered solutions, the goal remains the same: reliable, efficient, and cost-effective contaminant removal.
To explore high-performance options for your facility, you can Review product options and application support to find the exact configuration required for your specific industrial challenges. By partnering with an experienced manufacturer, you gain access to the technical expertise needed to solve complex filtration issues and maintain a resilient production line.
