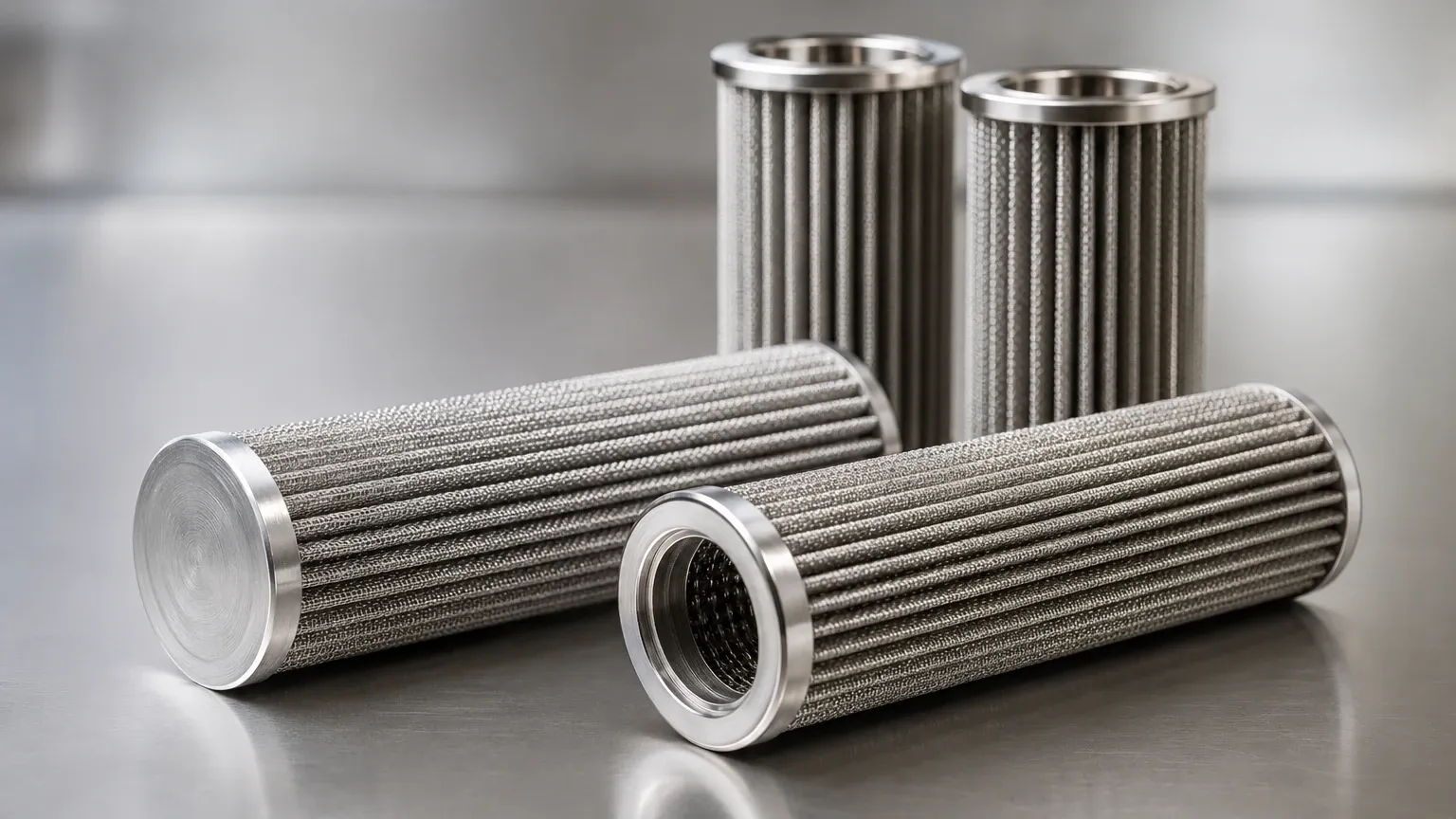

Whisper Filter Cartridges Xs
In the landscape of industrial filtration, the demand for compact, high-efficiency components has led to the development of specialized small-format solutions. Among these, the concept of whisper filter cartridges xs represents a niche yet critical segment focused on precision filtration within space-constrained environments where noise reduction and laminar flow are paramount. For engineers and procurement specialists, understanding the technical specifications and material science behind these small-scale Filter Cartridges is essential for maintaining system integrity and operational efficiency.
Industrial "XS" or extra-small cartridges are typically utilized in applications ranging from laboratory-scale chemical processing to precision hydraulic pilot lines. Unlike standard large-scale industrial filters, these compact units must balance high-pressure resistance with delicate filtration accuracy. When a system specifies a "whisper" or low-noise requirement, it often refers to the need for optimized fluid dynamics that prevent cavitation, vibration, and the acoustic signatures associated with turbulent flow through restrictive media.
Understanding the Engineering Behind Small-Format (XS) Filtration
The engineering of whisper filter cartridges xs involves a deep dive into fluid mechanics. In small-scale systems, the ratio of surface area to flow volume is significantly different than in large-scale tanks. This requires a sophisticated approach to pleating and media density to ensure that the pressure drop ($ΔP$) remains within acceptable limits.
One of the primary causes of noise in filtration systems is the transition from laminar to turbulent flow. As fluid passes through a filter medium, any abrupt changes in direction or excessive resistance can create micro-vortices. In precision instruments or medical-grade equipment, these vibrations can interfere with sensitive measurements or lead to mechanical fatigue. To achieve "whisper" quiet operation, manufacturers like Kaifil focus on the internal geometry of the cartridge, ensuring that the support cores and end caps promote a smooth transition of the fluid through the wire mesh or sintered layers.
Furthermore, the "XS" designation often implies a non-standard housing size. This necessitates custom engineering of the end-cap configurations, such as Double Open End (DOE) or specific O-ring interfaces (like 222 or 226 styles scaled down), to ensure a bypass-free seal. A perfect seal is the first line of defense against noise; even a microscopic bypass can create high-frequency whistling as pressurized fluid escapes through a narrow gap.
Material Selection for Precision Industrial Cartridges
Material integrity is the cornerstone of high-performance whisper filter cartridges xs. While plastic or polymer-based filters are common in consumer applications, industrial environments demand the durability and chemical compatibility of stainless steel. Kaifil specializes in utilizing 304 and 316L stainless steel for these precision components.
Stainless Steel Wire Mesh
For XS cartridges requiring high flow rates and surface filtration, multi-layered wire mesh is the preferred choice. The mesh can be woven in various patterns—plain, twill, or Dutch weave—to achieve specific micron ratings. In a low-noise application, a Dutch weave is often favored for its structural stability, which prevents the mesh from vibrating or "fluttering" under the pulse of a pump.
Sintered Metal Media
When the application requires depth filtration or extreme pressure resistance, sintered metal fiber or sintered powder media is utilized. Sintering fuses the metal particles or fibers together at a molecular level, creating a rigid structure that cannot be bypassed or deformed. This rigidity is crucial for whisper-quiet performance, as it eliminates the mechanical noise associated with media shifting during pressure cycles.
Chemical and Thermal Compatibility
Stainless steel 316L is particularly valued for its resistance to corrosion in acidic or saline environments. In industries such as pharmaceutical manufacturing or chemical dosing, the filter must withstand aggressive cleaning agents and high-temperature sterilization (SIP/CIP) without losing its structural integrity. A compromised filter structure not only fails to protect downstream equipment but also increases the acoustic profile of the system due to irregular flow paths.
Performance Metrics: Flow Rate vs. Noise Reduction
When selecting whisper filter cartridges xs, engineers must evaluate the trade-off between filtration fineness and the resulting noise or vibration. The finer the micron rating, the higher the resistance to flow. In a compact XS housing, this resistance can lead to significant backpressure.
To optimize this, manufacturers calculate the "Effective Filtration Area" (EFA). By maximizing the EFA through advanced pleating techniques, it is possible to maintain a low face velocity across the filter medium. Low face velocity is the most effective way to ensure quiet operation, as it keeps the fluid movement within the laminar regime.
Key performance indicators for these cartridges include:
- Bubble Point Pressure: Indicates the pore size and integrity of the filter.
- Dirt Holding Capacity (DHC): Determines how long the cartridge can operate before the pressure drop increases to a level that causes system noise or requires replacement.
- Collapse Pressure: The maximum differential pressure the cartridge can withstand before structural failure—a critical safety metric for hydraulic and high-pressure gas applications.
Customization and OEM Considerations for XS Filter Cartridges
Standard off-the-shelf filters rarely meet the exacting requirements of specialized industrial equipment. This is where OEM customization becomes vital. For a project requiring whisper filter cartridges xs, the customization process typically involves several stages of engineering collaboration.
First, the physical dimensions must be reconciled with the existing housing. In many XS applications, the space is extremely limited, requiring ultra-short or thin-diameter cartridges. Second, the end-cap design must be tailored to the specific mounting hardware. Whether it is a threaded connection, a bayonet mount, or a simple compression fit, the interface must be precision-machined to prevent leaks.
Kaifil’s approach to OEM manufacturing allows for the integration of specific features, such as internal bypass valves or reinforced support cores, directly into the XS cartridge design. For engineers, this means the filtration component is not an afterthought but a fully integrated part of the system’s fluid dynamics strategy. Customization also extends to the micron rating, where non-standard sizes (e.g., a specific 7-micron or 12-micron mesh) can be produced to meet a unique process requirement that standard 5 or 10-micron filters cannot satisfy.
Maintenance and Replacement Cycles for Compact Filtration Systems
The maintenance of small-format filter cartridges differs significantly from their larger counterparts. Because XS cartridges have a smaller total surface area, they can reach their terminal pressure drop more quickly if the fluid has a high contaminant load.
Monitoring Pressure Drop
In systems where whisper-quiet operation is essential, monitoring the differential pressure is the most reliable way to determine the replacement cycle. As the filter loads with particles, the increased resistance will eventually lead to audible changes in the system—often a humming or vibrating sound from the pump as it works harder to push fluid through the clogged media. Replacing the cartridge before this stage is reached is critical for protecting the pump and maintaining the "whisper" performance profile.
Cleaning vs. Disposal
One of the primary advantages of stainless steel Filter Cartridges is their cleanability. Unlike disposable polymer filters, stainless steel XS cartridges can often be refurbished using ultrasonic cleaning, backflushing, or chemical baths. This is particularly cost-effective for high-value cartridges used in specialized chemical or oil filtration. However, the cleaning process must be validated to ensure that the pore structure is not damaged and that no residual contaminants remain, which could cause a "whistling" effect upon re-installation.
Industrial Applications for Low-Noise, Small-Scale Filters
The application of whisper filter cartridges xs spans several high-tech industries where precision and environment control are necessary.
1. Analytical Instrumentation: In chromatography or mass spectrometry, the presence of even minor vibrations or pressure fluctuations can distort data. Small-format stainless steel filters ensure that the mobile phase or carrier gas is free of particulates without introducing mechanical noise.
2. Medical Device Manufacturing: Equipment used in surgical suites or patient monitoring must operate silently. XS filters in these devices manage the flow of medical gases or fluids while adhering to strict acoustic standards.
3. Precision Hydraulics: In aerospace or robotics, small hydraulic pilot lines control larger actuators. These lines require XS filtration to protect sensitive valves. The "whisper" aspect ensures that the hydraulic system does not contribute to the overall noise floor of the vehicle or robotic cell.
4. Food and Beverage Sampling: Automated sampling systems in breweries or dairies use small-scale filters to protect sensors. Stainless steel is mandatory here for hygiene, and the compact size allows the filters to be integrated directly into the sampling manifold.
Total Cost of Ownership (TCO) in XS Filtration
While the initial cost of a custom stainless steel whisper filter cartridge xs may be higher than a generic plastic equivalent, the Total Cost of Ownership (TCO) is often much lower. The durability of metal means fewer replacements and less downtime. Furthermore, the protection provided to expensive downstream components—such as high-pressure pumps or sensitive analytical sensors—far outweighs the cost of the filter itself.
When evaluating TCO, engineers should consider:
- Longevity: How many cleaning cycles can the cartridge survive?
- System Efficiency: Does the low-pressure-drop design reduce energy consumption at the pump?
- Risk Mitigation: Does the high-strength stainless steel construction prevent catastrophic bypass or media migration that could ruin a production batch?
Conclusion: Selecting the Right Partner for XS Filtration
Selecting the appropriate whisper filter cartridges xs requires more than just matching a part number. It demands an understanding of the interplay between material science, fluid dynamics, and mechanical design. For B2B buyers and engineers, the goal is to find a filtration solution that provides the necessary micron retention without sacrificing the quiet, stable flow required by modern precision equipment.
As a manufacturer with deep expertise in custom stainless steel solutions, Kaifil provides the technical support needed to navigate these complexities. From initial material selection to the final testing of flow characteristics, ensuring that a filter cartridge meets the "whisper" standard is a matter of engineering precision. By focusing on high-quality 304 and 316L stainless steel and leveraging advanced manufacturing techniques, it is possible to achieve superior filtration performance in even the most compact "XS" formats.
For those looking to optimize their systems, reviewing the available technical specifications for various Filter Cartridges is the first step toward achieving a reliable, quiet, and efficient industrial filtration process.
