Camera Filter Pack Unity
In the realm of high-precision industrial manufacturing, the term "unity" refers to more than just a conceptual state; it describes the structural integrity and cohesive performance of multi-layered filtration components. For engineers and procurement specialists sourcing Filter Discs & Packs, achieving a state of "camera filter pack unity" is essential for applications requiring extreme clarity and the elimination of microscopic contaminants. Whether utilized in the production of optical lenses, camera sensor housings, or high-purity chemical processing, the physical construction of a filter pack determines its ability to maintain consistent flow rates and filtration accuracy under pressure.
This guide explores the technical engineering behind filter discs and packs, focusing on how material selection, layering techniques, and structural bonding contribute to the overall performance and reliability of the filtration system.
The Engineering Behind Filter Discs & Packs

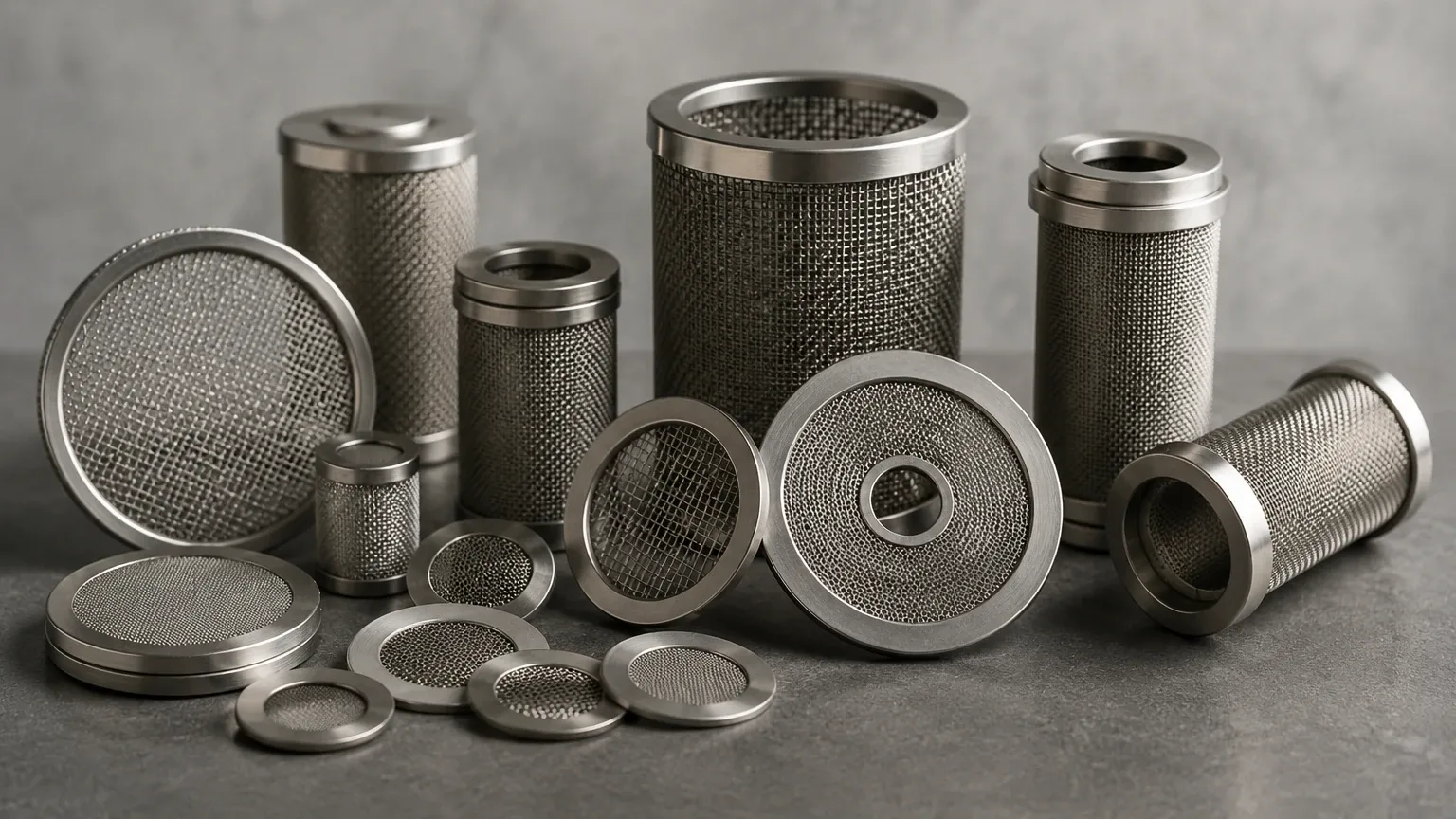

Filter discs and packs are precision-engineered components typically made from stainless steel wire mesh. Unlike a single layer of mesh, a filter pack consists of multiple layers of varying mesh counts and wire diameters. These layers are stacked in a specific sequence to provide graded filtration, where the outer layers capture larger particles and the inner layers provide the final, fine filtration.
To achieve true camera filter pack unity, these layers must be bonded or framed together so they function as a single, rigid unit. This prevents "media migration"—a common failure mode where individual wires or layers shift under high pressure, potentially allowing contaminants to bypass the filter or, worse, allowing mesh fragments to enter the downstream flow. In precision industries such as camera component manufacturing, even a single stray fiber or metallic particle can result in a total batch failure.
Construction Methods for Structural Integrity
There are several primary methods used by manufacturers like Kaifil to ensure the unity of a filter pack:
1. Spot Welding: Individual layers are welded at specific points along the circumference. This is a cost-effective method for low-pressure applications.
2. Aluminum or Stainless Steel Binding: The edges of the multi-layer stack are encased in a metal rim (often aluminum or 316L stainless steel). This provides a superior seal and prevents any fraying of the wire mesh edges.
3. Sintering: The most robust method for achieving unity. Sintered filter packs are heated in a vacuum furnace until the contact points of the wires fuse together. This creates a permanent, monolithic structure that cannot be compromised by mechanical stress or high temperatures.
Material Selection for Precision Applications
When discussing camera filter pack unity in an industrial context, material compatibility is the first line of defense against system failure. Most high-performance filter packs are constructed from stainless steel alloys, specifically 304, 316, or 316L.
* Grade 304: Suitable for general industrial use where basic corrosion resistance is required.
* Grade 316L: The preferred choice for precision optics and chemical processing. The lower carbon content and the addition of molybdenum provide superior resistance to pitting and corrosion, especially when exposed to the aggressive cleaning solvents used in camera lens manufacturing.
* Specialty Alloys: For extreme environments involving high-temperature polymers or corrosive acids, alloys like Monel, Inconel, or Hastelloy may be employed to ensure the filter pack maintains its structural unity throughout its service life.
Selection of the correct micron rating is equally critical. In optical applications, filtration requirements often fall into the range of 5 to 40 microns. Achieving this requires a precise calculation of the "effective filtration area" (EFA) and the pressure drop across the multi-layered pack.
The Role of Filter Pack Unity in Optical Manufacturing
The concept of camera filter pack unity is particularly relevant in the production of optical-grade polymers and the cleaning of camera components. In these environments, the filtration system must operate with absolute reliability.
Polymer Filtration for Lens Housing
Many camera components are made from high-performance plastics or resins. During the extrusion or injection molding process, these polymers must be filtered to remove gels or foreign particles. A multi-layer filter pack with a rigid frame ensures that the high viscosity of the molten polymer does not deform the mesh. If the pack lacks structural unity, the pressure of the polymer melt can cause "channelling," where the fluid finds a path of least resistance, effectively bypassing the fine filtration layers.
Precision Cleaning Systems
Before camera lenses are coated or assembled, they undergo rigorous ultrasonic cleaning. The solvents and deionized water used in these systems are continuously recirculated through filter discs. Here, the unity of the filter pack ensures that no metallic particles from the filter itself are introduced into the cleaning bath, which would otherwise scratch or contaminate the sensitive optical surfaces.
Key Evaluation Criteria for Engineers
When specifying Filter Discs & Packs for a new project, engineers should evaluate the following technical parameters to ensure the chosen solution meets the required performance standards:
1. Filtration Accuracy (Micron Rating)
Does the pack provide absolute or nominal filtration? For camera-related applications, absolute filtration is often required to guarantee that no particles above a certain size pass through the mesh. This is achieved through the precise layering of Dutch weave or square weave meshes.
2. Pressure Drop (Delta P)
Every filter introduces a resistance to flow. A well-designed filter pack maximizes the surface area to keep the initial pressure drop low. As the filter captures contaminants, the pressure drop increases. Engineers must determine the maximum allowable Delta P before the structural unity of the pack is at risk of collapsing.
3. Dirt-Holding Capacity
This refers to the amount of contaminant the filter can retain before reaching its terminal pressure drop. Multi-layer packs significantly increase dirt-holding capacity compared to single-layer discs by utilizing depth filtration principles.
4. Chemical and Thermal Compatibility
Will the filter be exposed to high-temperature steam for sterilization or aggressive solvents for cleaning? The bonding method (welded vs. framed) must be compatible with these conditions to prevent the pack from deforming or delaminating.
Common Risks and Mitigation Strategies
Failure to achieve proper camera filter pack unity can lead to several industrial risks. Understanding these risks allows purchasing teams to vet suppliers more effectively.
* Bypass Leakage: If the filter pack is not perfectly flat or if the rim is not securely crimped, fluid can leak around the edges. This is mitigated by precision stamping and rigorous quality control of the outer dimensions.
* Mesh Distortions: Under high flow rates, unsupported mesh layers can stretch or tear. This is prevented by including a "support layer" of heavy-duty, large-opening mesh on the downstream side of the pack.
* Oxidation and Contamination: In some cases, low-quality stainless steel may contain impurities that oxidize over time. Using certified 316L stainless steel from reputable manufacturers like Kaifil ensures that the filter remains inert and does not introduce secondary contamination into the process.
Customization and OEM Solutions
No two industrial processes are identical, which is why customization is a cornerstone of effective filtration. For specialized equipment, standard off-the-shelf discs may not suffice. Customization options for Filter Discs & Packs include:
* Custom Geometric Shapes: Beyond standard circular discs, packs can be manufactured in oval, rectangular, or complex kidney shapes to fit specific housing designs.
* Variable Layering: Engineers can specify the exact mesh count for each layer, balancing the need for fine filtration with the requirement for high flow rates.
* Integrated Gaskets: For high-pressure hydraulic or gas systems, filter packs can be manufactured with integrated rubber or PTFE gaskets to ensure a leak-proof seal within the assembly.
By working closely with a manufacturer during the design phase, engineers can ensure that the filter pack is optimized for the specific fluid dynamics and contaminant profiles of their application.
Conclusion: Confirming Technical Requirements
Before finalizing a purchase order for industrial filter packs, technical professionals should confirm several key details with their supplier. This includes the exact mesh specifications, the material certification (MTRs), and the testing protocols used to verify filtration accuracy.
Achieving camera filter pack unity is a matter of precision engineering and manufacturing excellence. By selecting high-quality materials and robust construction methods, industrial operators can protect their sensitive equipment, reduce downtime, and ensure the highest levels of product purity. Whether for optical manufacturing, hydraulic systems, or chemical processing, the right filter pack is a critical component in maintaining the integrity of the entire production line. For those seeking reliable, high-performance solutions, Kaifil provides the expertise and manufacturing capability to deliver custom filtration components that meet the most demanding industrial standards.
