Disc Filter Nz
In the landscape of industrial filtration, the term disc filter nz represents a critical category of precision-engineered components used across New Zealand’s diverse manufacturing, chemical processing, and primary industry sectors. These components, primarily constructed from high-grade stainless steel wire mesh, are essential for ensuring product purity, protecting downstream equipment, and maintaining the integrity of fluid systems. For engineers and procurement specialists, selecting the right filtration media involves a deep understanding of material science, fluid dynamics, and mechanical design.
Industrial applications in New Zealand—ranging from dairy processing and wine production to hydraulic systems and plastic extrusion—demand filtration solutions that can withstand rigorous operating conditions. This article provides a technical overview of the specifications, design considerations, and selection criteria for Filter Discs & Packs, focusing on the factors that determine performance and longevity in demanding environments.
The Role of Precision Filter Discs & Packs in Industrial Systems

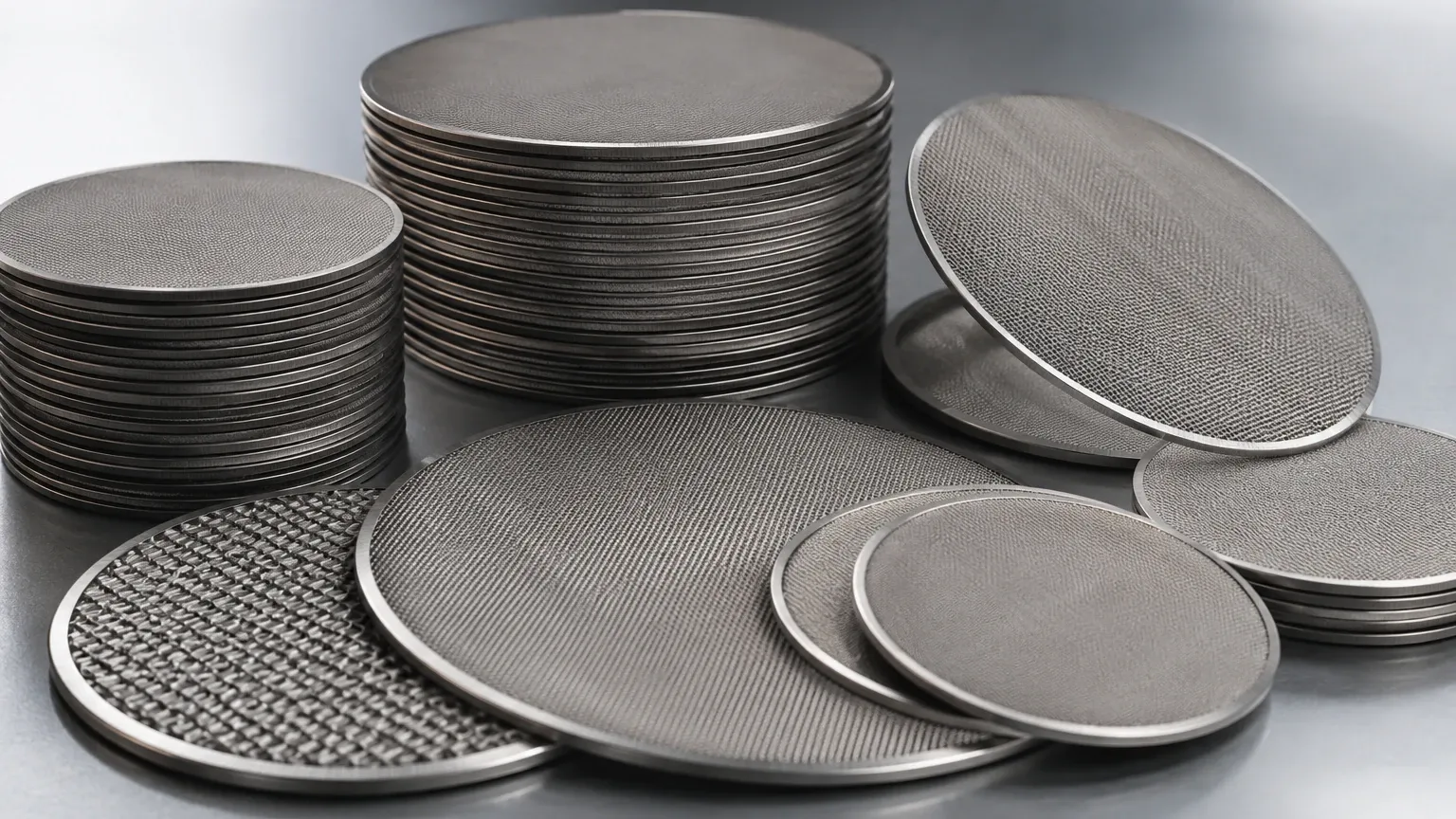

Filter discs are circular filtration components made from one or more layers of wire cloth. When multiple layers are combined, often with varying mesh counts, they are referred to as filter packs. Their primary function is to remove solid contaminants from gases or liquids. Unlike disposable polymer filters, stainless steel discs offer high mechanical strength, thermal stability, and the ability to be cleaned and reused, which significantly impacts the total cost of ownership.
In the context of a disc filter nz search, the focus is often on finding components that meet international standards while being compatible with local machinery. These filters are commonly integrated into:
* Extrusion Lines: Removing gels and impurities from molten polymers.
* Hydraulic Systems: Protecting sensitive valves and pumps from particulate wear.
* Food and Beverage: Ensuring the clarity of liquids and the removal of micro-solids in compliance with hygiene standards.
* Pharmaceuticals: Providing precise particle cut-offs in sterile environments.
Material Engineering: Selecting Alloys for Corrosion and Heat Resistance
The choice of material is the first and most critical decision in the engineering of filter discs. While various metals can be used, stainless steel is the industry standard due to its balance of durability and chemical resistance.
Stainless Steel 304
This is the most common grade used for general industrial applications. It provides excellent strength and good corrosion resistance for many environments. However, in applications involving high salt concentrations or specific chemical exposures common in New Zealand’s marine-adjacent or food-processing industries, it may be susceptible to pitting.
Stainless Steel 316L
For more demanding applications, 316L (low carbon) is preferred. The addition of molybdenum enhances resistance to chlorides and acids. This grade is the benchmark for the pharmaceutical and food industries, where rigorous cleaning protocols involving caustic agents are frequent. The "L" designation ensures that the material maintains its corrosion resistance even after welding, which is crucial for spot-welded multi-layer packs.
Specialty Alloys
In extreme cases involving high-temperature gas filtration or highly corrosive chemical processing, alloys such as Hastelloy, Monel, or Inconel may be specified. These materials are chosen when standard stainless steel would suffer from rapid oxidation or chemical degradation.
Weave Patterns and Their Impact on Filtration Efficiency
The performance of a disc filter nz is largely defined by the weave of the wire mesh. The weave determines the micron rating (the size of particles the filter can trap) and the flow characteristics.
1. Plain Weave: The simplest pattern where wires cross over and under each other. It provides a high open area and low pressure drop, making it ideal for coarse filtration and high-flow applications.
2. Twill Weave: Each shute wire passes successively over and under two warp wires. This allows for a heavier wire diameter for a given mesh count, increasing the mechanical strength of the disc.
3. Dutch Weave (Plain and Twill): These weaves use a larger diameter warp wire and a smaller diameter shute wire. This creates a "tortuous path" for the fluid, allowing for much finer filtration ratings (down to 2–5 microns) while maintaining a robust structure. Dutch weave discs are the standard for high-pressure extrusion and fine chemical separation.
Structural Design: Single-Layer Discs vs. Multi-Layer Filter Packs
Depending on the application's pressure and the nature of the contaminants, the structure of the filter can vary from a simple single-layer disc to a complex multi-layer pack.
Single-Layer Discs
These are typically used in low-pressure applications or as a secondary safety screen. They are cost-effective and easy to clean but lack the depth and support required for high-viscosity or high-pressure systems.
Multi-Layer Packs
Multi-layer Filter Discs & Packs are engineered to provide both fine filtration and structural integrity. A typical configuration includes:
* Filtration Layer: The middle layer(s) with the specific micron rating required for the process.
* Support Layers: Coarser mesh layers on either side of the filtration layer that prevent the fine mesh from deforming under pressure.
* Drainage Layers: Occasionally added to improve the flow distribution across the surface of the filter.
These layers are often joined at the edges. Common binding methods include:
* Spot Welding: Multiple layers are fused at specific points to keep them aligned during installation.
* Aluminum or Stainless Steel Rims: The layers are encased in a metal frame (rim). This provides a superior seal within the filter housing and prevents bypass, which is critical in high-precision extrusion.
Engineering Considerations for Flow Rate and Pressure Drop
When specifying a disc filter nz, engineers must calculate the balance between filtration fineness and the resulting pressure drop ($ΔP$). A filter that is too fine will clog quickly, leading to frequent downtime, while one that is too coarse will fail to protect downstream components.
Effective Filtration Area (EFA)
The EFA is the total surface area available for the fluid to pass through. In multi-layer packs, the EFA is determined by the finest layer. Maximizing the EFA reduces the face velocity of the fluid, which lowers the pressure drop and extends the time between cleanings.
Dirt Holding Capacity
This refers to the amount of contaminant the disc can retain before the pressure drop reaches a critical threshold (terminal $ΔP$). Multi-layer designs often improve dirt-holding capacity by trapping larger particles in the outer support layers before they reach the fine filtration layer.
Viscosity and Temperature
The viscosity of the fluid (e.g., molten plastic vs. water) significantly affects the flow rate. Higher temperatures generally lower viscosity but may require the filter to be designed with higher thermal expansion tolerances to prevent warping or seal failure.
Industry-Specific Applications and Compliance Requirements
In New Zealand, different industries have specific regulatory and technical requirements for filtration components.
* Dairy and Food Processing: Filters must be made from FDA-compliant materials. The surface finish of the mesh and the rims must be burr-free and smooth to prevent the accumulation of bacteria. 316L stainless steel is typically mandatory.
* Petrochemical and Chemical: The primary concern is chemical compatibility and the ability to withstand high differential pressures. Filters used in these sectors often require material traceability certifications (MTRs).
* Hydraulics: In the forestry and construction machinery sectors, disc filters are used to protect sensitive servo-valves. These require high collapse strength to ensure that if the filter becomes clogged, it does not disintegrate and send metal fragments into the system.
Maintenance, Cleaning, and Replacement Strategies
One of the primary advantages of stainless steel disc filter nz solutions is their cleanability. Unlike synthetic media, metal mesh can be restored to near-original performance levels through several methods:
1. Ultrasonic Cleaning: High-frequency sound waves create cavitation bubbles that dislodge fine particles from deep within the mesh pores. This is highly effective for Dutch weave patterns.
2. Chemical Cleaning: Using solvents or acids to dissolve organic or inorganic deposits. This must be done with careful consideration of the mesh alloy (e.g., avoiding hydrochloric acid on 304/316 steel).
3. Burn-off / Pyrolysis: In the plastics industry, polymer residue is removed by heating the discs in a vacuum oven or fluidized bed, carbonizing the plastic so it can be blown or washed away.
Determining Replacement Cycles
While cleanable, filter discs eventually suffer from mechanical fatigue or "blinding" (permanent clogging). Engineers should monitor the time it takes for a cleaned filter to reach terminal pressure. If the cycle time between cleanings drops by more than 30–50%, the disc should be replaced to avoid excessive energy consumption and the risk of media migration.
Technical Specification Checklist for Custom Procurement
When ordering custom Filter Discs & Packs, providing precise data to the manufacturer ensures the component will perform as expected. Engineers should confirm the following:
* Dimensions: Exact diameter (including tolerances) and total thickness of the pack.
* Micron Rating: Specify whether this is absolute (100% of particles) or nominal (a percentage of particles).
* Layer Configuration: The sequence of mesh counts for multi-layer designs.
* Edge Treatment: Whether the disc should be plain, spot-welded, or rimmed (and the material of the rim).
* Operating Conditions: Maximum operating pressure, expected differential pressure, and temperature range.
* Fluid Characteristics: The chemical composition and viscosity of the medium being filtered.
By focusing on these technical boundaries, New Zealand businesses can ensure they procure disc filter nz components that optimize their production efficiency and equipment lifespan. Whether for a standard hydraulic system or a custom-built food processing line, the engineering of the filter disc is a fundamental pillar of process reliability.
