In the realm of industrial process engineering, the selection and optimization of filtration components represent a critical technical challenge. While the term "disc filtration tryhackme" might suggest a gamified approach to learning, for engineers and procurement specialists, the "challenge" lies in navigating the complex variables of material science, fluid dynamics, and mechanical structural integrity to ensure process efficiency. Precision-engineered Filter Discs & Packs are the silent workhorses of the chemical, pharmaceutical, and food processing industries, where even a minor deviation in micron rating or alloy composition can lead to significant downtime or product contamination.
This guide serves as a technical deep dive into the engineering considerations of disc filtration, addressing the common hurdles professionals face when specifying components for demanding industrial environments.

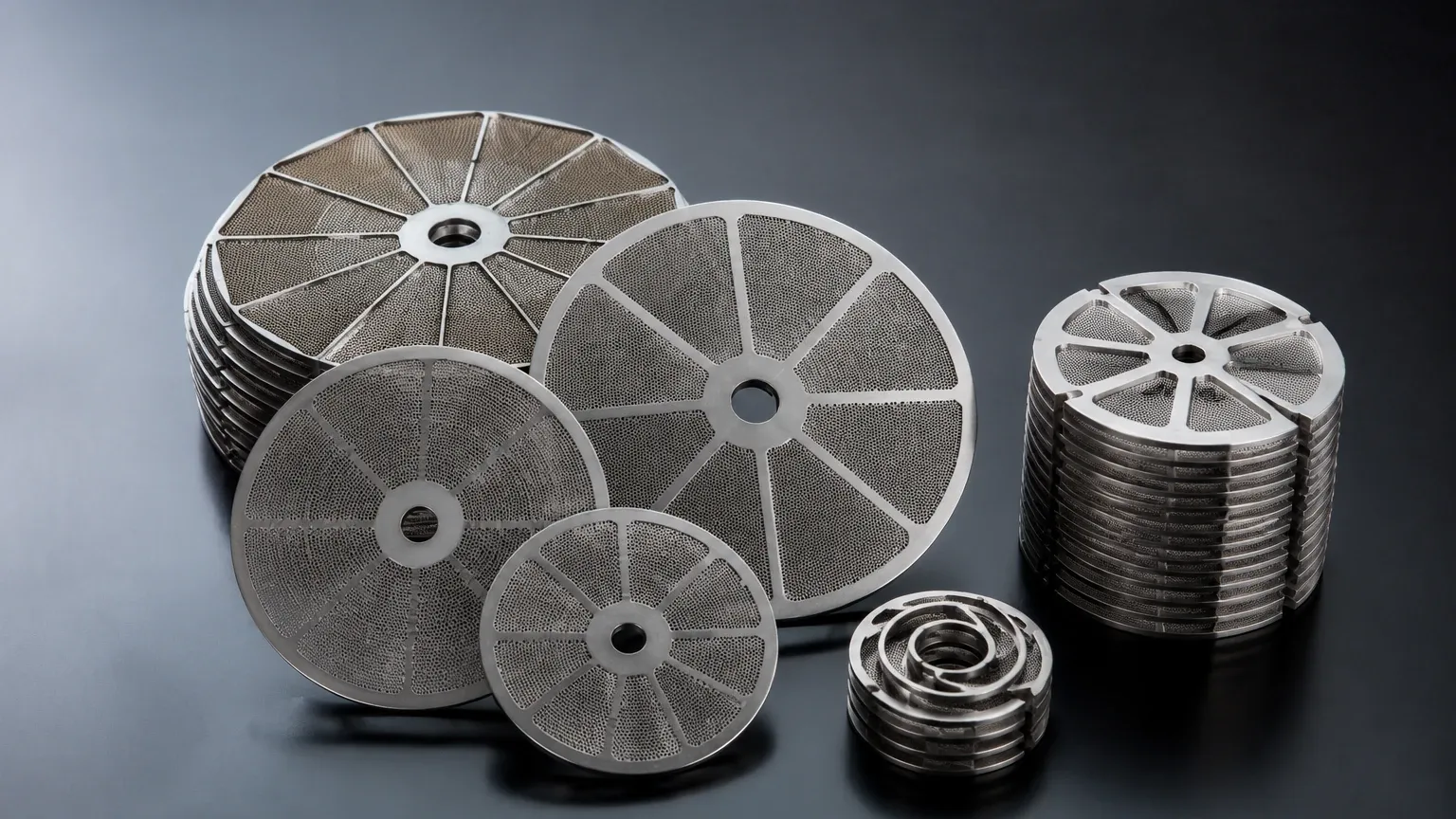

Understanding the Architecture of Filter Discs & Packs
Industrial filter discs are not merely circular pieces of mesh; they are sophisticated components designed to withstand high differential pressures while maintaining precise filtration accuracy. The architecture of these discs varies based on the application's mechanical and chemical requirements.
Single-Layer vs. Multi-Layer Construction
Single-layer filter discs are typically used in low-pressure applications or as pre-filtration stages. They are cost-effective and easy to clean but may lack the structural rigidity required for high-viscosity fluids.
In contrast, multi-layer filter packs involve the stacking of different mesh counts. A common configuration includes a fine filtration layer sandwiched between coarser support layers. This "pack" design provides several advantages:
* Mechanical Strength: The outer layers protect the fine inner mesh from mechanical damage and deformation under pressure.
* Depth Filtration Characteristics: While primarily surface filters, multi-layer packs can capture a wider range of particle sizes, extending the time between cleaning cycles.
* Flow Distribution: Coarser layers help distribute the fluid evenly across the filtration surface, preventing localized clogging.
Edge Binding and Structural Integrity
To prevent the fraying of wire mesh and to ensure a leak-proof seal within the filter housing, discs are often finished with edge binding. Materials such as aluminum, stainless steel, or copper are compressed around the circumference of the disc. In high-temperature or highly corrosive environments, spot welding or sintering the edges is preferred to avoid the introduction of dissimilar metals that could lead to galvanic corrosion.
Material Selection: The Foundation of Performance
The "tryhackme" aspect of filtration often begins with material compatibility. Selecting the wrong alloy can lead to premature failure via pitting, stress corrosion cracking, or general oxidation.
1. Stainless Steel 304/304L: The standard for general industrial use, offering good corrosion resistance and mechanical properties at a lower price point.
2. Stainless Steel 316/316L: The preferred choice for the pharmaceutical and food industries. The addition of molybdenum enhances resistance to chlorides and organic acids.
3. Specialty Alloys: For extreme environments, materials like Hastelloy, Monel, and Inconel are utilized. These are essential in chemical processing plants dealing with high-concentration acids or extreme thermal cycling.
When evaluating materials, engineers must consider the "L" grades (low carbon) for any components that require welding, as this prevents carbide precipitation and maintains the integrity of the corrosion resistance in the heat-affected zone.
The Engineering Challenge: Solving Pressure Drop and Flow Rate Issues
A common technical hurdle in disc filtration is balancing filtration fineness with the allowable pressure drop ($ΔP$). According to Darcy's Law for porous media, the pressure drop is directly proportional to the fluid viscosity and the flow velocity, and inversely proportional to the permeability of the filter medium.
Managing the Micron Rating
Engineers must distinguish between nominal and absolute filtration ratings. A nominal rating refers to the ability of the filter to retain a certain percentage (usually 60-90%) of particles of a specific size. An absolute rating, typically achieved through high-precision Dutch weave mesh or sintered metal fibers, ensures that 99.9% of particles above the specified micron size are captured.
In a "disc filtration tryhackme" scenario—where an engineer must troubleshoot a system failure—the first step is often verifying if the micron rating is too fine for the pump's capacity, leading to cavitation, or too coarse, leading to downstream equipment damage.
Sintered vs. Non-Sintered Mesh
For high-pressure applications, sintered wire mesh discs offer the ultimate solution. Sintering is a process where multiple layers of mesh are bonded together through heat and pressure without the use of binders. This creates a monolithic structure where the individual wires cannot shift. This eliminates the risk of "media migration," where small fragments of the filter itself enter the process stream—a critical requirement in pharmaceutical and semiconductor manufacturing.
Customization and OEM Capabilities
No two industrial processes are identical, which is why customization is a core component of effective filtration. When sourcing Filter Discs & Packs, engineering teams should look for manufacturers capable of providing bespoke solutions.
Geometric Precision
While circular discs are standard, many modern filtration housings require complex shapes, including oval, rectangular, or ring-shaped designs. Advanced CNC laser cutting and hydraulic stamping ensure that these components meet tolerances as tight as ±0.05mm, ensuring a perfect fit and preventing bypass—the phenomenon where unfiltered fluid escapes around the edges of the filter.
Layer Configuration and Mesh Weaves
The choice of weave—Plain, Twill, or Dutch—impacts both the flow rate and the cleaning characteristics. Plain weave offers the highest open area, while Dutch weave provides the highest strength and finest filtration. Customizing the layer sequence in a pack allows engineers to tune the filter to the specific particle size distribution of their process fluid.
Maintenance, Cleaning, and Replacement Cycles
A significant portion of the total cost of ownership (TCO) for filtration systems is derived from maintenance. Unlike disposable polymer filters, stainless steel filter discs are designed for reuse. However, the cleaning process must be carefully managed to avoid damaging the mesh.
Cleaning Methodologies
* Ultrasonic Cleaning: The most effective method for fine mesh. High-frequency sound waves create cavitation bubbles that dislodge particles from deep within the mesh pores.
* Chemical Cleaning: Using surfactants or mild acids to dissolve organic or inorganic scaling. Material compatibility is paramount here to avoid degrading the filter alloy.
* Backwashing: In automated systems, reversing the flow of the fluid can dislodge the filter cake. The structural integrity of the disc (specifically the support layers) is tested during this process, as it must withstand pressure from the reverse direction.
Determining Replacement Intervals
While metal discs are durable, they are not infinite. Fatigue from pressure pulsations and gradual erosion of the wire surface will eventually necessitate replacement. Engineers should monitor the "clean pressure drop" after each cleaning cycle. When the clean $ΔP$ begins to rise significantly, it indicates that particles have become permanently embedded in the mesh (pore blinding), and the disc should be replaced to maintain process efficiency.
Industry-Specific Applications
Chemical Processing
In the chemical industry, filter discs are used for catalyst recovery and the removal of impurities from corrosive reagents. The challenge here is often the combination of high temperature and aggressive pH levels. Sintered 316L or Hastelloy discs are frequently the standard to ensure longevity.
Food and Beverage
For food and beverage applications, the focus is on hygiene and compliance (FDA/EC standards). Filter discs must be free of burrs and sharp edges where bacteria could proliferate. They are commonly used in the filtration of cooking oils, syrups, and beverages to ensure clarity and remove carbonized particles.
Pharmaceutical Manufacturing
Precision is non-negotiable in pharma. Filter discs are used in the production of Active Pharmaceutical Ingredients (APIs) and in sterile air filtration. The ability to withstand repeated sterilization cycles (autoclaving or Steaming-in-Place) without losing structural integrity is the primary engineering requirement.
Conclusion: Navigating the Technical Landscape
Mastering the complexities of industrial filtration requires more than just a surface-level understanding of mesh sizes. It involves a rigorous evaluation of fluid dynamics, material science, and mechanical design. By treating the selection process as a technical challenge—a "disc filtration tryhackme" of sorts—engineers can identify the optimal balance between filtration efficiency, durability, and cost.
When selecting a partner for these components, it is essential to work with manufacturers who provide not just a product, but technical expertise. From material verification via PMI (Positive Material Identification) to custom engineering support, the right partner ensures that your filtration system performs reliably in the most demanding environments. For those seeking high-performance, customized solutions, exploring the range of Filter Discs & Packs is the first step toward optimizing your industrial process.
