Epic Pure Filter Multi-packs
In high-precision industrial environments, the integrity of filtration components directly dictates the quality of the final output and the longevity of downstream equipment. For engineers and procurement specialists managing complex fluid and gas processing systems, the transition toward high-performance components like epic pure filter multi-packs represents a strategic shift toward operational reliability. These components, primarily centered around robust Filter Discs & Packs, are essential for achieving the stringent purity standards required in pharmaceutical, chemical, and food-grade applications.
Industrial filtration is rarely a single-stage process. Instead, it relies on the cumulative performance of multiple layers and units. Understanding the technical nuances of these filter packs—from material metallurgy to the physics of flow resistance—is critical for any technical team looking to optimize their filtration assembly.
The Engineering Behind High-Purity Filter Discs & Packs

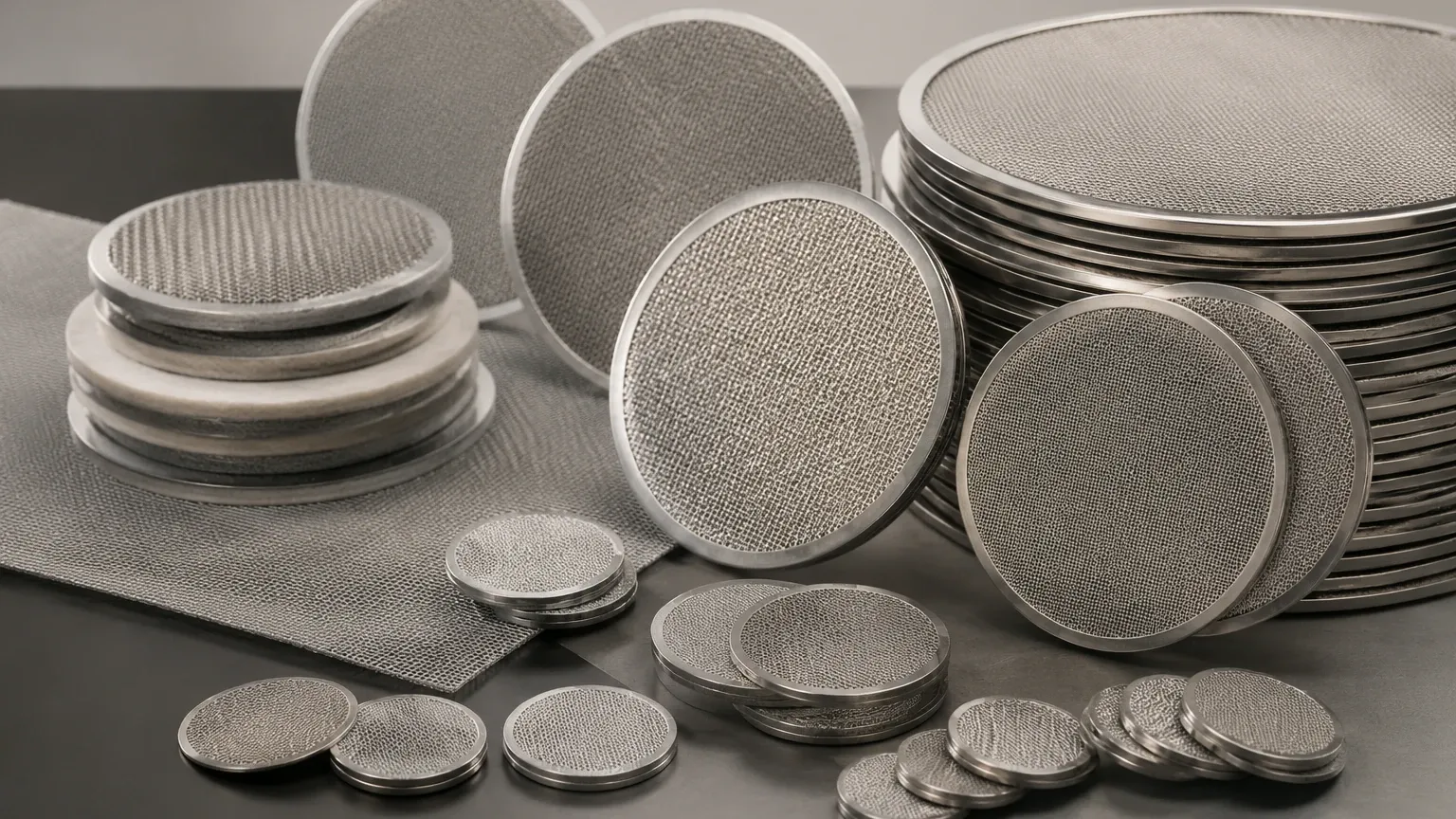

Filter discs and packs are precision-engineered components typically manufactured from stainless steel wire mesh. Unlike disposable polymer filters, these metal components offer superior thermal stability, chemical resistance, and mechanical strength. When discussing epic pure filter multi-packs in an industrial context, the focus is on the multi-layered construction designed to capture contaminants at specific micron levels while maintaining structural integrity under high pressure.
Multi-Layer Construction
Most high-purity filter packs are composed of several layers of wire mesh. These layers are often arranged in a gradient: a coarse outer layer for structural support, a fine inner layer for precision filtration, and sometimes an intermediate layer to prevent the fine mesh from migrating or deforming under pressure. These layers can be bound through spot welding or sintering, depending on the required rigidity and the risk of bypass.
Weave Types and Performance
The performance of these discs is largely determined by the weave of the wire mesh used:
* Plain Weave: Offers high flow rates and is suitable for basic separation tasks.
* Twill Weave: Allows for a heavier wire diameter in a given mesh count, providing increased strength for high-pressure applications.
* Dutch Weave: Provides a much denser mesh structure, enabling extremely fine filtration (down to the sub-micron range) while maintaining high mechanical strength.
Material Integrity for High-Purity Filtration
The term "pure" in epic pure filter multi-packs refers to the rigorous standards of cleanliness and material non-reactivity required in sensitive industries. For an industrial filter to be considered high-purity, it must adhere to strict metallurgical standards.
Stainless Steel Grades
Stainless steel 316L is the industry standard for high-purity applications. The "L" stands for low carbon, which minimizes carbide precipitation during welding and enhances corrosion resistance, particularly in acidic or saline environments. For less demanding applications, Grade 304 may be used, but 316L remains the preferred choice for pharmaceutical and chemical processing where any risk of metallic leaching or oxidation must be eliminated.
Surface Treatment and Cleaning
To achieve "epic" levels of purity, the manufacturing process must include advanced cleaning protocols. This often involves ultrasonic cleaning to remove residual oils, lubricants, and metallic fines from the weaving process. In some cases, electro-polishing is applied to the filter discs to create a smooth, passive surface that resists bacterial growth and facilitates easier cleaning during maintenance cycles.
The Strategic Advantage of Multi-pack Procurement
For industrial facilities, purchasing filtration components in multi-packs is not merely a matter of volume discounts; it is a critical component of supply chain and maintenance strategy. Managing epic pure filter multi-packs allows for greater consistency across a production line.
Batch Consistency
When filter discs are sourced in multi-packs from a single manufacturing run, engineers can ensure that the micron rating, flow resistance, and material composition are identical across all units. This is vital for systems that use parallel filtration banks, where a discrepancy in pressure drop between two filters could lead to uneven flow distribution and premature failure of the more restrictive unit.
Minimizing Downtime
Industrial processes often operate on a continuous basis. Having a ready supply of replacement Filter Discs & Packs ensures that planned maintenance or unexpected clogs do not lead to prolonged downtime. Multi-packs provide the necessary inventory to perform full-system swaps, allowing used filters to be cleaned or analyzed off-line without halting production.
Technical Parameters for Precision Performance
When evaluating epic pure filter multi-packs, engineers must look beyond the basic dimensions. The following technical parameters are essential for determining the suitability of a filter pack for a specific application:
1. Micron Rating (Absolute vs. Nominal)
* Nominal Rating: Indicates the ability of the filter to retain a majority of particles of a certain size. It is an efficiency-based metric.
* Absolute Rating: Refers to the diameter of the largest hard spherical particle that will pass through the filter under specified test conditions. For high-purity applications, absolute ratings are often required to ensure total containment of contaminants.
2. Clean Pressure Drop (ΔP)
The pressure drop across a new, clean filter is a vital metric. A high initial pressure drop indicates that the filter may be too restrictive for the pump capacity or that the mesh density is higher than necessary. Epic pure filter multi-packs are designed to balance high-efficiency capture with a low pressure-drop profile to optimize energy consumption.
3. Dirt Holding Capacity
This refers to the amount of contaminant a filter can retain before the pressure drop reaches a terminal level, requiring replacement or cleaning. Multi-layer packs generally offer higher dirt holding capacity than single-layer discs because the coarse outer layers act as pre-filters, protecting the fine inner mesh from premature blinding.
Industry-Specific Applications
The demand for high-purity filtration spans several critical sectors, each with unique challenges that epic pure filter multi-packs are designed to address.
Pharmaceutical and Biotechnology
In these industries, filtration is used for everything from solvent recovery to the sterilization of air and liquids. The filters must be able to withstand rigorous sterilization processes, including autoclaving and Steam-In-Place (SIP). Stainless steel filter packs are ideal here due to their ability to maintain structural integrity at high temperatures.
Food and Beverage Processing
Filtration in the food industry focuses on removing particulates that could affect the clarity, taste, or safety of the product. Whether it is filtering cooking oils, beverages, or syrups, the filter packs must be made of FDA-compliant materials and be easy to sanitize to prevent cross-contamination.
Chemical and Petrochemical
Chemical processing often involves aggressive solvents and high temperatures. Epic pure filter multi-packs made from specialized alloys or high-grade 316L stainless steel provide the chemical compatibility needed to prevent corrosion and ensure the purity of the chemical output.
Selection Criteria and Engineering Considerations
Before finalizing a purchase of epic pure filter multi-packs, technical teams should confirm several key factors with their manufacturer to ensure the components will perform as expected in the field.
Compatibility and Sizing
It is not enough to know the diameter of the disc. Engineers must also consider the thickness of the pack, especially when using multi-layer sintered discs. The housing tolerances must be tight to prevent bypass—where fluid flows around the filter rather than through it. Confirming the edge treatment (e.g., bound edges vs. raw edges) is also essential for ensuring a proper seal within the filter holder.
Customization Options
Many industrial applications require non-standard sizes or specific layer configurations. A professional manufacturer should be able to provide customized Filter Discs & Packs that match the exact flow and capture requirements of a proprietary system. This includes selecting specific mesh counts for each layer to achieve a tailored filtration gradient.
Total Cost of Ownership (TCO)
While the initial price of epic pure filter multi-packs is a factor, the TCO is a more accurate measure of value. Stainless steel filters are often cleanable and reusable, unlike polymer alternatives. By calculating the number of cleaning cycles a filter can withstand before the mesh integrity is compromised, procurement teams can determine the long-term cost-effectiveness of metal filtration solutions.
Maintenance and Longevity
The lifespan of high-purity filter packs depends heavily on the nature of the contaminants and the cleaning methods used. For epic pure filter multi-packs, common cleaning techniques include backwashing, ultrasonic cleaning, and chemical solvent cleaning.
Engineers should monitor the pressure differential across the filter bank closely. A sudden drop in pressure might indicate a media rupture (bypass), while a rapid increase suggests that the filter has reached its dirt-holding capacity. By implementing a standardized maintenance schedule based on these readings, facilities can maximize the life of their filter packs and ensure that the "pure" standard of their output remains uncompromised.
In conclusion, epic pure filter multi-packs are more than just commodities; they are engineered solutions for high-stakes industrial environments. By focusing on material quality, precise weave patterns, and strategic multi-pack procurement, engineers can achieve a level of filtration performance that protects both their products and their bottom line.
