In the complex landscape of industrial manufacturing and fluid dynamics, precision is the primary metric of success. While the term "filtered packs pokemon" has gained traction in consumer hobbyist circles—referring to the controversial practice of weighing or screening trading card packs to identify high-value contents—the industrial reality of a "filtered pack" is entirely different. For engineers and procurement specialists in the chemical, polymer, and pharmaceutical sectors, Filter Discs & Packs represent critical components designed to ensure the purity of melt streams and the integrity of high-pressure systems.
Understanding the engineering behind these components is essential for optimizing production uptime and maintaining product quality. This guide explores the technical specifications, material considerations, and application-specific designs of industrial filter packs, providing the factual foundation necessary for informed industrial decision-making.
The Anatomy of Industrial Filter Discs & Packs

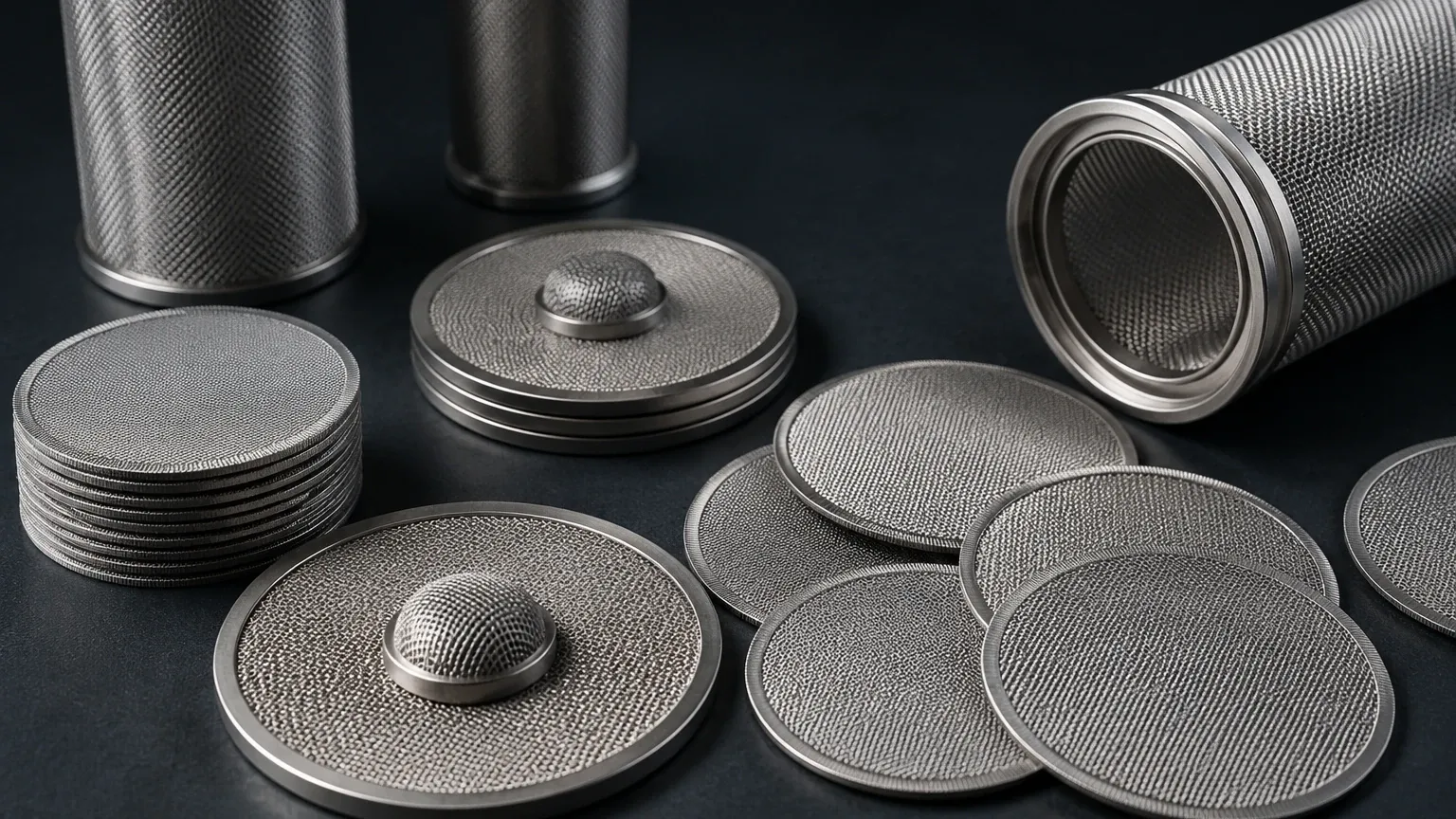

Industrial filter packs are not single-layer components; they are sophisticated assemblies of multiple wire mesh layers, often composed of high-grade stainless steel. These packs are designed to withstand extreme pressures and temperatures while providing precise particle retention.
Multi-Layer Construction
A standard filter pack typically consists of three to five layers, each serving a distinct mechanical or functional purpose:
1. The Filtration Layer: This is the core of the pack, featuring the finest mesh count. It determines the micron rating of the entire assembly. Depending on the application, this layer may utilize a plain, twill, or Dutch weave to achieve the desired flow rate and retention.
2. The Support Layer: Positioned on the downstream side, this coarser mesh provides the structural rigidity required to prevent the filtration layer from deforming or collapsing under the high differential pressure (Delta P) common in extrusion and hydraulic systems.
3. The Protection/Drainage Layer: Often placed on the outermost sides, these layers protect the fine mesh from mechanical damage during installation and help distribute the fluid flow evenly across the entire surface area of the pack.
Assembly Methods: Spot Welded vs. Rimmed
To maintain the alignment of these layers, manufacturers like Kaifil utilize two primary assembly techniques:
* Spot Welding: Individual layers are joined at specific points using resistance welding. This is a cost-effective solution for applications where the pack is held in place by the housing geometry.
* Rimmed Packs: The layers are encased in a metal rim, typically made of aluminum, copper, or stainless steel. The rim acts as a gasket, providing a superior seal against the filter housing and preventing bypass—a critical requirement in high-purity polymer extrusion.
Addressing Terminology: From Consumer Sorting to Industrial Filtration
In the digital age, search algorithms occasionally conflate niche consumer interests with industrial technical terms. The phrase filtered packs pokemon serves as a prime example of this linguistic overlap. In the hobbyist world, "filtering" is a manual process of selection based on external physical variables. However, in a B2B context, a "filtered pack" is a deterministic engineering solution.
For a process engineer, the "filtering" of a pack refers to the absolute or nominal micron rating achieved through precision-woven wire cloth. Unlike the probabilistic nature of consumer pack sorting, industrial filtration must be consistent, repeatable, and verifiable. When an engineer specifies a 20-micron filter pack for a polyester film production line, they are relying on the manufacturer's ability to provide a product that removes 99% of contaminants above that size, ensuring the final product is free of defects like "fish-eyes" or structural weaknesses.
Material Science in Filter Pack Engineering
The choice of material is perhaps the most critical factor in the longevity and performance of filter discs and packs. Industrial environments often involve corrosive chemicals, high temperatures (up to 600°C), and abrasive particles.
Stainless Steel 304 vs. 316L
* SS304: The standard choice for general industrial applications. It offers excellent strength and good corrosion resistance for water treatment and non-acidic chemical processing.
* SS316L: The "L" stands for low carbon, which improves weldability and resistance to intergranular corrosion. SS316L contains molybdenum, making it the preferred material for pharmaceutical, food and beverage, and marine applications where chloride exposure is a concern.
Advanced Alloys
For extreme environments, such as those found in specialty chemical processing or deep-sea oil and gas extraction, packs may be manufactured from Hastelloy, Inconel, or Monel. These alloys offer superior resistance to pitting, crevice corrosion, and high-temperature oxidation that would rapidly degrade standard stainless steel.
Weave Patterns and Their Impact on Performance
The performance of Filter Discs & Packs is dictated by the geometry of the wire mesh weave. Each pattern offers a different balance of flow capacity, strength, and filtration accuracy.
1. Plain Weave: The simplest pattern, where each warp wire crosses over and under each shute wire. It provides high flow rates but is limited in its ability to achieve very fine micron ratings.
2. Twill Weave: Each shute wire passes over and under two warp wires. This allows for a heavier wire diameter for a given mesh count, increasing the pack's strength and allowing for finer filtration.
3. Plain Dutch Weave: This weave uses a larger diameter warp wire and a smaller diameter shute wire, driven together to create a dense, strong filter medium with a high pressure-bearing capacity.
4. Dutch Twill Weave: Combining the benefits of twill and Dutch weaves, this pattern allows for the highest level of filtration (down to 2 microns) while maintaining the mechanical integrity needed for high-pressure melt filtration.
Application Spotlight: Polymer Extrusion and Fiber Production
The most demanding application for industrial filter packs is polymer melt filtration. In the production of plastic films, fibers (like nylon or polyester), and resins, the raw material is heated until it becomes a highly viscous liquid and then forced through a spinneret or die.
The Role of the Screen Pack
In this context, the filter pack (often called a screen pack) is placed before the die. Its job is to:
* Remove Gels and Carbonized Particles: Small bits of degraded polymer or "black specks" can ruin the clarity and strength of the final product.
* Build Back Pressure: The resistance provided by the pack helps homogenize the melt, ensuring a consistent temperature and flow rate across the die, which is essential for uniform thickness in film production.
* Protect Downstream Equipment: It prevents metal fragments or hard contaminants from damaging expensive precision dies.
Engineering Considerations for Customization
When sourcing filter discs and packs, engineers must look beyond simple dimensions. Customization is often required to match the specific rheology of the fluid being filtered. Key variables to confirm with a manufacturer include:
* Pressure Drop (Delta P): An overly dense pack will cause a high pressure drop, forcing the pump to work harder and potentially leading to premature pack failure or system shutdown.
* Dirt Holding Capacity: This refers to the volume of contaminants the pack can hold before the pressure drop becomes unacceptable. Sintered mesh packs often provide higher dirt-holding capacity than simple wire cloth packs.
* Cleaning and Reusability: Stainless steel packs can often be cleaned using ultrasonic baths, chemical solvents, or burnout furnaces (for polymers). Understanding the cleaning cycle is vital for calculating the total cost of ownership (TCO).
Quality Control and Performance Metrics
To ensure that a filter pack meets industrial standards, manufacturers must adhere to rigorous quality control protocols. This includes:
* Bubble Point Testing: A method used to verify the pore size and integrity of the filter medium.
* Mesh Count Verification: Using precision optical tools to ensure the wire diameter and opening size match the specification.
* Material Certification: Providing mill test reports (MTRs) to confirm the chemical composition of the stainless steel used.
Conclusion: Selecting the Right Partner
Navigating the technical requirements of industrial filtration requires more than just a list of parts. It requires an understanding of how different mesh layers interact under pressure and how material choices impact the lifecycle of the filtration system. While the search for "filtered packs pokemon" might lead a hobbyist down one path, the search for high-performance Filter Discs & Packs leads the professional engineer to specialized manufacturers like Kaifil.
By focusing on precision engineering, material integrity, and customized design, industrial filter packs ensure that manufacturing processes remain efficient, products remain pure, and equipment remains protected. When selecting a filtration solution, always prioritize technical data and manufacturing expertise over generic specifications to achieve the best possible performance in your specific industrial application.
