In the landscape of industrial fluid processing, the efficiency of a filtration system is often determined by the precision of its smallest components. For engineers and procurement specialists, selecting the appropriate filtration media involves a complex calculation of mechanical strength, chemical compatibility, and particle retention accuracy. Among the various configurations available, multi-layer designs—often referred to in technical specifications as "filters 3" when involving three-layer sintered or composite structures—represent a critical standard for high-pressure and high-temperature environments. These components, specifically Filter Discs & Packs, serve as the primary defense against contaminants in industries ranging from polymer extrusion to pharmaceutical synthesis.
Understanding the technical nuances of these filters is essential for optimizing production uptime and ensuring product purity. This guide examines the engineering principles, material considerations, and selection criteria for multi-layer filter discs and packs, providing the factual foundation necessary for informed industrial purchasing.

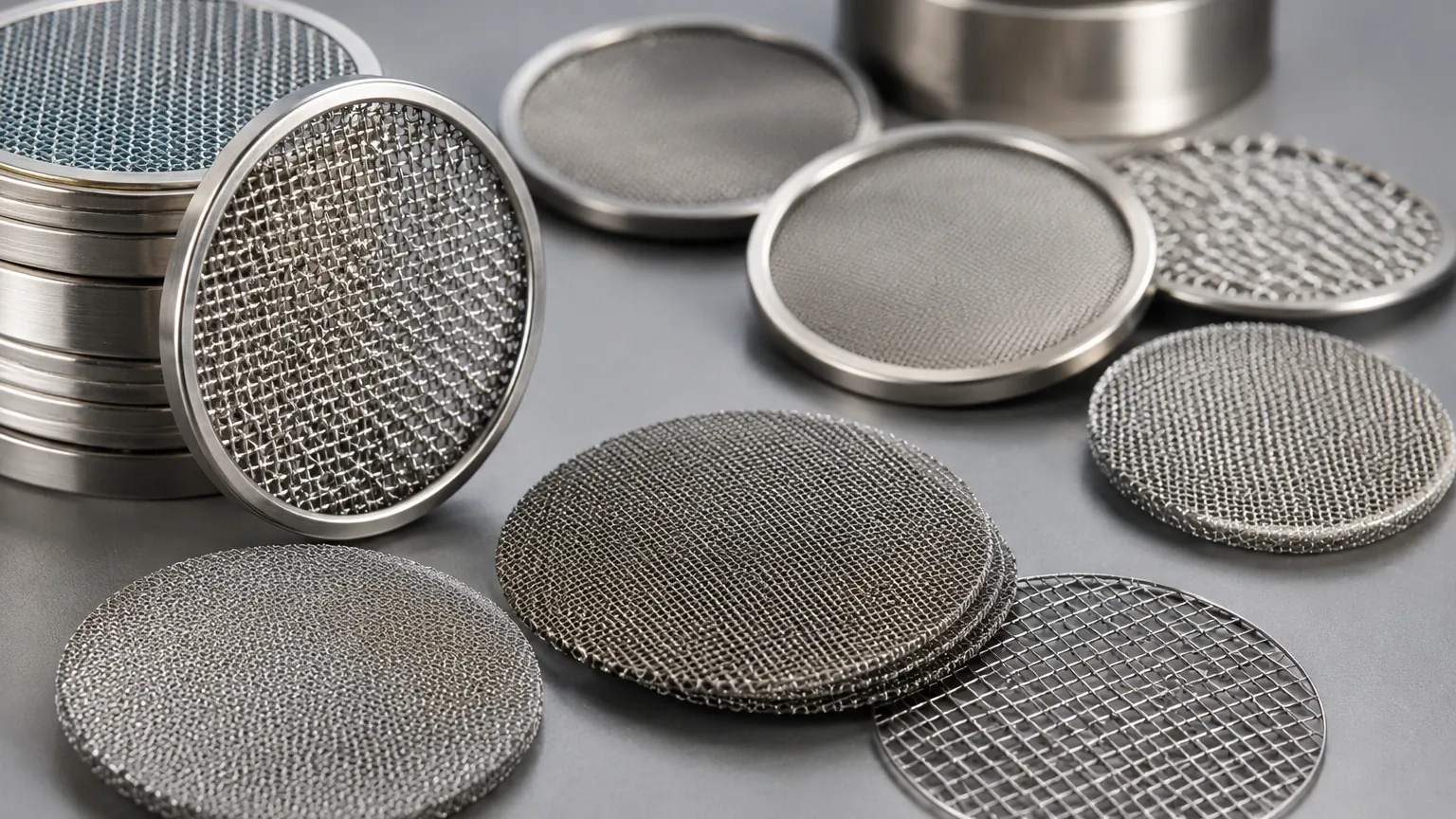

Engineering Principles of Multi-Layer Filter Discs & Packs
Filter discs and packs are not merely pieces of wire mesh cut to shape; they are engineered assemblies designed to withstand specific hydraulic loads. The term "filters 3" frequently appears in engineering briefs to denote a three-layer construction, which is a common industrial standard for balancing fine filtration with structural integrity.
In a typical three-layer configuration, the assembly consists of:
1. The Filtration Layer: The middle layer, usually a fine stainless steel wire cloth or metal fiber felt, which determines the micron rating of the disc.
2. The Support Layer: A coarser mesh layer that provides mechanical stability to the filtration layer, preventing it from deforming under high pressure.
3. The Protective Layer: An outer layer that shields the delicate filtration mesh from mechanical damage during installation or backwashing cycles.
By combining these layers through spot welding or sintering, manufacturers create a robust unit that maintains its pore geometry even when subjected to significant differential pressure. This multi-layer approach is vital for applications where a single layer of fine mesh would lack the necessary rigidity to survive the process flow.
Material Selection and Chemical Compatibility
The performance of Filter Discs & Packs is heavily dependent on the metallurgy of the wire mesh. Stainless steel remains the industry standard due to its versatility and resistance to corrosion. However, the specific grade of steel must be matched to the process fluid.
* Grade 304 Stainless Steel: Suitable for general industrial use where mild corrosion resistance is required. It is cost-effective for water treatment and food-grade applications that do not involve high concentrations of chlorides.
* Grade 316L Stainless Steel: The preferred choice for the chemical and pharmaceutical industries. The addition of molybdenum and a lower carbon content provides superior resistance to pitting and crevice corrosion, especially in acidic or saline environments.
* Specialty Alloys: For extreme conditions, such as high-temperature gas filtration or highly aggressive chemical processing, alloys like Hastelloy, Inconel, or Monel may be utilized. These materials maintain their mechanical properties at temperatures exceeding 500°C and resist oxidation that would degrade standard stainless steels.
When specifying "filters 3" configurations, engineers must ensure that all layers, including the binding or rim material, are compatible with the operating environment to prevent galvanic corrosion or material fatigue.
The Technical Advantage of 3-Layer Mesh Structures
Why is the three-layer structure so prevalent in industrial filtration? The answer lies in the physics of fluid flow and mechanical stress. A single layer of 5-micron mesh is incredibly thin and fragile. If used alone in a high-viscosity polymer melt, the pressure would cause the mesh to stretch, enlarging the pores and allowing oversized particles to pass through—a phenomenon known as "media migration."
By utilizing a three-layer sintered structure, the filtration layer is sandwiched between two sturdier layers. This configuration provides several key advantages:
* Pore Stability: The sintering process bonds the wire intersections, ensuring that the pore size remains constant even under fluctuating pressures.
* Permeability: Despite having three layers, the engineered spacing between wires allows for high flow rates with minimal pressure drop, which is critical for maintaining system energy efficiency.
* Cleanability: Sintered multi-layer discs can often be cleaned via ultrasonic baths or backpulsing, extending the service life of the component compared to disposable surface filters.
For technical teams, the "filters 3" designation signifies a move toward durability. It reduces the frequency of filter changes, which in turn minimizes downtime in continuous manufacturing processes.
Micron Ratings and Filtration Accuracy
One of the most critical specifications for Filter Discs & Packs is the micron rating. This is typically defined in two ways: nominal and absolute.
1. Nominal Micron Rating: This represents an approximate filtration level, indicating that the filter will retain a major percentage (usually 60% to 90%) of particles of a specific size. This is often sufficient for pre-filtration stages.
2. Absolute Micron Rating: This is a more stringent standard, indicating that the filter will retain 99.9% or more of particles at the specified size. In critical applications like hydraulic systems or sterile pharmaceutical processing, absolute ratings are mandatory to prevent component wear or product contamination.
When evaluating multi-layer filters, it is important to verify the testing method used to determine these ratings. Standardized tests, such as the bubble point test or the multi-pass test (ISO 16889), provide the empirical data needed to confirm that the filter will perform as expected under operational conditions.
Customization and OEM Considerations
No two industrial processes are identical, which makes customization a core requirement for filtration components. Manufacturers like Kaifil specialize in providing tailored solutions that fit specific machinery and flow requirements. Customization options for Filter Discs & Packs include:
* Shape and Dimensions: While circular discs are standard, packs can be manufactured in oval, rectangular, or ring shapes to fit unique housing designs.
* Edging and Binding: To prevent fraying and ensure a bypass-free seal, discs can be finished with aluminum, stainless steel, or copper rims. Some applications require spot-welded packs where multiple discs are joined to create a depth-filtration effect.
* Layer Composition: Depending on the particulate load, a pack might consist of five or more layers, though the "filters 3" base remains a common starting point for many standard industrial housings.
For OEM applications, working with a manufacturer that understands the integration of the filter into the larger system is vital. This includes considerations for the housing tolerances and the method of compression used to hold the filter in place.
Installation and Maintenance: Optimizing Filter Lifespan
The longevity of Filter Discs & Packs is not solely dependent on their construction; installation and maintenance play equally significant roles. Improper installation can lead to "bypass," where the fluid takes the path of least resistance around the edge of the filter rather than through the mesh.
Key Installation Practices:
* Seal Integrity: Ensure that the seating surfaces in the filter housing are clean and free of burrs. Even a microscopic gap can allow contaminants to bypass the filter.
* Directional Flow: Some multi-layer filters are asymmetrical. Installing them in the wrong orientation can lead to premature clogging or structural failure of the filtration layer.
Maintenance and Replacement Cycles:
Monitoring the differential pressure (ΔP) across the filter is the most effective way to determine when a replacement or cleaning is necessary. A sudden spike in ΔP indicates that the filter has reached its dirt-holding capacity. In many "filters 3" applications, the filters are designed to be cleaned and reused. However, the cleaning process must be carefully controlled—excessive mechanical scrubbing or the use of incompatible chemicals can damage the fine wires of the filtration layer, compromising the micron rating.
Total Cost of Ownership and Procurement Strategies
When purchasing Filter Discs & Packs, the initial unit price is only one component of the total cost of ownership (TCO). Procurement teams should also consider:
* Service Life: A higher-quality sintered disc may cost more upfront but last five times longer than a lower-grade alternative, reducing the long-term cost per liter of fluid processed.
* Downtime Costs: The labor and lost production time associated with frequent filter changes often far outweigh the cost of the filters themselves.
* Energy Consumption: Filters that maintain a lower pressure drop for a longer period reduce the load on pumps, leading to significant energy savings over the course of a year.
By focusing on the technical specifications—such as the material grade, layer structure (like the reliable "filters 3" configuration), and absolute micron rating—engineers can ensure they are selecting a solution that provides the best balance of performance and value.
Conclusion
In the demanding world of industrial filtration, the details matter. Whether you are managing a chemical refinery or a food processing plant, the integrity of your Filter Discs & Packs is paramount to your operational success. By understanding the advantages of multi-layer structures and the importance of material science, technical professionals can navigate the complexities of filter selection with confidence. For those seeking high-performance, customized filtration components, focusing on proven engineering standards and reliable manufacturing partners is the surest path to optimized system performance.
