In the complex landscape of industrial manufacturing, the precision of separation and the efficiency of material flow are dictated by the quality of filtration components. Among the most versatile and critical components in these systems are Filter Discs & Packs. These precision-engineered metal components are essential for industries ranging from plastic extrusion and chemical processing to pharmaceutical manufacturing and hydraulic systems. This guide explores the technical engineering, material selection, and operational logic behind high-performance filtration solutions.
The Engineering of Multi-Layer Filter Discs & Packs
Industrial Filter Discs & Packs are rarely composed of a single layer of wire mesh. Instead, they are sophisticated multi-layered structures designed to balance filtration fineness with structural integrity. The construction of these packs typically involves several layers of stainless steel wire mesh, often varying in weave type and micron rating.
Layer Configuration and Functionality
1. Filtration Layer: This is the core of the pack, featuring the specific micron rating required for the application. It is usually a fine Dutch weave or a high-density square mesh designed to capture particles of a specific size.
2. Support Layers: To prevent the fine filtration mesh from deforming under high pressure, coarser mesh layers are placed on either side. These layers provide mechanical strength and ensure that the filtration surface remains flat and effective.
3. Drainage Layers: In thicker packs, drainage layers facilitate the flow of the filtered medium away from the filtration zone, reducing the overall pressure drop across the component.
Bonding Techniques
The method used to join these layers is critical to the pack's performance. Spot welding is a common and cost-effective method for simple packs, ensuring the layers stay aligned during installation. However, for high-pressure or high-temperature applications, sintering is preferred. Sintered filter packs undergo a thermal process that fuses the contact points of the wire mesh without the use of binders, creating a monolithic structure that is incredibly durable and resistant to media migration.
Material Selection for Demanding Environments
The choice of material for Filter Discs & Packs is driven by the chemical and thermal demands of the application. While various metals can be used, stainless steel remains the industry standard due to its corrosion resistance and mechanical properties.
* AISI 304 Stainless Steel: The most common grade, offering excellent durability and resistance to oxidation. It is suitable for most food and beverage and general industrial applications.
* AISI 316L Stainless Steel: With the addition of molybdenum, 316L provides superior resistance to chlorides and acids. This makes it the preferred choice for marine environments, pharmaceutical production, and chemical processing.
* High-Nickel Alloys (Hastelloy, Inconel): For extreme environments involving highly corrosive chemicals or temperatures exceeding 500°C, specialty alloys are utilized to ensure the longevity of the filtration pack.
The Logic of Sorting: From Digital to Physical Systems
In modern automated manufacturing, the logic of "filtering" has transcended physical barriers and integrated deeply with digital monitoring systems. The objective remains the same: the isolation of valuable or necessary components from a stream of bulk material.
Interestingly, the conceptual framework for this sorting can be seen in various high-precision digital environments. For example, in complex data-driven simulations or gaming architectures, users utilize poe loot filter sound packs to provide immediate audible feedback when a specific, high-value item is identified within a vast stream of data. This digital "filtering" mirrors the industrial process where sensors monitor the performance of physical Filter Discs & Packs.
In an industrial context, instead of "sound packs" for loot, engineers use acoustic sensors and pressure transducers to monitor the state of the filter. An audible alarm or a digital signal in the control room acts as the notification that the filter pack has reached its maximum dirt-holding capacity or that a specific purity level has been achieved. The integration of these digital notification systems ensures that the physical filtration process remains efficient and that downtime is minimized through predictive maintenance.
Performance Metrics: Micron Ratings and Pressure Drop
When selecting Filter Discs & Packs, engineers must evaluate two primary performance metrics: filtration accuracy (micron rating) and the pressure differential (Delta P).
Understanding Micron Ratings
* Absolute Micron Rating: This refers to the diameter of the largest hard spherical particle that will pass through the filter under specified test conditions. It indicates a 99.9% efficiency.
* Nominal Micron Rating: This is an arbitrary value indicating the ability of the filter to let through a certain percentage of particles of a specific size. It is less precise than the absolute rating but useful for general pre-filtration.
Managing Pressure Drop
A common challenge in industrial filtration is the trade-off between fine filtration and flow rate. As the micron rating becomes finer, the resistance to flow increases, leading to a higher initial pressure drop. To mitigate this, engineers often increase the Effective Filtration Area (EFA) by using pleated designs or multi-disc packs. Maintaining a low pressure drop is essential for reducing energy consumption and preventing damage to pumps and other upstream equipment.
Application-Specific Designs and Customization
Every industrial process has unique requirements, which is why customization is a hallmark of high-quality Filter Discs & Packs.
Plastic and Polymer Extrusion
In the plastics industry, filter packs (often called screen packs) are used to remove contaminants from molten polymers. These packs must withstand extreme pressures (up to 5,000 PSI) and temperatures. They are often designed with a specific sequence of mesh sizes to provide graduated filtration, which extends the life of the pack by preventing the finest layer from blinding prematurely.
Hydraulic and Lubrication Systems
For hydraulic systems, precision is paramount to protect sensitive valves and actuators. Filter discs in these applications are often designed for high-frequency vibration resistance and must maintain their structural integrity even under rapid pressure fluctuations.
Rim and Border Options

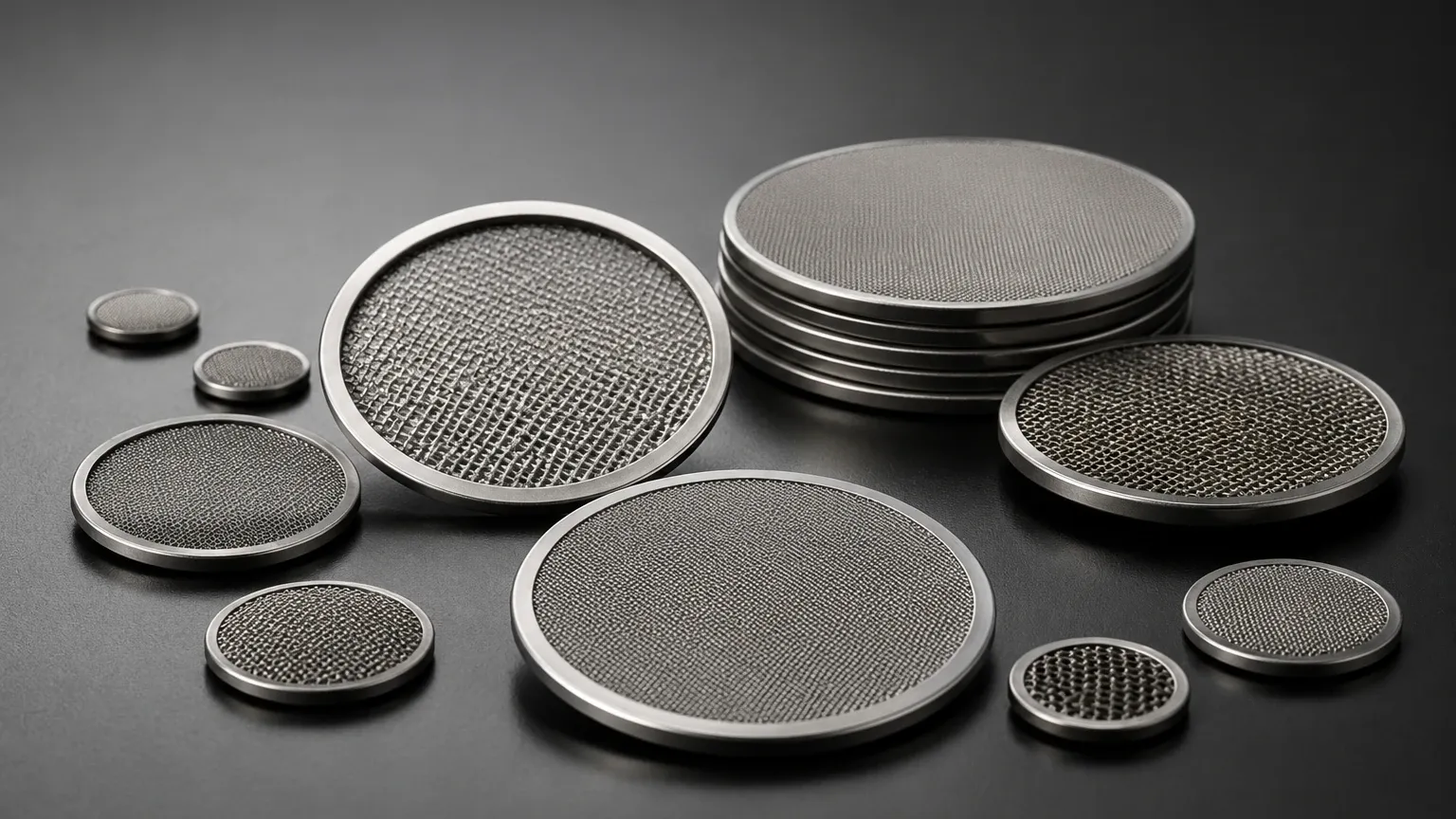

To ensure a leak-proof seal within the filter housing, many packs are finished with a metal rim. These rims can be made from aluminum, copper, or stainless steel. The rim not only provides a sealing surface but also adds significant structural rigidity to the disc, preventing it from warping or bypassing the housing seal.
Maintenance and Replacement Cycles
While stainless steel Filter Discs & Packs are durable, they are not infinite. The lifespan of a filter pack is determined by the contaminant load of the process and the cleaning protocols in place.
Cleaning Methods
One of the primary advantages of metal filtration media is the ability to be cleaned and reused. Common cleaning methods include:
* Ultrasonic Cleaning: High-frequency sound waves create cavitation bubbles that dislodge fine particles from deep within the mesh layers.
* Chemical Cleaning: Solvents or acids are used to dissolve organic or chemical deposits that cannot be removed mechanically.
* Burn-off (Pyrolysis): For polymer extrusion, packs are placed in a controlled oven to burn off residual plastic, leaving the metal mesh clean.
When to Replace
Despite effective cleaning, repeated cycles can eventually lead to work hardening of the wire or permanent deformation of the mesh pores. Engineers should monitor the "Clean Pressure Drop" after each cleaning cycle. If the initial pressure drop begins to rise consistently, it indicates that the internal layers are becoming permanently fouled, and the pack must be replaced to maintain process efficiency.
Conclusion: Selecting the Right Filtration Partner
Choosing the correct Filter Discs & Packs is a critical decision that impacts the quality of the final product and the operational costs of the facility. It requires a deep understanding of fluid dynamics, material science, and the specific nuances of the industrial process.
By focusing on high-quality materials, precision manufacturing techniques like sintering, and the integration of modern monitoring logic, manufacturers can achieve superior filtration performance. Whether you are managing a high-pressure chemical reactor or a sensitive food processing line, the right filter pack ensures that your system operates at peak efficiency, free from the risks of contamination and unexpected downtime.
