Tetratec Filter Pack C600
In industrial filtration, the precision and reliability of filter media are paramount to maintaining product quality and protecting downstream equipment. The Tetratec filter pack C600 represents a specific category of multi-layered filtration components designed for demanding environments, particularly in polymer processing, melt filtration, and specialized chemical applications. For engineers and procurement specialists, understanding the technical nuances of these packs is essential for optimizing filtration efficiency and minimizing operational downtime.
Industrial filtration often requires a balance between high flow rates and fine particle retention. High-performance Filter Discs & Packs are engineered to meet these conflicting demands through sophisticated layering and material selection. This article examines the technical specifications, engineering considerations, and selection criteria relevant to the Tetratec filter pack C600 and comparable industrial filtration solutions.
The Engineering Behind Multi-Layer Filter Packs

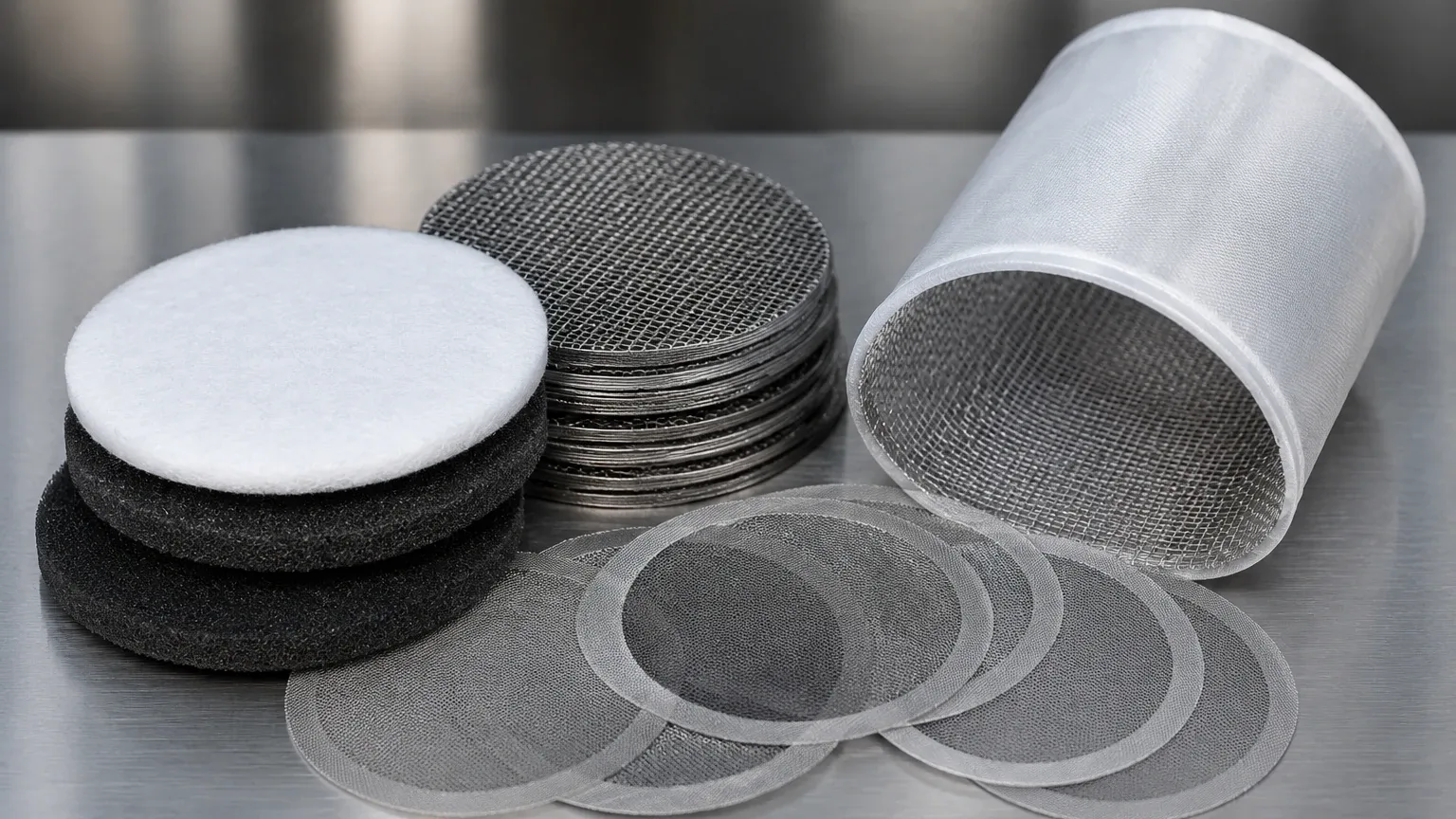

A filter pack is rarely a single piece of mesh. Instead, it is a composite structure designed to provide both filtration accuracy and mechanical strength. The Tetratec filter pack C600 typically utilizes a combination of stainless steel wire cloth layers, each serving a distinct purpose within the assembly.
Layering Strategy
In a standard multi-layer configuration, the assembly includes:
1. Filtration Layer: The core layer, often a fine Dutch weave or square weave mesh, determines the micron rating and filtration efficiency.
2. Support Layers: Coarser mesh layers placed on either side of the filtration media to prevent the fine mesh from deforming under high pressure.
3. Drainage Layers: These facilitate the flow of the filtrate away from the filtration surface, reducing local pressure buildup.
4. Protective Layers: External layers that protect the internal media from mechanical damage during installation or handling.
Bonding and Edging
To ensure the integrity of the tetratec filter pack c600, the layers must be securely joined. Common methods include spot welding at multiple points or the application of a metal rim (usually aluminum, stainless steel, or copper). Rimming is particularly important in high-pressure applications to prevent bypass—a condition where the process fluid flows around the edge of the filter rather than through the media.
Material Selection and Chemical Compatibility
The performance of a filter pack is heavily dependent on the metallurgy of the wire mesh. While various materials are available, stainless steel remains the industry standard for the Tetratec filter pack C600 series due to its thermal and chemical properties.
* AISI 304 Stainless Steel: Suitable for general industrial use where basic corrosion resistance is required. It is cost-effective but may be susceptible to pitting in high-chloride environments.
* AISI 316L Stainless Steel: The preferred choice for pharmaceutical, food and beverage, and aggressive chemical processing. The addition of molybdenum provides superior resistance to corrosion and prevents intergranular corrosion during high-temperature operations.
* Specialty Alloys: In extreme cases involving high-temperature acidic or alkaline solutions, alloys such as Monel, Inconel, or Hastelloy may be utilized to ensure the longevity of the filter discs & packs.
Engineers must confirm the chemical compatibility of the filtrate with the filter material to avoid premature failure due to oxidation or stress corrosion cracking.
Performance Evaluation Criteria for Tetratec Filter Pack C600
When evaluating the tetratec filter pack c600 or seeking a customized alternative, several technical parameters must be scrutinized to ensure the component meets the application's requirements.
Micron Rating and Filtration Accuracy
Filtration accuracy is defined by the smallest particle size the mesh can reliably retain. This is categorized as either "nominal" or "absolute." A nominal rating indicates the ability to retain a percentage of particles of a certain size, while an absolute rating refers to the pore size where no particle larger than the rating can pass. For precision applications like polymer extrusion, absolute ratings are generally required to prevent imperfections in the final product.
Pressure Drop (ΔP)
Pressure drop is the difference in pressure between the upstream and downstream sides of the filter. A high initial pressure drop suggests that the filter media may be too dense for the required flow rate, leading to shortened service life. Conversely, a low pressure drop might indicate insufficient filtration. The design of the Tetratec filter pack C600 aims to optimize the open area of the mesh to maintain a manageable ΔP throughout the production cycle.
Dirt Holding Capacity
This refers to the amount of contaminant the filter can collect before the pressure drop reaches a critical limit. Multi-layer packs often have a higher dirt holding capacity than single-layer discs because the coarser outer layers can capture larger particles, preventing the fine internal mesh from blinding prematurely.
Common Risks in Industrial Filtration Operations
Implementing the wrong filtration component or failing to maintain the tetratec filter pack c600 can lead to significant operational risks. Engineering teams should be aware of the following:
1. Media Migration: In poorly manufactured packs, individual wires from the mesh may break off and enter the filtrate stream. This is a critical failure in food, beverage, and pharmaceutical industries. High-quality spot welding and rimming mitigate this risk.
2. Bypass and Sealing Issues: If the filter pack does not fit perfectly within the housing or if the rim is deformed, unfiltered fluid can bypass the media. This leads to contamination downstream and potential damage to precision components like extrusion dies.
3. Pressure Surges: Sudden increases in flow rate or viscosity can cause a pressure surge that may collapse the filter media if it lacks sufficient support layers. The structural integrity of the filter discs & packs must be rated for the maximum possible system pressure, not just the operating pressure.
4. Thermal Degradation: In high-temperature melt filtration, the filter must maintain its structural properties. Inadequate material selection can lead to softening of the mesh, resulting in pore enlargement and loss of filtration accuracy.
Customization and OEM Solutions
While standard models like the Tetratec filter pack C600 serve many needs, many industrial processes require customized Filter Discs & Packs to achieve optimal performance. Customization allows engineers to specify exact dimensions, unique layering sequences, and specialized materials that standard off-the-shelf products may not offer.
Engineering Collaboration
Working with a manufacturer that provides OEM capabilities allows for the development of filtration components tailored to specific equipment. This includes:
* Custom Shapes: Beyond circular discs, packs can be manufactured in oval, rectangular, or kidney shapes to fit proprietary machinery.
* Variable Mesh Counts: Adjusting the mesh count of individual layers to fine-tune the balance between flow rate and particle retention.
* Specialized Rimming: Choosing between different rim materials and thicknesses to ensure a gas-tight or liquid-tight seal in specialized housings.
For purchasing teams, sourcing customized components often results in a lower total cost of ownership (TCO) by extending the replacement cycle and reducing the frequency of batch rejections.
Maintenance and Replacement Cycles
Determining when to replace a tetratec filter pack c600 is a critical aspect of process management. Most industrial systems utilize pressure sensors to monitor the differential pressure across the filter. Once the ΔP reaches a predetermined threshold, the filter is considered "spent."
Cleaning vs. Replacement
In some applications, stainless steel filter packs can be cleaned using ultrasonic baths, chemical solvents, or burnout furnaces (for polymer removal). However, repeated cleaning can eventually fatigue the wire mesh or alter the pore structure. It is essential to establish a maximum number of cleaning cycles before the pack is decommissioned and replaced with a new unit. For high-purity applications, single-use replacement is often the safest protocol to ensure consistent results.
Storage and Handling
Proper handling of filter packs is often overlooked. Fine mesh is delicate and can be easily punctured or dented. Filter packs should be stored in their original packaging in a clean, dry environment to prevent atmospheric corrosion or contamination before they are installed in the system.
Conclusion
The Tetratec filter pack C600 and similar high-performance filtration components are vital to the success of modern industrial processes. By focusing on the technical details—from metallurgy and layering to pressure drop and customization—engineers can ensure that their filtration systems operate at peak efficiency. Selecting the right Filter Discs & Packs involves more than just matching a part number; it requires a deep understanding of the application's physical and chemical demands. Whether utilizing standard configurations or seeking customized OEM solutions, the goal remains the same: achieving precise, reliable, and cost-effective filtration that protects both the product and the production line.
