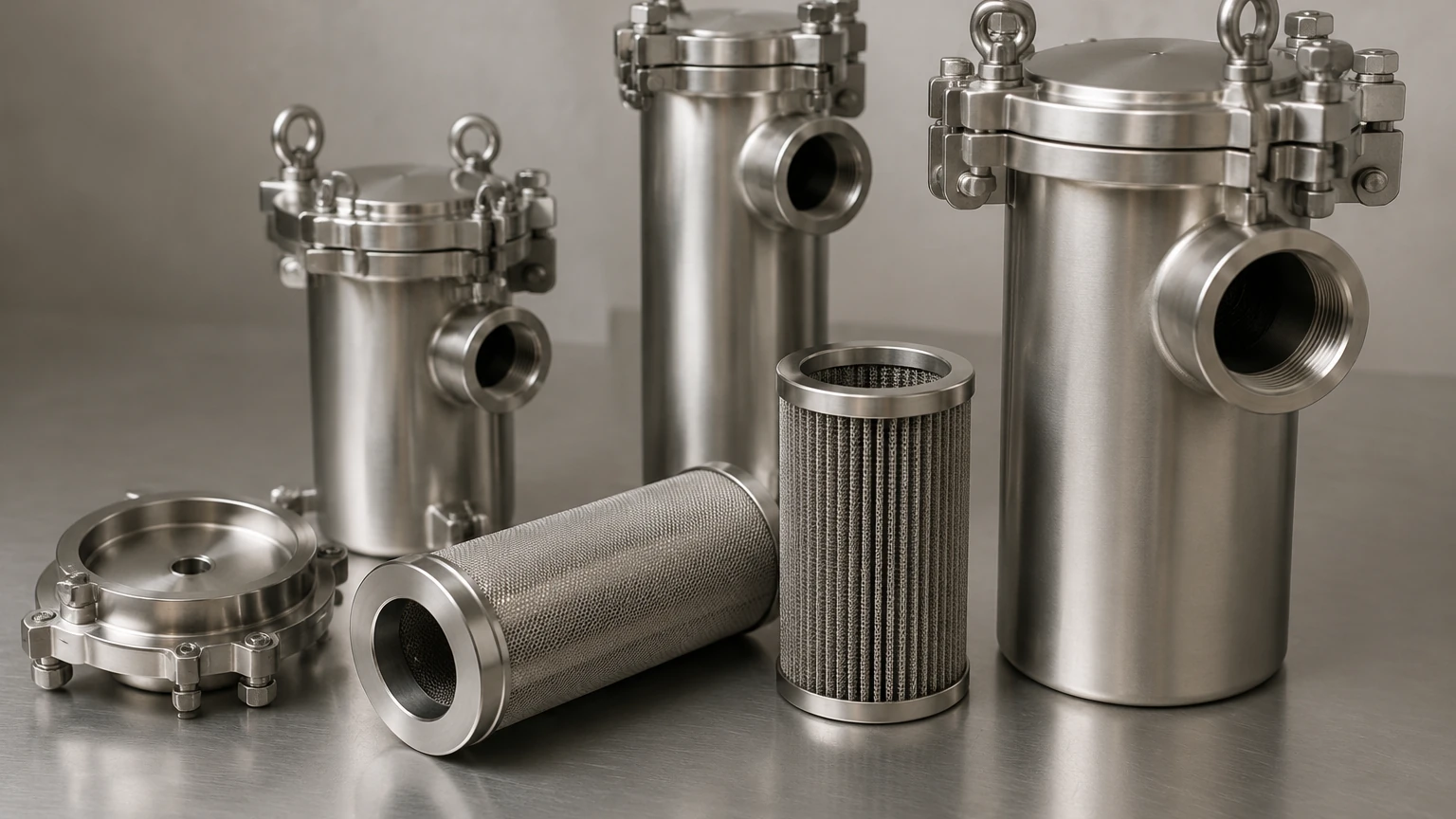

Hydraulic Oil Filter Housing
In industrial hydraulic systems, the hydraulic oil filter housing serves as the critical interface between the fluid power circuit and the filtration media. While the filter element captures contaminants, the housing is the pressure-rated vessel that ensures structural integrity, manages fluid flow, and facilitates maintenance. For engineers and procurement specialists, selecting the correct hydraulic oil filter housing is a decision that impacts system reliability, safety, and the total cost of ownership.
As a specialized manufacturer of stainless steel filtration solutions, Kaifil understands that the housing must be engineered to withstand rigorous operating conditions, including high-pressure spikes, mechanical vibrations, and corrosive environments. This guide examines the technical considerations essential for evaluating and selecting housing components for industrial applications.
Engineering Fundamentals of Filter Housings
A hydraulic oil filter housing is designed to perform several mechanical functions simultaneously. Primarily, it must contain the system pressure without leaking or failing. In high-pressure lines, these housings are subjected to dynamic loading, where pressure fluctuates rapidly during valve shifts or pump cycles.
Pressure Ratings and Fatigue Life
When specifying a housing, engineers must distinguish between static working pressure and fatigue pressure. A housing rated for a static pressure of 3000 PSI may not be suitable for a system that cycles frequently between 500 and 3000 PSI. Fatigue life is often measured in cycles (e.g., 1 million cycles at rated pressure). For heavy-duty industrial machinery, selecting a housing with a high fatigue rating is essential to prevent catastrophic failure over years of service.
Flow Dynamics and Pressure Drop
The internal geometry of the hydraulic oil filter housing significantly influences the pressure drop (ΔP) across the assembly. Fluid must enter the housing, pass through the filter element, and exit through the outlet port. Every turn and restriction within the housing adds resistance. Excessive pressure drop can lead to energy loss, heat generation, and in suction lines, pump cavitation. Engineers should review the flow-versus-pressure-drop curves provided by manufacturers to ensure the housing can handle the maximum system flow rate with minimal resistance, even when the fluid is cold and high in viscosity.
Classifying Housings by Circuit Location
The placement of the filter within the hydraulic circuit dictates the structural requirements of the housing. There are three primary categories based on location:
1. Suction Line Housings
Located between the reservoir and the pump, suction housings operate under vacuum or very low pressure. The primary engineering concern here is minimizing pressure drop to prevent pump cavitation. These housings are typically larger to allow for high flow volumes and often feature robust seals to prevent air ingestion into the system.
2. Pressure Line Housings
Positioned downstream of the pump, pressure line housings must withstand the full operating pressure of the system, which can exceed 6,000 PSI (420 bar) in high-performance applications. These are usually constructed from ductile iron, carbon steel, or high-strength stainless steel. Their primary role is to protect sensitive components like servo valves and actuators from pump-generated debris.
3. Return Line Housings
These are installed in the line that returns fluid to the reservoir. They handle lower pressures than pressure line housings but must manage high flow surges. Many return line housings are designed for "tank-top" mounting, where the housing is partially submerged in the reservoir, saving space and simplifying the return path.
Material Selection: The Role of Stainless Steel and Alloys
Material compatibility is a cornerstone of filtration engineering. The choice of material for a hydraulic oil filter housing depends on the fluid type, environmental conditions, and weight requirements.
* Aluminum: Often used for low-to-medium pressure applications where weight is a concern. However, it may not be suitable for high-temperature or highly corrosive environments.
* Ductile Iron/Carbon Steel: Common for high-pressure industrial housings due to their strength and cost-effectiveness. They usually require external coatings to prevent rust.
* Stainless Steel (304/316L): This is the preferred material for demanding environments, such as offshore oil rigs, chemical processing plants, and food-grade applications. Stainless steel housings offer superior corrosion resistance and can withstand aggressive fire-resistant hydraulic fluids (e.g., water glycols or phosphate esters).
At Kaifil, we specialize in custom stainless steel filtration components, ensuring that the internal support structures and the housings themselves meet the stringent cleanliness and durability standards required by modern industry. For more information on our manufacturing capabilities, visit our Main Page.
Critical Features for Performance and Maintenance
A well-engineered hydraulic oil filter housing includes features that facilitate system monitoring and simplify maintenance procedures. When evaluating a housing, consider the following technical components:
Bypass Valves
Most housings (except those in critical "non-bypass" applications) include a bypass valve. If the filter element becomes clogged with contaminants, the pressure drop increases. To prevent the element from collapsing or the system from losing flow, the bypass valve opens at a pre-set pressure (e.g., 3 bar or 6 bar), allowing fluid to circumvent the filter. The "cracking pressure" of the bypass must be carefully matched to the filter element’s strength and the system's tolerance for unfiltered oil.
Clogging Indicators
To avoid running in bypass mode, housings are equipped with clogging indicators. These can be:
* Visual Indicators: A pop-up button or a color-coded gauge (green/yellow/red) that shows the status of the element.
* Electrical/Electronic Indicators: These send a signal to the machine’s control system (PLC) when the pressure drop reaches a certain threshold, allowing for automated maintenance alerts.
Sealing Technology
The seals within the housing must be compatible with the hydraulic fluid and the operating temperature range. Common materials include Nitrile (Buna-N) for standard mineral oils and Fluorocarbon (Viton) for high temperatures or synthetic fluids. Improper seal selection is a leading cause of external leakage in hydraulic systems.
Customization and OEM Integration
Off-the-shelf filter housings do not always meet the spatial or performance constraints of specialized machinery. Customization is often necessary to optimize the filtration system. Engineering teams should confirm several factors before finalizing a custom design:
1. Porting Options: Standard housings come with NPT, SAE, or BSPP threads. Custom housings can be designed with flange mounts or manifold blocks to reduce leak points and simplify plumbing.
2. Mounting Configurations: Whether the housing is side-mounted, top-mounted, or integrated into a manifold, the mechanical footprint must be considered during the design phase.
3. Filtration Efficiency: The housing must be sized to accommodate a filter element with the required Beta ratio ($eta$) and micron rating without exceeding the allowable pressure drop.
Kaifil provides reliable OEM and customized filtration solutions, working closely with global customers to develop high-performance components. Whether the application requires a specific wire mesh filter or a precision metal component, our engineering-first approach ensures that the final product meets the exact demands of the industrial environment.
Evaluating Total Cost of Ownership (TCO)
While the initial purchase price of a hydraulic oil filter housing is an important factor, it is only one part of the total cost of ownership. Engineers must also consider:
* Serviceability: How easy is it to change the filter element? Housings with top-access covers or bowl-type designs that do not require specialized tools can significantly reduce downtime.
* Durability: A cheaper housing made from inferior materials may suffer from thread galling, seal groove erosion, or fatigue cracking, leading to expensive repairs and fluid loss.
* Element Availability: Ensure the housing is designed to accept standard or readily available custom elements to avoid long lead times during maintenance cycles.
By focusing on quality manufacturing and precise filtration performance, companies can reduce the frequency of component replacements and protect expensive downstream assets like pumps and motors.
Conclusion
The hydraulic oil filter housing is a vital component that protects the integrity of the entire fluid power system. By understanding the nuances of pressure ratings, material compatibility, and flow dynamics, engineers can select a solution that provides long-term reliability. For those seeking specialized expertise in stainless steel filtration and custom metal components, reviewing professional product options is the first step toward optimized system performance. Explore our technical resources and application support on our Main Page to find the right filtration solution for your specific industrial needs.
