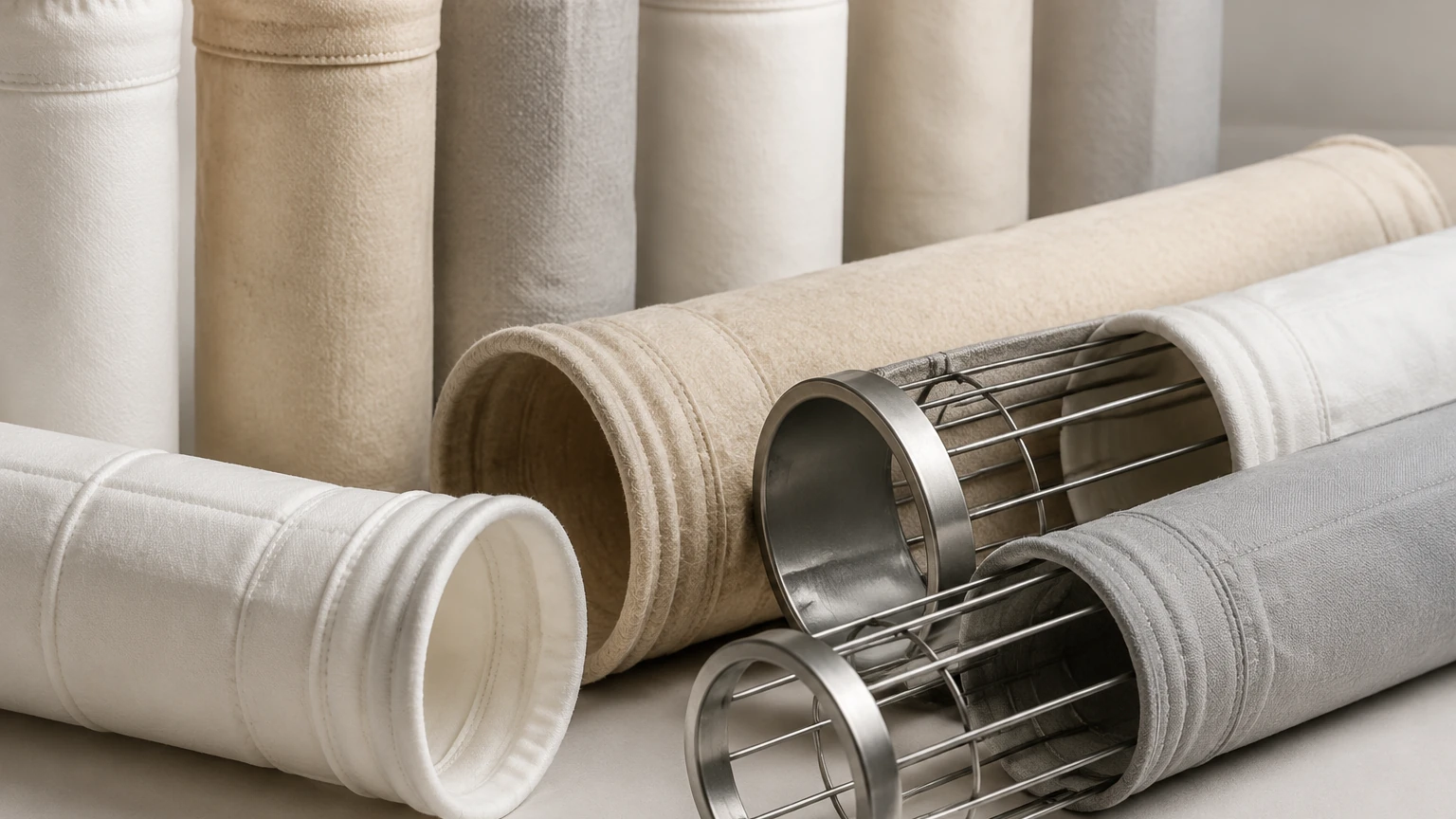

Industrial Dust Collector Bags
In industrial environments, the management of airborne particulate matter is a critical requirement for both operational safety and process efficiency. Industrial dust collector bags serve as the primary filtration medium in baghouse systems, capturing dust and dry particulates from gas streams before they can be released into the atmosphere or recirculated within a facility. For engineers and procurement teams, selecting the correct bag is not merely a matter of finding a compatible size; it requires a deep understanding of material science, fluid dynamics, and the specific chemical and thermal conditions of the application.
While traditional fabric bags are a staple in many dust collection systems, the increasing demand for durability in harsh environments often leads technical professionals to evaluate advanced filtration components, including stainless steel mesh and custom metal filter elements. Understanding the nuances of dust collector bag performance is essential for optimizing the lifespan of the filtration system and minimizing downtime.
Understanding the Role of Dust Collector Bags in Industrial Filtration
Industrial dust collector bags operate on the principle of surface and depth filtration. As dust-laden air passes through the bag, the fabric captures particles, eventually forming a "dust cake" on the surface. While the fabric itself provides initial filtration, the dust cake becomes the primary filtering medium, significantly increasing the efficiency of the system.
In a baghouse, these bags are arranged in rows and supported by internal metal structures, often referred to as cages. The cleaning mechanism of the system—whether it be pulse-jet, shaker, or reverse air—determines the mechanical stress placed on the bag. For instance, pulse-jet systems use a high-pressure blast of air to expand the bag and dislodge the dust cake. This requires a bag material with high tensile strength and dimensional stability to withstand repeated expansion and contraction.
Material Selection and Chemical Compatibility
The selection of the filter media is perhaps the most critical decision in the design of a dust collection system. The material must be compatible with the gas chemistry, temperature, and the physical properties of the dust. Common materials include:
* Polyester: The most common material for general-purpose applications. It offers good abrasion resistance and is effective at temperatures up to 275°F (135°C). However, it is susceptible to hydrolysis in high-moisture environments.
* Polypropylene: Ideal for low-temperature applications where chemical resistance to acids and alkalis is required. It has a lower temperature limit, typically around 170°F (77°C).
* Aramid (Nomex): Frequently used in high-temperature applications such as cement kilns and metal processing. It can operate at continuous temperatures up to 400°F (204°C) and provides excellent abrasion resistance.
* PPS (Ryton): Selected for its excellent resistance to acids and alkalis in high-temperature environments. It is commonly used in coal-fired boilers where sulfur oxides are present.
* PTFE (Teflon): Provides the highest level of chemical resistance and can operate at temperatures up to 500°F (260°C). PTFE membranes are often laminated onto other fabrics to improve filtration efficiency and dust release.
* Fiberglass: Used for extreme temperature applications, often up to 500°F (260°C). While it has high thermal stability, it is brittle and requires specialized coatings to prevent fiber-to-fiber abrasion.
Engineering Design: Bag Configurations and Support Structures
Industrial dust collector bags are manufactured in various configurations to suit different baghouse designs. The most common types include:
Pulse-Jet Bags
These are typically cylindrical or oval and are supported by a metal cage. The top of the bag is usually designed with a snap-band, flange, or cord to ensure a tight seal against the cell plate. The bottom is reinforced with a disc of the same material to prevent wear from the cage.
Shaker and Reverse Air Bags
These bags are usually longer and larger in diameter. Shaker bags are fastened at the bottom and attached to a shaking mechanism at the top. Reverse air bags are tensioned from the top and utilize a gentle flow of air in the opposite direction to collapse the bag and release the dust. These systems place less mechanical stress on the fabric but require larger footprints due to lower air-to-cloth ratios.
The Importance of the Support Cage
The support cage is a vital component that prevents the bag from collapsing during the filtration cycle. In corrosive or high-temperature environments, the material of the cage—often galvanized steel or stainless steel—must be selected to match the longevity of the bag. Precision in cage manufacturing is essential; any burrs or misaligned wires can cause premature bag failure through mechanical wear.
Performance Metrics: Efficiency, Permeability, and Air-to-Cloth Ratio
To evaluate the effectiveness of industrial dust collector bags, engineers must look at several key performance indicators:
1. Filtration Efficiency: Often expressed as a micron rating or a percentage of particles captured at a specific size. High-efficiency bags are necessary for meeting environmental regulations regarding PM2.5 and PM10 emissions.
2. Permeability: This measures the ability of air to pass through the fabric. It is typically expressed in cubic feet per minute per square foot (cfm/ft²) at a specific pressure drop. Higher permeability allows for higher airflow but may compromise filtration efficiency if the weave is too open.
3. Air-to-Cloth Ratio (G/C Ratio): This is the ratio of the volume of air entering the dust collector to the total square footage of filter media. A lower ratio generally leads to longer bag life and higher efficiency, but requires a larger, more expensive baghouse.
Operational Challenges: Static, Moisture, and Temperature Extremes
Industrial processes often introduce variables that can compromise standard dust collector bags.
* Static Electricity: In industries handling combustible dusts (such as flour, wood, or certain chemicals), static buildup can lead to explosions. Epitropic fibers or stainless steel wires are often woven into the fabric to provide a path to ground.
* Moisture and Oil: If the gas stream contains moisture or oils, the dust cake can become "muddy," leading to blinding (permanent clogging) of the bag. Oleophobic and hydrophobic treatments are applied to the media to improve dust release in these conditions.
* Thermal Surges: Brief excursions above the rated temperature of a bag can cause shrinking or melting. Engineers must account for these peaks when selecting the media, sometimes opting for higher-grade materials like P84 or PTFE to provide a safety margin.
The Transition to Stainless Steel and Custom Metal Filtration Solutions
While fabric bags are suitable for many applications, certain industrial processes demand the extreme durability of metal. In high-pressure, highly corrosive, or ultra-high-temperature environments, stainless steel filter cartridges and wire mesh filters offer advantages that fabric cannot match. Metal filters provide superior structural integrity and can be cleaned and reused multiple times, offering a different total cost of ownership model compared to disposable bags.
For facilities looking to optimize their filtration systems, exploring specialized metal components is often the next step in engineering refinement. You can Review product options and application support on the Kaifil Main Page to understand how custom-engineered stainless steel filtration solutions can complement or replace traditional bag systems in demanding industrial sectors.
Maintenance, Monitoring, and Replacement Strategies
The lifespan of industrial dust collector bags varies significantly based on the application, ranging from six months to several years. Effective maintenance is rooted in monitoring the differential pressure (DP) across the baghouse. A sudden drop in DP may indicate a torn bag, while a steady increase that cannot be reversed by cleaning cycles indicates that the bags are blinded and require replacement.
Leak detection is another critical aspect of maintenance. Fluorescent powders can be introduced into the system; a blacklight inspection of the clean-air side will then reveal any leaks in the bags or seals. Regular inspection of the cleaning system—valves, controllers, and compressed air headers—is also necessary to ensure the bags are being cleaned effectively without excessive mechanical wear.
Total Cost of Ownership and Procurement Considerations
When purchasing industrial dust collector bags, the initial price is only one component of the total cost. Procurement teams should also consider:
* Energy Consumption: Bags with higher permeability or more efficient cleaning characteristics can reduce the energy required by the system's fans.
* Compressed Air Usage: In pulse-jet systems, the frequency and pressure of cleaning pulses contribute to operational costs.
* Downtime and Labor: The cost of labor and lost production during a bag change-out can often exceed the cost of the bags themselves. Investing in higher-quality media or more durable support structures can extend the interval between change-outs.
* Disposal Costs: Depending on the nature of the dust collected, used bags may be classified as hazardous waste, adding to the end-of-life cost of the product.
By focusing on the technical requirements of the application and the long-term performance of the filtration media, engineers can ensure that their dust collection systems operate at peak efficiency while maintaining compliance with environmental and safety standards.
