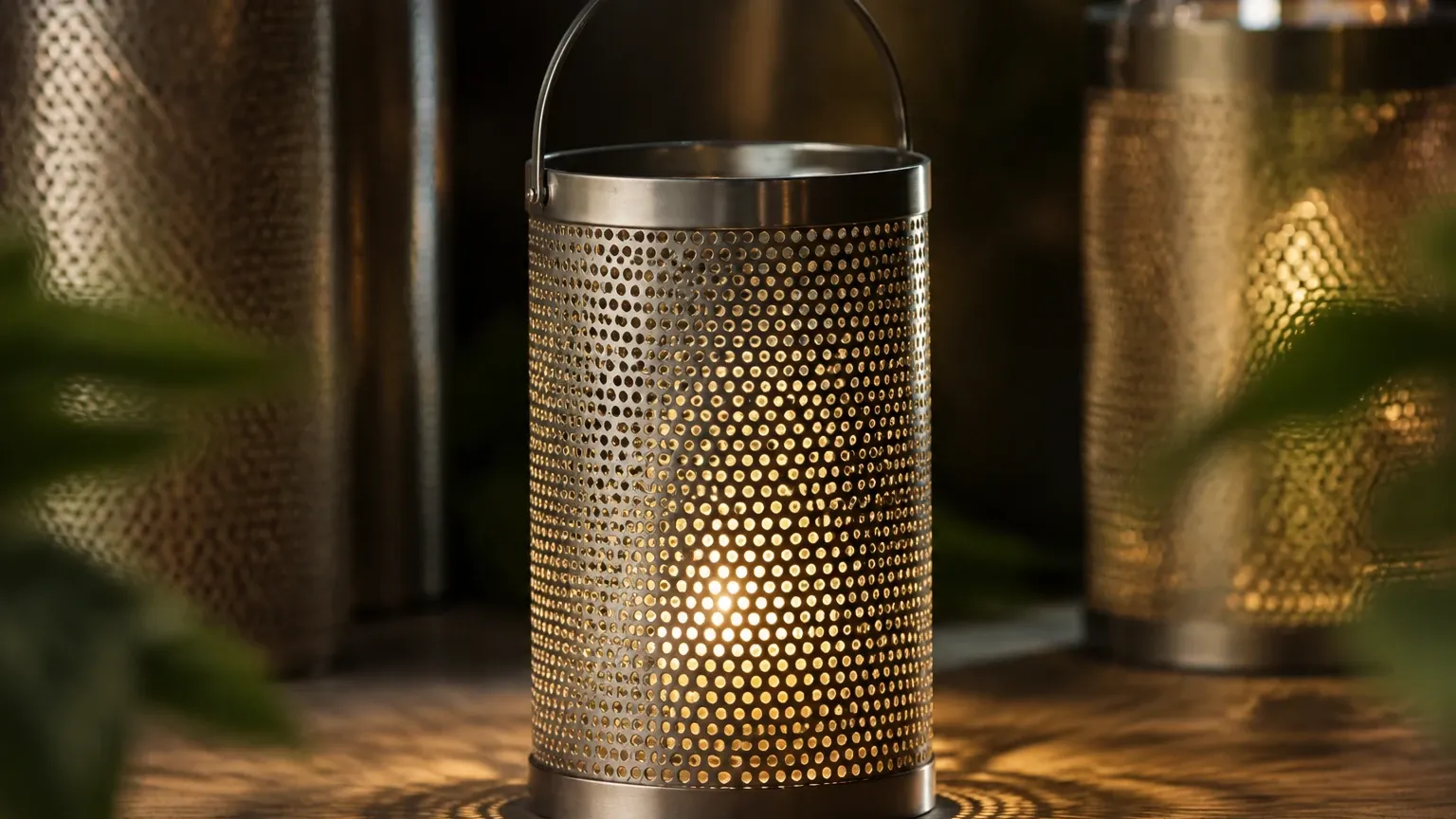

Perforated Metal Lantern
In industrial engineering and process design, a perforated metal lantern refers to a specialized cylindrical or geometric housing fabricated from perforated sheets. Unlike decorative variants found in consumer markets, industrial perforated metal lanterns serve critical functions in filtration systems, hazardous environment lighting, sensor protection, and mechanical ventilation. These components provide a unique balance of structural rigidity and controlled permeability, allowing for the passage of light, air, or fluids while maintaining a protective barrier against physical impact or particulate ingress.
For engineers and procurement specialists, selecting the correct Perforated & Expanded Metal for these assemblies requires a deep understanding of material science, open area calculations, and fabrication tolerances. This guide explores the technical considerations, material requirements, and industrial applications of perforated metal lanterns in demanding process environments.
Engineering Fundamentals of Perforated Metal Lanterns
The performance of a perforated metal lantern is primarily dictated by its geometry and the characteristics of the base material. In B2B applications, these lanterns are often used as "lantern rings" in pumping systems or as protective cages for high-intensity discharge (HID) lamps in chemical plants.
Perforated vs. Expanded Metal Structures
While both materials provide openings, their manufacturing processes result in different mechanical properties:

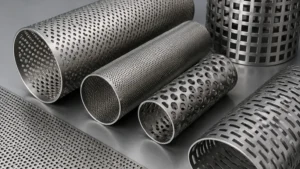

- Perforated Metal: Created by punching holes into a solid sheet. This method offers the highest precision in terms of hole size and placement, making it ideal for filtration supports and sensor housings where specific flow rates or light diffusion patterns are required.
- Expanded Metal: Produced by shearing and stretching a single sheet. This creates a diamond-shaped mesh without material waste. Expanded metal is often used for heavier-duty lanterns where maximum airflow and structural grip are prioritized over precise filtration accuracy.
Structural Rigidity and Load Bearing
A lantern structure must withstand external pressures, especially when used as a support core for filter media. The "bridge" (the metal remaining between the holes) determines the overall strength of the cylinder. Engineers must calculate the collapse pressure of the lantern to ensure it can handle the differential pressure (ΔP) inherent in high-flow filtration or hydraulic systems.
Material Selection: Why Stainless Steel is the Standard
In industrial settings, environmental factors such as corrosion, temperature fluctuations, and chemical exposure dictate material choice. Kaifil specializes in utilizing high-grade alloys to ensure the longevity of perforated metal lanterns.
304 and 304L Stainless Steel
Grade 304 is the most common choice for general industrial lanterns. It offers excellent formability and welding characteristics. For applications involving extensive welding, 304L (low carbon) is preferred to prevent carbide precipitation and ensure the integrity of the lantern’s seams.
316 and 316L Stainless Steel
For lanterns used in marine environments, pharmaceutical processing, or chemical plants, 316 stainless steel is the industry standard. The addition of molybdenum provides superior resistance to chlorides and pitting. This is essential for perforated metal lanterns used in water treatment or acidic chemical filtration.
Specialty Alloys
In high-heat environments, such as exhaust systems or furnace sensors, Inconel or Monel may be used. These materials maintain their tensile strength at temperatures where standard stainless steel would oxidize or deform.
Technical Specifications: Open Area and Hole Patterns
The functionality of a perforated metal lantern is defined by its "Open Area Percentage." This figure represents the ratio of the total area of the holes to the total area of the sheet.
Calculating Open Area
For a standard staggered round hole pattern, the formula is:
Open Area % = (D² × 90.69) / P²
*(Where D = Hole Diameter and P = Pitch)*
In B2B applications, the open area must be optimized. For instance, a lantern used for cooling electronic components requires a high open area (60%+) to minimize airflow resistance. Conversely, a lantern used as a structural support for a fine wire mesh filter might only require a 30-40% open area to maximize the mechanical strength of the core.
Hole Pattern Selection
1. Staggered Round Holes: The most popular pattern due to its versatile strength-to-weight ratio and uniform airflow.
2. Square Holes: Often used when a higher open area is required, though they can introduce stress concentrators at the corners.
3. Hexagonal (Honeycomb) Holes: Provides the highest possible open area while maintaining significant structural integrity, frequently used in high-end ventilation lanterns.
Structural Integrity and Fabrication Techniques
Fabricating a perforated metal lantern involves more than just rolling a sheet into a tube. The process requires precision engineering to ensure the component meets industrial standards.
Precision Rolling and Alignment
When rolling perforated sheets into a lantern shape, the hole pattern must remain aligned to avoid "blind spots" or structural weak points. Precision rolling equipment ensures that the diameter remains consistent throughout the length of the cylinder, which is critical for lanterns that must fit into tight tolerances within a larger machine assembly.
Welding and Seam Integrity
The longitudinal seam of the lantern is its most vulnerable point. TIG (Tungsten Inert Gas) welding is typically used for stainless steel lanterns to provide a clean, strong, and corrosion-resistant joint. In high-pressure applications, the weld must be ground smooth to prevent turbulence or the accumulation of debris.
Surface Finishing and Deburring
In industries like food and beverage or pharmaceuticals, surface finish is paramount. Perforated metal lanterns undergo several finishing processes:
- Deburring: Removing sharp edges from the punching process to prevent injury and ensure smooth fluid flow.
- Passivation: A chemical treatment that removes free iron from the surface, enhancing the natural corrosion resistance of the stainless steel.
- Electropolishing: Provides a mirror-like finish and removes microscopic peaks and valleys where bacteria could reside.
Applications Across Key Industrial Sectors
Perforated metal lanterns are versatile components found in a wide range of technical applications.
1. Industrial Filtration and Water Treatment
In large-scale water treatment, perforated lanterns serve as the internal support core for pleated filter cartridges. They prevent the filter media from collapsing under the weight of the water flow. Because they are in constant contact with fluid, the use of Perforated & Expanded Metal in 316L stainless steel is mandatory to prevent rust and contamination.
2. Hazardous Area Lighting (Explosion-Proof Housings)
In oil refineries and chemical plants, lighting fixtures must be protected from physical impact while allowing heat to dissipate. Perforated metal lanterns act as protective cages around glass globes. The perforation size is engineered to allow maximum light transmission while preventing large objects from striking the glass.
3. Acoustic Dampening and Exhaust Systems
In power generation and automotive testing, perforated lanterns are used within silencers and mufflers. The perforated surface breaks up sound waves, while the internal cavity can be filled with acoustic insulation. The lantern structure holds the insulation in place against high-velocity exhaust gases.
4. Machinery Guards and Safety Ventilation
Industrial fans and rotating equipment require guards that allow for cooling airflow but prevent human contact with moving parts. A custom-fabricated perforated metal lantern provides a robust, aesthetically professional, and safety-compliant solution for these needs.
Maintenance, Cleaning, and Long-Term Durability
One of the primary advantages of using stainless steel perforated metal lanterns is their durability and ease of maintenance. Unlike plastic or lower-grade metal components, these lanterns can be cleaned and reused multiple times.
Cleaning Protocols
- Backwashing: In filtration applications, fluid can be pumped in reverse through the lantern to dislodge trapped particulates.
- Ultrasonic Cleaning: For lanterns used in precision electronics or pharmaceuticals, ultrasonic baths can remove microscopic contaminants from the holes.
- Chemical CIP (Clean-in-Place): Stainless steel lanterns are resistant to the caustic chemicals used in CIP cycles in the food and beverage industry.
Inspection Points
Engineers should regularly inspect perforated lanterns for:
- Erosion: High-velocity fluids can eventually wear down the edges of the perforations.
- Stress Cracking: Particularly around the weld seams or in high-vibration environments.
- Biofouling: In water treatment, checking for algae or mineral buildup that could reduce the open area.
Engineering Checklist for Custom Perforated Metal Lanterns
Before ordering a custom perforated metal lantern, technical teams should confirm the following specifications to ensure the product meets application requirements:
1. Material Grade: Does the environment require 304, 316L, or a specialty alloy?
2. Hole Dimensions: What is the specific hole diameter and pitch required for the desired flow or light transmission?
3. Open Area Percentage: Has the balance between structural strength and permeability been optimized?
4. Dimensional Tolerances: What are the acceptable limits for diameter, length, and roundness?
5. End Configurations: Does the lantern require flanges, threaded end caps, or reinforced rings for installation?
6. Compliance Standards: Does the component need to meet FDA, 3A, or ASME standards for specific industry use?
By focusing on these technical parameters, companies can ensure that their perforated metal lanterns provide reliable performance in even the most demanding industrial environments. Kaifil remains committed to delivering precision-engineered Perforated & Expanded Metal solutions tailored to the unique needs of global industrial sectors.
