Strainers 9 Letters
In the specialized vocabulary of fluid dynamics and industrial piping, the term "strainers" (a word consisting of 9 letters) refers to a critical category of hardware designed to protect downstream equipment from damage caused by particulate matter. While often used interchangeably with "filters" in casual conversation, industrial strainers occupy a distinct niche in the filtration spectrum, typically focusing on the removal of larger particles from liquid or gas streams. For engineers and procurement professionals, understanding the technical nuances of Strainers & Baskets is essential for maintaining system integrity, reducing downtime, and optimizing the total cost of ownership in high-pressure or high-flow environments.
Industrial strainers are essentially coarse filters that utilize a perforated plate or wire mesh screen to intercept solids. As a primary line of defense, they are installed upstream of sensitive components such as pumps, control valves, flow meters, and heat exchangers. By capturing debris—ranging from weld slag and scale to organic matter—these components prevent mechanical wear and clogging that could otherwise lead to catastrophic system failure.
The Engineering Fundamentals of Industrial Strainers
When evaluating strainers, engineers must look beyond the simple 9-letter designation and focus on the mechanical properties that dictate performance. The primary function of a strainer is to provide a barrier while minimizing the impact on system pressure. This balance is achieved through careful consideration of the open area ratio, material compatibility, and structural design.
Material Selection and Corrosion Resistance
Stainless steel is the industry standard for high-performance filtration due to its exceptional strength-to-weight ratio and resistance to oxidation. Kaifil specializes in utilizing Grade 304 and Grade 316L stainless steel for strainer construction.
* Grade 304: Suitable for general industrial applications where basic corrosion resistance is required.
* Grade 316L: Preferred for chemical processing, pharmaceutical, and marine environments where resistance to chlorides and pitting is paramount. The "L" designation (low carbon) ensures that the material remains resistant to intergranular corrosion after welding, which is a critical factor in the longevity of custom-fabricated baskets.
Pressure Ratings and Flow Dynamics
Every strainer creates a pressure drop (delta P) across the system. Engineers must calculate the clean pressure drop to ensure that the pump's Net Positive Suction Head (NPSH) is not compromised. A well-designed strainer should typically have an open area ratio of at least 4:1 (the ratio of the total area of the screen openings to the cross-sectional area of the inlet pipe). This ensures that the velocity through the mesh remains low, reducing turbulence and extending the time between cleaning cycles.
Structural Variations: Basket vs. Y-Strainers
The choice between different strainer configurations depends largely on the installation orientation, the expected debris load, and the required frequency of maintenance. While the word "strainers" (9 letters) covers the entire category, the specific geometry of the housing significantly alters its application profile.
Basket Strainers (Simplex and Duplex)
Basket strainers are designed for horizontal piping runs and are characterized by a top-loading "basket" that can hold a significantly larger volume of debris than a Y-type strainer. This makes them the preferred choice for batch processes or systems with high particulate concentrations.
* Simplex Baskets: These require the system to be shut down for cleaning. They are ideal for applications where flow can be interrupted or where the debris load is relatively low.
* Duplex Baskets: For continuous processes where downtime is not an option, duplex strainers utilize a diverter valve to switch flow between two separate chambers. This allows one basket to be cleaned while the other remains in service.
Y-Type Strainers
Y-strainers get their name from their shape and are commonly used in pressurized lines, both liquid and gas. They are compact and can be installed horizontally or vertically (provided the "leg" points downward to collect debris). While they have a lower dirt-holding capacity than baskets, they are often more cost-effective for protecting steam traps and pumps in systems with lower contamination levels.
Technical Performance Metrics: Mesh and Perforation
The heart of any strainer is the internal element. Selecting the correct filtration media is a precise engineering task that involves balancing particle retention with flow resistance.
Perforated Plate vs. Wire Mesh

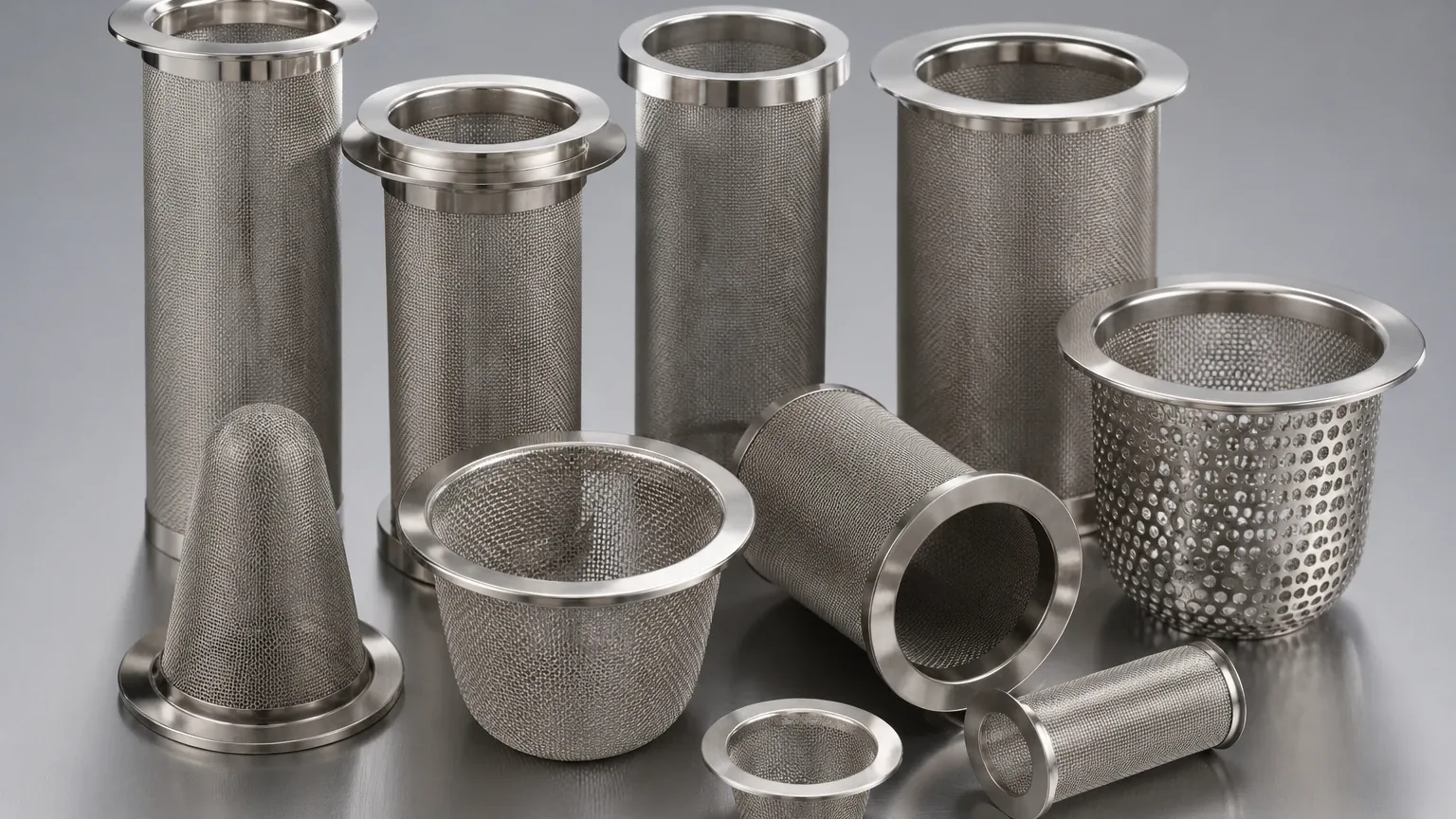

Most industrial Strainers & Baskets utilize a two-stage construction. A heavy-duty perforated plate provides the structural skeleton, while a finer stainless steel wire mesh is lined or wrapped around it to achieve the desired micron rating.
1. Perforation Size: Measured in inches or millimeters, this refers to the diameter of the holes in the supporting plate. Common sizes range from 1/32" to 1/2".
2. Mesh Count: This refers to the number of openings per linear inch. A higher mesh count indicates a finer level of filtration. For example, a 100-mesh screen has 100 openings per inch and can capture particles down to approximately 150 microns.
Micron Ratings and Particle Retention
In B2B procurement, it is vital to specify whether the required rating is "nominal" or "absolute." Nominal ratings indicate the ability to retain a majority of particles of a certain size, whereas absolute ratings (more common in precision cartridges than coarse strainers) guarantee 99.9% retention. For most strainer applications, a nominal rating is sufficient to protect mechanical hardware.
Customization and OEM Capabilities in Strainer Manufacturing
Standard off-the-shelf strainers often fail to meet the specific spatial or chemical requirements of complex industrial plants. This is where custom manufacturing becomes essential. As a professional manufacturer, Kaifil provides tailored solutions that address unique engineering challenges.
Custom Dimensions and Connections
In retrofit projects, new strainers must often fit into existing piping footprints. Customization allows for the adjustment of face-to-face dimensions, flange types (ANSI, DIN, JIS), and the orientation of drain ports. Furthermore, specialized handle designs or reinforced bails can be added to baskets to facilitate easier removal in cramped environments.
Advanced Fabrication Techniques
The durability of a strainer is determined by the quality of its welds. Utilizing TIG (Tungsten Inert Gas) or plasma welding ensures that the mesh-to-plate interface is seamless and robust. This prevents the mesh from pulling away under high differential pressure, a common failure point in lower-quality components. Additionally, surface treatments such as electropolishing can be applied to meet the stringent hygiene standards of the food and beverage or pharmaceutical industries.
Operational Maintenance and Lifecycle Management
The total cost of ownership for industrial strainers is heavily influenced by maintenance practices. A strainer is only effective if it is cleaned before the accumulated debris restricts flow to a critical level.
Differential Pressure Monitoring
The most reliable method for determining when a strainer needs cleaning is monitoring the differential pressure (DP) across the inlet and outlet. Most engineers recommend cleaning the basket when the DP reaches 5-10 psi above the clean pressure drop. Many modern systems integrate DP sensors with automated alarms to prevent pump cavitation or element collapse.
Cleaning Protocols
Proper cleaning of stainless steel baskets involves more than just a simple rinse. Depending on the media, ultrasonic cleaning or high-pressure backwashing may be required to remove lodged particles from the mesh interstices. It is also critical to inspect the gaskets and seals during every cleaning cycle; a compromised O-ring can lead to bypass, allowing contaminants to reach sensitive downstream equipment.
Replacement Indicators
While stainless steel strainers are designed for long-term use, they are not permanent. Signs that a basket or screen requires replacement include:
* Permanent Deformation: Visible bulging of the mesh or plate due to over-pressurization.
* Frayed Mesh: Broken wires in the weave that could potentially enter the flow stream.
* Corrosion Pitting: Even in stainless steel, certain chemicals can cause localized pitting that weakens the structural integrity of the element.
Selection Criteria for Engineers and Purchasing Teams
When sourcing Strainers & Baskets, the following checklist should be used to ensure the component is fit for purpose:
1. Fluid Characteristics: What is the viscosity, temperature, and chemical composition of the fluid? High-viscosity fluids require larger open areas.
2. Flow Rate: What is the maximum and minimum flow rate? This determines the pipe size and strainer body size.
3. Contaminant Type: Is the debris hard, soft, fibrous, or abrasive? This influences the choice between wire mesh and perforated plate.
4. Pressure Rating: Does the housing meet the system’s maximum allowable working pressure (MAWP)?
5. Maintenance Access: Is there enough clearance to remove the basket? If not, a Y-strainer or a side-entry basket might be necessary.
By focusing on these technical parameters, procurement teams can move beyond the search for "strainers 9 letters" and secure high-performance filtration components that enhance the reliability of their industrial processes. Kaifil’s commitment to precision manufacturing and material quality ensures that each strainer and basket provides the durability required for demanding hydraulic, chemical, and water treatment applications.
