Strainers Hawthorne
In the field of fluid management and precision filtration, the term "Hawthorne" refers to a specific design architecture characterized by a coiled spring mechanism used to regulate the passage of solids. While most commonly recognized in the hospitality industry for cocktail preparation, the engineering principles behind the Hawthorne design—specifically the use of tensioned wire coils and flexible filtration gaps—intersect significantly with industrial filtration requirements. For engineers and procurement professionals, understanding the mechanical advantages and limitations of various strainer designs, including Strainers & Baskets, is essential for optimizing process efficiency and ensuring product purity.
This article examines the technical specifications of the Hawthorne design, compares its mechanical utility to industrial basket strainers, and provides a guide for selecting filtration components based on material science, flow dynamics, and durability requirements.
Engineering Principles of the Hawthorne Design
The defining feature of a Hawthorne-style strainer is the peripheral coiled spring. From an engineering perspective, this spring serves as a variable-gap filter. Unlike fixed-aperture wire mesh, the gaps between the coils can be slightly adjusted by applying pressure or changing the tension of the spring against the vessel wall.
The Role of the Coiled Spring
In industrial applications, the principle of a coiled wire is often seen in "wedge wire" or spring-loaded filter elements. In a Hawthorne configuration, the spring serves two primary functions:
1. Seal Integrity: The spring expands to meet the inner diameter of the housing or vessel, ensuring that fluid is forced through the filtration gaps rather than bypassing the edges.
2. Particle Retention: The distance between each coil determines the micron rating of the strainer. In standard designs, this is typically suited for larger particulates (macro-filtration), but the principle can be adapted for finer separation by increasing the coil density.
Fluid Dynamics and Turbulence
Because the Hawthorne design involves fluid passing through a series of circular apertures (the coils), it creates a specific flow pattern. Engineers must consider the Reynolds number of the fluid; high-velocity flow through a coiled spring can induce turbulence, which may be desirable for mixing but detrimental if the goal is a laminar, high-flow discharge. In industrial Strainers & Baskets, the goal is typically to minimize pressure drop while maximizing surface area.
Industrial Applications of Basket Strainers
While the Hawthorne design is specialized, the broader category of industrial basket strainers is the workhorse of the chemical, food and beverage, and pharmaceutical industries. These components are designed to remove larger amounts of solids than a typical Hawthorne-style tool could handle.
Comparison of Surface Area

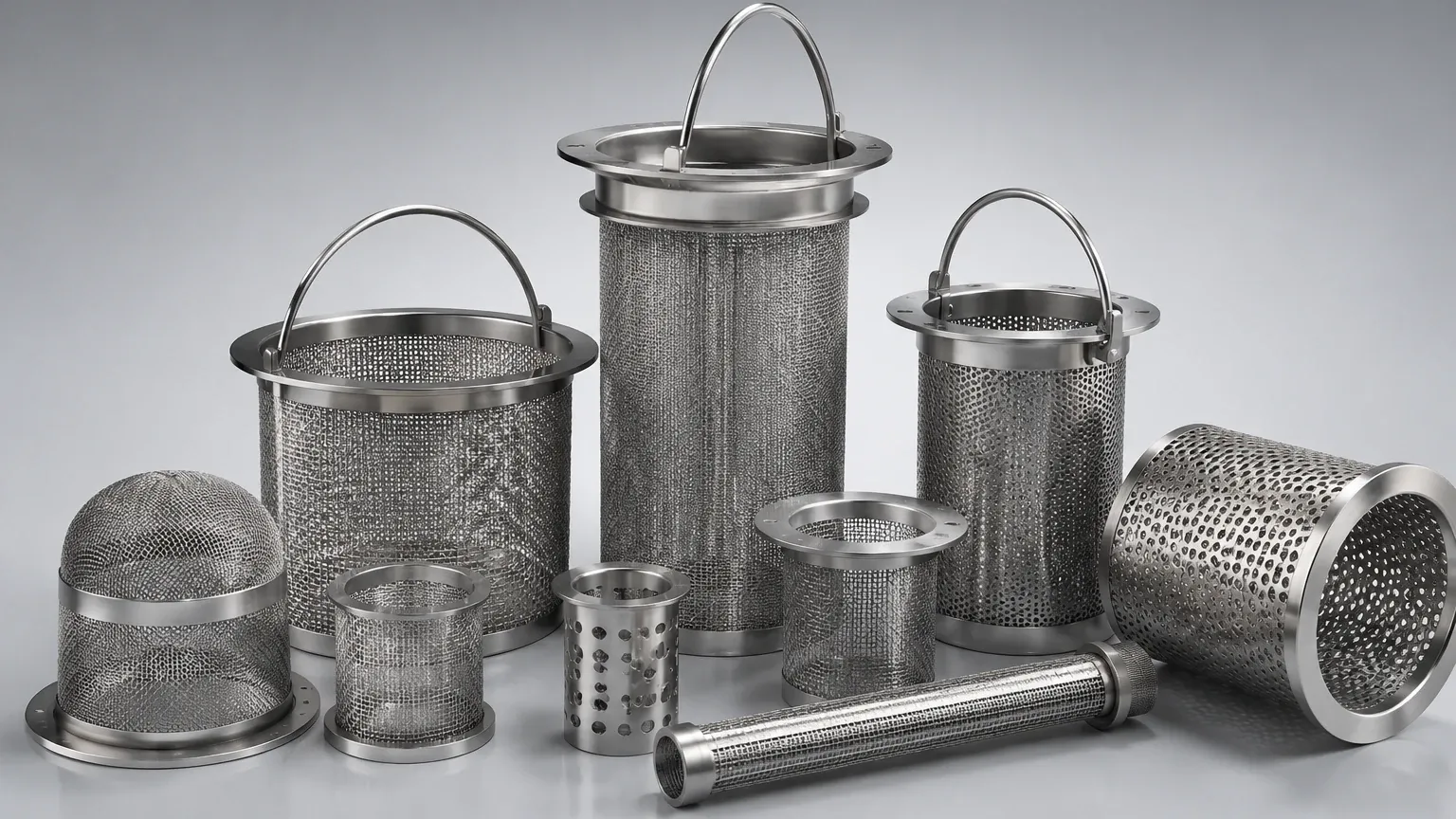

Industrial basket strainers utilize perforated plate or woven wire mesh to provide a much larger surface area than a simple spring-rimmed strainer. This increased area allows for:
* Lower Pressure Drop: A higher ratio of open area to total pipe area ensures that the pump does not have to work harder to push fluid through the filter.
* Higher Dirt Holding Capacity: Industrial baskets can accumulate significant debris before requiring a cleaning cycle, whereas a Hawthorne-style mechanism is prone to clogging if the solid load is high.
Mechanical Stability
In high-pressure hydraulic or chemical processing systems, the filtration element must withstand significant differential pressure ($ΔP$). While a Hawthorne spring is flexible, industrial baskets are often reinforced with internal supports or heavy-duty perforated metal frames to prevent collapsing or bursting under load.
Material Selection for High-Performance Filtration
Whether designing a custom Hawthorne-style component or a standard industrial basket, material selection is the most critical factor in longevity and chemical compatibility. Stainless steel is the industry standard due to its mechanical strength and resistance to oxidation.
304 vs. 316L Stainless Steel
* Grade 304: Suitable for general-purpose applications, including food processing and water treatment. It offers excellent formability for creating complex coil shapes or fine wire mesh.
* Grade 316L: Contains molybdenum, which provides superior resistance to chlorides and acids. This is the preferred material for pharmaceutical and marine environments where "strainers hawthorne" or similar components are exposed to corrosive cleaning agents or saline solutions.
Surface Finishes and Passivation
For B2B applications in the pharmaceutical and food sectors, the surface finish of the strainer is as important as the alloy. Electropolishing or mechanical polishing to a specific Ra (Roughness Average) value prevents bacterial growth and ensures that the strainer can be effectively cleaned during CIP (Clean-in-Place) cycles.
Customization Options for Industrial Strainers and Baskets
Every industrial process has unique parameters, meaning off-the-shelf solutions are often insufficient. Customization of Strainers & Baskets allows engineers to tailor the component to the specific viscosity, temperature, and particle size of their media.
Variable Mesh and Perforation Sizes
Custom manufacturers can produce baskets with multiple layers of filtration. For example, a coarse outer perforated plate can provide structural integrity, while an inner layer of fine 50-micron wire mesh provides the actual filtration. This "multi-stage" approach is more robust than a single-layer spring or mesh.
Geometric Adaptations
In some specialized equipment, a hybrid design incorporating the Hawthorne's spring-tensioned seal with a traditional basket's volume is required. Custom OEM services allow for the development of these hybrid components, ensuring they fit perfectly into existing piping manifolds or vessel necks.
Evaluating Filtration Efficiency and Flow Rates
When specifying a strainer, engineers must look beyond the physical dimensions and evaluate the performance metrics.
Calculating the Open Area Ratio
The Open Area Ratio (OAR) is the relationship between the internal cross-sectional area of the inlet pipe and the total open area of the strainer holes. A high-quality industrial strainer should have an OAR of at least 4:1. This ensures that even when the strainer is 50% clogged, the flow rate remains consistent with the system's requirements.
Micron Rating and Beta Ratio
While "strainers hawthorne" designs are generally used for visible particles (1000+ microns), industrial baskets can be engineered for much finer filtration. It is important to distinguish between "nominal" and "absolute" micron ratings. A nominal rating indicates the strainer will stop most particles of that size, while an absolute rating (often achieved through high-precision wire mesh) guarantees the retention of all particles above the specified threshold.
Maintenance and Longevity of Stainless Steel Filter Components
The total cost of ownership (TCO) for filtration components is heavily influenced by their maintenance requirements. A poorly designed strainer will lead to frequent downtime and potential damage to downstream equipment like pumps and valves.
Cleaning Cycles and Procedures
Stainless steel strainers are favored because they are reusable. Unlike disposable cartridges, a stainless steel basket or Hawthorne-style spring can be cleaned via:
* Backwashing: Reversing the flow to dislodge particles.
* Ultrasonic Cleaning: Using high-frequency sound waves in a solvent bath to remove fine particulates trapped in the mesh or between coils.
* Chemical Soaking: Utilizing caustic or acidic solutions to dissolve organic or mineral buildup.
Indicators for Replacement
Despite their durability, metal strainers eventually succumb to mechanical fatigue or erosion. Engineers should inspect for:
* Wire Fraying: In woven mesh, broken wires can bypass the filter or contaminate the product.
* Spring Deformation: In Hawthorne-style designs, if the spring loses its tension, the seal is compromised.
* Pitting Corrosion: Small holes caused by chemical attack can lead to structural failure.
Conclusion
The "Hawthorne" concept represents a unique approach to fluid separation, relying on mechanical tension and coiled geometry. While its roots are in specialized manual applications, the underlying principles of adjustable gaps and stainless steel durability are highly relevant to the broader industrial filtration market. By understanding the differences between these specialized designs and high-capacity Strainers & Baskets, technical professionals can better select the components necessary for their specific industrial environments.
When selecting a filtration partner, it is essential to prioritize manufacturers who offer deep technical expertise in material science and custom engineering. Whether you require a standard basket for a water treatment plant or a custom-engineered component that utilizes spring-tensioned principles, the focus must remain on precision, durability, and the specific demands of the application.
