MGI Speedware Woven Mesh Split Sleeve Wire Loom: Engineering and Material Insights
In industrial and automotive engineering, the protection of sensitive components—whether they are electrical harnesses or fluid transport lines—is a critical design consideration. The mgi speedware woven mesh split sleeve wire loom has become a standard solution for cable management due to its unique "self-closing" design and flexible architecture. However, understanding the underlying principles of its construction requires a deeper look into the world of Woven Wire Mesh and the material science that dictates performance in demanding environments.
For engineers and procurement professionals, selecting the right protective sleeving or filtration media involves evaluating mechanical stress, thermal limits, and chemical exposure. While polymer-based split sleeves offer excellent flexibility for wiring, industrial applications often require the enhanced durability and precision of metallic woven structures. This article examines the technical specifications of woven mesh looms and compares them to high-performance industrial wire mesh solutions used in filtration and heavy-duty protection.
The Architecture of Woven Mesh Split Sleeves

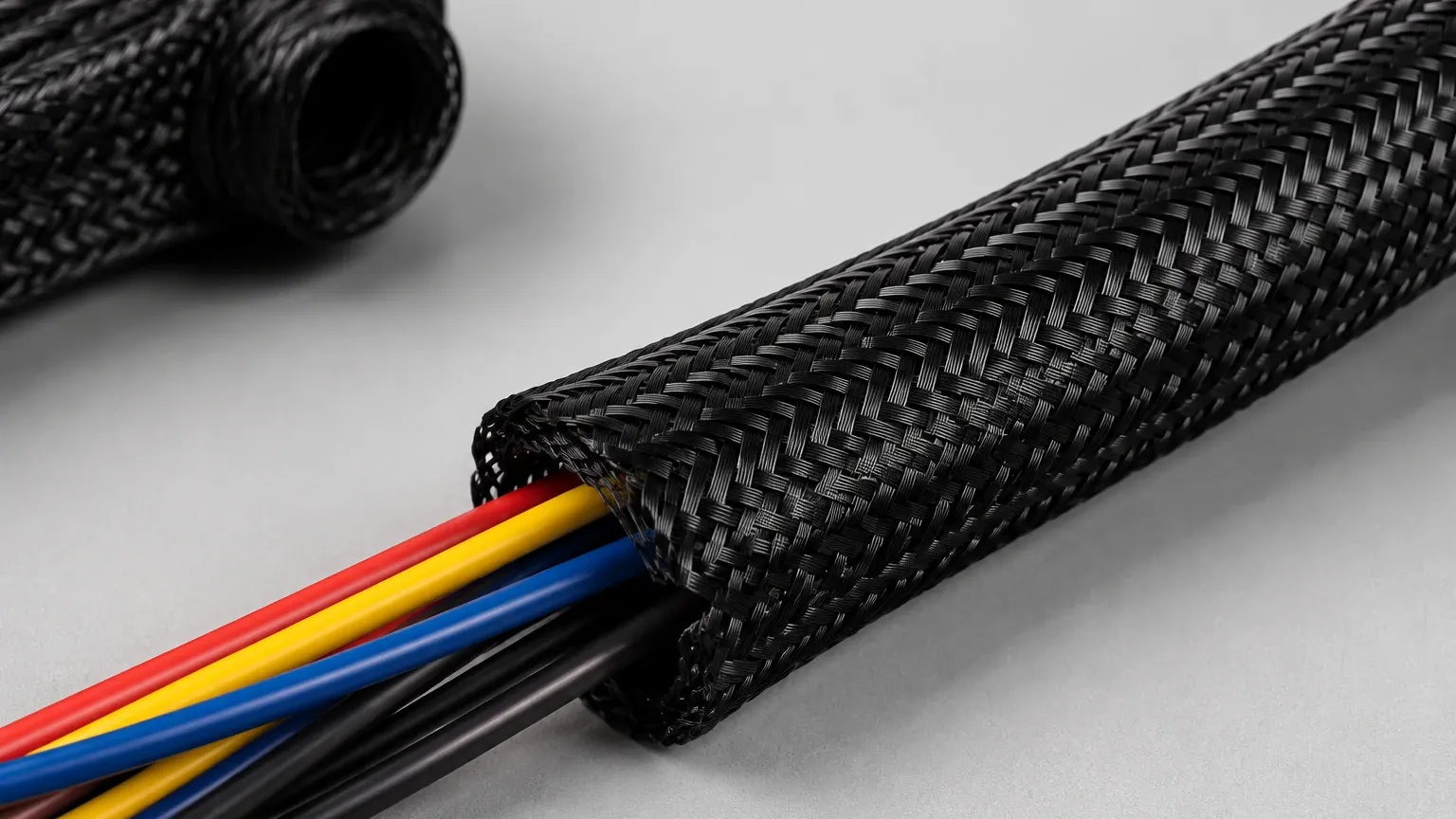

The primary advantage of the mgi speedware woven mesh split sleeve wire loom lies in its lateral split. Unlike traditional corrugated tubing, which requires cables to be threaded through the entire length, a split sleeve allows for easy installation over existing assemblies.
Self-Closing Mechanism
From an engineering perspective, the "memory" of the weave is what defines the quality of a split sleeve. High-quality woven mesh is heat-treated or tensioned so that the edges naturally overlap. This overlap provides 360-degree coverage even when the loom is bent around tight radii. In industrial settings, this structural integrity is vital to prevent the exposure of internal components to abrasion or environmental contaminants.
Material Composition: Polymers vs. Metals
Most commercial split sleeves, such as those from MGI Speedware, utilize polyethylene terephthalate (PET) or similar monofilament polymers. These materials are chosen for their lightweight nature and resistance to common automotive fluids. However, when the application shifts toward high-temperature chemical processing or high-pressure hydraulic systems, the limitations of polymers become apparent. This is where stainless steel Woven Wire Mesh becomes the preferred engineering choice, offering superior tensile strength and thermal stability.
Technical Comparison: Industrial Wire Mesh vs. Cable Sleeving
When evaluating a protective or filtration component, engineers must distinguish between the "loose" weave of a cable loom and the "precision" weave of industrial wire cloth. While both fall under the category of woven structures, their performance metrics differ significantly.
| Feature | Woven Mesh Split Sleeve (Polymer) | Industrial Stainless Steel Woven Mesh |
| :— | :— | :— |
| Primary Function | Cable management & light abrasion | Filtration, separation & heavy protection |
| Temperature Limit | Typically up to 125°C – 150°C | Up to 800°C+ (depending on alloy) |
| Chemical Resistance | Moderate (Resistant to oils/gasoline) | High (Resistant to acids, alkalis, solvents) |
| Mechanical Strength | Flexible, low tensile strength | Rigid or semi-flexible, high burst strength |
| Customization | Standard diameters | Custom mesh counts, wire diameters, and weaves |
For projects requiring precise aperture control or extreme environment durability, Kaifil provides Plain, twill and dutch woven wire mesh in SS304/316L — rolls, cut mesh and framed panels. Send mesh count or micron target for a technical quote.
Engineering Considerations for Woven Mesh Selection
Whether you are specifying a split sleeve for a wiring harness or a custom filter cartridge for a chemical reactor, several technical factors must be confirmed before procurement.
1. Weave Type and Density
The way wires or filaments are interlaced determines the mesh's flexibility and its ability to block particles or protect internal contents.
* Plain Weave: The most common style where each warp wire crosses over and under each shute wire. It offers the highest level of transparency and flexibility, similar to the construction found in the mgi speedware woven mesh split sleeve wire loom.
* Twill Weave: Each shute wire passes over and under two warp wires. This allows for a heavier wire diameter to be used in a given mesh count, increasing the overall strength and abrasion resistance.
* Dutch Weave: This utilizes a coarser warp wire and a finer shute wire, creating a dense, "tortuous path" that is ideal for high-pressure filtration applications where a split sleeve would be insufficient.
2. Abrasion and Impact Resistance
In the automotive sector, the mgi speedware woven mesh split sleeve wire loom is valued for its ability to prevent "chaffing" of wires against the chassis. In industrial filtration, the mesh itself is often subjected to high-velocity fluid flows containing abrasive particles. In these cases, selecting a stainless steel mesh with a specific wire diameter is crucial to ensure a long service life and prevent premature failure of the filtration media.
3. Thermal and Chemical Compatibility
Engineers must confirm the operating environment's maximum temperature and the presence of corrosive agents. While PET-based woven sleeves are excellent for standard engine bays, they will melt or degrade in the presence of concentrated acids or temperatures exceeding 200°C. Stainless steel 316L mesh is the industry standard for pharmaceutical and chemical applications due to its molybdenum content, which provides enhanced resistance to pitting and crevice corrosion.
Common Risks in Woven Mesh Applications
Failure to account for the specific demands of an application can lead to several common issues:
* Fraying: In lower-quality woven products, cutting the mesh can lead to unravelling at the edges. For split sleeves, this compromises the self-closing feature. For industrial filters, loose wires can enter the downstream flow, causing catastrophic equipment failure.
* Environmental Stress Cracking: In polymer sleeves, exposure to UV light or certain cleaning chemicals can cause the filaments to become brittle. Metal mesh avoids this but may be subject to oxidation if the incorrect alloy (e.g., SS304 vs. SS316) is chosen for a marine or high-chloride environment.
* Improper Sizing: For the mgi speedware woven mesh split sleeve wire loom, undersizing the diameter prevents the overlap from closing, leaving the wires exposed. In filtration, selecting the wrong mesh count results in either insufficient filtration (too coarse) or excessive pressure drop and frequent clogging (too fine).
Customization and OEM Solutions
In many B2B contexts, off-the-shelf solutions like standard split sleeves are only part of the puzzle. Large-scale industrial projects often require customized filtration components that integrate woven mesh into complex assemblies.
Kaifil specializes in bridging the gap between raw mesh materials and finished engineering components. This includes:
* Custom Sizing: Precision-cut mesh panels tailored to specific housing dimensions.
* Material Selection: Advising on the use of SS304, SS316, or specialty alloys based on the chemical profile of the application.
* Layering and Pleating: Combining multiple layers of woven wire mesh to achieve specific micron ratings while maintaining structural integrity under high pressure.
Conclusion: Making an Informed Decision
The mgi speedware woven mesh split sleeve wire loom is an excellent tool for organized and protected electrical routing. However, when the scope of a project expands into industrial fluid dynamics, high-heat protection, or precision filtration, the technical requirements shift toward the robust capabilities of stainless steel woven wire mesh.
Before finalizing a purchase or design specification, engineers should confirm:
1. The maximum continuous operating temperature.
2. The specific chemical environment (pH levels, presence of chlorides).
3. The required mechanical strength (burst pressure or abrasion cycles).
4. The necessary filtration accuracy (micron rating or mesh count).
By understanding these variables, procurement teams can ensure they are selecting a product—whether it is a flexible split sleeve for wiring or a precision-engineered metal filter—that will perform reliably throughout its intended lifecycle. For those requiring high-performance metal filtration solutions, exploring the technical specifications of various weave patterns is the first step toward optimized system performance.
