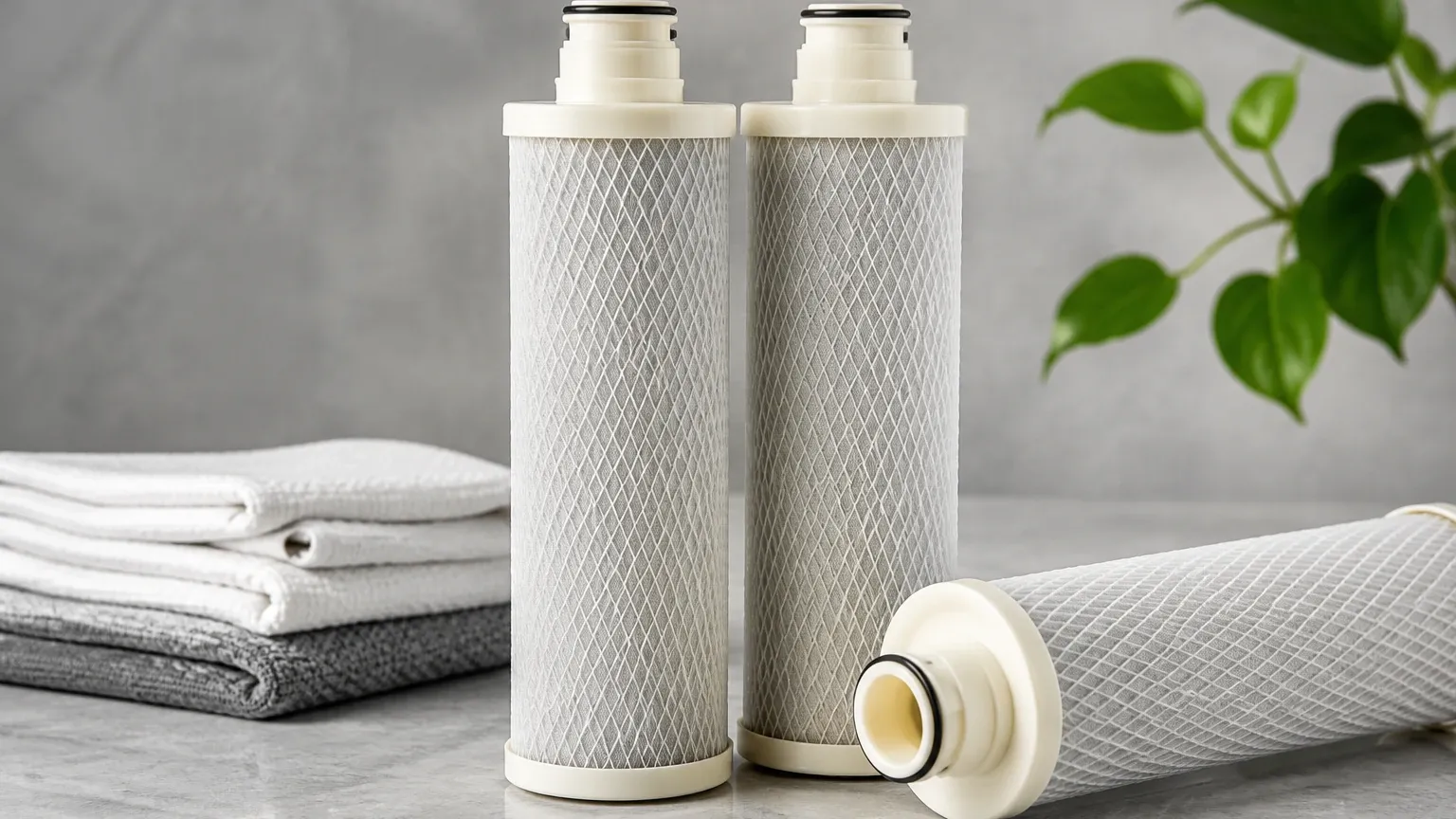

Aquasana Aq 5200r Replacement Filter Cartridges
In the realm of point-of-use (POU) water treatment, the maintenance of system integrity relies heavily on the timely replacement of consumable components. The Aquasana AQ 5200R replacement filter cartridges are designed specifically for the Claryum 2-stage under-sink filtration system. For facility managers, maintenance engineers, and procurement specialists, understanding the technical specifications and filtration mechanics of these components is essential for ensuring consistent water quality and system longevity.
While residential systems like the AQ 5200R serve specific low-volume needs, they operate on fundamental filtration principles that also govern large-scale industrial processes. This guide examines the technical aspects of these replacement cartridges, the engineering considerations behind their design, and how they compare to high-performance industrial Filter Cartridges used in more demanding environments.
Technical Overview of the AQ 5200R Filtration System
The AQ 5200R system utilizes a dual-cartridge configuration to achieve multi-stage contaminant reduction. This approach is common in both commercial and industrial settings where a single filtration medium is insufficient to address a broad spectrum of impurities.
Multi-Stage Filtration Mechanics
The system typically employs a combination of mechanical and chemical filtration processes:
1. Activated Carbon Block: This stage focuses on the adsorption of organic compounds, chlorine, and chloramines. By utilizing a dense carbon structure, the cartridge increases the contact time between the fluid and the media, enhancing the removal of volatile organic compounds (VOCs).
2. Ion Exchange: This process targets heavy metals, such as lead and mercury. By exchanging harmful ions for harmless ones (typically sodium or potassium), the media chemically alters the composition of the water without stripping out essential minerals.
3. Sub-Micron Filtration: The physical structure of the cartridge is engineered to trap cysts and asbestos fibers. This requires precise control over the pore size distribution within the filter media.
For engineers, the primary concern with these systems is the balance between filtration efficiency (the percentage of contaminants removed) and the pressure drop across the media. As the cartridges accumulate debris, the resistance to flow increases, necessitating a replacement cycle based on either time or total gallon throughput.
Key Performance Metrics for Replacement Cartridges
When evaluating replacement cartridges, whether for a small-scale Aquasana system or an industrial fluid processing line, several technical metrics must be verified to ensure the replacement meets the original equipment manufacturer (OEM) standards.
Micron Rating: Absolute vs. Nominal
The effectiveness of a filter is often defined by its micron rating. A nominal rating indicates the filter's ability to trap a major percentage of particles of a given size, whereas an absolute rating implies that 99.9% of particles above that size are retained. The AQ 5200R cartridges are designed for sub-micron performance, which is critical for the removal of microscopic pathogens. In industrial applications, specifying the correct micron rating is vital to protect downstream equipment like high-pressure pumps or sensitive analytical instruments.
Flow Rate and Pressure Differential (ΔP)
Every filter cartridge introduces a degree of resistance. The AQ 5200R is typically rated for a flow rate of approximately 0.5 gallons per minute (GPM) at a specific pressure. In an industrial context, engineers must calculate the "Clean Pressure Drop." If a replacement cartridge has a higher initial ΔP than the original, it can lead to reduced system efficiency and premature pump wear.
Capacity and Service Life
The service life of the AQ 5200R is generally rated at 500 gallons or six months. This capacity is determined by the volume of media inside the cartridge and the expected contaminant load. For B2B applications, calculating the Total Cost of Ownership (TCO) involves looking past the initial purchase price and evaluating the frequency of replacement and the labor costs associated with downtime during maintenance.
Engineering Comparison: Polymer vs. Stainless Steel Filter Cartridges
While the Aquasana AQ 5200R utilizes plastic housings and polymer-based media (suitable for ambient temperature, low-pressure potable water), many industrial sectors require more robust materials. Understanding the transition from residential-grade plastic to industrial-grade stainless steel is crucial for applications involving high temperatures or corrosive chemicals.
| Feature | Polymer/Disposable Cartridges (e.g., AQ 5200R) | Stainless Steel Filter Cartridges |
| :— | :— | :— |
| Temperature Limit | Typically < 100°F (38°C) | Up to 1000°F+ (537°C+) depending on alloy |
| Pressure Resistance | Low to Moderate | High Burst and Collapse Strength |
| Chemical Compatibility | Limited to non-corrosive fluids | Excellent (304, 316L, Hastelloy) |
| Reusability | Disposable | Cleanable and Reusable |
| Filtration Precision | Fixed (based on media) | Highly Customizable (Wire Mesh/Sintered) |
For industries such as chemical processing or steam filtration, the disposable nature of polymer cartridges becomes a liability. Stainless steel Filter Cartridges offer a sustainable alternative, as they can be backwashed or ultrasonically cleaned, significantly reducing the long-term waste stream and operational costs.
Selection Criteria for Industrial-Grade Filtration Components
When a standard replacement cartridge like the AQ 5200R does not meet the rigors of an industrial environment, engineers must specify custom filtration solutions. The selection process involves several critical technical confirmations:
1. Material Compatibility
The filter media and seals must be compatible with the process fluid. While EPDM or Buna-N seals are standard for water, aggressive solvents or oils may require Viton or PTFE. In stainless steel filters, the choice between 304 and 316L stainless steel depends on the presence of chlorides or other corrosive agents.
2. Structural Integrity
In high-viscosity applications or systems with frequent pressure surges, the cartridge must have sufficient structural strength. Sintered metal or reinforced wire mesh designs prevent media migration and cartridge collapse, ensuring that the filtrate remains pure even under mechanical stress.
3. Custom Geometry
Unlike standardized residential cartridges, industrial filters often require custom lengths, diameters, and end-cap configurations (such as Code 7, 222, or 226 O-ring styles). Customization ensures a leak-proof fit within existing filter housings, which is paramount for maintaining the integrity of the filtration barrier.
Maintenance and Lifecycle Management in Fluid Processing
Whether managing a fleet of under-sink filters or a large-scale industrial filtration bank, a proactive maintenance strategy is essential. Relying solely on a calendar-based replacement schedule can be inefficient.
Monitoring Pressure Differential
In professional settings, differential pressure gauges are installed across the filter housing. A rise in ΔP indicates that the filter is reaching its loading capacity. For the AQ 5200R, a noticeable drop in flow at the faucet is the primary indicator for the user. In an automated industrial system, sensors can trigger a bypass or a cleaning cycle once a specific pressure threshold is reached.
Risk of Delayed Replacement
Neglecting to replace filter cartridges can lead to several risks:
* Contaminant Breakthrough: Once the media is saturated, it may no longer adsorb chemicals, or the pressure may force trapped particles through the media.
* Biofilm Growth: Stagnant water and accumulated organic matter can become a breeding ground for bacteria if the filter is used beyond its rated lifespan.
* System Damage: High back-pressure can strain pumps and seals, leading to costly mechanical failures.
Transitioning to Custom Industrial Solutions
For organizations operating in the food and beverage, pharmaceutical, or hydraulic sectors, the limitations of standard consumer-grade filtration are clear. While products like the Aquasana AQ 5200R provide excellent service for their intended residential use, industrial processes demand a higher level of precision and durability.
Kaifil specializes in bridging this gap by manufacturing custom stainless steel filtration solutions. By focusing on engineering-led design, Kaifil provides Filter Cartridges that are tailored to specific flow rates, micron requirements, and environmental conditions.
Why Engineers Choose Custom Metal Filters:
* Precision Engineering: Ability to define exact pore sizes using multi-layered wire mesh.
* Durability: Resistance to high-pressure cleaning and sterilization processes (SIP/CIP).
* Sustainability: Reducing the environmental impact by moving away from single-use plastic cartridges.
Conclusion: Making Informed Procurement Decisions
Selecting the right replacement filter cartridge requires a thorough understanding of the application's technical demands. For the Aquasana AQ 5200R, the focus is on maintaining potable water safety through a specialized 2-stage chemical and mechanical process. However, for the broader industrial market, the focus shifts toward material science, structural engineering, and long-term operational efficiency.
Before purchasing replacement components, technical professionals should confirm the chemical compatibility, required micron rating, and the total lifecycle cost of the filtration media. By evaluating these factors, purchasing teams can ensure they are not only maintaining their systems but optimizing them for peak performance. For those requiring more than a standard off-the-shelf solution, exploring custom metal filtration options provides a path toward greater reliability and precision in fluid management.
