Cartridge Filter 73114
In industrial hydraulic and lubrication systems, the reliability of filtration components directly impacts the longevity of downstream machinery. The cartridge filter 73114 is a specific designation often associated with high-efficiency fluid filtration, designed to capture particulate contaminants that could otherwise cause abrasive wear in pumps, valves, and actuators. For engineers and procurement specialists, understanding the technical nuances of this filter type—and the potential for upgrading to high-performance stainless steel alternatives—is essential for optimizing system uptime.
Industrial Filter Cartridges serve as the primary line of defense against system degradation. Whether the application involves hydraulic oil, chemical processing, or water treatment, the selection of the filter media and the structural integrity of the cartridge determine the overall efficiency of the filtration process. This guide examines the technical specifications, material considerations, and engineering factors relevant to the 73114 specification and its broader industrial context.
Understanding the Technical Specifications of Cartridge Filter 73114
The cartridge filter 73114 is typically defined by its physical dimensions and its filtration efficiency, often referred to as its micron rating. In most industrial configurations, this part number corresponds to a spin-on or element-style filter used in medium-pressure hydraulic circuits.
Key technical parameters usually include:
* Micron Rating: Depending on the specific manufacturer, the 73114 may offer nominal or absolute filtration, typically ranging from 10 to 25 microns. This level of precision is critical for protecting sensitive hydraulic components from fine silt and metallic debris.
* Flow Rate Capacity: The internal geometry and surface area of the media determine the maximum flow rate the cartridge can handle without inducing excessive pressure drop.
* Pressure Rating: Industrial cartridges must withstand both the operating pressure of the system and potential pressure spikes. For a standard 73114, the collapse pressure is a vital metric to ensure the filter does not fail under high-differential pressure conditions.
* Seal Compatibility: The choice of O-ring or gasket material (such as Buna-N, Viton, or EPDM) must be compatible with the fluid being filtered to prevent leaks or bypass.
When sourcing these components, engineers must verify that the replacement part meets or exceeds the original equipment manufacturer (OEM) specifications to maintain system balance.
Material Selection: Why Stainless Steel is Often Preferred
While many standard versions of the cartridge filter 73114 utilize cellulose or synthetic fiber media, demanding industrial environments often require a transition to stainless steel wire mesh. As a manufacturer specializing in precision metal filtration, Kaifil emphasizes the advantages of stainless steel in high-temperature or corrosive applications.
Durability and Structural Integrity

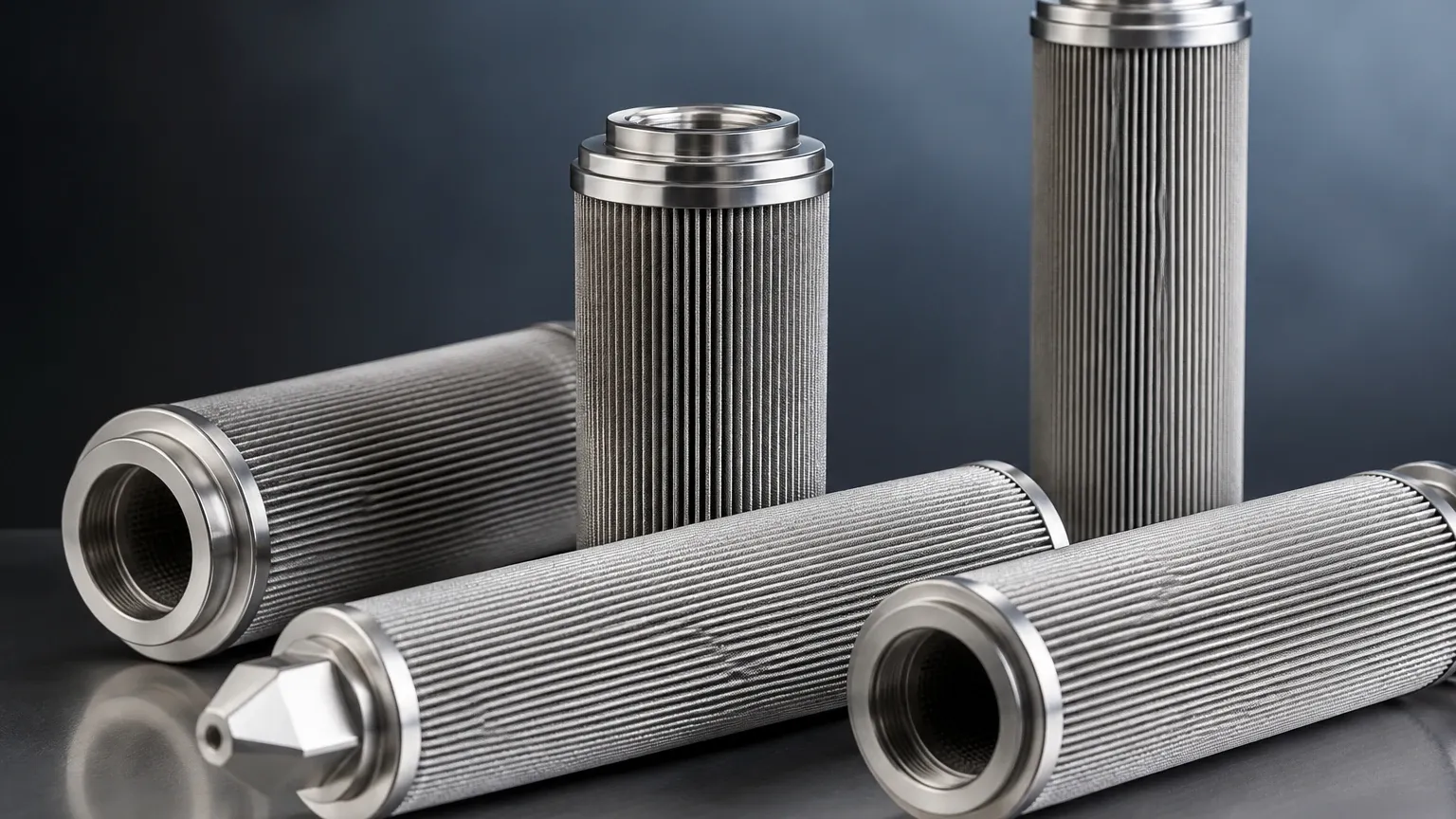

Stainless steel Filter Cartridges offer superior mechanical strength compared to paper or plastic-based filters. In systems where pressure fluctuations are common, a metal mesh filter maintains its pore structure, preventing "media migration"—a phenomenon where filter fibers break loose and enter the downstream flow.
Chemical and Thermal Resistance
In chemical processing or high-temperature hydraulic systems, standard media may degrade or melt. Stainless steel (typically Grade 304 or 316L) is inert to most industrial solvents and can operate at temperatures exceeding 250°C, far beyond the limits of synthetic polymers.
Cleanability and Reusability
One of the primary drivers for selecting a custom stainless steel version of a cartridge filter 73114 is the total cost of ownership. Unlike disposable cartridges that must be discarded after a single use, stainless steel mesh filters can be cleaned via ultrasonic baths or backwashing, significantly reducing long-term waste and replacement costs.
Performance Evaluation: Filtration Accuracy and Flow Rates
Evaluating the performance of a cartridge filter 73114 requires an analysis of the relationship between filtration accuracy and flow resistance. In engineering terms, this is often discussed as the "Beta Ratio" and "Pressure Drop" ($ΔP$).
The Beta Ratio
The Beta Ratio ($eta$) indicates the filtration efficiency for a specific particle size. For example, a $eta_{10} = 200$ means that for every 200 particles of 10 microns entering the filter, only one passes through. When upgrading a 73114 element, ensuring a high Beta Ratio is paramount for protecting high-tolerance components like servo valves.
Managing Pressure Drop
As a filter captures contaminants, the resistance to flow increases. A well-designed cartridge maximizes the effective filtration area (EFA) to keep the initial pressure drop low. For the cartridge filter 73114, using pleated wire mesh can provide a significantly larger surface area within the same physical footprint as a standard depth filter, allowing for higher flow rates and longer service intervals.
Engineering Considerations for Custom Filtration Solutions
In many cases, a standard off-the-shelf cartridge filter 73114 may not meet the specific needs of a specialized industrial process. Customization allows engineers to tailor the filtration performance to the exact requirements of the application.
Weave Types and Pore Geometry
When designing custom Filter Cartridges, the type of weave used in the stainless steel mesh is critical. Options include:
* Plain Weave: Suitable for simple straining and high-flow applications.
* Dutch Weave: Provides a denser structure for fine filtration and higher mechanical strength.
* Twilled Weave: Allows for thicker wires and finer mesh counts, ideal for heavy-duty applications.
End Cap and Support Core Design
The structural components of the cartridge—the end caps and the internal support core—must be engineered to handle the specific mounting requirements of the filter housing. Whether the system requires a threaded connection, a bayonet mount, or a simple compression fit, precision machining ensures a bypass-free seal.
Maintenance and Replacement Cycles for Industrial Filter Cartridges
Maintaining the cartridge filter 73114 involves monitoring the differential pressure across the filter housing. Most industrial systems are equipped with a DP (differential pressure) gauge or switch that alerts operators when the filter has reached its dirt-holding capacity.
Factors Influencing Replacement Cycles
1. Contaminant Loading: The cleanliness of the incoming fluid determines how quickly the filter will clog. In systems with high ingress of environmental dust or internal wear particles, more frequent cleaning or replacement is necessary.
2. Fluid Viscosity: Higher viscosity fluids (such as heavy gear oils) create naturally higher pressure drops, which can lead to premature "clogged" readings if the filter is not sized correctly.
3. Operating Conditions: Continuous vs. intermittent flow and temperature fluctuations can affect the fatigue life of the filter media.
For reusable stainless steel cartridges, establishing a standardized cleaning protocol is essential. Over-cleaning or using aggressive chemicals can damage the mesh, while under-cleaning leads to reduced flow efficiency.
How to Source and Customize High-Performance Filter Cartridges
For purchasing teams and engineers, sourcing a cartridge filter 73114 involves more than just matching a part number. It requires a partner capable of providing technical validation and manufacturing consistency.
When evaluating a manufacturer like Kaifil for your filtration needs, consider the following checklist:
* Material Certification: Ensure the stainless steel grades are verified and suitable for the application environment.
* Testing Capabilities: Does the manufacturer perform bubble point tests to verify filtration accuracy and integrity?
* OEM Compatibility: Can the custom cartridge be manufactured to fit existing 73114 housings without modification?
* Scalability: Can the supplier handle both small-batch custom prototypes and large-scale production runs?
By focusing on these technical benchmarks, organizations can move beyond generic replacements and invest in Filter Cartridges that enhance the overall efficiency and reliability of their industrial systems. Whether you are looking for a direct replacement for a cartridge filter 73114 or a completely custom-engineered metal filtration solution, prioritizing material quality and engineering precision is the key to long-term operational success.
