Cartridge Filter 78099
In industrial filtration, precision and reliability are the primary benchmarks for operational efficiency. The cartridge filter 78099 represents a specific class of filtration components designed to meet rigorous standards in fluid and gas processing. For procurement managers and system engineers, understanding the technical specifications, material compatibility, and performance thresholds of these components is essential for maintaining system uptime and protecting downstream equipment.
Industrial filtration systems rely on standardized part numbers to ensure compatibility; however, the "78099" designation often serves as a baseline for dimensions and basic performance. When evaluating Filter Cartridges for critical applications—ranging from chemical processing to high-pressure hydraulic systems—it is necessary to look beyond the part number and analyze the engineering characteristics that dictate long-term performance and total cost of ownership.
Technical Specifications and Design of the Cartridge Filter 78099
The cartridge filter 78099 is typically characterized by its physical dimensions and its ability to handle specific flow rates. In most industrial contexts, this filter is designed with a specific outer diameter, inner diameter, and length to fit standard housing units. However, the internal architecture of the filter is what determines its efficacy.
Micron Ratings and Filtration Efficiency
Filtration efficiency is usually measured by the micron rating, which can be either nominal or absolute. A nominal rating indicates the filter's ability to retain the majority of particles of a specific size, while an absolute rating refers to the diameter of the largest spherical particle that can pass through the filter under specific test conditions. For applications involving the cartridge filter 78099, engineers must verify whether the media provides the necessary retention for sensitive components like high-pressure pumps or precision nozzles.
Pleated vs. Depth Media

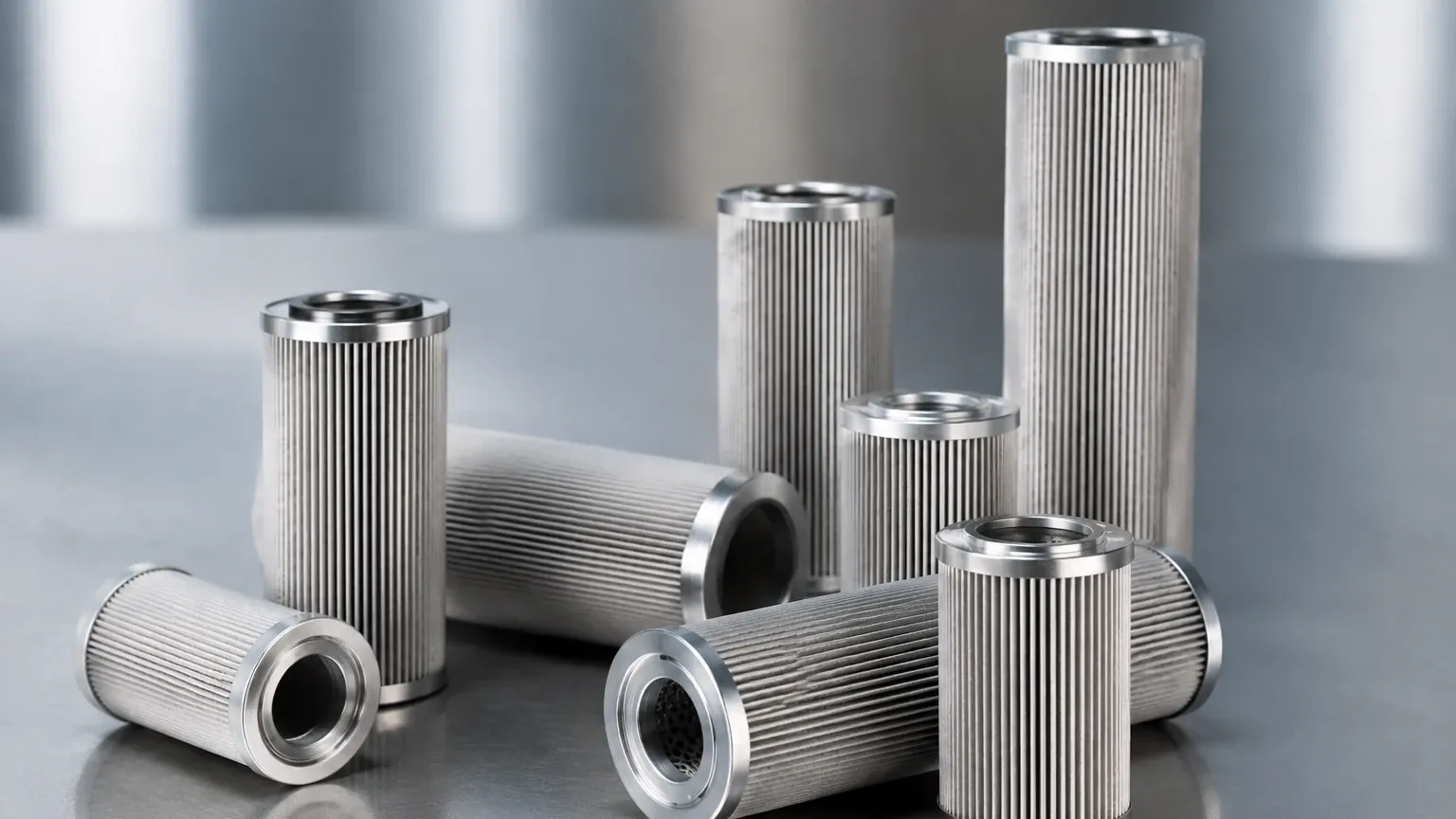

Depending on the specific manufacturer, a 78099-style filter may utilize pleated media or depth media. Pleated designs increase the available surface area, which reduces the clean pressure drop and extends the dirt-holding capacity. Depth media, conversely, captures particles throughout the thickness of the material, which can be advantageous for fluids with a wide distribution of particle sizes. For high-demand industrial environments, stainless steel pleated Filter Cartridges are often preferred due to their structural rigidity and resistance to media migration.
Material Selection: The Shift Toward Stainless Steel
While many standard 78099 filters utilize synthetic fibers or cellulose, industrial applications involving high temperatures, corrosive chemicals, or high differential pressures require more robust materials. This is where stainless steel filtration solutions become a critical upgrade.
Chemical Compatibility
In chemical processing and pharmaceutical manufacturing, the filter media must be chemically inert to the process fluid. Stainless steel (typically Grade 304 or 316L) offers superior resistance to a broad spectrum of acids, bases, and organic solvents. Unlike polymer-based filters, stainless steel does not leach surfactants or binders into the filtrate, ensuring the purity of the end product.
Thermal Stability
Standard cartridge filters often have a maximum operating temperature limited by the melting point of the plastic components or the degradation of the adhesives used in the end caps. Stainless steel cartridges can operate in environments exceeding 250°C (depending on the seal material), making them indispensable for steam filtration and hot gas applications where a standard cartridge filter 78099 would fail structurally.
Engineering Considerations for High-Performance Filtration
When integrating a cartridge filter 78099 into an existing system, engineers must account for several fluid dynamic variables to ensure the filter does not become a bottleneck or a point of failure.
Pressure Drop (ΔP)
The differential pressure across a filter is a key indicator of its performance. A high initial pressure drop suggests that the filter media may be too restrictive for the required flow rate, leading to increased energy consumption by pumps. High-quality Filter Cartridges are engineered to minimize this initial ΔP while maximizing the volume of contaminants captured before the terminal pressure drop is reached.
Structural Integrity and Collapse Pressure
In hydraulic and high-pressure lubrication systems, filters are subjected to significant mechanical stress. The cartridge filter 78099 must be designed with a central support core—often made of perforated or spirally welded metal—to prevent the media from collapsing under high differential pressure. For custom industrial applications, the collapse pressure rating is a critical safety specification that prevents catastrophic system contamination resulting from a ruptured filter element.
Industrial Applications and Use Cases
The versatility of the 78099-style filter allows it to be used across diverse sectors, provided the material and micron rating are correctly matched to the task.
1. Chemical Processing: Used for the removal of catalysts or undissolved solids from process streams. Stainless steel versions are particularly valued here for their ability to be cleaned and reused.
2. Food and Beverage: Ensuring the removal of particulates from water used in production or the filtration of oils and syrups. Compliance with food-grade standards is mandatory in these instances.
3. Hydraulic Systems: Protecting sensitive valves and actuators from wear-inducing particles. The cartridge filter 78099 is often found in return-line or suction-side applications.
4. Water Treatment: Serving as a pre-filter for reverse osmosis (RO) membranes or as a final polishing stage for industrial process water.
Maintenance, Cleaning, and Replacement Cycles
One of the most significant factors in the total cost of ownership for filtration systems is the replacement cycle. Disposable filters, while often cheaper upfront, require frequent labor for change-outs and create a waste stream that must be managed.
The Advantage of Cleanable Media
For many B2B operations, transitioning from disposable units to cleanable stainless steel Filter Cartridges provides a substantial return on investment. Metal filters can be cleaned using ultrasonic baths, backwashing, or chemical solvents, allowing them to be returned to service multiple times. This is particularly beneficial in processes where the cartridge filter 78099 is exposed to heavy contaminant loads that would blind a disposable filter in a matter of hours.
Monitoring Performance
To optimize the replacement or cleaning cycle, systems should be equipped with differential pressure gauges. Replacing a filter too early results in unnecessary costs, while replacing it too late can lead to bypass leakage or pump cavitation. Establishing a clear protocol for monitoring the ΔP of the cartridge filter 78099 ensures that the filtration system operates within its designed efficiency window.
Customization and OEM Solutions for Specialized Requirements
Often, a standard off-the-shelf cartridge filter 78099 does not meet the specific needs of a unique industrial process. In these cases, OEM (Original Equipment Manufacturer) customization becomes necessary. Customization allows engineers to specify unique parameters such as:
* Custom End Cap Configurations: Ensuring a leak-proof seal with specialized gaskets (Viton, EPDM, PTFE) or mechanical fittings (DOE, SOE, Code 7).
* Reinforced Construction: Adding outer cages or internal pleat supports for high-vibration or high-surge environments.
* Variable Micron Layers: Utilizing multi-layered wire mesh to create a gradient-density filter that captures different particle sizes in a single pass.
By working with a manufacturer that specializes in custom stainless steel filtration, companies can develop a version of the cartridge filter 78099 that is perfectly tailored to their fluid chemistry and mechanical constraints. This bespoke approach reduces the risk of bypass and extends the service life of the filter element significantly beyond that of generic replacements.
Conclusion: Selecting the Right Filtration Partner
Choosing a cartridge filter 78099 involves more than matching a part number. It requires a comprehensive understanding of the fluid dynamics, chemical environment, and mechanical stresses of the application. For engineers and procurement teams, the goal is to balance filtration precision with operational durability.
When standard solutions fall short—whether due to extreme temperatures, aggressive chemicals, or the need for a more sustainable, reusable option—stainless steel Filter Cartridges offer a high-performance alternative. By focusing on quality manufacturing and precise engineering specifications, industrial facilities can ensure their filtration systems provide maximum protection for their critical infrastructure, ultimately reducing downtime and enhancing process consistency.
