Filter Element 852 519 Mic
In the landscape of industrial fluid management, the integrity of hydraulic and lubrication systems depends heavily on the precision of filtration components. The filter element 852 519 mic series represents a critical category of industrial components designed to maintain fluid cleanliness, protect sensitive downstream machinery, and ensure the operational longevity of complex systems. For engineers and procurement specialists, selecting the correct filter element involves more than just matching a part number; it requires a deep understanding of material science, fluid dynamics, and the specific environmental stressors of the application.
As a specialized manufacturer of stainless steel filtration solutions, Kaifil provides technical insights into the construction and performance expectations of high-performance filter cartridges. This guide examines the technical parameters of the 852 519 series, the advantages of metallic media, and the engineering considerations necessary for optimizing filtration efficiency.
Technical Architecture of the 852 519 Series
The designation 852 519 typically refers to a specific geometric and performance standard often found in hydraulic return-line or pressure-line applications. These elements are engineered to fit within standardized housings, requiring precise tolerances to ensure a leak-proof seal. A failure in the seal or a deviation in the outer diameter (OD) or inner diameter (ID) can lead to fluid bypass, rendering the filtration process ineffective.
Dimensional Accuracy and Fit

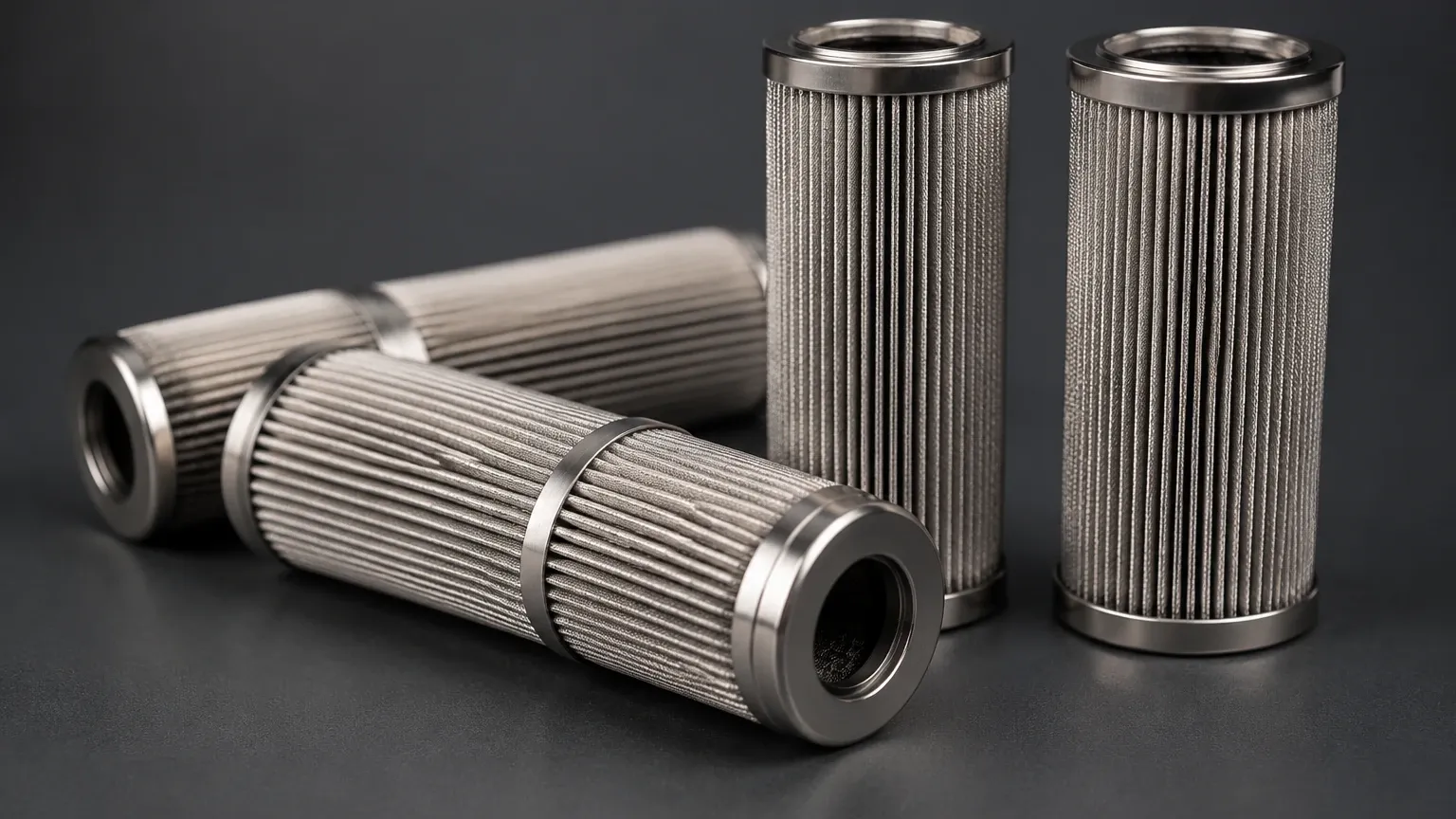

Standard 852 519 elements are characterized by their cylindrical pleated design, which maximizes the available surface area within a compact footprint. Engineers must verify the overall length and the end-cap configuration—whether it is a single open end (SOE) or double open end (DOE)—to ensure compatibility with existing housings. In high-pressure environments, the structural integrity of the center tube is paramount to prevent element collapse under high differential pressure.
Flow Dynamics and Pressure Drop
The "mic" or micron rating of the filter element 852 519 mic dictates the size of particles the media can successfully intercept. However, finer filtration often comes at the cost of increased initial pressure drop ($ΔP$). High-quality Filter Cartridges are designed to balance high dirt-holding capacity with low flow resistance, ensuring that the system remains within its energy efficiency parameters while achieving the required ISO 4406 cleanliness codes.
Material Selection: Stainless Steel vs. Conventional Media
While many standard 852 519 elements utilize glass fiber or cellulose media, demanding industrial environments often necessitate the transition to stainless steel wire mesh or sintered metal fiber. Kaifil specializes in these robust alternatives, which offer distinct advantages in specific B2B sectors such as chemical processing and high-temperature hydraulics.
Corrosion Resistance and Chemical Compatibility
Stainless steel (typically 304 or 316L) provides superior resistance to corrosive fluids that would degrade synthetic or paper-based media. In applications involving aggressive solvents, hydraulic fluids with high acidity, or extreme pH levels, stainless steel filter elements maintain their structural and functional integrity. This compatibility reduces the risk of media migration—where fragments of the filter material itself enter the fluid stream—a common failure mode in lower-quality elements.
Thermal Stability
Industrial processes often operate at temperatures exceeding the limits of standard polymer-based adhesives and media. Sintered or welded stainless steel 852 519 elements can withstand extreme thermal cycles without losing their micron-rated precision. This makes them ideal for steam filtration, hot oil systems, and polymer melt applications where traditional cartridges would fail.
Evaluating Micron Ratings and Filtration Efficiency
The term "mic" in filter element 852 519 mic is a shorthand for the micron rating, but for an engineer, the absolute value is more significant than a nominal claim. Understanding the difference between these two measurements is vital for system protection.
Nominal vs. Absolute Filtration
* Nominal Rating: This indicates the ability of the filter to retain a major weight percentage of particles of a certain size. It is an inconsistent measure and does not guarantee the removal of all particles at that size.
* Absolute Rating: This refers to the diameter of the largest hard spherical particle that will pass through the filter under specified test conditions. For critical hydraulic components like servo valves, an absolute-rated element is non-negotiable.
The Importance of the Beta Ratio
Efficiency is technically defined by the Beta Ratio ($eta_x$), which compares the number of particles upstream of the filter to the number of particles downstream. A filter element with a $eta_{10} = 1000$ means that for every 1000 particles of 10-micron size entering the filter, only one passes through. When sourcing 852 519 elements, reviewing the Beta curve provides a more accurate representation of performance than a single micron number.
Application Environments for 852 519 Filter Elements
The 852 519 series is versatile, finding use across a broad spectrum of industries. Each environment imposes unique demands on the filter's construction.
Hydraulic Power Units (HPUs)
In heavy machinery and manufacturing plants, HPUs rely on these elements to remove wear debris, such as metal shavings and silica dust. Effective filtration prevents the premature wear of pumps and actuators, which are significantly more expensive to replace than the filter elements themselves.
Lubrication Systems
Large turbines and gearboxes require continuous lubrication with clean oil. The filter element 852 519 mic ensures that the lubricating film remains free of abrasive contaminants, preventing surface fatigue and extending the mean time between failures (MTBF) for critical rotating equipment.
Food and Beverage Processing
When used in the food industry, these elements must meet stringent sanitary standards. Stainless steel versions are preferred here because they can be cleaned and sterilized (CIP/SIP), and they do not shed fibers into the product stream, ensuring compliance with safety regulations.
Customization and OEM Considerations
Standard off-the-shelf components may not always meet the specific needs of a specialized industrial process. This is where custom-engineered Filter Cartridges become essential. Manufacturers like Kaifil work with engineering teams to modify the 852 519 design for enhanced performance.
Tailored Mesh Configurations
Depending on the viscosity of the fluid and the nature of the contaminant, the weave pattern of the stainless steel mesh can be customized. Plain weave, twill weave, and Dutch weave each offer different benefits regarding flow rate and particle retention. For instance, a Dutch weave provides a tighter pore structure for fine filtration while maintaining high mechanical strength.
Reinforced Structural Components
In systems prone to pressure surges or "water hammer" effects, the standard support core of a filter element may be insufficient. Custom elements can be manufactured with thickened inner cores or external support cages to prevent deformation. This level of customization ensures that the filter remains a reliable barrier even under erratic operating conditions.
Maintenance, Monitoring, and Total Cost of Ownership
The cost of a filter element is not merely its purchase price but the total cost of ownership (TCO), which includes maintenance labor, disposal costs, and the impact on system downtime.
Differential Pressure Monitoring
The most effective way to determine when a filter element 852 519 mic needs replacement is by monitoring the differential pressure ($ΔP$). Most industrial housings are equipped with visual or electrical indicators. Replacing the element too early wastes money, while replacing it too late risks triggering the bypass valve, which allows unfiltered fluid to circulate through the system.
Cleanable vs. Disposable Elements
One of the primary financial arguments for stainless steel 852 519 elements is their cleanability. While the initial investment is higher than disposable glass fiber elements, the ability to clean the element via ultrasonic baths or back-flushing can lead to significant long-term savings. This is particularly relevant in processes with high contamination loads where disposable filters would need to be changed weekly or even daily.
Storage and Handling
To maintain the integrity of the micron rating, filter elements must be stored in a clean, dry environment in their original packaging. Handling should be done with care to avoid damaging the pleated media or the seals. Even a small dent in a high-precision pleat can create a localized high-stress point or a path for bypass.
Engineering Checklist for Sourcing 852 519 Elements
Before finalizing a purchase or specifying a replacement for the 852 519 series, technical teams should confirm the following parameters:
1. Fluid Type: Is the media compatible with the chemical composition of the fluid (e.g., mineral oil, water glycol, or synthetic esters)?
2. Operating Temperature: What are the steady-state and peak temperatures the element will encounter?
3. Flow Rate: What is the maximum liters-per-minute (LPM) the element must handle without exceeding the bypass pressure setting?
4. Micron Requirement: Is an absolute or nominal rating required, and what is the target ISO cleanliness code for the system?
5. Pressure Rating: What is the maximum operating pressure and the collapse pressure rating of the element?
By addressing these factors, engineers can ensure that the filter element 852 519 mic they select will provide the necessary protection for their industrial assets. Whether opting for a standard replacement or a customized stainless steel solution, the focus must remain on technical precision and verified performance data. For organizations looking to optimize their filtration processes, partnering with a manufacturer that understands these engineering nuances is the first step toward achieving superior system reliability.
