Quietflow 10 Filter Cartridges
In the realm of liquid filtration, the Quietflow 10 filter cartridges represent a specific segment of the market focused on small-scale, high-efficiency water treatment. While often associated with aquatic environments and light-duty commercial applications, the engineering principles governing these cartridges—such as mechanical interception, chemical adsorption, and biological stability—are fundamental to broader industrial filtration strategies. For engineers and procurement specialists, understanding the performance parameters of these cartridges is essential when evaluating whether a standard consumer-grade solution or a more robust industrial Filter Cartridges system is required for a specific application.
This article examines the technical specifications of Quietflow 10 filtration, the engineering considerations for cartridge selection, and the transition points where industrial-grade stainless steel components become the more cost-effective and reliable choice.
Engineering Specifications of Quietflow 10 Filter Cartridges
The Quietflow 10 system is designed around a multi-stage filtration process. To evaluate these cartridges from a technical perspective, one must look at the media composition and the physical structure of the cartridge housing.
Mechanical Filtration Media
Most Quietflow 10 cartridges utilize a dense polyester fiber or specialized foam as the primary mechanical stage. This media is designed to trap particulate matter through depth filtration. In industrial terms, these are typically nominal-rated filters, meaning they are effective at capturing a high percentage of particles above a certain micron size but may allow some bypass depending on flow velocity and pressure differentials.
Chemical Adsorption Layers
Inside the cartridge, activated carbon is frequently used to remove dissolved organic compounds, chlorine, and odors. From a B2B procurement standpoint, the quality of the carbon—specifically its iodine number and surface area—determines the cartridge's service life. When these cartridges are used in commercial settings, the saturation rate of the carbon is the primary driver for replacement cycles.
Flow Rate and Pressure Drop
The "10" in the series often refers to the intended flow rate or the size of the housing unit. Maintaining a consistent flow rate is critical; as the mechanical media loads with debris, the pressure drop (delta P) across the cartridge increases. In precision applications, monitoring this pressure drop is the only reliable way to ensure the system does not bypass or fail.
Performance Evaluation: Filtration Efficiency and Lifespan
When assessing Quietflow 10 filter cartridges for any application beyond basic water clarity, engineers must consider the efficiency of the media under varying load conditions.
1. Micron Retention: Standard cartridges in this class usually operate in the 20 to 50-micron range. For applications requiring sub-10-micron filtration, such as pharmaceutical pre-filtration or fine chemical processing, these cartridges may serve only as a coarse pre-filter.
2. Structural Integrity: Because these cartridges often use plastic frames and bonded fibers, they are sensitive to temperature fluctuations and chemical exposure. In environments involving caustic cleaners or high-temperature fluids, the bonding agents in standard cartridges can degrade, leading to media migration—where filter fibers actually enter the downstream fluid.
3. Replacement Frequency: The effective lifespan of a disposable cartridge is determined by the total suspended solids (TSS) in the influent. In high-load industrial environments, the cost of frequent replacements and the associated labor can quickly exceed the initial capital expenditure of a permanent filtration system.
Transitioning from Consumer to Industrial Filtration Solutions

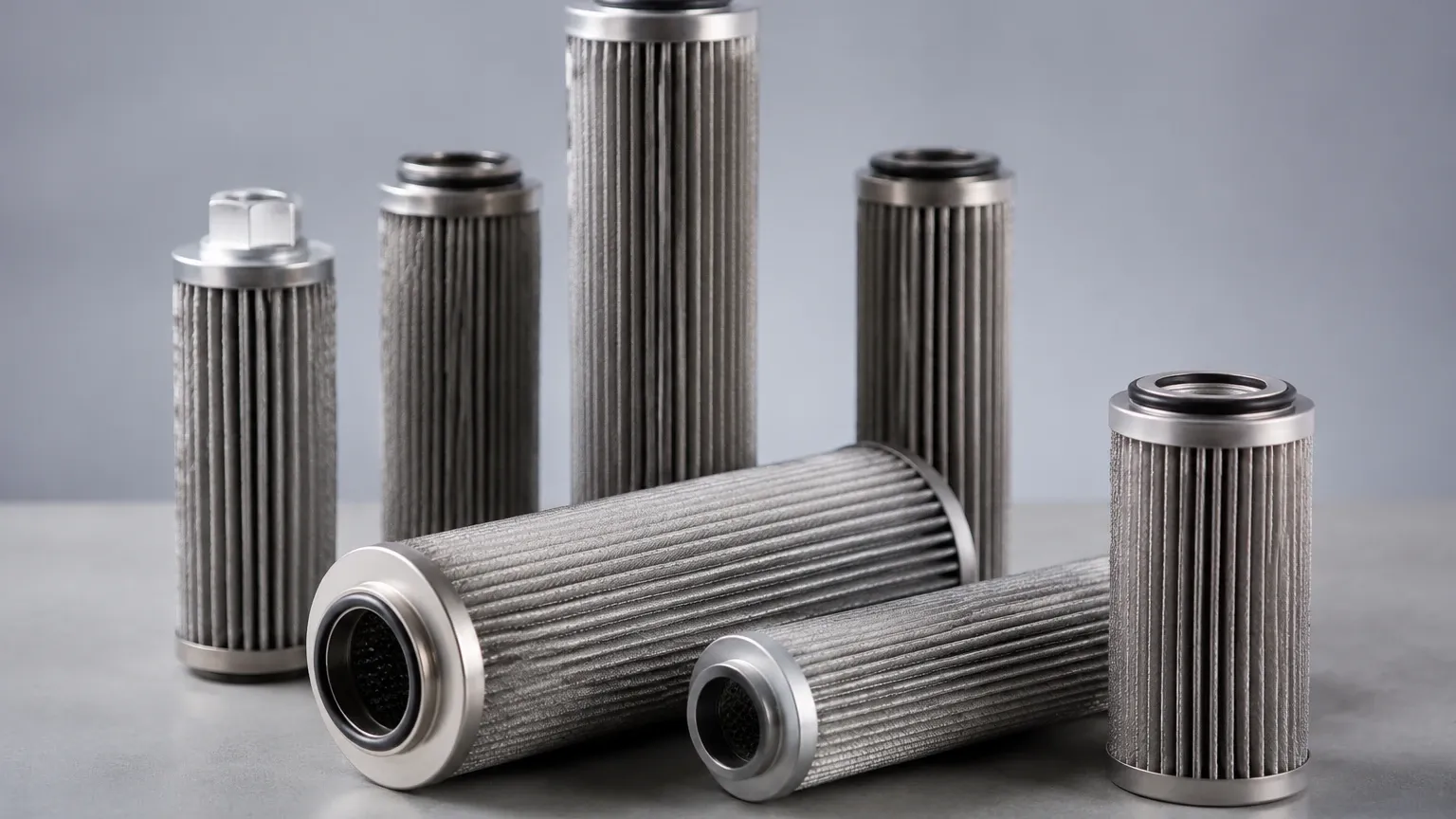

While Quietflow 10 filter cartridges are effective for their intended scale, many industrial processes reach a point where disposable plastic cartridges are no longer viable. This is where stainless steel Filter Cartridges provide a significant technical advantage.
Durability and Material Compatibility
Industrial applications often involve fluids that are incompatible with the polyester or plastic components found in standard cartridges. Stainless steel (304 or 316L) offers superior resistance to corrosion and can withstand extreme temperatures that would melt or deform standard Quietflow components. For chemical processing or steam filtration, metal is the industry standard.
Cleanability vs. Disposability
A primary difference between the Quietflow 10 model and industrial metal filters is the ability to regenerate the media. Stainless steel wire mesh or sintered metal cartridges can be cleaned via backwashing, ultrasonic cleaning, or chemical baths. This eliminates the recurring waste stream associated with disposable cartridges and ensures a more sustainable operation.
Critical Selection Criteria for Stainless Steel Filter Cartridges
When an application outgrows the capabilities of a Quietflow 10 system, the selection of an industrial replacement requires a rigorous engineering review. At Kaifil, we emphasize several key factors during the design and selection phase:
* Filtration Accuracy: Industrial metal filters can be manufactured with high precision, offering absolute ratings from 1 micron up to several hundred microns. Unlike the nominal ratings of fiber cartridges, absolute ratings provide a guarantee that no particle larger than the specified size will pass through the mesh.
* Mechanical Strength: In hydraulic systems or high-pressure water treatment, the filter must withstand significant differential pressure without collapsing. Stainless steel pleated designs provide high surface area while maintaining the structural rigidity necessary for high-stress environments.
* Connection Types: While Quietflow 10 cartridges use a proprietary snap-in or slide-in fit, industrial cartridges utilize standardized connections such as DOE (Double Open End), SOE (Single Open End) with 222 or 226 O-rings, or NPT threaded connections to ensure a leak-proof seal.
Maintenance, Replacement Cycles, and Total Cost of Ownership (TCO)
For B2B buyers, the decision to use a specific cartridge type is often driven by the Total Cost of Ownership. While the unit price of a Quietflow 10 filter cartridge is low, the cumulative costs can be high.
Calculating TCO
To calculate the TCO of a filtration system, one must account for:
* Purchase Price: The cost per unit.
* Labor Costs: The time required for staff to change out filters.
* Disposal Costs: Fees associated with waste management, especially if the filters are contaminated with hazardous materials.
* Downtime: The lost production time during filter changes.
In many industrial scenarios, a custom-engineered stainless steel filter from Kaifil pays for itself within 12 to 18 months by eliminating the need for constant replacements and reducing the labor burden on maintenance teams.
Customization and OEM Options for Specialized Applications
One of the limitations of the Quietflow 10 series is its fixed design. Industrial filtration often requires bespoke solutions to fit existing machinery or to meet specific flow dynamics. Kaifil specializes in OEM and customized filtration solutions, allowing engineers to specify every aspect of the filter's construction.
Custom Mesh Weaves
Depending on the particle shape and fluid viscosity, different weave patterns (such as plain, twill, or dutch weave) may be required to optimize flow and retention. This level of customization is not available in off-the-shelf disposable cartridges.
Specialized Coatings and Treatments
For highly aggressive environments, stainless steel cartridges can be passivated or coated to further enhance their chemical resistance. This ensures that the filtration component does not become a point of failure in the broader system architecture.
Conclusion: Making Informed Procurement Decisions
Quietflow 10 filter cartridges serve a vital role in specific, lower-demand environments. However, as fluid processing requirements become more complex—involving higher pressures, aggressive chemicals, or the need for absolute filtration accuracy—the shift toward industrial-grade Filter Cartridges becomes necessary.
By evaluating the technical requirements of your application, including micron ratings, material compatibility, and long-term maintenance costs, you can determine whether a standard cartridge or a custom-engineered stainless steel solution is the most appropriate choice. Kaifil remains committed to providing the engineering expertise and manufacturing precision needed to support these critical industrial decisions, ensuring that your filtration systems operate at peak efficiency with maximum reliability.
