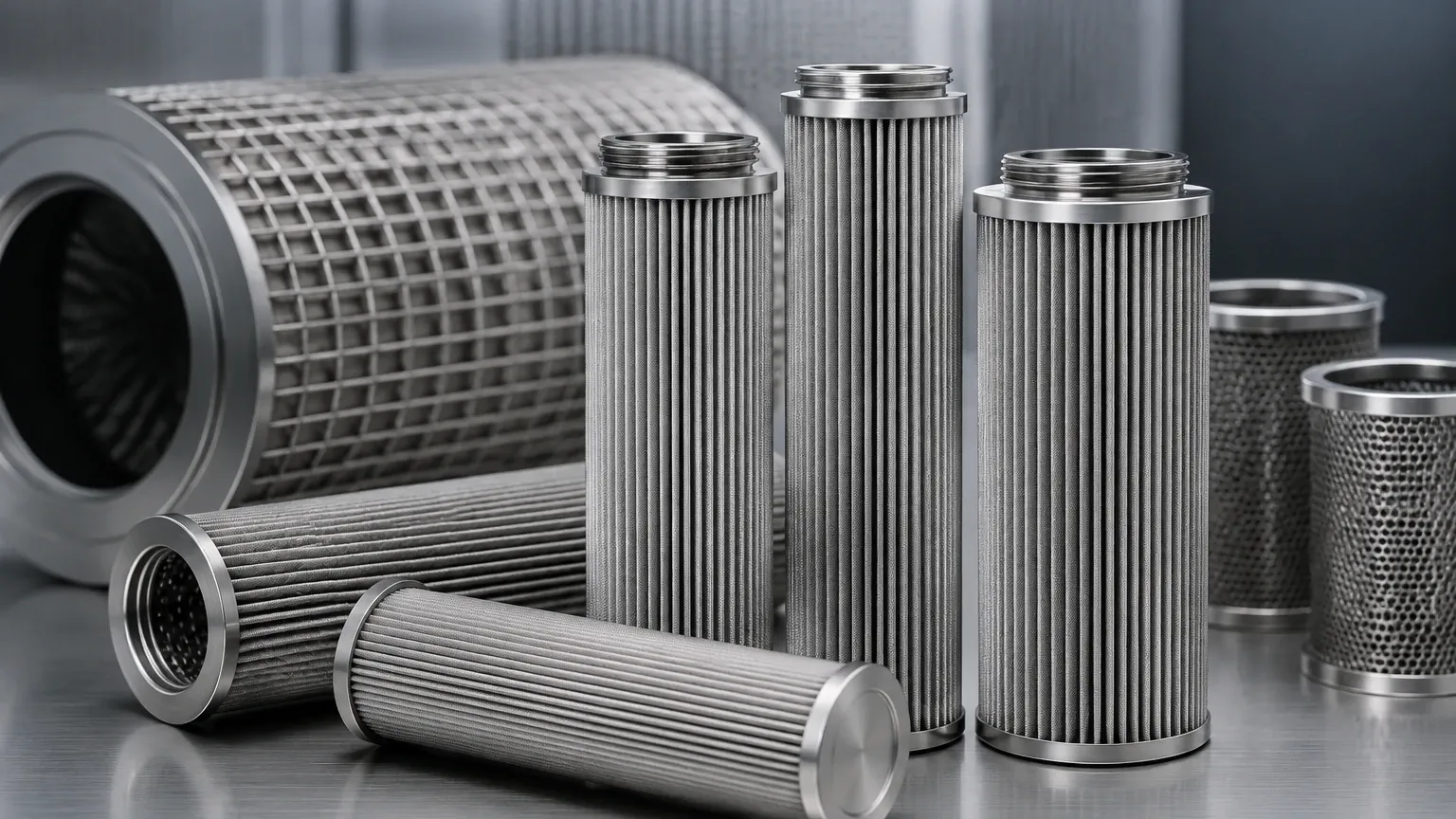

Tetra Filter Cartridges
In the landscape of industrial process engineering, the term "tetra filter cartridges" often refers to specialized filtration components designed with four-layer media configurations or specific geometric architectures intended to maximize surface area and structural integrity. For engineers and procurement specialists, selecting the appropriate filter cartridge is not merely a matter of matching dimensions; it requires a deep understanding of fluid dynamics, material compatibility, and the mechanical stresses inherent in high-pressure industrial systems.
Industrial filtration demands more than what standard consumer-grade products can offer. When evaluating Filter Cartridges, technical professionals must prioritize components that can withstand aggressive chemical environments, extreme temperatures, and rigorous cleaning cycles. This guide explores the technical specifications, engineering considerations, and application-specific advantages of high-performance cartridges, with a focus on how stainless steel alternatives provide superior longevity and reliability compared to traditional polymer-based tetra configurations.
Understanding Tetra Filter Cartridges in Industrial Filtration
The architecture of tetra filter cartridges typically emphasizes a multi-stage approach to particle retention. In many industrial contexts, a "tetra" design implies a four-stage filtration process within a single unit, often utilizing graduated density or multiple layers of wire mesh to achieve specific micron ratings. Unlike single-layer surface filters, these multi-layer designs allow for depth filtration, where larger particles are trapped in the outer layers while finer contaminants are captured deeper within the media.
From an engineering perspective, the primary goal of using a tetra-style configuration is to extend the service life of the filter by preventing premature surface blinding. By distributing the particulate load across multiple layers, the differential pressure ($ΔP$) increases more slowly, allowing for longer intervals between maintenance or replacement. For facilities operating 24/7, such as chemical refineries or beverage bottling plants, this reduction in downtime directly translates to improved operational efficiency.
Engineering Considerations for Material Selection
When specifying tetra filter cartridges for industrial use, the choice of material is the most critical factor influencing performance and safety. While polymer-based cartridges (such as polypropylene or PTFE) are common in low-temperature, non-corrosive applications, they often fail in demanding environments. Stainless steel, specifically grades 304 and 316L, has become the industry standard for high-performance filtration.
Chemical Compatibility and Corrosion Resistance
Stainless steel 316L contains molybdenum, which provides enhanced resistance to pitting and crevice corrosion in chloride-containing environments. This makes it the preferred material for pharmaceutical and marine applications. In contrast, many polymer tetra filter cartridges may leach surfactants or binders into the process stream, which is unacceptable in high-purity applications like semiconductor manufacturing or food processing.
Thermal Stability
Industrial processes often involve steam sterilization (SIP) or high-temperature fluid processing. Stainless steel filter cartridges can operate at temperatures exceeding 500°F (260°C), far beyond the melting or softening points of most plastics. This thermal stability ensures that the pore structure remains consistent, maintaining the integrity of the filtration rating even under thermal cycling.
Mechanical Strength
Under high-flow conditions or during system startups, filters are subjected to significant hydraulic shocks. Stainless steel wire mesh and sintered metal cartridges offer high collapse pressure ratings, often exceeding 100-150 PSI, whereas polymer cartridges may deform or bypass under similar stresses.
Performance Metrics: Micron Ratings and Flow Rates
To accurately specify tetra filter cartridges, engineers must distinguish between nominal and absolute filtration ratings. A nominal rating refers to an efficiency of approximately 60% to 90% at a given micron size, whereas an absolute rating implies a 99.9% (Beta 5000) efficiency. In critical applications, such as the removal of bacteria or fine catalysts, absolute-rated stainless steel mesh is essential.
Porosity and Permeability
The efficiency of a filter is a balance between its ability to trap particles and its resistance to flow. High-quality tetra-style cartridges utilize precision-woven wire mesh or sintered metal fibers to achieve a high void volume. A higher void volume allows for higher flow rates at lower initial pressure drops. When calculating the required surface area for a system, engineers must consider the viscosity of the fluid; higher viscosity fluids require a larger filtration area to maintain an acceptable $ΔP$.
Determining the Clean Pressure Drop
Before installation, it is vital to calculate the clean pressure drop of the filter assembly. This includes the resistance offered by the filter housing and the cartridge itself. A typical target for clean pressure drop in industrial liquid systems is between 2 and 5 PSI. If the initial $ΔP$ is too high, the effective service life of the cartridge will be significantly shortened as it reaches the terminal pressure drop (often 20-30 PSI) much faster.
Applications in High-Demand Sectors
Tetra filter cartridges and their stainless steel equivalents are utilized across a broad spectrum of industries where fluid purity is non-negotiable.
Chemical and Petrochemical Processing
In the chemical industry, filters must handle aggressive solvents, acids, and bases. Stainless steel cartridges are used to protect downstream equipment, such as high-pressure pumps and spray nozzles, from particulate damage. The ability to clean and reuse these filters is a significant advantage in hazardous environments where the disposal of contaminated polymer filters is costly and logistically difficult.
Food and Beverage Production
For the food and beverage sector, filtration components must comply with FDA and EC standards for food contact. Stainless steel tetra-style filters are ideal for filtering syrups, oils, and juices. They can withstand frequent Clean-in-Place (CIP) cycles using caustic chemicals and hot water without degradation, ensuring that no foreign materials enter the product stream.
Pharmaceutical and Biotechnology
In pharmaceutical manufacturing, the removal of pyrogens and sub-micron particulates is essential. Sintered metal fiber cartridges provide the necessary precision for sterile air and steam filtration. The robust construction of these cartridges prevents media migration, a common failure mode in lower-quality fiber-based filters.
Maintenance, Cleaning, and Replacement Cycles
One of the primary technical advantages of transitioning from disposable tetra filter cartridges to stainless steel versions is the ability to regenerate the media. While polymer filters are "one-and-done" components, stainless steel cartridges can be cleaned using various methods, depending on the nature of the contaminant.
1. Backwashing: Reversing the flow of the fluid to dislodge particles trapped on the surface of the mesh.
2. Ultrasonic Cleaning: Using high-frequency sound waves in a cleaning solution to remove fine particles from deep within the pore structure.
3. Chemical Cleaning: Soaking the cartridges in solvents, acids, or alkalis to dissolve organic or inorganic deposits.
4. Burn-off/Pyrolysis: Heating the cartridge in a controlled environment to carbonize organic contaminants, followed by ultrasonic cleaning to remove the ash.
Total Cost of Ownership (TCO)
While the initial purchase price of a stainless steel filter cartridge is higher than a disposable polymer tetra filter, the TCO is often significantly lower. When factoring in the costs of frequent replacement, shipping, inventory management, and hazardous waste disposal, a reusable stainless steel solution typically pays for itself within 6 to 12 months of operation. Furthermore, the reduced environmental impact of a permanent filter aligns with corporate sustainability goals.
Customization and OEM Solutions for Tetra Configurations
Every industrial system has unique constraints, from housing dimensions to specific flow requirements. Standard off-the-shelf tetra filter cartridges may not always meet these needs. This is where custom manufacturing becomes essential. Engineers should look for partners capable of providing tailored solutions, including:
* Custom End-Cap Configurations: Ensuring compatibility with existing housings, whether they require Double Open End (DOE), Code 7 (226/fin), or Code 3 (222/flat) fittings.
* Variable Layering: Adjusting the number of mesh layers and their specific weave patterns (e.g., Plain Weave, Dutch Weave, or Twilled Weave) to optimize for specific particle size distributions.
* Reinforced Cores: For applications involving extreme pressure differentials or high-viscosity fluids, a reinforced inner core prevents cartridge collapse.
By working closely with a manufacturer that specializes in custom stainless steel filtration, engineering teams can develop a cartridge that is perfectly optimized for their specific process conditions, rather than settling for a generic alternative.
Conclusion: Selecting the Right Filtration Partner
Choosing between various tetra filter cartridges requires a technical evaluation of the process fluid, the operating environment, and the long-term economic goals of the facility. For industrial applications where reliability is paramount, stainless steel cartridges offer a level of durability and precision that polymer alternatives cannot match.
When evaluating potential suppliers, it is important to confirm their manufacturing capabilities, quality control processes, and ability to provide technical documentation such as material mill certificates and pressure test reports. A reliable partner should not only provide a product but also offer engineering support to help optimize the filtration system for maximum efficiency and minimum total cost of ownership. By focusing on high-quality materials and precision engineering, facilities can ensure consistent product quality and protect their critical infrastructure from the risks of inadequate filtration.
