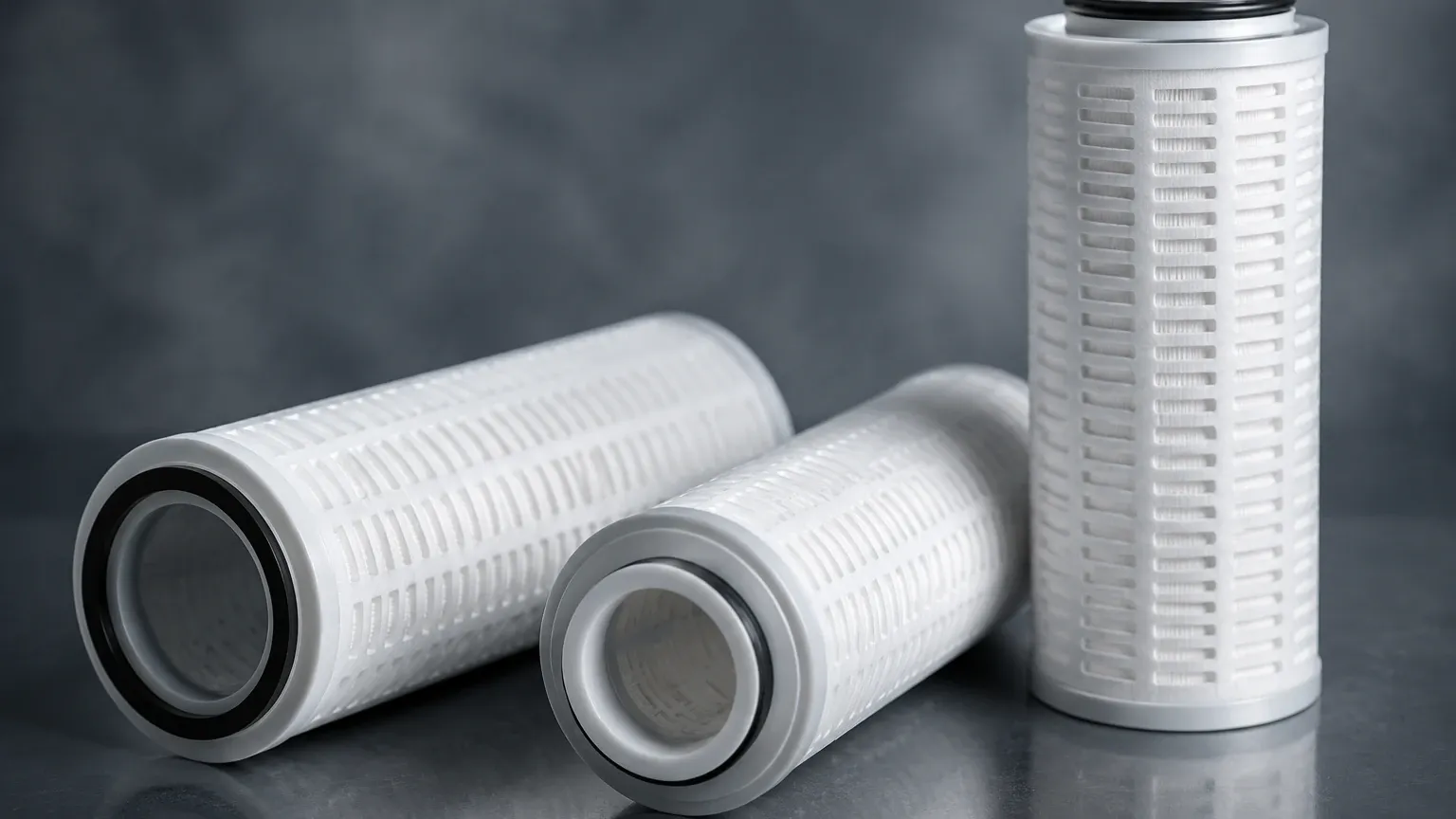

Top Fin Large Filter Cartridges
In the realm of industrial filtration, the term "top fin large filter cartridges" often serves as a reference point for high-capacity, large-format filtration elements designed to handle significant flow rates and high sediment loads. While frequently discussed in the context of large-scale aquatic systems, the engineering principles behind these large filter cartridges are fundamental to a wide range of industrial applications, including chemical processing, food and beverage production, and hydraulic systems. For engineers and procurement specialists, understanding the transition from standard filtration components to high-performance industrial Filter Cartridges is essential for optimizing system uptime and ensuring product purity.
Industrial-grade filtration requires a level of durability and precision that exceeds standard commercial specifications. When scaling up to large-format cartridges, factors such as structural integrity under pressure, chemical compatibility of the media, and the total surface area available for particulate capture become the primary drivers of performance. Kaifil specializes in bridging the gap between standard designs and high-performance metal filtration solutions, providing customized stainless steel components that offer superior longevity and reliability in demanding environments.
Engineering Principles of Large-Format Filter Cartridges
The design of top fin large filter cartridges and their industrial equivalents focuses on maximizing the effective filtration area (EFA) within a specific footprint. In industrial settings, this is typically achieved through advanced pleating techniques or the use of multi-layered sintered metal media.
Surface Area and Flow Dynamics
Large-format cartridges are engineered to minimize the pressure drop across the filter media. As the diameter and length of the cartridge increase, the velocity of the fluid passing through the media decreases, provided the flow rate remains constant. This reduction in face velocity is critical for capturing fine particulates and extending the life of the filter. By utilizing pleated stainless steel wire mesh, manufacturers can pack significantly more surface area into a single housing than is possible with traditional depth-style filters. This high surface area is a hallmark of the "large" cartridge designation, allowing for extended service intervals in high-volume processes.
Structural Reinforcement
Unlike smaller elements, large filter cartridges are subject to significant mechanical stresses. High differential pressures can cause media migration or structural collapse if the cartridge is not properly reinforced. Industrial versions of these large cartridges often feature internal support cores made of perforated stainless steel and outer cages to protect the pleats. This robust construction ensures that the filter maintains its geometry even during pressure surges or when the filter is heavily loaded with contaminants.
Material Selection: Stainless Steel vs. Synthetic Media
While many entry-level top fin large filter cartridges utilize synthetic fibers or carbon-impregnated pads, industrial applications often demand the resilience of stainless steel. The choice of material directly impacts the cartridge’s compatibility with various fluids and its ability to withstand extreme temperatures.
Chemical and Thermal Resistance
In chemical processing and pharmaceutical manufacturing, filters are often exposed to aggressive solvents, acids, or high-temperature steam for sterilization (SIP). Stainless steel 304 and 316L are the industry standards for these applications. Unlike synthetic media, which may degrade or leach surfactants into the process stream, stainless steel Filter Cartridges provide a chemically inert barrier. This is particularly important when dealing with "large" systems where a media failure could lead to the contamination of thousands of gallons of product.
Cleanability and Reusability
One of the most significant advantages of moving from synthetic large-format cartridges to stainless steel versions is the ability to clean and reuse the elements. Industrial metal filters can be backwashed, ultrasonically cleaned, or chemically treated to remove accumulated debris. This not only reduces the recurring cost of replacement filters but also minimizes the environmental impact and waste disposal costs associated with single-use cartridges. For operations utilizing large-scale filtration, the transition to reusable metal media often results in a lower total cost of ownership over the life of the equipment.
Performance Metrics for High-Flow Applications
When evaluating top fin large filter cartridges for industrial use, engineers must look beyond simple dimensions and focus on specific performance metrics that define filtration efficiency.
Micron Ratings and Efficiency
Filtration accuracy is defined by the micron rating, which can be either nominal or absolute. In critical industrial processes, absolute-rated cartridges are preferred because they guarantee that a specific percentage of particles (usually 99.9%) above a certain size will be captured. Large-format stainless steel mesh filters can achieve precise ratings from 1 micron up to several hundred microns, depending on the weave type—such as plain weave, twilled weave, or Dutch weave.
Dirt-Holding Capacity
The longevity of a filter is determined by its dirt-holding capacity (DHC). Large cartridges are specifically designed to handle high solids loading. By utilizing multi-layered media—where a coarser outer layer acts as a pre-filter for a finer inner layer—manufacturers can significantly increase the DHC. This gradient density approach is a key feature in high-performance Filter Cartridges, ensuring that the filter does not clog prematurely and maintains a steady flow rate for as long as possible.
Customization and OEM Capabilities
Every industrial filtration system has unique requirements based on the fluid properties, flow rate, and space constraints. While off-the-shelf top fin large filter cartridges may suffice for standard applications, custom engineering is often required for specialized machinery.
Tailored End-Cap Configurations
To ensure a leak-proof seal within the filter housing, the end-cap configuration must be precisely matched. Common industrial interfaces include 222 or 226 O-ring designs, flat gaskets, or threaded connections. Kaifil provides customized end-cap manufacturing to ensure that large-format metal filters can be seamlessly integrated into existing housings, regardless of the original equipment manufacturer.
Bespoke Media Composites
For applications involving high-viscosity fluids or unique particulate shapes, standard wire mesh may not be sufficient. Customization allows for the development of bespoke media composites, such as combining sintered fiber felt with multiple layers of wire mesh. This provides a balance of high permeability and high mechanical strength, tailored specifically to the challenges of the process environment.
Maintenance and Replacement Cycles
Proper maintenance is vital for the performance of large-scale filtration systems. Monitoring the differential pressure (Delta P) across the cartridge is the most effective way to determine when a filter requires cleaning or replacement.
Monitoring Differential Pressure
As particulates accumulate on the surface of the top fin large filter cartridges, the resistance to flow increases. Most industrial systems are equipped with pressure gauges upstream and downstream of the filter housing. A significant increase in Delta P indicates that the filter has reached its capacity. For stainless steel cartridges, reaching this limit triggers a cleaning cycle rather than a disposal event. Engineering teams should establish clear thresholds for cleaning to prevent the risk of "breakthrough," where high pressure forces contaminants through the media.
Integrity Testing
In regulated industries such as pharmaceuticals or food production, regular integrity testing of large filter elements is required. This ensures that the media has not been damaged during cleaning or operation. Methods such as the bubble point test or pressure hold test are used to verify that the Filter Cartridges still meet their original filtration specifications. The durability of stainless steel makes it particularly well-suited for these rigorous testing protocols.
Total Cost of Ownership (TCO) in Industrial Filtration
While the initial purchase price of an industrial stainless steel filter cartridge is higher than that of a disposable synthetic version, the Total Cost of Ownership (TCO) is often significantly lower.
1. Reduced Downtime: Large-format metal filters with high surface areas require fewer interventions, allowing processes to run longer without interruption.
2. Elimination of Disposal Costs: Single-use large cartridges generate substantial waste, which can be expensive to dispose of, especially if contaminated with hazardous materials.
3. Longevity: A well-maintained stainless steel cartridge can last for years, whereas synthetic filters may need to be replaced every few weeks or months.
4. Energy Efficiency: By maintaining a lower average differential pressure, high-quality large cartridges reduce the load on pumps, leading to measurable energy savings over time.
For engineers looking to optimize their filtration processes, selecting the right large-format cartridge involves a careful analysis of these economic and technical factors. Kaifil’s expertise in manufacturing custom stainless steel filtration solutions ensures that every cartridge is built to meet the specific demands of the application, providing a reliable and cost-effective alternative to standard consumer-grade products.
To explore the full range of technical specifications and customization options for industrial-grade filtration elements, professionals are encouraged to review product options and application support regarding high-performance Filter Cartridges.
