Vibrant Life Large Filter Cartridges
In the realm of high-volume water treatment and industrial fluid processing, the efficiency of a filtration system is largely dictated by the capacity and surface area of its components. While the term "vibrant life large filter cartridges" often originates in consumer-grade aquatic and light-commercial water systems, the engineering principles governing these high-capacity units are foundational to industrial filtration. For engineers and procurement specialists, understanding the transition from standard-capacity filters to large-format cartridges is essential for optimizing flow rates, reducing maintenance downtime, and ensuring the longevity of downstream equipment.
Industrial filtration requires a shift from disposable, low-durability materials to robust, high-performance solutions. When scaling up filtration requirements, the choice of Filter Cartridges becomes a critical decision point that impacts the entire process architecture. This guide examines the technical specifications, material considerations, and engineering advantages of large-scale filtration components in professional environments.
Technical Specifications of Large-Format Filter Cartridges
Large-format cartridges are designed to handle significantly higher flow rates than standard 2.5-inch diameter filters. Typically featuring diameters of 4.5 inches or greater and lengths ranging from 10 to 40 inches, these components provide the necessary surface area to manage high sediment loads without immediate pressure spikes.
Surface Area and Flow Dynamics
The primary advantage of vibrant life large filter cartridges in any application is the increased surface area. In a pleated configuration, a large-diameter cartridge can offer up to ten times the surface area of a standard cylindrical filter. This geometric advantage leads to:
* Lower Flux Rates: By spreading the total flow over a larger area, the velocity of the fluid passing through the media is reduced. This minimizes the risk of particle breakthrough and improves the retention efficiency of the media.
* Extended Service Life: More surface area allows for a higher dirt-holding capacity. In industrial settings, this translates to fewer change-out cycles and reduced labor costs.
* Reduced Pressure Drop (Delta P): A larger filter naturally presents less resistance to flow. Maintaining a low initial pressure drop is vital for reducing the energy consumption of pumps within the system.
Micron Ratings and Efficiency
Large cartridges are available in various micron ratings, from sub-micron membrane filters to 100-micron coarse strainers. When selecting a cartridge, engineers must distinguish between nominal and absolute ratings. Nominal ratings indicate the filter's ability to retain a majority of particles of a certain size, whereas absolute ratings (often defined by a Beta Ratio of 5000 or higher) guarantee the capture of 99.9% of particles at the specified size.
Material Science: Moving Beyond Consumer Plastics
While consumer-grade vibrant life large filter cartridges often utilize polypropylene or cellulose media, industrial applications frequently demand materials that can withstand extreme temperatures, high pressures, and corrosive chemicals. This is where stainless steel filtration solutions become indispensable.
Stainless Steel Wire Mesh vs. Synthetic Media

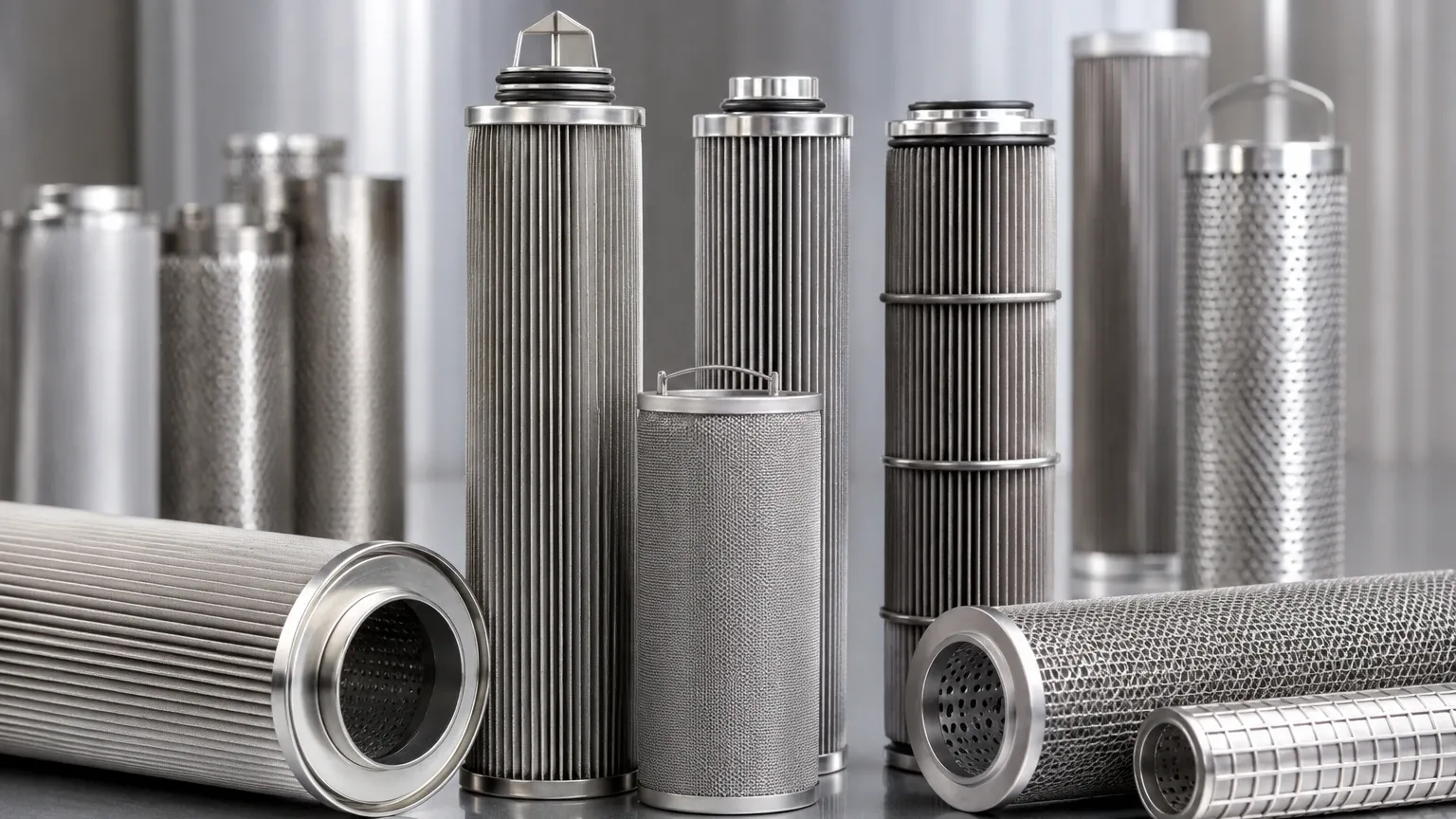

In demanding B2B environments, such as chemical processing or steam filtration, synthetic materials may fail due to thermal degradation or chemical incompatibility. Stainless steel (304 or 316L) filter cartridges offer several advantages:
1. Thermal Stability: Stainless steel can operate in environments exceeding 500°F (260°C), where most plastics would melt or lose structural integrity.
2. Chemical Resistance: For filtration involving solvents, acids, or caustic bases, 316L stainless steel provides superior corrosion resistance compared to standard polymers.
3. Cleanability: Unlike disposable synthetic filters, stainless steel cartridges are often reusable. They can be cleaned via backwashing, ultrasonic baths, or chemical cleaning, significantly reducing the long-term waste stream and total cost of ownership.
Structural Integrity
Large filter housings subject cartridges to significant hydraulic stress. If a filter medium collapses under pressure, it can lead to catastrophic system failure. Stainless steel cartridges utilize perforated inner cores and outer cages to provide the mechanical strength necessary to withstand high differential pressures, a feature often lacking in lighter-duty consumer cartridges.
Engineering Considerations for High-Capacity Systems
Integrating large filter cartridges into an industrial process requires more than just matching a pipe size. Engineers must evaluate the system's total hydraulic profile to ensure optimal performance.
Housing Compatibility and Seal Integrity
The effectiveness of a filter cartridge is only as good as its seal within the housing. Large cartridges typically utilize one of several end-cap configurations:
* Double Open End (DOE): Features flat gaskets at both ends. This is common in general-purpose water filtration but may be prone to bypass if the housing is not perfectly aligned.
* Code 7 (226 O-Ring): Features a bayonet-style locking tab and two O-rings. This provides a secure, leak-proof seal suitable for critical pharmaceutical and food-grade applications.
* 222 O-Ring: A push-fit design that relies on dual O-rings to prevent bypass.
When upgrading from standard units to vibrant life large filter cartridges or their industrial equivalents, ensuring that the housing's internal hardware matches the cartridge's end-cap style is the first step in preventing contaminant bypass.
Calculating Total Dirt Holding Capacity
For procurement teams, the "price per cartridge" is often a misleading metric. A more accurate measurement is the "cost per gallon filtered." Large-format cartridges, despite a higher initial unit cost, often provide a much lower cost-per-gallon because they can remain in service for months rather than weeks. Engineers should request dirt-holding capacity data (usually expressed in grams of AC Fine Test Dust) to compare different cartridge options objectively.
Customization and OEM Solutions in Filtration
Every industrial process has unique variables, ranging from fluid viscosity to specific contaminant geometries. Standard off-the-shelf vibrant life large filter cartridges may not always meet the rigorous demands of specialized sectors like hydraulic oil filtration or high-purity gas processing.
Tailored Filtration Layers
Custom manufacturers like Kaifil specialize in developing multi-layered filter media. By combining different grades of stainless steel wire mesh, a single cartridge can provide graduated filtration—coarse outer layers to trap large debris and fine inner layers for final polishing. This "depth filtration" effect within a single cartridge further extends service life and protects the sensitive inner media.
OEM Integration
For equipment manufacturers (OEMs), the ability to source customized Filter Cartridges that fit proprietary housing designs is a significant competitive advantage. Customization options include:
* Bespoke Dimensions: Manufacturing cartridges to non-standard lengths or diameters to fit legacy systems.
* Specialized End-Caps: Designing custom attachment points for high-vibration environments.
* Reinforced Cores: Adding extra structural support for high-viscosity fluids like resins or heavy oils.
Maintenance, Replacement Cycles, and TCO
One of the most common questions in industrial filtration is: "When should I replace the filter?" For large-format cartridges, the answer is usually determined by the terminal pressure drop.
Monitoring Differential Pressure
Systems utilizing large cartridges should always be equipped with upstream and downstream pressure gauges. As the filter collects contaminants, the resistance to flow increases, causing the differential pressure (Delta P) to rise. Most manufacturers recommend replacement or cleaning when the Delta P reaches a specific threshold (e.g., 15-25 PSI), regardless of the time in service. Operating beyond this point risks media rupture or "unloading," where trapped particles are forced through the filter by the high pressure.
Total Cost of Ownership (TCO) Analysis
When evaluating vibrant life large filter cartridges or industrial stainless steel alternatives, a TCO analysis should include:
1. Initial Purchase Price: The cost of the cartridge and any necessary housing adapters.
2. Labor Costs: The time required for staff to perform a change-out, including system shutdown and restart procedures.
3. Disposal Costs: The expense of disposing of contaminated spent filters (especially relevant if filtering hazardous materials).
4. Cleaning Costs: If using reusable stainless steel, the cost of the cleaning process vs. the cost of a new filter.
5. Energy Costs: The extra electricity required for pumps to push fluid through a partially clogged filter.
In many high-flow industrial applications, the durability and reusability of stainless steel cartridges result in a TCO that is 30-50% lower than disposable synthetic options over a three-year period.
Selecting the Right Filter for Industrial Applications
Choosing the correct cartridge involves a systematic evaluation of the process conditions. Engineers should follow this checklist before finalizing a purchase:
1. Fluid Compatibility: Ensure the media, O-rings, and end-caps are chemically compatible with the process fluid. For example, Viton O-rings may be required for high-temperature oils, while EPDM is often preferred for water applications.
2. Temperature and Pressure: Confirm that the cartridge's maximum operating temperature and collapse pressure exceed the system's peak conditions.
3. Flow Rate Requirements: Match the cartridge size to the required GPM (gallons per minute) to maintain a low clean pressure drop.
4. Filtration Goal: Define whether the goal is "protection" (removing large particles to save a pump) or "purification" (removing fine particles to meet a product specification).
For those managing large-scale water systems or industrial fluid loops, the move toward high-capacity Filter Cartridges is a strategic investment in process stability. Whether the starting point is a consumer-grade vibrant life large filter cartridges setup or a fully custom industrial housing, the focus remains on maximizing surface area and selecting materials that can withstand the rigors of the application.
Conclusion
Large-format filter cartridges represent a critical component in the infrastructure of modern industry. By moving beyond the limitations of standard-sized filters, facilities can achieve higher throughput and more reliable performance. For specialized applications where standard plastic or cellulose filters fall short, custom-engineered stainless steel solutions provide the durability and precision required to maintain process integrity. By focusing on technical specifications, material compatibility, and total cost of ownership, engineers can ensure their filtration systems provide a vibrant, long-lasting service life that supports the overall efficiency of their operations.
