Water Filter Cartridge 8
In industrial water treatment and process liquid management, the selection of filtration components is a critical engineering decision that impacts both operational efficiency and long-term maintenance costs. The "water filter cartridge 8" designation typically refers to high-flow filtration elements designed for 8-inch diameter housings, a standard configuration in high-capacity industrial water systems. These systems are frequently employed in desalination, power generation cooling, large-scale chemical processing, and municipal water treatment where high throughput and minimal footprint are required.
Selecting the appropriate Filter Cartridges for these 8-inch systems requires a deep understanding of fluid dynamics, material science, and the specific contaminants present in the process stream. Unlike standard 2.5-inch or 4.5-inch cartridges used in light commercial applications, the 8-inch format is engineered to handle significantly higher flow rates—often exceeding 500 gallons per minute (GPM) per element—thereby reducing the number of individual cartridges and housing seals required for a given flow volume.
Understanding High-Flow Industrial Water Filtration
The move toward the water filter cartridge 8 format in industrial environments is driven by the need for system intensification. By utilizing a larger diameter, engineers can achieve a higher surface area within a single vessel. This design philosophy reduces the total cost of ownership (TCO) by simplifying the change-out process and minimizing the potential for bypass leaks, which are more common in multi-round housings containing dozens of smaller cartridges.
From a technical perspective, the 8-inch high-flow cartridge utilizes an inside-to-outside flow pattern. This configuration ensures that all captured contaminants remain trapped within the core of the cartridge during replacement, preventing downstream contamination of the clean side of the filter housing. For engineers managing large-scale water treatment plants, this feature is essential for maintaining the integrity of sensitive downstream equipment such as reverse osmosis (RO) membranes or high-pressure pumps.
Engineering Specifications and Material Compatibility
When specifying a water filter cartridge 8, material compatibility is the first technical hurdle. While many high-flow cartridges are constructed from polypropylene or glass-filled nylon, demanding industrial environments often require the durability of stainless steel. Kaifil specializes in custom stainless steel filtration solutions that provide superior mechanical strength and chemical resistance compared to polymer-based alternatives.
Stainless Steel vs. Polymer Media

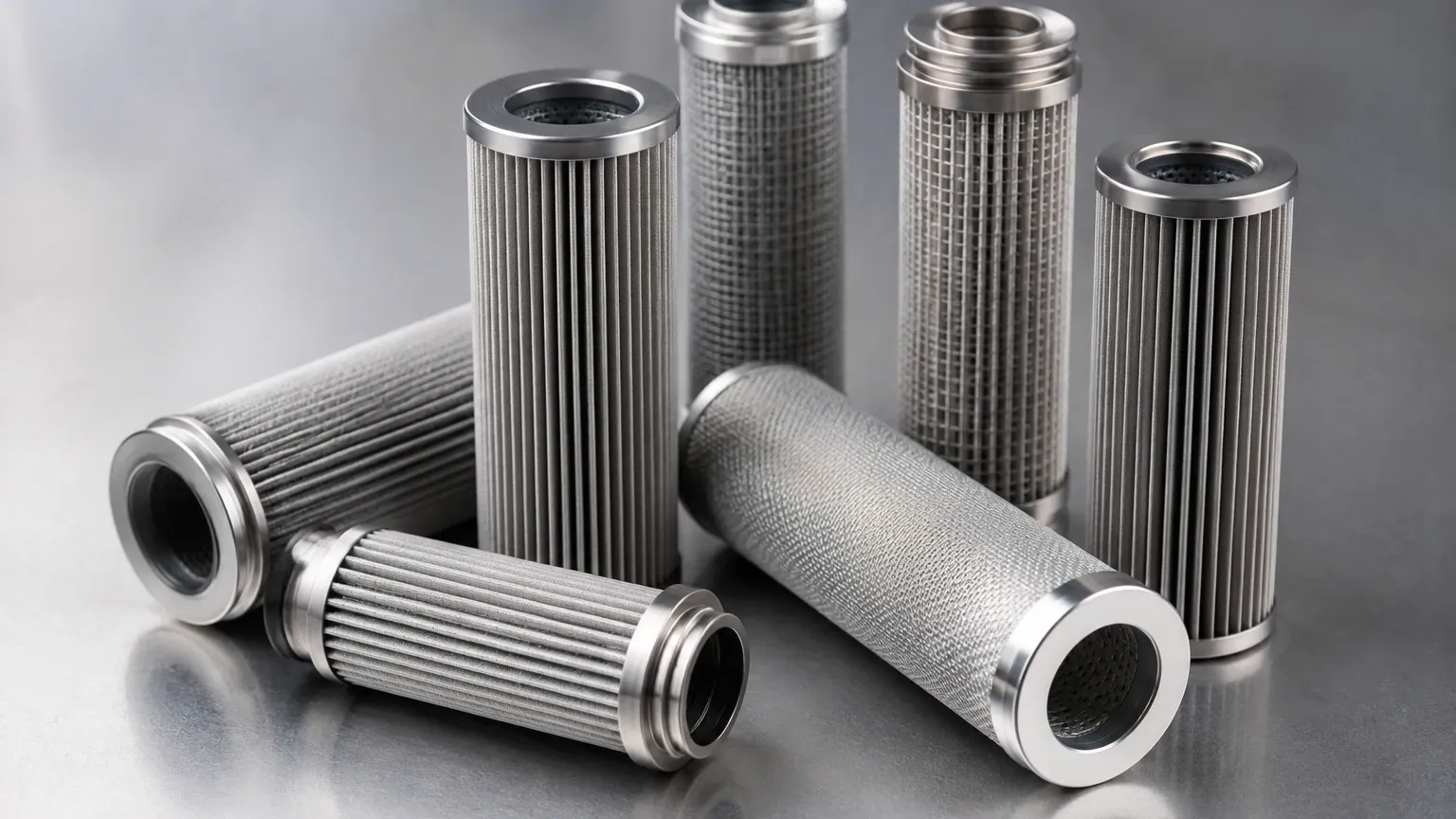

Stainless steel 304 and 316L are the materials of choice for applications involving high temperatures, aggressive chemicals, or high differential pressures. In a water filter cartridge 8 configuration, a pleated stainless steel wire mesh or sintered metal fiber media offers several advantages:
1. Thermal Stability: Capable of operating in temperatures exceeding 250°C, where polymer cartridges would lose structural integrity.
2. Chemical Resistance: Resistant to a wide range of solvents, acids, and bases used in CIP (Clean-in-Place) cycles.
3. Mechanical Strength: Able to withstand high differential pressures without media migration or structural collapse.
4. Cleanability: Unlike disposable depth filters, stainless steel cartridges can often be cleaned via ultrasonic baths, backwashing, or chemical cleaning, extending the service life and reducing waste.
Performance Metrics: Flow Rates, Pressure Drop, and Micron Ratings
The efficiency of a water filter cartridge 8 is measured by its ability to maintain a low clean differential pressure (ΔP) while providing the required filtration accuracy. For high-flow systems, the initial pressure drop is a critical factor in pump sizing and energy consumption.
Flow Velocity and Pressure Drop
In an 8-inch diameter cartridge, the fluid velocity must be carefully managed to prevent turbulence that could dislodge captured particles or cause media fatigue. Engineers must calculate the flux rate—the volume of water passing through a unit area of filter media over time. A lower flux rate generally leads to higher filtration efficiency and longer service life. When selecting filter cartridges, it is vital to review the ΔP vs. Flow Rate curves provided by the manufacturer to ensure the system operates within its optimal efficiency window.
Micron Ratings and Beta Ratios
Filtration accuracy is typically defined by the micron rating, but for industrial applications, the Beta Ratio (β) provides a more accurate picture of performance. A "nominal" rating might only capture 60-80% of particles at a given size, whereas an "absolute" rating (Beta 5000) implies 99.98% efficiency. For critical water treatment steps, such as protecting RO membranes from colloidal silica or fine silt, an absolute-rated water filter cartridge 8 is often necessary to prevent premature membrane fouling.
Selection Criteria for Industrial Water Treatment Systems
Choosing the right water filter cartridge 8 involves more than matching the physical dimensions. Engineers must evaluate the specific nature of the suspended solids in the water source.
Particle Loading and Distribution
If the water source has a wide distribution of particle sizes, a graded-density depth filter or a multi-layered pleated stainless steel mesh may be required. Graded-density structures allow larger particles to be trapped in the outer layers while finer particles are captured deeper in the media, preventing the surface from blinding prematurely. This is particularly important in surface water treatment where seasonal variations in turbidity can significantly impact filter life.
Housing Compatibility
While the 8-inch diameter is a standard, the end-cap configurations (e.g., Code 7, 222, 226, or flat gaskets) and the overall length (typically 40 or 60 inches) must be verified. Ensuring a positive seal is paramount; even a 1% bypass can lead to catastrophic failure of downstream precision components. Kaifil’s engineering team works closely with clients to ensure that custom-manufactured stainless steel cartridges integrate seamlessly into existing high-flow housings.
Installation, Maintenance, and Replacement Cycles
The operational success of a water filter cartridge 8 system depends on a rigorous maintenance schedule. Because these cartridges handle such high volumes of water, the accumulation of solids can happen rapidly if the upstream pre-treatment fails.
Monitoring Differential Pressure
Differential pressure gauges should be installed across the filter housing. A standard rule of thumb for disposable cartridges is to initiate a change-out when the ΔP reaches 20-25 psi (1.4-1.7 bar). For cleanable stainless steel cartridges, the threshold may be higher, but exceeding the manufacturer’s recommended maximum ΔP can lead to media deformation or "breakthrough," where particles are forced through the filter media.
Replacement Procedure
Due to the size and weight of an 8-inch cartridge when saturated with water, specialized lifting equipment or ergonomic housing designs (such as horizontal orientations) are often employed. During replacement, it is essential to inspect the O-rings and sealing surfaces for nicks or debris. Lubricating O-rings with a compatible, food-grade lubricant (if applicable) ensures a proper seal and prevents tearing during installation.
Customization and OEM Solutions for Specialized Applications
Standard off-the-shelf solutions do not always meet the rigorous demands of specialized industrial processes. In sectors like pharmaceutical manufacturing or high-pressure hydraulic systems, the water filter cartridge 8 must be tailored to specific environmental constraints.
Kaifil provides comprehensive OEM and customization services for Filter Cartridges, allowing engineers to specify unique parameters such as:
* Custom Micron Ratings: Precision-engineered mesh for specific particle cut-offs.
* Reinforced Cores: For applications involving extreme pressure surges or high-viscosity fluids.
* Specialized End-Caps: Custom-machined fittings to adapt to proprietary housing designs.
* Material Certification: Providing full traceability for 316L stainless steel, essential for regulated industries like food, beverage, and pharmaceuticals.
By focusing on the technical nuances of the water filter cartridge 8, from flow dynamics to material science, procurement teams and engineers can ensure their filtration systems provide the reliability and performance required for modern industrial operations. Whether the goal is to protect downstream equipment, ensure product purity, or reduce environmental waste through cleanable media, the selection of high-quality, precision-engineered filter components is the foundation of a successful water treatment strategy.
