9 Inch Diameter Air Filter
In industrial filtration, the 9 inch diameter air filter serves as a critical component for high-capacity air intake, exhaust, and process gas systems. Unlike standard residential or commercial HVAC components, industrial-grade filters of this dimension are typically engineered to withstand extreme temperatures, corrosive environments, and high differential pressures. For engineers and procurement specialists, selecting a 9-inch filter requires a deep understanding of material science, mesh geometry, and structural integrity to ensure the protection of downstream equipment such as blowers, compressors, and sensitive pneumatic instruments.

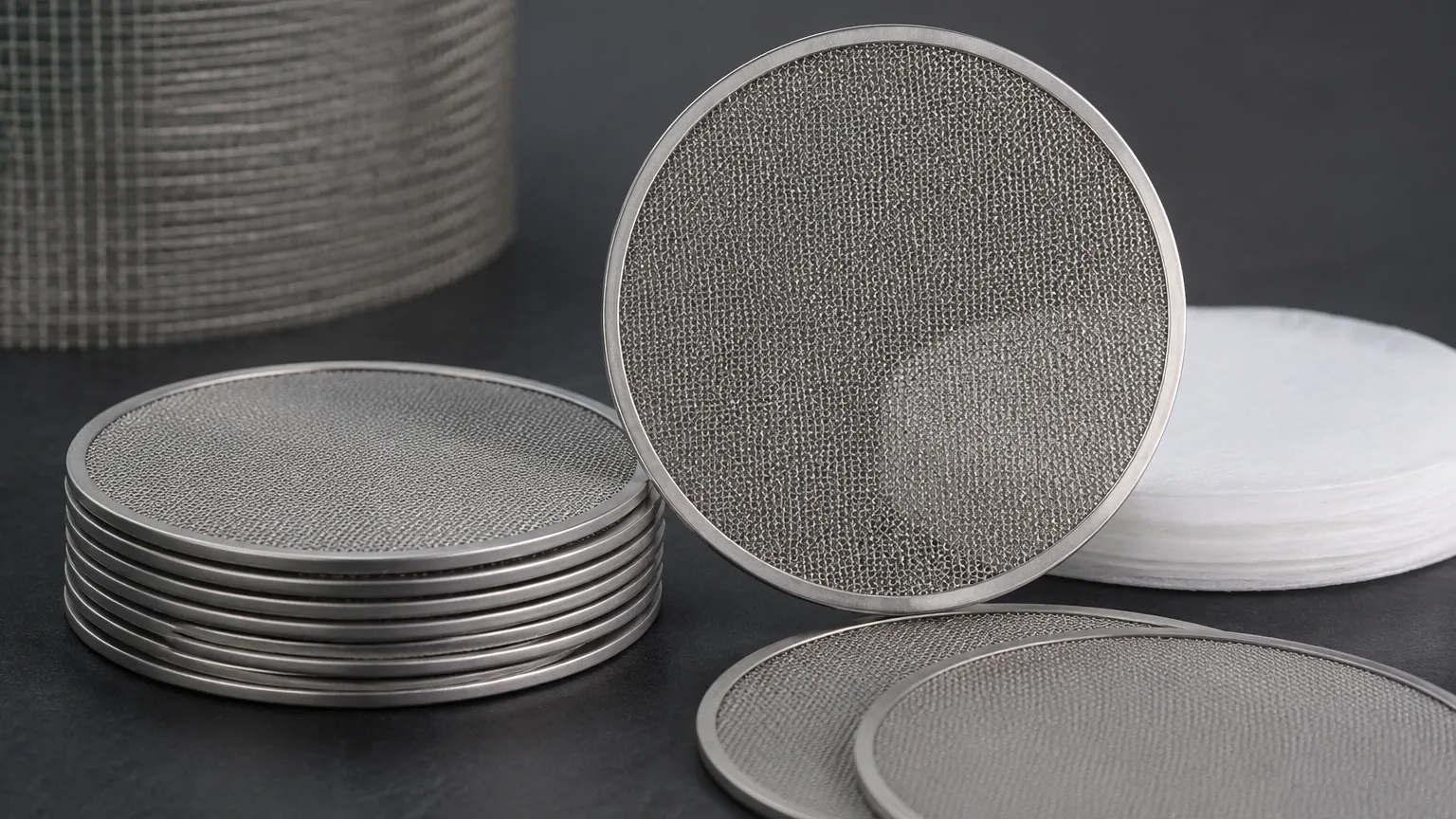

Industrial air filtration often relies on Filter Discs & Packs to achieve precise micron ratings while maintaining a robust physical profile. When a system specifies a 9 inch diameter air filter, it is often referring to a stainless steel wire mesh disc or a multi-layered pack designed for long-term reuse and high-efficiency particle capture.
Technical Specifications of Industrial 9 Inch Air Filters
The performance of a 9 inch diameter air filter is dictated by its construction materials and the specific weave of the wire mesh. In B2B industrial applications, the primary material of choice is stainless steel, specifically grades 304, 316, and 316L. These materials offer the necessary oxidation resistance and mechanical strength required for heavy-duty air processing.
Material Selection and Chemical Compatibility
Selecting the right alloy is the first step in engineering a 9-inch filter.
* Stainless Steel 304: Suitable for general industrial air filtration where moisture is present but corrosive chemicals are minimal. It provides excellent structural support and is cost-effective for high-volume applications.
* Stainless Steel 316/316L: Preferred for chemical processing plants or coastal environments where salt-laden air or acidic vapors are present. The addition of molybdenum in 316 stainless steel enhances resistance to pitting and crevice corrosion.
* High-Temperature Alloys: For exhaust gas filtration or high-heat pneumatic systems, specialized alloys may be used to prevent scaling and structural failure at temperatures exceeding 500°C.
Mesh Weave Types and Filtration Accuracy
The "9 inch diameter air filter" is not a monolithic piece of metal but a sophisticated weave of wires. The type of weave determines the filtration accuracy (micron rating) and the airflow resistance (pressure drop).
1. Plain Weave: The most common type, where wires cross over and under each other. It provides a consistent pore size and is ideal for high-flow air intake systems.
2. Twill Weave: Used for finer filtration, where wires are woven two-over and two-under, allowing for a heavier wire diameter in a given mesh count. This increases the durability of the 9-inch disc.
3. Dutch Weave: This weave utilizes different wire diameters for the warp and shute, resulting in a much denser mesh. Dutch weave is essential for high-pressure air systems where fine particle retention is critical without sacrificing the structural integrity of the filter pack.
Engineering Considerations for Filter Discs & Packs
A single layer of wire mesh may not always suffice for industrial air filtration. In many cases, a 9 inch diameter air filter is constructed as part of a multi-layer assembly known as Filter Discs & Packs. These packs are engineered to provide a graduated filtration effect, which significantly extends the service life of the component.
Multi-Layer Construction
In a typical multi-layer 9-inch pack, the layers are arranged strategically:
* Support Layer: A coarse, heavy-duty mesh that provides the mechanical backbone for the assembly, preventing the finer layers from deforming under high air pressure.
* Filtration Layer: The primary mesh layer that determines the micron rating of the filter. This is where the actual separation of airborne contaminants occurs.
* Drainage/Protective Layer: Often placed on the upstream side to capture larger debris and protect the delicate filtration layer from impact damage.
Edge Treatment and Sealing
For a 9 inch diameter air filter to function correctly within a housing, the edges must be treated to prevent bypass and ensure a secure fit. Common methods include:
* Spot Welding: Multiple mesh layers are fused at the perimeter to maintain alignment.
* Aluminum or Stainless Steel Rims: A metal U-binding is compressed around the edge of the 9-inch disc. This provides a smooth sealing surface for gaskets and increases the rigidity of the filter.
* Sintering: In high-performance applications, the layers are diffusion-bonded (sintered) together, creating a permanent, monolithic structure that cannot delaminate even under extreme vibration or pressure surges.
Performance Metrics: Airflow and Pressure Drop
One of the most critical factors engineers must evaluate when specifying a 9 inch diameter air filter is the relationship between airflow velocity and differential pressure (Delta P). Because industrial blowers and compressors have specific operating curves, an improperly selected filter can lead to energy inefficiency or equipment failure.
Calculating Effective Filtration Area
While the nominal diameter is 9 inches, the effective filtration area (EFA) is slightly less due to the edge binding or the housing flange. For a standard 9-inch disc, the surface area is approximately 63.6 square inches. Engineers must ensure that the total CFM (cubic feet per minute) of the system does not exceed the recommended face velocity for the chosen mesh type. If the velocity is too high, it can cause "particle migration," where contaminants are forced through the mesh pores.
Managing Pressure Drop
As the filter captures dust and particulates, the pressure drop across the 9 inch diameter air filter will increase. Stainless steel mesh filters are advantageous here because they have a high percentage of open area compared to felt or paper media. This allows for a lower initial pressure drop and a slower rate of increase during operation, reducing the load on the system's motors.
Applications in Demanding Industrial Sectors
The 9 inch diameter air filter is a versatile component found in various specialized industrial environments. Its metal construction makes it indispensable where synthetic filters would fail.
Chemical and Petrochemical Processing
In these environments, air filters must contend with volatile organic compounds (VOCs) and corrosive gases. A stainless steel 9-inch filter disc is used to protect sensitive analyzers and control valves from airborne particulates that could cause mechanical wear or chemical contamination.
Food and Beverage Production
Hygiene is paramount in food processing. Stainless steel 9 inch diameter air filters are used in pneumatic conveying systems that move dry ingredients like flour or sugar. Because they are made of food-grade metal, these filters can be cleaned and sterilized, ensuring no bacterial growth occurs within the filtration media.
Pharmaceutical Manufacturing
Precision is the hallmark of pharmaceutical air filtration. Multi-layer Filter Discs & Packs are employed to ensure that process air used in tablet coating or fluid bed dryers is free of contaminants. The ability to verify the micron rating and material composition is essential for regulatory compliance (FDA/GMP).
Maintenance, Cleaning, and Total Cost of Ownership
One of the primary B2B advantages of a stainless steel 9 inch diameter air filter over disposable alternatives is its reusability. While the initial acquisition cost of a metal filter is higher, the Total Cost of Ownership (TCO) is often lower due to the elimination of frequent replacement cycles and disposal costs.
Cleaning Procedures for Stainless Steel Mesh
When the pressure drop reaches a predetermined limit, the 9-inch filter can be removed and cleaned. Common industrial cleaning methods include:
* Ultrasonic Cleaning: High-frequency sound waves create cavitation bubbles that dislodge fine particles from deep within the mesh weave.
* Backwashing: Reversing the airflow or using a high-pressure liquid spray to push contaminants out of the mesh.
* Chemical Cleaning: Using mild acids or detergents to dissolve organic or mineral deposits, followed by a thorough rinse and drying process.
Determining Replacement Cycles
While metal filters are durable, they are not infinite. Engineers should monitor the 9 inch diameter air filter for signs of "blinding" (permanent clogging) or mechanical fatigue. If the pressure drop does not return to near-original levels after cleaning, or if the wire mesh shows signs of fraying or broken wires, the component must be replaced to prevent downstream contamination.
Selecting a Manufacturer for Custom 9 Inch Filters
When sourcing a 9 inch diameter air filter, working with a manufacturer that understands the nuances of industrial filtration is essential. Standard off-the-shelf components may not meet the specific pressure or temperature requirements of a unique industrial process.
Customization options that should be discussed with a supplier include:
* Specific Micron Ratings: Ranging from 5 microns to 500 microns or more.
* Custom Layer Configurations: Designing a pack that balances dirt-holding capacity with airflow.
* Specialty Edge Seals: Ensuring the filter fits perfectly into existing housings without the need for expensive modifications.
* Material Certification: Providing mill test reports (MTRs) to verify the grade of stainless steel used in production.
By focusing on these technical parameters, procurement teams can ensure they receive a 9 inch diameter air filter that provides reliable, long-term performance in their specific application. Whether used as a standalone disc or as part of complex Filter Discs & Packs, high-quality stainless steel filtration components are a cornerstone of efficient industrial air management.
