Filter 2 Pack Airvo 2
In high-precision environments where air purity and equipment longevity are paramount, the selection of filtration components is a critical engineering decision. The Airvo 2 system, a high-flow humidification device used extensively in clinical and specialized industrial settings, relies on a specific filtration architecture to protect its internal turbine and ensure the delivery of clean, filtered air. For maintenance teams and procurement specialists, the filter 2 pack airvo 2 represents the standard replacement unit designed to maintain the system’s operational integrity.
However, understanding the technical specifications of these filters requires a broader look at the engineering principles governing Filter Discs & Packs. Whether dealing with medical-grade air filtration or industrial-scale fluid processing, the fundamentals of micron ratings, pressure differentials, and material compatibility remain the same. This article examines the technical requirements of the Airvo 2 filtration system and how these principles translate to the wider world of custom stainless steel filtration solutions.
Technical Requirements of Airvo 2 Filtration Systems

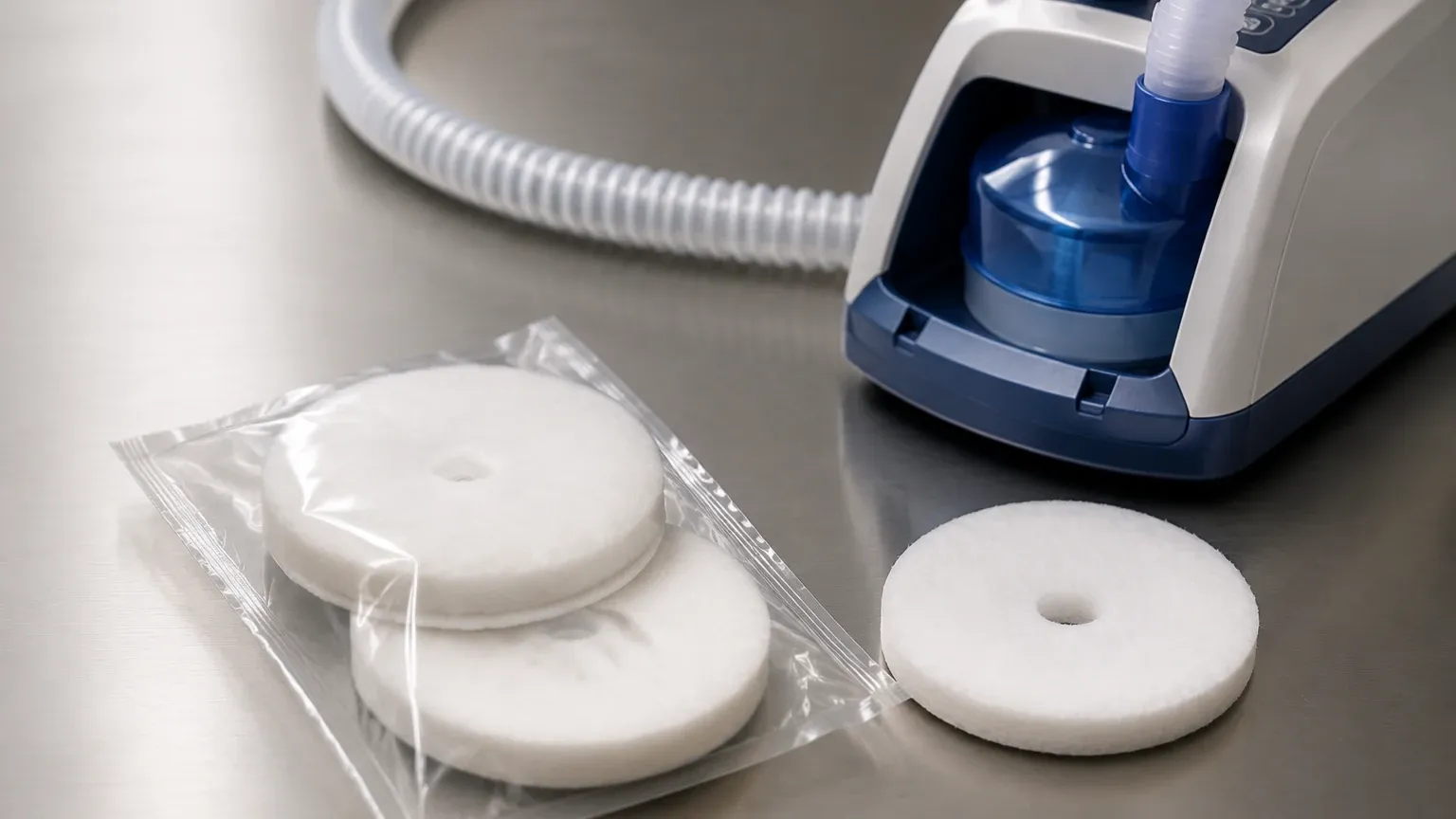

The Airvo 2 system is engineered to deliver high-flow warmed and humidified respiratory gases. Because the device draws in ambient air, it is susceptible to airborne particulates that can damage the internal motor or contaminate the output. The filtration unit, typically provided in a filter 2 pack airvo 2 configuration, serves as the first line of defense.
From an engineering perspective, these filters must meet several criteria:
1. High Particulate Retention: The media must be capable of capturing fine dust and environmental pollutants that could interfere with the device's sensitive flow sensors.
2. Low Resistance to Airflow: To maintain high flow rates without overworking the turbine, the filter must have a low initial pressure drop. High resistance leads to increased energy consumption and premature wear on mechanical components.
3. Structural Integrity: The filter housing and media must be robust enough to prevent bypass. Any air that bypasses the filter introduces contaminants directly into the system.
In industrial contexts, these same requirements drive the design of stainless steel Filter Discs & Packs. While the Airvo 2 often utilizes polymer-based synthetic media, industrial applications requiring higher temperature resistance or chemical stability turn to multi-layer metal mesh structures.
Engineering Principles of Filter Discs & Packs
When engineers specify Filter Discs & Packs for critical applications, they are looking for a balance between filtration fineness and mechanical strength. Unlike single-layer filters, industrial packs often utilize a graded density or multi-stage approach.
Multi-Layer Construction
Industrial filter packs typically consist of several layers of stainless steel wire mesh. A standard configuration might include:
* The Filtration Layer: A fine weave (such as Dutch weave) that defines the micron rating.
* The Support Layer: A coarser mesh that provides rigidity to the fine layer, preventing it from deforming under high pressure.
* The Drainage Layer: Ensures that the filtered fluid or gas can exit the pack efficiently, minimizing the pressure drop across the assembly.
Sintering vs. Spot Welding
Depending on the application, these layers are either spot-welded at the edges or sintered together. Sintering involves heating the layers in a vacuum furnace until the wire contact points fuse. This creates a monolithic structure that is incredibly durable and eliminates the risk of media migration—a critical factor in pharmaceutical and food-grade applications.
Material Selection and Durability in Precision Filtration
The choice of material is what separates standard disposable filters, like those found in a filter 2 pack airvo 2, from permanent or semi-permanent industrial components. For the most demanding environments, stainless steel is the material of choice.
Stainless Steel 304 vs. 316L
* Type 304: Provides excellent strength and basic corrosion resistance. It is suitable for air filtration and many water treatment applications where the environment is not overly aggressive.
* Type 316L: The "L" stands for low carbon, which improves weldability and resistance to intergranular corrosion. 316L contains molybdenum, making it significantly more resistant to chlorides and acidic environments. This is the standard for chemical processing and pharmaceutical filtration.
In industrial systems that mirror the high-flow requirements of the Airvo 2, using stainless steel Filter Discs & Packs allows for cleaning and reuse. This contrasts with the disposable nature of medical air filters but offers a much lower total cost of ownership (TCO) in continuous industrial processes.
The Importance of Replacement Cycles and Filter Packaging
Maintenance schedules for systems like the Airvo 2 are strictly defined by operating hours or elapsed time. The filter 2 pack airvo 2 is packaged to align with these cycles, ensuring that a spare is always on hand when the primary filter reaches its loading capacity.
In industrial filtration, the replacement cycle is determined by the "terminal pressure drop." As a filter captures particulates, the pores become restricted, and the pressure required to force fluid through the media increases. Engineers must monitor this delta pressure (ΔP) to prevent:
* Pump Cavitation: In hydraulic or liquid systems, a clogged filter can starve the pump.
* Media Rupture: If the pressure exceeds the structural limits of the filter pack, the media may fail, leading to catastrophic downstream contamination.
* Energy Inefficiency: High pressure drops require more power to maintain the same flow rate.
By utilizing high-quality Filter Discs & Packs, industrial operators can extend the intervals between cleanings or replacements, directly impacting the facility's uptime.
Customization and OEM Solutions for Specialized Filtration
While off-the-shelf solutions like the filter 2 pack airvo 2 satisfy standard equipment needs, many industrial applications require custom-engineered filtration components. OEM (Original Equipment Manufacturer) services allow engineers to specify exact dimensions, shapes, and performance characteristics.
Custom Geometries
Filter discs are not limited to circular shapes. Depending on the housing design, they can be produced as rectangles, rings, or complex multi-lobed shapes. Precision laser cutting or die-stamping ensures that these components fit perfectly within the assembly, eliminating the risk of bypass.
Tailored Micron Ratings
In specialized gas or liquid processing, a standard 20-micron filter may be too coarse, while a 5-micron filter may clog too quickly. Custom Filter Discs & Packs can be engineered with specific mesh combinations to achieve a precise "nominal" or "absolute" rating that optimizes both purity and service life.
Selection Criteria for Industrial Filter Discs
When moving beyond the scope of a filter 2 pack airvo 2 and into industrial procurement, engineers should evaluate the following criteria before finalizing a purchase order:
1. Micron Rating (Absolute vs. Nominal): An absolute rating indicates the size of the largest particle that can pass through the mesh, while a nominal rating refers to a percentage of particles retained. For critical protection, absolute ratings are preferred.
2. Operating Temperature: Synthetic filters have low melting points. Stainless steel packs can operate in temperatures exceeding 400°C, depending on the alloy and seal material.
3. Chemical Compatibility: Ensure the mesh and any binding materials (like resins or welds) are compatible with the process fluid. This is especially vital in chemical processing and pharmaceutical manufacturing.
4. Flow Velocity: High-velocity flows can cause wire vibration or erosion. Selecting the correct wire diameter and weave type is essential for longevity.
5. Cleaning Protocol: If the filter is intended to be reused, it must be able to withstand ultrasonic cleaning, backflushing, or chemical baths without losing its structural integrity.
Conclusion: Optimizing Filtration Performance
Whether you are maintaining a respiratory support system with a filter 2 pack airvo 2 or designing a multi-stage industrial chemical reactor, the goal remains the same: efficient, reliable, and predictable filtration. The principles of high-quality media, structural support, and proper material selection are universal.
For industrial professionals, investing in precision-engineered Filter Discs & Packs is an investment in the reliability of the entire process. By understanding the technical nuances of mesh construction and the specific needs of the application, engineers can reduce downtime, protect expensive machinery, and ensure the highest standards of output purity. When the standard options do not meet the rigors of a demanding environment, custom stainless steel solutions provide the durability and precision necessary for modern industrial excellence.
