Filters X
In the landscape of industrial liquid and gas processing, the demand for precision and reliability has led to the development of specialized filtration components known as filters x. These components, often integrated within complex machinery, serve as the primary barrier against contaminants that can compromise product purity or damage downstream equipment. For engineers and procurement professionals, understanding the technical nuances of these filters is essential for optimizing system performance and ensuring long-term operational efficiency.
Industrial filtration is not a one-size-fits-all discipline. It requires a deep understanding of fluid dynamics, material science, and mechanical engineering. Whether the application involves polymer melt filtration, chemical processing, or hydraulic fluid maintenance, the choice of filtration media determines the success of the entire process. Among the most versatile and critical components in these systems are Filter Discs & Packs, which provide the necessary surface area and structural integrity to handle high-pressure and high-temperature environments.
The Role of Precision Filtration in Industrial Systems
Precision filtration systems are designed to remove specific particle sizes from a process stream while maintaining a predictable flow rate and pressure drop. The term filters x often refers to high-performance filtration configurations that utilize multiple layers of wire mesh or specialized metal fibers to achieve a specific micron rating. In B2B industrial environments, these filters are evaluated based on their ability to withstand harsh conditions without deforming or shedding media.
In chemical processing, for instance, the presence of even microscopic contaminants can catalyze unwanted reactions or foul expensive catalysts. Similarly, in the food and beverage industry, filtration components must meet stringent hygiene standards while providing consistent results across thousands of production hours. The engineering behind these components focuses on the "Effective Filtration Area" (EFA), which dictates how much fluid can pass through the medium before the differential pressure reaches a critical threshold.
Technical Specifications of Filters X and Wire Mesh Configurations
When specifying filters x, engineers must consider the weave type and the mechanical properties of the wire mesh. The performance of these filters is largely determined by the geometry of the openings and the diameter of the wires used in the construction. Common weave patterns include:
* Plain Weave: The most straightforward construction where each warp wire crosses over and under each weft wire. This provides high flow rates but lower mechanical strength compared to other weaves.
* Twill Weave: Each weft wire passes over and under two warp wires, allowing for a heavier wire diameter and a more robust mesh. This is often used for finer filtration where the mesh needs to withstand higher pressures.
* Dutch Weave: This configuration uses a higher density of wires in one direction, creating a tortuous path for particles. Dutch weave is the standard for high-pressure filtration and precision micron retention.
In the context of filters x, these weaves are often combined into multilayered structures. This layering, known as a "pack," allows for graduated filtration, where coarser outer layers protect the finer inner layers from premature blinding. This structural approach significantly extends the service life of the filter and reduces the frequency of maintenance shutdowns.
Engineering Considerations for Filter Discs & Packs
The design of Filter Discs & Packs involves more than just selecting a mesh size. Engineers must account for the mechanical stresses the disc will face during operation. In high-viscosity applications, such as polymer extrusion, the pressure exerted on the filter can be immense. Without proper support, the mesh can stretch or rupture, leading to "bypass," where unfiltered material enters the clean stream.
To prevent this, filter packs are often designed with a specific sequence of layers:
1. Support Layer: A coarse mesh that provides structural rigidity.
2. Drainage Layer: Facilitates the flow of fluid away from the filtration medium.
3. Filtration Layer: The primary mesh responsible for particle retention.
4. Protective Layer: A mesh that shields the filtration layer from mechanical impact or back-flushing forces.

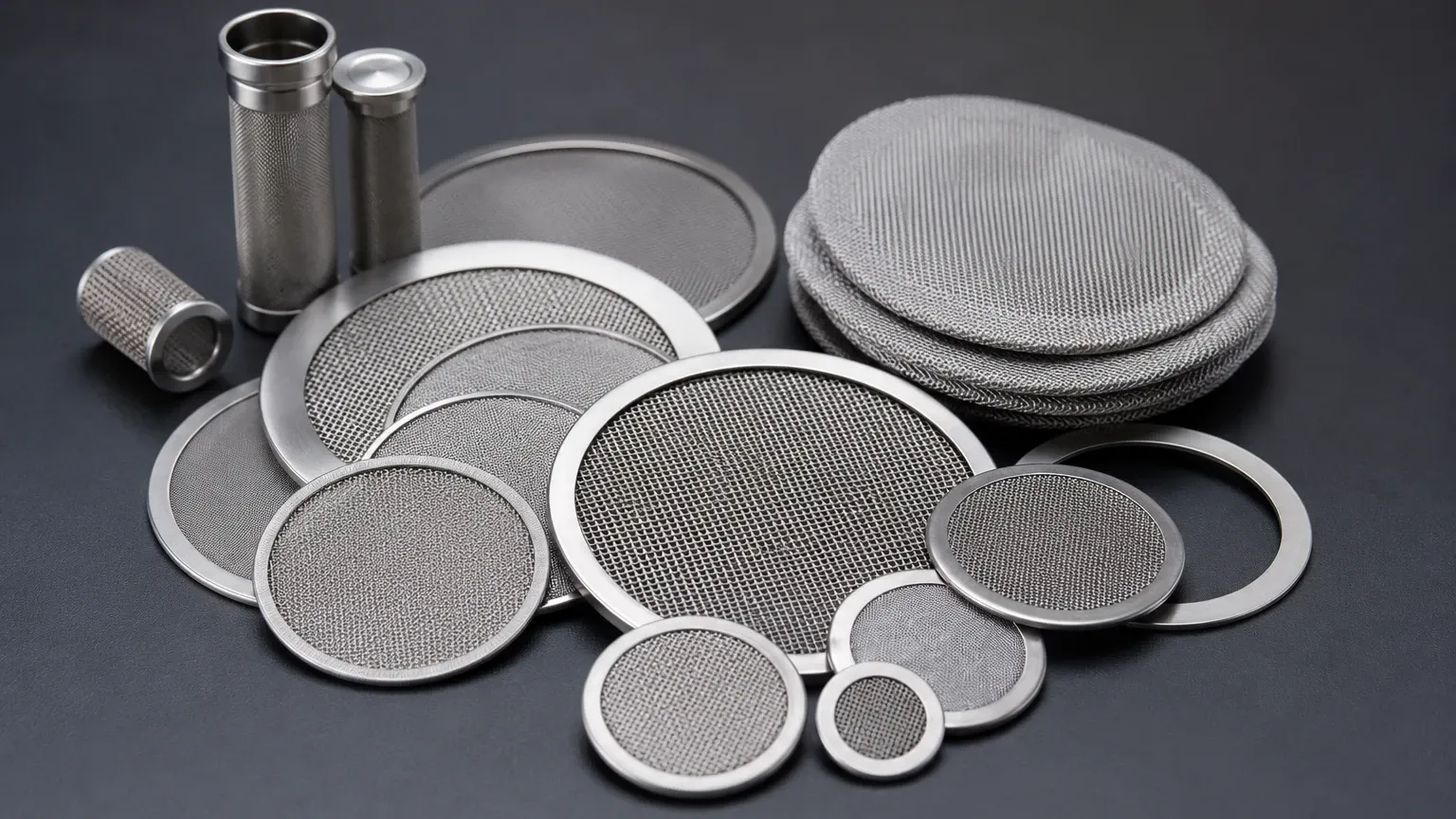

Furthermore, the method of securing these layers is critical. Spot welding is commonly used to hold the layers together at the edges, ensuring they remain aligned during installation. For more demanding applications, aluminum or stainless steel rims (frames) are crimped around the edges of the discs to provide a leak-proof seal and additional structural support.
Material Selection for Corrosive and High-Temperature Environments
Material compatibility is a primary concern when selecting filters x. Stainless steel is the industry standard due to its excellent corrosion resistance and mechanical strength. However, the specific grade of stainless steel must be matched to the chemical composition of the process fluid.
* 304 Stainless Steel: Suitable for general industrial applications where corrosion is a moderate concern. It offers good strength and cost-effectiveness.
* 316 Stainless Steel: Contains molybdenum, which provides enhanced resistance to chlorides and pitting. This is the preferred choice for marine environments and many chemical processes.
* 316L Stainless Steel: A low-carbon version of 316 that minimizes carbide precipitation during welding, making it ideal for components that require extensive welding or are used in highly corrosive environments.
For extreme conditions, such as those involving highly acidic or alkaline solutions at elevated temperatures, specialized alloys like Hastelloy or Monel may be required. The choice of material directly impacts the total cost of ownership; while high-performance alloys have a higher initial cost, their longevity in harsh environments often results in lower long-term expenses compared to frequent replacements of standard materials.
Manufacturing Processes: From Single Layer to Multilayer Packs
The manufacturing of filters x requires precision equipment to ensure that every disc and pack meets the specified tolerances. The process typically begins with the precision cutting of the wire mesh. Advanced CNC laser cutting or hydraulic die-cutting is used to achieve clean edges and consistent dimensions, which are vital for a proper fit within the filter housing.
Once the layers are cut, they are assembled into the required sequence. In the production of Filter Discs & Packs, the assembly process may involve several specialized techniques:
* Sintering: In high-end applications, the layers of mesh are bonded together using heat and pressure in a vacuum furnace. This creates a monolithic structure where the wires are fused at every contact point, providing unparalleled strength and ensuring that the pore size remains constant even under extreme pressure.
* Edge Binding: To prevent fraying and ensure a secure seal, the edges of the discs are often bound with a metal rim. This is particularly important for filters that are frequently removed and cleaned, as it protects the delicate mesh from handling damage.
* Pleating: In some cases, the mesh is pleated before being cut into discs or packs to increase the surface area within a limited footprint. This is a common strategy for increasing the dirt-holding capacity of the filter.
Performance Evaluation: Flow Rate, Pressure Drop, and Micron Retention
Evaluating the performance of filters x requires a quantitative approach. The three most important metrics are the micron rating, the clean pressure drop, and the dirt-holding capacity.
Micron Rating: This indicates the size of particles the filter is capable of removing. It is important to distinguish between "nominal" and "absolute" ratings. A nominal rating suggests that the filter will stop a large percentage of particles of a certain size, while an absolute rating indicates that 99.9% or more of particles above that size will be captured. For critical applications, absolute ratings are generally required.
Pressure Drop (ΔP): This is the difference in pressure between the upstream and downstream sides of the filter. A high initial pressure drop indicates that the filter is either too restrictive for the flow rate or that the media is too dense. Engineers aim for a design that balances fine filtration with a low initial ΔP to maximize the time the filter can remain in service before reaching the terminal pressure drop.
Dirt-Holding Capacity: This refers to the total mass of contaminants the filter can collect before it becomes clogged. A higher dirt-holding capacity means longer run times and fewer maintenance interventions. This is often achieved by using multilayer packs that distribute the contaminant load across several stages of filtration.
Selection and Procurement: A Guide for Purchasing Teams
For purchasing teams, selecting the right supplier for filters x involves more than comparing unit prices. The reliability of the manufacturer and their ability to provide customized solutions are paramount. When requesting a quote for Filter Discs & Packs, procurement professionals should be prepared to provide the following information:
1. Fluid Characteristics: What is the viscosity, temperature, and chemical composition of the fluid being filtered?
2. Flow Requirements: What is the operating flow rate and the maximum allowable pressure drop?
3. Contaminant Profile: What type of particles are being removed, and what is their typical concentration?
4. Mechanical Constraints: What are the exact dimensions required, and are there specific housing requirements or sealing surfaces?
5. Regulatory Compliance: Does the filter need to meet specific industry standards, such as FDA compliance for food contact or ISO standards for hydraulic systems?
By providing detailed specifications, purchasing teams can ensure they receive a product that is perfectly suited to their application, reducing the risk of premature failure and costly production downtime. Furthermore, establishing a relationship with a manufacturer that offers OEM capabilities allows for the development of proprietary filtration designs that can provide a competitive advantage in the market.
Maintenance and Replacement Cycles
The longevity of filters x depends heavily on the operating conditions and the maintenance protocols in place. In many industrial systems, filters are equipped with differential pressure sensors that alert operators when the filter is reaching the end of its effective life.
While some stainless steel filters are designed to be cleaned and reused—often through ultrasonic cleaning or chemical back-washing—others are intended to be disposable. The decision between cleanable and disposable filters depends on the value of the process fluid, the cost of cleaning, and the risk of cross-contamination. For instance, in pharmaceutical manufacturing, disposable filter packs are often preferred to eliminate the risk of batch-to-batch contamination. Conversely, in heavy industrial hydraulic systems, high-quality stainless steel discs are often cleaned multiple times to reduce waste and lower operational costs.
In conclusion, filters x represent a critical intersection of material science and precision engineering. By carefully selecting the right Filter Discs & Packs, industrial operators can achieve superior product quality, protect their equipment, and optimize their production processes. Whether through advanced sintering techniques or custom-engineered multilayer designs, these filtration components remain indispensable in the modern industrial world.
