In the digital landscape, the term "filter packs" is often associated with software enhancements, such as photoshop filter packs used by designers to refine visual data and achieve specific aesthetic outcomes. However, in the industrial sector—particularly within polymer extrusion, chemical processing, and hydraulic systems—the term refers to a critical physical component: Filter Discs & Packs. These high-precision metal assemblies are engineered to remove impurities from high-viscosity fluids, gases, and molten plastics, ensuring the integrity of the final product and the longevity of downstream equipment.
For engineers and procurement professionals, selecting the correct filter assembly is not a matter of aesthetic preference but a rigorous technical requirement. Understanding the construction, material properties, and performance metrics of industrial filter packs is essential for optimizing production efficiency and minimizing downtime.
Understanding the Construction of Industrial Filter Discs

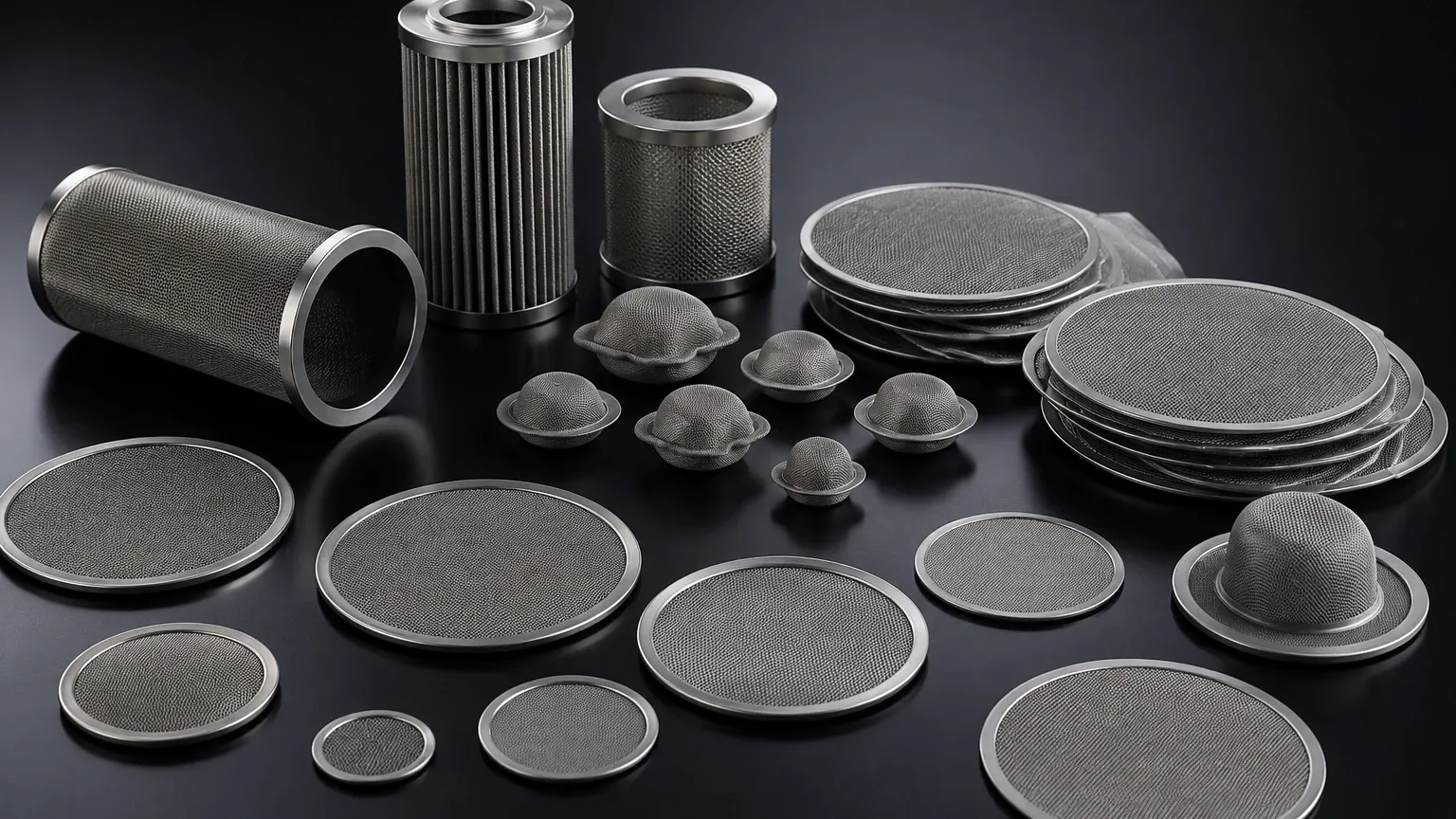

Industrial filter discs are the foundational units of any filtration pack. Unlike digital filters that process pixels, these physical discs are manufactured from woven wire mesh, expanded metal, or sintered metal fibers. The primary goal is to create a barrier that allows the carrier medium to pass through while trapping contaminants of a specific size.
Single-Layer vs. Multi-Layer Discs
Single-layer filter discs are typically used in applications where the contaminant load is low or where the filtration process is followed by more intensive stages. These are often made from a single sheet of stainless steel wire mesh, cut to precise diameters using laser or die-cutting techniques.
Multi-layer discs, on the other hand, are engineered for more demanding environments. By combining different mesh counts, engineers can create a gradient filtration effect. For example, a coarse outer mesh might act as a support layer or a pre-filter for large debris, while a finer inner mesh performs the actual precision filtration. This layered approach prevents the fine mesh from being overwhelmed and blinded too quickly, effectively increasing the dirt-holding capacity of the disc.
Weave Types and Their Impact
The performance of a filter disc is largely determined by the weave of the wire mesh. Common weaves include:
* Plain Weave: The most straightforward construction, offering high flow rates and easy cleaning. It is suitable for general-purpose filtration.
* Twill Weave: Allows for a heavier wire and a higher mesh count, providing greater strength and finer filtration than plain weave.
* Dutch Weave (Plain and Twill): These weaves feature a higher density of wires in one direction, creating a tortuous path for particles. Dutch weaves are the industry standard for high-pressure applications and fine micron ratings, as they offer superior mechanical strength.
The Role of Multi-Layered Filter Packs in High-Pressure Systems
When individual discs are combined, they form Filter Discs & Packs. These packs are often required in high-pressure environments, such as plastic and rubber extrusion, where the pressure drop across a single disc would be too great or the disc itself would deform under the load.
Gradient Filtration Strategy
A well-designed filter pack utilizes a "coarse-to-fine" strategy. By placing a coarse mesh at the inlet, large particles are trapped first. Subsequent layers become progressively finer. This distribution of the contaminant load across multiple layers prevents the "blinding" of the finest mesh layer, which is often the most expensive and delicate part of the assembly. In the context of polymer melt filtration, this ensures that the extrusion process remains stable for longer periods.
Structural Integrity and Support
In high-viscosity applications, the pressure exerted on the filtration media can be immense. Multi-layer packs often include a "support mesh" or a "distributor plate" layer. This layer is usually a very coarse, heavy-duty wire mesh or a perforated metal sheet that provides the necessary rigidity to prevent the finer filtration layers from collapsing or migrating into the flow stream.
Material Selection: Stainless Steel and Specialized Alloys
Material compatibility is a primary concern for engineers. Industrial filtration often involves corrosive chemicals, high temperatures, or strict hygienic requirements.
Stainless Steel 304 and 316L
Stainless steel is the most common material for Filter Discs & Packs due to its excellent mechanical properties and resistance to oxidation.
* SS 304: Suitable for most general industrial applications where moderate corrosion resistance is required.
* SS 316L: The "L" stands for low carbon, which improves weldability and resistance to intergranular corrosion. 316L is the preferred choice for pharmaceutical, food and beverage, and marine applications where exposure to chlorides or acidic environments is common.
Specialized Alloys
For extreme environments, such as those found in petrochemical processing or aerospace, specialized alloys like Hastelloy, Inconel, or Monel may be used. These materials offer exceptional resistance to high-temperature oxidation and aggressive chemical attack, though they come at a significantly higher cost.
Engineering Considerations for Custom Filter Assemblies
Off-the-shelf solutions rarely meet the specific needs of complex industrial processes. Customization is often necessary to ensure the filter fits perfectly within the existing housing and performs according to the specific rheology of the fluid being processed.
Shape and Edging Options
While circular discs are the most common, filter packs can be manufactured in various shapes, including oval, rectangular, and "kidney" shapes for specialized extrusion equipment.
Furthermore, the edges of the pack must be secured to prevent bypass and to protect the operator during handling. Common edging methods include:
* Spot Welding: Multiple layers are welded together at several points around the perimeter. This is a cost-effective method for keeping layers aligned.
* Rim Binding: The edges of the mesh layers are encased in a metal rim (usually aluminum, stainless steel, or copper). This provides a superior seal within the filter housing and increases the overall structural integrity of the pack.
Micron Rating and Precision
The micron rating defines the size of the smallest particle the filter is expected to trap. In B2B procurement, it is vital to distinguish between "nominal" and "absolute" micron ratings. A nominal rating indicates the filter can trap a certain percentage of particles of that size, while an absolute rating guarantees that no particles larger than the specified size will pass through. For critical applications like hydraulic systems or pharmaceutical manufacturing, absolute ratings are typically required.
Performance Metrics: Micron Rating, Permeability, and Dirt Holding Capacity
Evaluating the performance of Filter Discs & Packs requires looking at three primary metrics: filtration accuracy, permeability (flow rate), and dirt-holding capacity.
1. Filtration Accuracy: As discussed, this is determined by the mesh count and weave type. It ensures that the end product meets quality standards, such as preventing "black specks" in transparent plastic films.
2. Permeability: This refers to how easily fluid passes through the filter. A filter with low permeability will cause a high pressure drop, forcing the system's pumps to work harder and increasing energy consumption. Engineering the right balance between fine filtration and high permeability is a key challenge.
3. Dirt Holding Capacity: This is the amount of contaminant the filter can collect before the pressure drop reaches a critical limit (the terminal pressure drop). A higher dirt-holding capacity means longer intervals between filter changes, directly impacting the total cost of ownership.
Industrial Applications and Total Cost of Ownership
Filter Discs & Packs are ubiquitous in modern manufacturing. Their application spans several critical industries:
* Polymer Extrusion: Used in the production of plastic films, fibers, and resins to remove gels and un-melted particles.
* Chemical Processing: Protecting sensitive catalysts and ensuring the purity of chemical reagents.
* Food and Beverage: Filtering cooking oils, syrups, and beverages to meet safety and clarity standards.
* Hydraulics: Maintaining the cleanliness of hydraulic fluids to prevent wear and tear on valves and actuators.
Total Cost of Ownership (TCO)
When purchasing filter packs, the initial price is only one component of the TCO. Engineers must also consider:
* Replacement Frequency: How long does the pack last before it blinds?
* Cleaning and Reusability: Can the stainless steel packs be cleaned via ultrasonic baths or burnout ovens and reused?
* Downstream Protection: Does the filter effectively protect more expensive components like extrusion dies or high-pressure pumps?
* Energy Costs: Does the filter design minimize pressure drop to reduce pump energy consumption?
By focusing on high-quality, customized Filter Discs & Packs, industrial operators can achieve a lower TCO despite a higher initial investment in premium materials and precision engineering.
Conclusion
While the search for photoshop filter packs may lead many toward digital creative tools, the industrial world relies on the physical precision of metal filter assemblies to drive global production. Whether you are managing a plastic extrusion line or a complex chemical reactor, the choice of filter discs and packs is a fundamental engineering decision. By understanding the nuances of mesh weaves, material properties, and layered construction, technical professionals can ensure their processes remain efficient, their products remain pure, and their operations remain profitable. For those seeking to optimize their filtration performance, it is essential to partner with manufacturers who provide technical expertise and customized solutions tailored to the specific rigors of the application environment.
