3a Sanitary
In the landscape of industrial processing, particularly within the food, beverage, dairy, and pharmaceutical sectors, the term 3a sanitary represents more than just a guideline; it is a rigorous set of standards designed to ensure equipment is cleanable, durable, and safe for public health. For engineers and procurement professionals, understanding the nuances of these standards is essential when selecting filtration components that must withstand aggressive cleaning cycles while maintaining the highest levels of product purity.

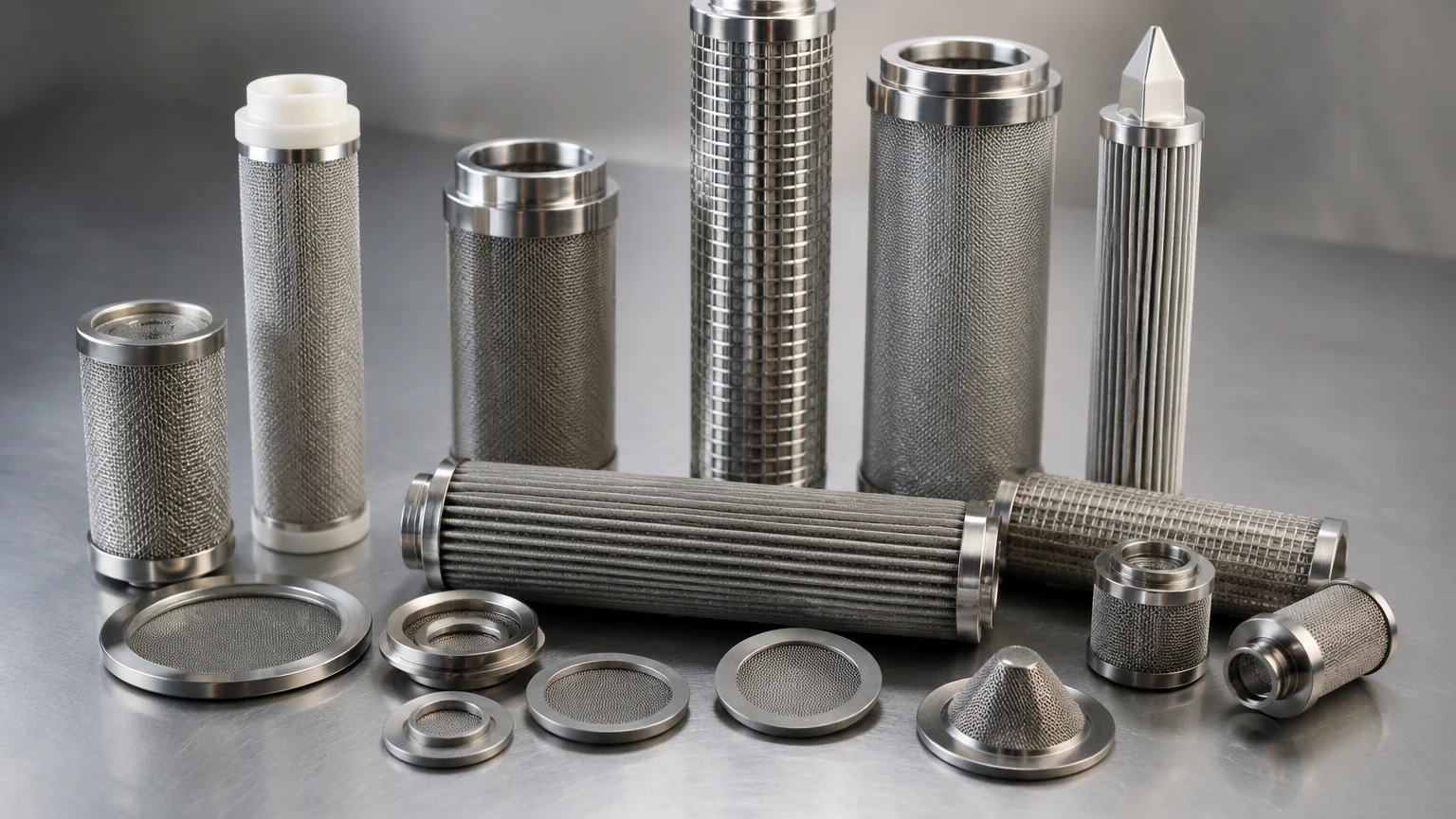

Kaifil, as a specialist in custom stainless steel filtration solutions, recognizes that achieving compliance requires a deep understanding of material science, surface finishes, and mechanical design. Whether you are sourcing stainless steel filter cartridges or complex wire mesh assemblies, the integration of sanitary principles ensures that your process remains free from bacterial growth and cross-contamination. For a comprehensive overview of our capabilities and specialized filtration products, you may visit our Main Page.
The Significance of 3-A Sanitary Standards in Modern Processing
The 3-A Sanitary Standards, Inc. (SSI) is an independent, not-for-profit corporation dedicated to enhancing product safety in the food, beverage, and pharmaceutical industries. The standards they develop focus on the design and fabrication of equipment to ensure it can be effectively cleaned and sanitized. In filtration, this is particularly critical because filters are often the primary point where contaminants are captured, making them potential breeding grounds for microbes if not designed correctly.
Adhering to 3a sanitary criteria means that every aspect of the filter—from the housing to the internal mesh—must facilitate easy cleaning. This is typically achieved through two primary methods: Clean-in-Place (CIP) and Clean-out-of-Place (COP). For high-volume industrial applications, CIP is the preferred method, requiring the filtration system to be engineered so that cleaning solutions can reach every surface without the need for manual disassembly. This reduces downtime and minimizes the risk of human error during the sanitation process.
Core Design Principles for 3a Sanitary Filtration Components
When designing filtration components for sanitary environments, engineers must adhere to specific geometric and mechanical principles. These principles are intended to eliminate "dead zones" or "dead legs"—areas where fluid can stagnate and bacteria can proliferate.
Radiused Corners and Smooth Transitions
Internal corners on filter housings and supports must have a minimum radius. Sharp 90-degree angles are strictly avoided because they are nearly impossible to clean thoroughly using automated spray balls or high-velocity flow. In most sanitary standards, a minimum radius of 1/8 inch (3.2 mm) or 1/4 inch (6.4 mm) is required, depending on the specific application and whether the component is part of a primary product contact surface.
Self-Draining Characteristics
Sanitary filters must be designed to be self-draining. This means that when a system is shut down or a cleaning cycle is complete, no residual liquid should remain trapped inside the filter housing. This is often achieved by utilizing sloped surfaces and strategically placing outlet ports at the lowest point of the assembly. For vertical filter cartridges, the design must ensure that the base and the end caps do not collect fluid.
Weld Quality and Integrity
In industrial filtration, welds are often functional rather than aesthetic. However, in a 3a sanitary context, the weld must be ground smooth and polished to match the surrounding surface. There can be no pits, cracks, or inclusions in the weld bead, as these microscopic imperfections can harbor biofilms that resist chemical sanitizers.
Material Science: Stainless Steel and Elastomer Selection
Material compatibility is a cornerstone of sanitary design. Filtration components must not only resist corrosion from the product itself but also from the aggressive chemicals used during sterilization cycles, such as caustic soda, nitric acid, and high-pressure steam.
Stainless Steel Grades
While SS304 is common in many industrial settings, SS316L (low carbon) is the industry standard for sanitary filtration. The addition of molybdenum in 316L provides superior resistance to pitting and crevice corrosion, particularly in environments containing chlorides (common in food processing). The "L" designation is crucial because it reduces the risk of carbide precipitation during welding, which maintains the material's corrosion resistance at the joints.
Elastomers and Gaskets
Every sanitary filter assembly requires seals and gaskets. These must be made from FDA-compliant materials that are non-toxic, non-absorbent, and resistant to degradation. Common materials include:
* EPDM: Excellent for steam and hot water applications.
* PTFE (Teflon): Highly resistant to almost all chemicals but less resilient than elastomers.
* Silicone: Often used in pharmaceutical applications due to its high purity and flexibility.
* Viton (FKM): Preferred for high-temperature and oil-based applications.
It is vital that these seals are designed to fit into grooves that prevent them from being extruded into the flow path, which would create a crevice where bacteria could grow.
Operational Integration: CIP and SIP Compatibility
For a filtration system to be truly effective in a sanitary process, it must be compatible with Clean-in-Place (CIP) and Steam-in-Place (SIP) protocols. These processes subject the filtration media and housing to extreme thermal and chemical stress.
Clean-in-Place (CIP)
CIP involves circulating cleaning agents through the filtration system at high velocities. The filter media, such as stainless steel wire mesh or sintered metal, must be robust enough to withstand the pressure of these cleaning cycles without deforming. A well-designed 3a sanitary filter will have a structure that allows the cleaning fluid to penetrate the mesh layers fully, ensuring that all trapped particulates are flushed out.
Steam-in-Place (SIP)
SIP is the process of sterilizing the equipment using saturated steam, typically at temperatures between 121°C and 135°C. This process is common in pharmaceutical and biotechnology applications. The filtration components must be engineered to handle the thermal expansion and contraction associated with these temperature swings. Sintered metal filters are often preferred for SIP because of their exceptional thermal stability and structural integrity compared to polymer-based alternatives.
Technical Evaluation: Ra Values and Surface Treatment Methods
The smoothness of a surface is measured by its Roughness Average (Ra). In sanitary applications, the Ra value is a critical metric for determining cleanability. The smoother the surface, the less likely it is that proteins, fats, or microbes will adhere to it.
Standard Ra Requirements
For most 3a sanitary applications, a surface finish of 32 µin Ra (0.8 µm Ra) or better is required for all product contact surfaces. In high-purity pharmaceutical applications, this requirement may be even more stringent, reaching 15 µin Ra (0.4 µm Ra) or lower.
Achieving the Finish
There are two primary methods used to achieve these finishes in stainless steel filtration:
1. Mechanical Polishing: Using abrasives to physically smooth the metal. This is effective for outer housings and large components.
2. Electropolishing: An electrochemical process that removes a microscopic layer of material from the surface. Electropolishing is highly effective for complex geometries like wire mesh or the internal surfaces of small-diameter tubes. It not only reduces the Ra value but also creates a chromium-rich oxide layer that enhances the material's natural corrosion resistance.
Procurement Considerations: Documentation and Compliance Verification
When sourcing filtration solutions for a sanitary environment, the technical specifications are only half of the requirement. The other half is documentation. Engineers must verify that the components they receive meet the stated standards to satisfy regulatory audits (such as those from the FDA or local health departments).
Key documentation to request from a manufacturer like Kaifil includes:
* Material Test Reports (MTRs): Confirming the chemical composition of the stainless steel.
* Certificate of Conformance: Stating that the product meets the specific 3a sanitary design criteria.
* Surface Roughness Certification: Providing measured Ra values for the finished product.
* FDA Compliance Letters: For all elastomers and non-metallic components.
Without this documentation, even a perfectly designed filter may be rejected during a facility audit, leading to costly delays and replacements.
Customization and OEM Solutions in Sanitary Filtration
Many industrial processes have unique constraints that off-the-shelf sanitary filters cannot meet. This is where custom engineering becomes vital. Whether it is a unique mounting requirement, a specific flow rate that demands a non-standard housing size, or a need for specialized multi-layered sintered mesh for fine particle retention, customization ensures that the filter performs optimally within the specific process parameters.
At Kaifil, we work closely with engineering teams to develop bespoke filtration components that balance the strict requirements of 3a sanitary standards with the practical needs of industrial production. By focusing on precision manufacturing and high-grade materials, we provide solutions that offer a lower total cost of ownership through extended service life and reduced maintenance requirements.
Conclusion
Navigating the requirements of 3a sanitary standards is a complex but necessary task for ensuring the safety and efficiency of modern processing plants. From selecting the correct grade of stainless steel to ensuring that every weld is polished to a specific Ra value, the details matter. By understanding the principles of cleanability, material compatibility, and documentation, procurement and engineering professionals can make informed decisions that protect both their product and their brand reputation.
For those seeking reliable, high-performance filtration components tailored to these demanding standards, exploring professional manufacturing capabilities is the first step toward process optimization. To learn more about our range of custom stainless steel filters and how we support global industrial applications, please visit our Main Page.
