Filter Cart Hydraulic Oil
In modern industrial environments, hydraulic systems are the backbone of heavy machinery, precision manufacturing, and power generation. However, the reliability of these systems is inextricably linked to the cleanliness of the hydraulic fluid. Contamination—whether in the form of particulate matter, water, or air—is responsible for approximately 70% to 80% of hydraulic system failures. To mitigate these risks, engineers and maintenance professionals rely on a filter cart hydraulic oil strategy to maintain fluid integrity throughout the equipment's lifecycle.
This article provides a technical overview of how filter carts function, the engineering considerations for selecting filtration components, and the specific role of stainless steel filter media in optimizing hydraulic performance.
The Critical Role of Portable Filtration in Hydraulic Systems

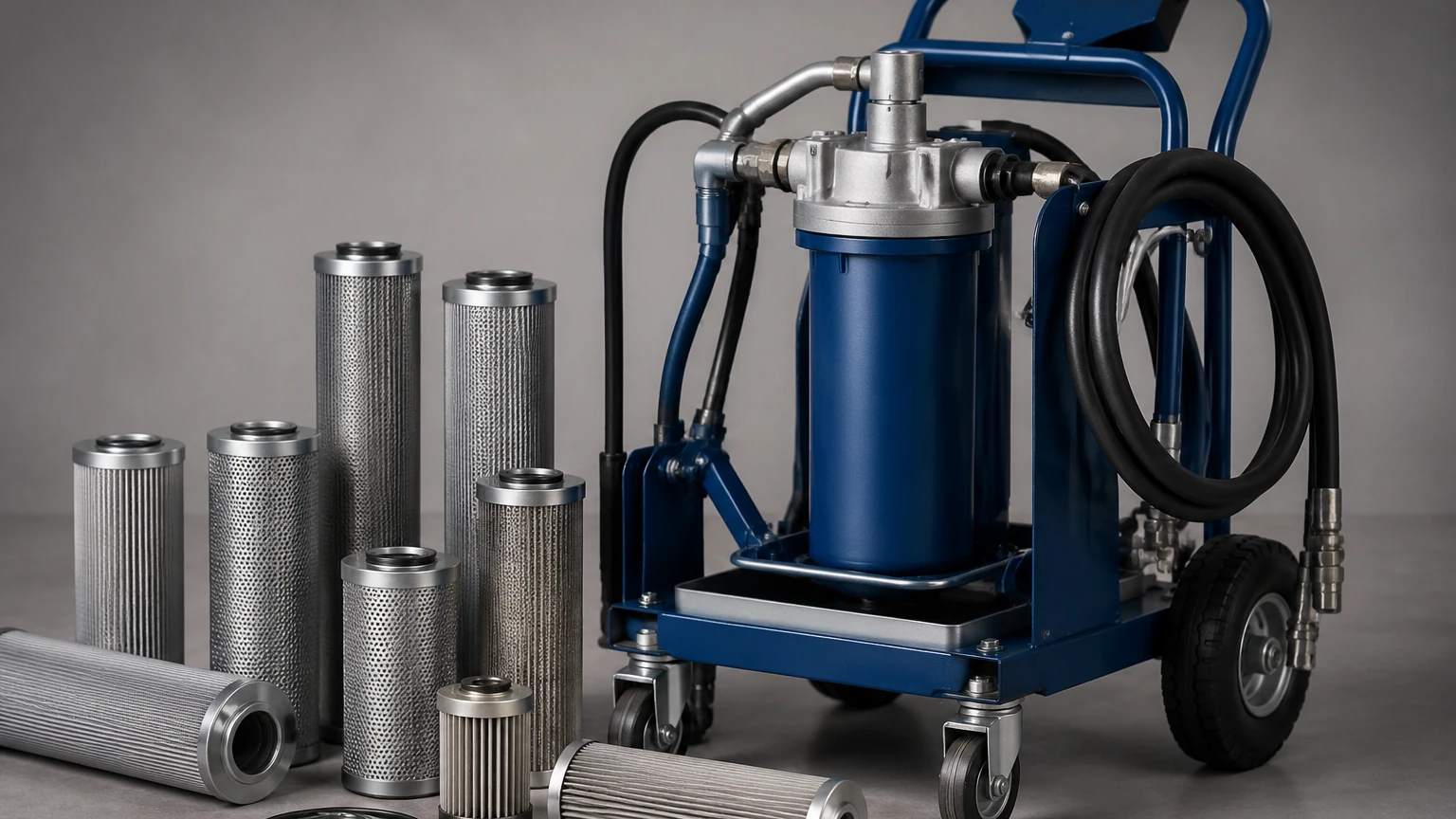

A hydraulic filter cart is a portable, off-line filtration system designed to remove contaminants from hydraulic reservoirs. Unlike the primary high-pressure or return-line filters integrated into a machine's circuit, a filter cart operates independently. This "kidney-loop" filtration process allows for continuous cleaning without interrupting machine operations.
The primary applications for a filter cart hydraulic oil process include:
* Pre-filtering New Oil: New oil delivered in drums is rarely clean enough for sensitive hydraulic systems. It often contains high levels of particulate matter from the refining and packaging process. A filter cart ensures that only clean fluid enters the reservoir during a fill.
* Off-line Contamination Control: During system operation, wear particles and atmospheric ingress can overwhelm internal filters. A filter cart provides supplemental cleaning to reach target ISO cleanliness codes.
* Fluid Transfer: Moving fluid from storage tanks to mobile equipment while simultaneously filtering out contaminants.
* System Flushing: After a major component failure or a system rebuild, a filter cart is used to flush the lines and remove residual debris before the system is brought back online.
Key Components of an Effective Filter Cart for Hydraulic Oil
To achieve the required filtration efficiency, a filter cart must be engineered with components that can withstand varying viscosities and environmental conditions. The core assembly typically includes a motor-driven pump, a series of filter housings, and high-performance filter elements.
The Pump and Motor
Selection of the pump is critical. It must be capable of handling the viscosity of the hydraulic oil at both ambient and operating temperatures. Gear pumps are commonly used for their ability to provide consistent flow across a range of pressures. The motor must be sized to prevent stalling when the filter elements become loaded with debris, which increases the differential pressure ($ΔP$).
Filter Housings
Industrial filter carts often utilize a multi-stage approach. A primary coarse filter (suction side) protects the pump from large debris, while one or more secondary fine filters (pressure side) achieve the final target cleanliness. For demanding industrial environments, these housings are often constructed from durable materials to resist mechanical stress and chemical exposure.

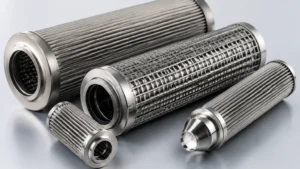

Filter Elements
The filter element is the heart of the system. While synthetic media are common, many industrial applications require custom stainless steel filtration solutions. These elements provide superior structural integrity and are often preferred for their compatibility with a wide range of fluids and temperatures.
Technical Parameters: ISO Cleanliness and Beta Ratings
When evaluating a filter cart hydraulic oil solution, engineers must look beyond nominal micron ratings. The two most important metrics are the ISO 4406 Cleanliness Code and the Beta Ratio ($eta$).
ISO 4406 Standards
This standard represents the level of particulate contamination per milliliter of fluid. It uses three numbers (e.g., 18/16/13) to represent the quantity of particles larger than 4µm, 6µm, and 14µm, respectively. A filter cart is the primary tool used to lower these numbers to meet the requirements of sensitive components like servo valves or high-pressure piston pumps.
Beta Ratio ($eta$)
The Beta Ratio measures a filter's efficiency at a specific particle size. For example, a $eta_{10} = 200$ rating means that for every 200 particles of 10 microns entering the filter, only one passes through. This equates to 99.5% efficiency. High-performance filter carts utilize elements with high Beta ratings to ensure rapid cleanup of the hydraulic fluid.
Selecting Stainless Steel Filter Media for Hydraulic Applications
In many specialized industrial sectors, such as chemical processing or high-temperature manufacturing, standard disposable filters may not suffice. This is where stainless steel wire mesh filters and precision metal components offer significant advantages.
Stainless steel 304 and 316L are the materials of choice for many custom filtration needs. These materials offer:
1. Chemical Compatibility: Unlike some synthetic fibers, stainless steel is inert to most hydraulic fluids, including fire-resistant fluids and synthetic esters.
2. Temperature Resistance: Hydraulic systems operating in extreme environments require filter media that will not degrade or lose structural integrity at high temperatures.
3. Durability under Pressure: Stainless steel mesh can be pleated or reinforced to handle high differential pressures without collapsing.
4. Cleanability: For certain applications, stainless steel elements can be cleaned and reused, providing a more sustainable and cost-effective solution over the long term.
For engineering teams seeking high-performance components, visiting the Kaifil Main Page provides insights into custom-engineered stainless steel solutions designed for these rigorous environments.
Engineering Considerations for Flow Rate and Viscosity
A common mistake in implementing a filter cart hydraulic oil strategy is ignoring the relationship between flow rate and oil viscosity. Hydraulic oil becomes significantly more viscous at lower temperatures, which can lead to high backpressure and potential bypass of the filter element.
Viscosity and Pressure Drop
As viscosity increases, the resistance to flow through the filter media increases. If the $ΔP$ exceeds the bypass valve setting of the filter housing, the oil will circulate without being filtered. Engineers must specify filter media with sufficient surface area (often achieved through pleating) to maintain low flux rates and prevent premature bypass.
Flow Rate Optimization
While a higher flow rate might seem desirable for faster cleaning, it can actually reduce filtration efficiency. High-velocity flow can cause "particle migration," where captured contaminants are pushed through the media. An optimized filter cart balances flow rate with the surface area of the filter element to ensure maximum particle capture.
Total Cost of Ownership: Disposable vs. Cleanable Filter Elements
When purchasing or designing a filter cart, the total cost of ownership (TCO) should be evaluated. This includes the initial capital expenditure, the cost of replacement elements, and the labor associated with maintenance.
* Disposable Elements: These often have a lower initial cost but can become expensive in systems with high contamination ingression. The ongoing cost of purchasing, storing, and disposing of used filters can be substantial.
* Cleanable Stainless Steel Elements: While the initial investment for a stainless steel wire mesh filter is higher, the ability to clean and reuse the element can lead to significant savings over several years. Furthermore, the reduced waste contributes to corporate sustainability goals.
Customization plays a vital role here. By working with a manufacturer that offers OEM and customized filtration solutions, engineers can ensure the filter element is perfectly matched to the specific contaminants and fluid types present in their system, further extending the service life of both the filter and the hydraulic components.
Common Risks and Troubleshooting in Portable Filtration
Even with the best equipment, improper use of a filter cart can lead to suboptimal results or even system damage.
Water Contamination
Standard particulate filters are not designed to remove dissolved or emulsified water. If a hydraulic system has a milky appearance, it indicates water contamination. In these cases, the filter cart must be equipped with specialized water-absorbing elements or a vacuum dehydration unit. Using a standard particulate filter on water-laden oil will quickly saturate the media and may cause it to swell and block flow.
Cross-Contamination
A filter cart used on multiple machines must be thoroughly flushed between uses. Mixing different types of hydraulic fluids (e.g., mineral oil and glycol-based fluids) can lead to chemical reactions, additive dropout, and seal failure. Best practices dictate using dedicated filter carts for specific fluid types or implementing a rigorous cleaning protocol for the cart's internal pump and hoses.
Air Entrainment
If the suction line of the filter cart is not properly submerged or if there are leaks in the fittings, air can be drawn into the system. Entrained air in hydraulic oil causes foaming, oxidation, and cavitation in the main system pumps. Ensuring airtight connections and proper hose placement is essential for successful off-line filtration.
Conclusion: Selecting the Right Partner for Filtration Solutions
Implementing an effective filter cart hydraulic oil program is a technical necessity for any facility aiming to maximize equipment uptime and reduce maintenance costs. The success of this program depends on the selection of high-quality filtration components that can meet the specific demands of the application.
From material selection and filtration accuracy to customized designs, the right filtration components ensure that hydraulic systems remain within their target ISO cleanliness levels. For professionals focused on reliability, durability, and precise filtration performance, sourcing components from a manufacturer with extensive experience in industrial metal filtration is paramount. By understanding the engineering principles of fluid dynamics and contamination control, purchasing teams can make informed decisions that protect their critical infrastructure for years to come.
