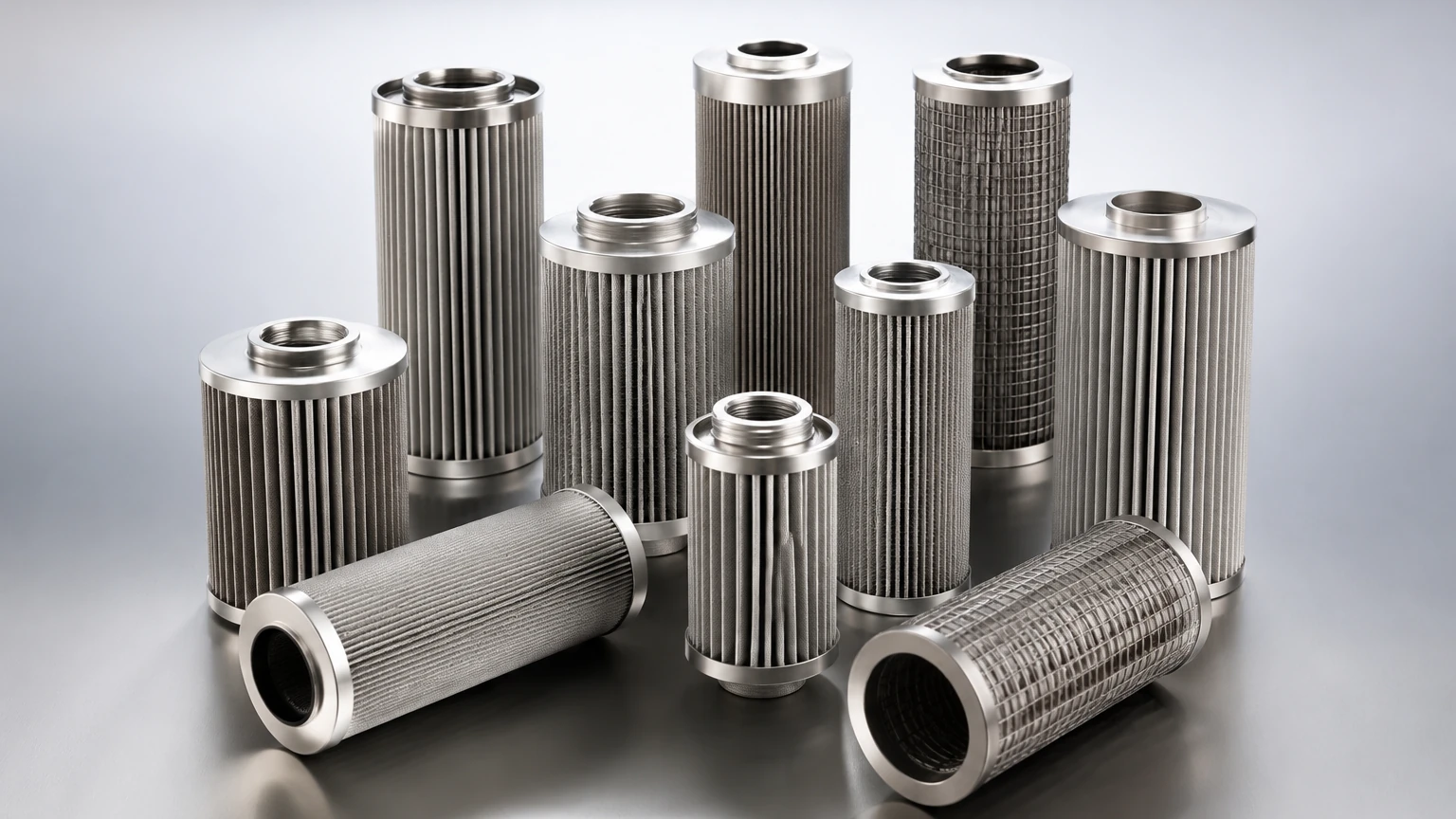

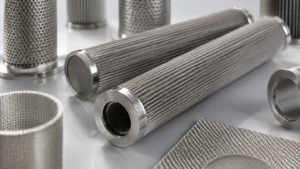

Pleated Style Gas Filter Cartridges
In industrial gas processing, the efficiency of filtration systems directly impacts equipment longevity, product purity, and operational safety. Among the various configurations available to engineers, pleated style gas filter cartridges represent a high-performance solution designed to handle high flow rates while maintaining a low pressure drop. These components are critical in applications ranging from the removal of particulate matter in compressed air to the purification of process gases in chemical and pharmaceutical manufacturing.
As a specialized manufacturer, Kaifil provides precision-engineered stainless steel filtration solutions that address the rigorous demands of modern industrial environments. Understanding the technical nuances of pleated designs, material selection, and performance metrics is essential for procurement teams and engineers looking to optimize their filtration processes.
Understanding the Engineering Behind Pleated Gas Filtration
The primary advantage of pleated style gas filter cartridges lies in their geometric configuration. Unlike standard cylindrical or depth filters, pleated filters consist of filter media folded into a series of uniform pleats. This design significantly increases the Effective Filtration Area (EFA) within the same outer dimensions of a standard cartridge.
Surface Area and Flow Dynamics
By increasing the surface area, the face velocity—the speed at which the gas passes through the media—is reduced. Lower face velocity leads to several technical benefits:
* Reduced Pressure Drop: A larger surface area allows gas to pass through with less resistance, which is critical for maintaining system efficiency and reducing energy consumption by compressors or blowers.
* Enhanced Dirt-Holding Capacity: With more surface area available to trap contaminants, the filter can operate for longer periods before reaching its terminal pressure drop, thereby extending the replacement or cleaning cycle.
* Improved Particle Retention: Slower gas velocity through the media increases the probability of particle capture through mechanisms such as diffusion, interception, and inertial impaction.
Structural Integrity
In gas filtration, cartridges often face high-velocity pulses or rapid changes in pressure. Pleated style gas filter cartridges are typically constructed with internal support cores and external cages, usually made of stainless steel. This robust architecture prevents pleat bunching or collapse, ensuring consistent performance even under fluctuating flow conditions.
Material Integrity and Chemical Compatibility
Selecting the right material is the most critical decision in the engineering of pleated style gas filter cartridges. While polymer-based filters are common in low-temperature, non-corrosive applications, industrial gas streams often involve extreme temperatures, aggressive chemicals, or high-pressure environments that necessitate the use of metal media.
Stainless Steel Wire Mesh
Stainless steel wire mesh is a preferred medium for pleated cartridges due to its precise pore size and mechanical strength. Available in various weaves—such as plain, twill, or Dutch weave—it provides a surface-loading filtration mechanism that is easy to clean. For most industrial applications, 304 or 316L stainless steel is utilized to provide excellent corrosion resistance.
Sintered Metal Fiber Felt
For applications requiring higher filtration efficiency at finer micron ratings, sintered metal fiber felt is often employed. This non-woven medium consists of stainless steel fibers that are sintered together to form a porous structure. When pleated, this material offers high porosity (up to 80%) and exceptional permeability, making it ideal for high-temperature gas filtration where traditional fabric or polymer filters would fail.
Gaskets and Seals
The compatibility of the cartridge extends beyond the filter media to the sealing components. Engineers must specify elastomers—such as Viton, EPDM, or PTFE—that can withstand the chemical composition of the gas and the operating temperature. Ensuring a leak-proof seal at the end caps is vital to prevent bypass, which would compromise the entire filtration system.
Performance Evaluation: Micron Ratings and Pressure Drop
When evaluating pleated style gas filter cartridges, technical professionals must look beyond nominal ratings and focus on the specific performance data relevant to their system's requirements.
Absolute vs. Nominal Filtration
In critical gas applications, such as sterile air filtration in the pharmaceutical industry or catalyst protection in chemical processing, absolute-rated filters are required. An absolute rating signifies that the filter will remove 99.9% (or higher) of particles at a specific micron size. Pleated metal filters are particularly effective at maintaining these ratings because their pore structure is fixed and does not shift under pressure.
Calculating Differential Pressure (Delta P)
The initial pressure drop is a key indicator of a filter's quality and fit for the application. A high initial Delta P often suggests that the filter media is too restrictive for the required flow rate or that the EFA is insufficient. Engineers should aim for a design that balances filtration fineness with the lowest possible pressure drop to minimize the total cost of ownership. For more detailed technical specifications and to Review product options and application support, visiting the [Main Page] of a specialized manufacturer is recommended.
Customization Options for Specific Industrial Requirements
One of the strengths of working with a manufacturer like Kaifil is the ability to customize pleated style gas filter cartridges to meet unique site-specific challenges. Standard off-the-shelf solutions may not always account for the complexities of specialized gas streams.
End Cap Configurations
Filter cartridges must interface perfectly with existing housings. Customization options include various end cap styles such as Code 7 (226 O-rings with locking tabs), Code 3 (222 O-rings), or double open-ended (DOE) designs. Precision machining of these components ensures that there is no bypass and that the cartridge is easy to install and remove.
Dimension and Reinforcement
In some high-pressure gas applications, standard cartridges may require additional reinforcement. This can include thicker internal cores or specialized outer shrouds to protect the pleats from high-velocity gas entry. Furthermore, custom lengths and diameters can be engineered to fit non-standard filter vessels, eliminating the need for expensive housing replacements.
Specialized Coatings and Treatments
For gases that are particularly abrasive or prone to causing adhesion, surface treatments or specialized coatings can be applied to the stainless steel media. These treatments can improve the release of cake during cleaning or enhance the material's resistance to specific corrosive agents.
Maintenance, Cleaning, and Lifecycle Management
One of the primary reasons engineers select stainless steel pleated style gas filter cartridges over disposable alternatives is their cleanability. In many B2B industrial contexts, the ability to reuse a filter component significantly impacts the long-term operational budget.
Cleaning Methodologies
Depending on the nature of the contaminants, several cleaning methods can be employed to restore the cartridge's performance:
1. Ultrasonic Cleaning: This is highly effective for removing fine particulates lodged deep within the pleats or the sintered fiber structure.
2. Backwashing/Back-pulsing: In some automated systems, a reverse flow of gas can be used to dislodge accumulated dust or particles from the surface of the pleated media.
3. Chemical Cleaning: For organic or chemical deposits, soaking the cartridges in compatible solvents or acid/alkaline solutions can dissolve the contaminants without damaging the stainless steel structure.
Determining Replacement Cycles
While metal pleated cartridges are durable, they are not infinite. Engineers should monitor the "clean pressure drop" after each cleaning cycle. If the pressure drop after cleaning consistently stays higher than the original specification, it indicates that the media is becoming permanently blinded or that the structural integrity is degrading. Establishing a clear protocol for when to retire a cartridge is essential for maintaining process safety.
Selecting the Right Filtration Partner
Choosing a supplier for pleated style gas filter cartridges involves more than just comparing unit prices. For engineers and purchasing managers, the value lies in technical support, manufacturing precision, and the ability to provide documented performance data.
Kaifil specializes in the production of custom stainless steel filtration solutions, bringing extensive experience to the table in the design and manufacture of pleated components. By focusing on the specific needs of the chemical, food and beverage, and pharmaceutical sectors, Kaifil ensures that each filter cartridge is built to withstand the rigors of its intended application.
When sourcing these components, it is important to confirm:
* Material Certification: Ensure the stainless steel grades are verified and meet industry standards (e.g., ASTM).
* Quality Control: Inquire about bubble point testing or other integrity tests used to verify filtration accuracy.
* OEM Capability: For equipment manufacturers, the ability to produce filters that meet exact proprietary specifications is a significant advantage.
In conclusion, pleated style gas filter cartridges are an indispensable tool for modern industrial gas management. By maximizing surface area, utilizing robust stainless steel materials, and allowing for repeated cleaning, these filters provide a cost-effective and reliable solution for protecting downstream equipment and ensuring product quality. For those seeking to optimize their filtration systems, consulting with a manufacturer that understands the intersection of engineering and material science is the most effective path forward. To explore the full range of custom filtration capabilities, users can visit the Main Page for additional technical resources and product guidance.
