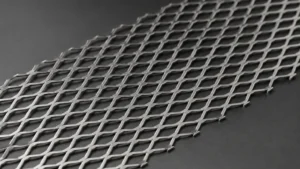

9 Gauge Expanded Metal Mesh
In the landscape of industrial filtration and structural engineering, 9 gauge expanded metal mesh represents one of the most robust and versatile specifications available. Defined by its significant material thickness and structural integrity, this specific gauge is frequently utilized in environments where mechanical strength, durability, and high flow rates must coexist. For engineers and procurement specialists, understanding the nuances of 9 gauge expanded metal—from its manufacturing process to its performance in pressurized filtration systems—is essential for optimizing equipment longevity and operational efficiency.
Understanding 9 Gauge Expanded Metal Mesh Specifications
To accurately specify 9 gauge expanded metal mesh, one must first understand the terminology used in its classification. The term "9 gauge" refers to the thickness of the metal sheet before the expansion process begins. In the U.S. Standard Gauge for carbon steel, 9 gauge is approximately 0.1443 inches (3.66 mm). When this sheet is slit and stretched, it forms a continuous diamond-patterned mesh that is significantly stronger than a woven wire mesh of equivalent weight.
Key Dimensional Variables
When evaluating this material for industrial use, engineers must define several critical dimensions beyond the gauge:
* SWD (Short Way of Design): The distance from the center of one bond to the center of the next bond across the short axis of the diamond.
* LWD (Long Way of Design): The distance across the long axis of the diamond.
* Strand Width: The amount of metal fed into the expanding machine between each stroke.
* Strand Thickness: The original gauge of the metal (0.144" for 9 gauge).
There are two primary forms of expanded metal: Standard (Raised) and Flattened. Standard expanded metal features strands that are set at an angle to the plane of the sheet, creating a three-dimensional surface that offers excellent grip and structural rigidity. Flattened expanded metal is processed through a cold-rolling mill after expansion, resulting in a smooth, flat surface. For filtration support, flattened mesh is often preferred to prevent the abrasion of delicate filter media.
The Manufacturing Process: Slitting and Stretching
Unlike perforated metal, which is created by punching holes and discarding the resulting "slugs," expanded metal is produced through a process of simultaneous slitting and stretching. A heavy-duty press equipped with a serrated knife moves downward, slitting the metal sheet while stretching it into the characteristic diamond shape.
This process offers several technical advantages for B2B applications:
* Zero Material Waste: Since no metal is removed, the process is highly cost-effective and environmentally sustainable.
* Structural Continuity: Because the mesh is made from a single piece of metal, there are no welds or joints to fail. This makes the mesh inherently stronger than woven or welded alternatives.
* High Strength-to-Weight Ratio: The expansion process creates a lattice that can support heavy loads while remaining lighter than a solid plate of the same dimensions.
Material Selection for Industrial Environments
While carbon steel is common for general structural use, industrial filtration and chemical processing often demand the corrosion resistance of stainless steel. As a specialist in Perforated & Expanded Metal, Kaifil focuses on high-performance alloys to meet demanding environmental requirements.
Stainless Steel 304 and 316L
For most filtration applications, 304-grade stainless steel provides an excellent balance of corrosion resistance and cost. However, in marine environments or chemical processing involving chlorides, 316L stainless steel is the industry standard. The "L" denotes low carbon content, which minimizes carbide precipitation during welding, ensuring the mesh remains resistant to intergranular corrosion.
Specialized Alloys
In high-temperature or highly acidic environments, engineers may specify exotic alloys such as Monel, Inconel, or Titanium. 9 gauge mesh in these materials provides the extreme durability required for aerospace or deep-sea oil and gas applications where component failure is not an option.
Role in Industrial Filtration Systems
9 gauge expanded metal mesh is rarely used as the primary filtration medium for fine particles. Instead, its primary function is as a support structure or outer guard within a multi-layer filter cartridge assembly.
Support Cores for Filter Cartridges
In high-pressure hydraulic systems or liquid processing, the primary filter media (such as fine wire mesh or synthetic membranes) lacks the rigidity to withstand differential pressure. A 9 gauge expanded metal core provides the necessary internal skeleton. It prevents the media from collapsing inward under the force of the fluid flow, ensuring the filter maintains its shape and surface area throughout its service life.
Protective Outer Sleeves
Conversely, expanded metal is used as an outer wrap to protect the pleated filter media from mechanical damage during installation, maintenance, or high-velocity backwashing. The 9 gauge thickness is particularly effective in heavy-duty industrial water treatment, where large debris might otherwise puncture thinner guards.
Pre-Filtration and Trash Racks
In water intake systems and large-scale industrial cooling towers, 9 gauge expanded metal serves as a primary pre-filter. Its large diamond openings allow for high flow rates while effectively capturing larger debris like stones, wood, and plastic that could damage downstream pumps and sensitive filtration components.
Engineering Evaluation: Open Area and Flow Dynamics
The "Open Area" percentage is a critical metric for engineers. It determines the pressure drop (Delta P) across the filter. A higher open area results in lower resistance to flow, which reduces energy consumption for pumps and increases the overall efficiency of the system.
9 gauge expanded metal can be engineered with varying diamond sizes to achieve specific open area targets. For example, a 3/4" #9 specification (where 3/4" is the nominal SWD) typically offers an open area of approximately 65% to 75% in its standard form. When flattened, the open area may decrease slightly as the strands are compressed.
Engineers must calculate the total effective filtration area (EFA) by considering how much of the primary media is obscured by the bonds and strands of the expanded metal support. Using a mesh with a high open area while maintaining 9 gauge thickness ensures that structural integrity does not come at the cost of flow performance.
Comparing Expanded Metal with Perforated and Woven Alternatives
When selecting a material for industrial filtration components, it is helpful to compare 9 gauge expanded metal against other common options:
| Feature | 9 Gauge Expanded Metal | Perforated Metal | Woven Wire Mesh |
| :— | :— | :— | :— |
| Strength | Very High (Continuous) | High (Depends on Pattern) | Moderate (Subject to Fraying) |
| Cost | Low (No Waste) | Higher (Material Waste) | Variable (Complexity Dependent) |
| Weight | Light for its Strength | Heavier | Lightest |
| Surface | Raised or Flattened | Always Flat | Textured/Woven |
| Flow Efficiency | Excellent | Good | Superior (for fine filtration) |
For heavy-duty support, expanded metal often wins on cost and strength. Perforated metal is typically chosen when specific hole geometries (like perfect circles) are required for precise flow control, while woven wire mesh is reserved for the actual particle separation layer.
Procurement Checklist: What Engineers Must Confirm
Before placing an order for 9 gauge expanded metal mesh, procurement teams and engineers should verify the following technical details with the manufacturer to ensure application compatibility:
1. Material Grade: Is 304 stainless steel sufficient, or does the chemical environment require 316L or a specialty alloy?
2. Standard vs. Flattened: Does the application require the extra rigidity of raised strands, or is a smooth surface necessary to protect adjacent filter media?
3. Diamond Orientation: The direction of the diamonds (LWD vs. SWD) relative to the flow or the structural load can impact the mesh's performance and ease of fabrication.
4. Tolerances: What are the allowable variances in sheet size and strand thickness? For precision filter cartridges, tight tolerances are required for automated welding processes.
5. Surface Treatment: Does the mesh require pickling and passivation to enhance corrosion resistance, or electropolishing for a high-purity finish (common in food and pharmaceutical applications)?
Maintenance and Replacement Cycles
While 9 gauge expanded metal is designed for longevity, it is not immune to wear. In filtration systems, the mesh should be inspected during every filter media change for the following:
* Strand Erosion: In high-velocity systems carrying abrasive particles, the leading edges of the strands can thin over time.
* Stress Cracking: Check the bonds (where the diamonds meet) for signs of fatigue, especially in systems subject to frequent pressure pulsations.
* Chemical Pitting: In corrosive environments, look for localized pitting that could compromise the structural integrity of the support core.
Because of its heavy 9 gauge construction, this mesh often outlasts several cycles of the primary filter media. However, replacing the support structure at the first sign of degradation is a cost-effective way to prevent catastrophic failure of the entire filtration unit.
Conclusion
9 gauge expanded metal mesh is a fundamental component for industrial applications requiring a combination of extreme strength and efficient flow. Whether serving as a protective guard in a chemical reactor or a support core in a high-pressure hydraulic filter, its one-piece construction and material efficiency make it a superior choice for demanding environments. By carefully selecting the material grade, diamond dimensions, and finish, engineers can ensure that their filtration systems operate with maximum reliability and minimal maintenance overhead.
For those seeking customized dimensions or specialized alloy options, reviewing professional Perforated & Expanded Metal solutions is the recommended next step to ensure the chosen mesh meets the rigorous standards of modern industrial processing.
