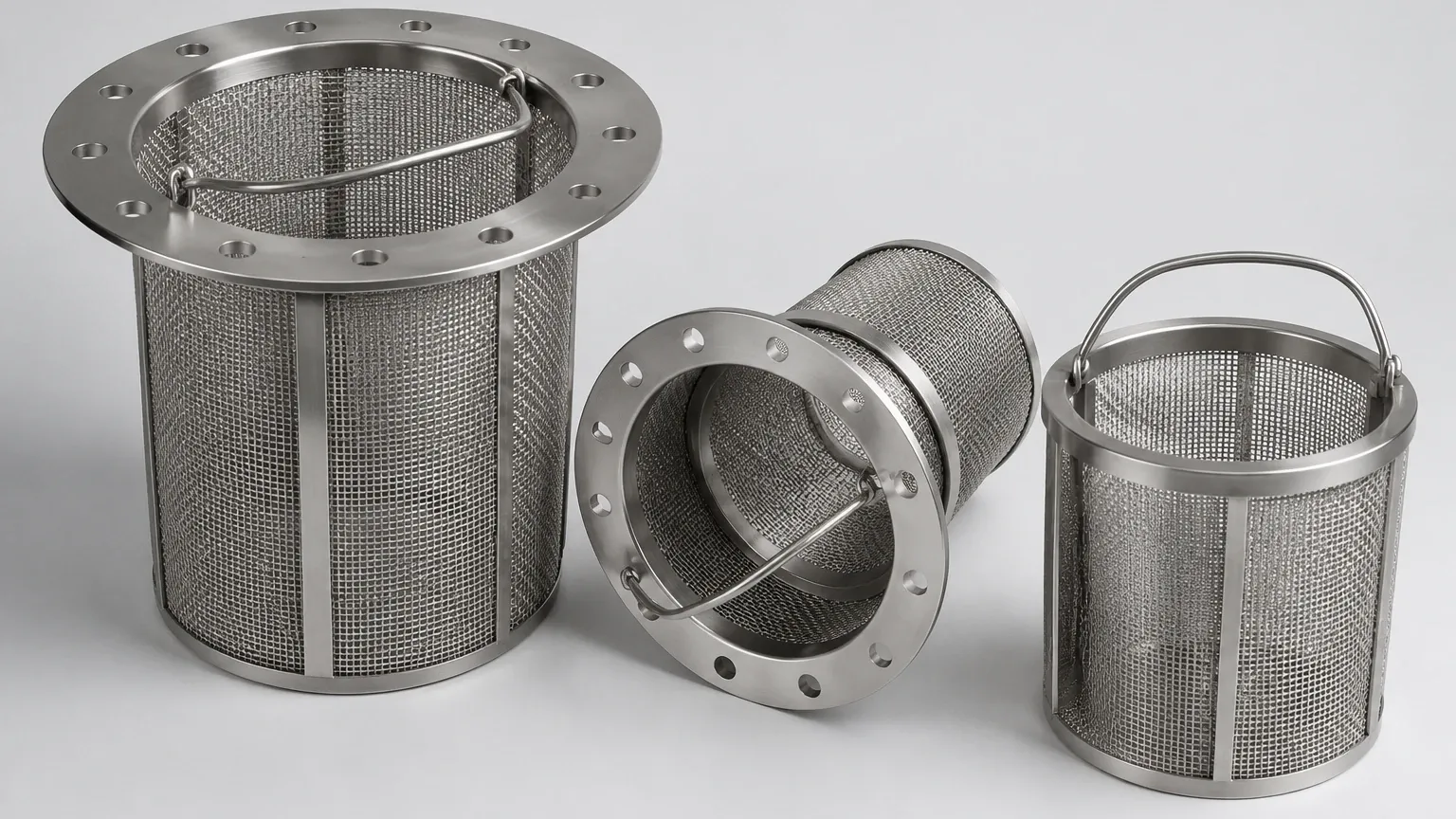

Basket Strainer 4 1 2
In industrial fluid handling, the efficiency of a filtration system is often determined by the precision of its components. The basket strainer 4 1 2 represents a specific dimensional requirement frequently encountered in medium-to-heavy-duty liquid processing. Whether this measurement refers to the basket's outer diameter, the flange width, or the housing's connection size, selecting the correct Strainers & Baskets is critical for protecting downstream equipment like pumps, valves, and heat exchangers from particulate damage.
For engineers and procurement professionals, a basket strainer is more than a simple mesh insert; it is a sacrificial barrier designed to maintain system integrity. Understanding the technical nuances of a 4 1/2-inch specification—ranging from material compatibility to flow dynamics—is essential for optimizing filtration performance and reducing the total cost of ownership.
Understanding the Specifications of a 4 1/2-Inch Basket Strainer
When specifying a basket strainer 4 1 2, the first step is clarifying which dimension the measurement describes. In many industrial simplex and duplex strainer housings, a 4.5-inch basket diameter is a standard size for mid-range flow rates. However, technical teams must verify the following parameters to ensure a proper fit:
Dimensional Accuracy and Tolerances
Industrial strainers must fit securely within the housing to prevent "bypass," where unfiltered liquid flows around the edges of the basket rather than through the mesh. A 4 1/2-inch basket typically requires precise flange machining. If the basket is even slightly undersized, the seal is compromised; if it is oversized, installation becomes impossible. Manufacturers like Kaifil utilize precision metal fabrication to ensure that the outer diameter (OD) and the height of the basket align perfectly with the internal dimensions of the strainer body.
Material Selection: 304 vs. 316L Stainless Steel
The choice of material is dictated by the chemical composition of the process fluid and the operating temperature.
* 304 Stainless Steel: Suitable for general industrial applications, water treatment, and non-corrosive chemical environments. It offers excellent strength and cost-effectiveness.
* 316L Stainless Steel: Required for high-chloride environments, pharmaceutical production, and food and beverage applications. The addition of molybdenum provides superior resistance to pitting and crevice corrosion.
Perforation vs. Mesh Lining
A basket strainer 4 1 2 can be constructed as a single-layer perforated metal basket or a multi-layer component. For coarse filtration (removing large debris), a perforated plate with 1/8" or 1/16" holes may suffice. For finer filtration, the perforated plate serves as a structural support for a fine wire mesh lining, which can achieve filtration ratings down to 20 microns or less.
Industrial Applications for Strainers & Baskets
The versatility of stainless steel Strainers & Baskets allows them to be deployed across a wide spectrum of industries. Each sector has unique demands regarding hygiene, pressure, and particulate load.
Chemical and Petrochemical Processing
In chemical plants, strainers protect sensitive instrumentation from pipe scale, welding slag, and other solids. The 4 1/2-inch basket size is often found in localized filtration loops where high-value catalysts or reagents must be recovered or protected. The durability of stainless steel ensures that the basket can withstand aggressive solvents without structural degradation.
Food and Beverage Production
Hygiene is the primary concern in food processing. Strainers used here must feature smooth, burr-free surfaces to prevent bacterial growth. A basket strainer 4 1 2 used in a juice or dairy line is often electropolished to improve cleanability. These baskets are designed to remove seeds, pulp, or skin fragments while maintaining high flow rates to meet production quotas.
Water Treatment and Desalination
In water treatment facilities, baskets are used as pre-filters for membrane systems. They remove larger organic matter and sand that could otherwise foul expensive RO (Reverse Osmosis) membranes. Given the constant exposure to moisture, the corrosion resistance of 316L stainless steel is the industry standard for these applications.
Engineering Considerations for Selection
Selecting a basket strainer 4 1 2 involves more than matching dimensions. Engineers must calculate the impact the strainer will have on the overall hydraulic system.
Pressure Drop (Delta P)
The introduction of a strainer into a pipeline inevitably causes a drop in pressure. The goal is to maximize the "Open Area Ratio" (OAR). The OAR is the relationship between the total open area of the basket's mesh and the cross-sectional area of the inlet pipe. A high OAR (typically 6:1 or higher) ensures that the system can operate longer between cleaning cycles without a significant loss in pressure.
Flow Velocity and Viscosity
The velocity of the fluid affects how particles impact the mesh. High-velocity streams can cause "impingement," where particles are forced through the mesh or cause premature wear on the wire. Furthermore, if the fluid is highly viscous (such as oils or resins), the basket must be reinforced to prevent collapsing under the increased resistance.
Structural Reinforcement
For high-pressure applications, a standard wire mesh basket may not be sufficient. Engineers often specify reinforced baskets that include a heavy-duty outer cage or internal longitudinal ribs. This ensures that the basket strainer 4 1 2 maintains its shape even when it becomes heavily loaded with debris.
Customization and OEM Capabilities
Standard off-the-shelf components often fail to meet the specific needs of complex industrial systems. This is where customized Strainers & Baskets become essential.
Tailored Handle and Lifting Designs
In large-scale operations, ease of maintenance is a safety and efficiency factor. Baskets can be designed with various handle types, including:
* Bail Handles: Standard for easy manual removal.
* Slotted Handles: For use with specialized lifting tools.
* Extended Handles: Used when the basket is deep within a housing, allowing operators to retrieve it without reaching into the process fluid.
Specialized Coatings and Finishes
Beyond standard pickling and passivating, baskets can be treated with specialized coatings. For example, a PTFE coating might be applied to a basket strainer 4 1 2 to prevent sticky substances from adhering to the mesh, making the cleaning process significantly faster.
OEM Integration
For manufacturers of pump skids or filtration housings, sourcing reliable OEM baskets is critical. Kaifil works closely with engineering teams to produce baskets that meet proprietary housing specifications, ensuring that the end-user receives a high-performance, integrated solution.
Maintenance and Replacement Cycles
The longevity of a basket strainer 4 1 2 depends heavily on the maintenance protocol. A neglected strainer can lead to basket rupture, pump cavitation, or complete system shutdown.
Differential Pressure Monitoring
The most effective way to manage a strainer is through differential pressure (DP) gauges. When the pressure difference between the inlet and outlet reaches a pre-set limit (usually 5-10 psi), the basket must be cleaned. Operating beyond this limit risks "blinding" the mesh, where particles become permanently wedged in the openings.
Cleaning Protocols
Stainless steel baskets are valued for their reusability. Depending on the contaminant, cleaning methods include:
* Backwashing: Reversing the flow to dislodge particles.
* Ultrasonic Cleaning: Using high-frequency sound waves in a solvent bath to remove fine particulates from deep within the mesh layers.
* Manual Scrubbing: Using soft brushes to remove surface debris (care must be taken not to damage fine mesh).
Signs of Wear
During routine inspections, technical teams should look for:
* Mesh Fraying: Broken wires can bypass particulates and contaminate the downstream fluid.
* Gasket/Seal Degradation: If the basket uses an O-ring or gasket at the flange, these must be replaced periodically to maintain a tight seal.
* Corrosion Spots: Even stainless steel can succumb to localized corrosion if the fluid chemistry changes.
Total Cost of Ownership (TCO) in Filtration
When purchasing a basket strainer 4 1 2, the initial purchase price is only one component of the total cost. A low-quality basket may save money upfront but lead to higher costs in the long run due to:
1. Frequent Replacements: Poorly welded or thin-gauge baskets fail under pressure.
2. Increased Labor: Baskets that are difficult to clean or install increase maintenance man-hours.
3. Equipment Damage: If a basket fails, the cost of repairing a downstream pump or turbine can be thousands of times the cost of a high-quality strainer.
Investing in precision-engineered stainless steel filtration components ensures that the system remains operational for longer periods, providing a better return on investment (ROI) for the facility.
Conclusion
The basket strainer 4 1 2 is a fundamental yet sophisticated component of industrial fluid management. By focusing on material quality, precise dimensions, and application-specific engineering, facilities can ensure their processes remain efficient and their equipment remains protected. Whether you are replacing an existing component or designing a new filtration system, confirming the exact technical requirements of your strainers is the first step toward operational excellence.
For those seeking reliable, high-performance filtration components tailored to specific industrial needs, exploring professional options is essential. To find the right fit for your application, you can review product options and application support for Strainers & Baskets to ensure your system meets its performance goals.
