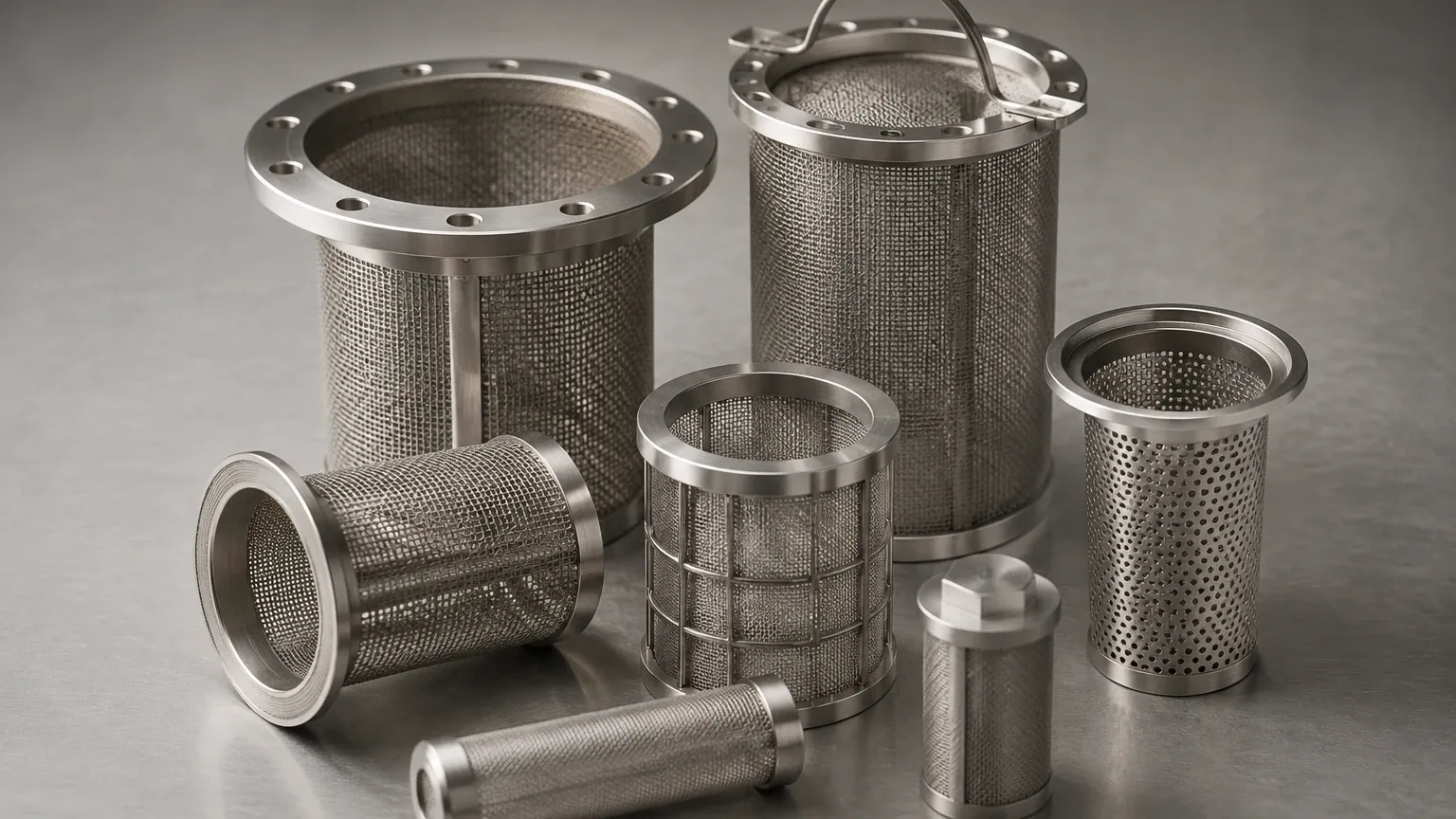

Strainer 9
In industrial filtration, the term "strainer 9" typically refers to a specific size designation, series, or technical specification within a filtration system's architecture. For engineers and procurement specialists managing fluid handling systems, selecting the correct Strainers & Baskets is critical for protecting downstream equipment such as pumps, valves, and heat exchangers from particulate contamination. Whether the "9" refers to a specific flange size, a basket depth, or a manufacturer-specific series, the underlying principles of material integrity, filtration accuracy, and structural design remain the primary factors in ensuring system reliability.
Industrial strainers are coarse filters designed to remove larger particles from liquids or gases. Unlike fine membrane filters, these components are built for durability and high flow rates. When integrating a strainer 9 into a process line, technical professionals must evaluate the compatibility of the stainless steel alloy with the process fluid, the required micron rating, and the maximum allowable pressure drop across the element.
Understanding the Role of Strainer 9 in Industrial Systems
The primary function of a strainer 9 is the mechanical separation of solids from a fluid stream. In many industrial skids, this component acts as the first line of defense. By capturing debris that could cause mechanical wear or blockages, the strainer extends the service life of more expensive precision components.
In the context of stainless steel filtration, the choice of a strainer 9 often involves a trade-off between filtration efficiency and flow capacity. A finer mesh will capture smaller particles but will also result in a higher initial pressure drop and more frequent cleaning cycles. Conversely, a coarser basket allows for higher flow rates but may permit smaller contaminants to pass through. Engineering teams must determine the "critical particle size"—the smallest particle that can cause damage to downstream equipment—to select the appropriate mesh or perforation for their strainer 9.
Engineering Specifications for Stainless Steel Strainers
When specifying a strainer 9, the material of construction is the most significant factor affecting longevity and performance. Kaifil specializes in high-grade stainless steel solutions, typically utilizing 304 or 316L alloys.
Material Selection: 304 vs. 316L
* Type 304 Stainless Steel: This is the standard industrial grade, offering excellent strength and basic corrosion resistance. It is suitable for water treatment, food processing, and general industrial applications where high concentrations of chlorides are not present.
* Type 316L Stainless Steel: Containing molybdenum, 316L provides superior resistance to pitting and crevice corrosion, particularly in chloride-rich environments. The "L" denotes low carbon content, which improves weldability and prevents sensitization during the manufacturing of the strainer 9, making it the preferred choice for chemical processing and pharmaceutical applications.
Structural Design and Reinforcement
An industrial strainer 9 must withstand significant mechanical stress, especially during start-up or when the basket becomes heavily loaded with debris. The structural integrity is often reinforced using a perforated metal backup tube or a heavy-duty wire cage. This prevents the mesh from collapsing or bypassing under high differential pressure. For custom OEM requirements, the thickness of the perforated plate and the gauge of the wire mesh are calculated based on the maximum expected flow velocity and fluid density.
Performance Metrics: Flow Rate and Pressure Drop Optimization
The efficiency of a strainer 9 is measured by its ability to maintain flow while removing contaminants. The two most critical metrics for engineers are the Clean Pressure Drop ($ΔP$) and the Open Area Ratio (OAR).
The Open Area Ratio (OAR)
The OAR is the ratio of the total area of the holes in the mesh or perforated plate to the total area of the inlet pipe. A well-designed strainer 9 should have an OAR of at least 4:1 or 6:1. A higher OAR ensures that the strainer can accumulate a significant amount of debris before the pressure drop becomes excessive, thereby extending the time between maintenance intervals.
Calculating Pressure Drop
Pressure drop is influenced by fluid viscosity, velocity, and the mesh size of the strainer 9. As debris accumulates, the effective open area decreases, causing the pressure drop to rise exponentially. Engineers typically install differential pressure gauges across the strainer housing. When the $ΔP$ reaches a predetermined threshold (often 5-10 psi), the strainer 9 must be removed and cleaned to prevent system cavitation or mechanical failure of the filter element.
Application-Specific Selection: Chemical, Food, and Hydraulic Sectors
The requirements for a strainer 9 vary significantly across different industrial sectors. A one-size-fits-all approach often leads to premature failure or inefficient filtration.
Chemical Processing
In chemical plants, the strainer 9 must handle aggressive solvents, acids, or bases. Beyond material selection, the gaskets and seals (such as PTFE or Viton) must be chemically compatible with the process fluid. Precision welding techniques, such as TIG or plasma welding, are employed to ensure there are no crevices where corrosive fluids can stagnate.
Food and Beverage Industry
For food-grade applications, the strainer 9 must meet strict sanitary standards. This involves using 316L stainless steel and ensuring a high-quality surface finish. Electropolishing is often used to achieve a smooth, non-porous surface that prevents bacterial growth and facilitates Clean-in-Place (CIP) procedures. The design must be free of "dead zones" where product could become trapped and spoil.
Hydraulic and Lubrication Systems
In hydraulic systems, the strainer 9 is used to protect sensitive valves and actuators from metal shavings or environmental dust. These strainers often operate under high pressure and must be designed with high collapse ratings. The filtration accuracy is usually specified in microns to match the tolerances of the hydraulic components.
Customization and OEM Integration for Strainers & Baskets
Many industrial systems require non-standard dimensions or unique mounting configurations that off-the-shelf products cannot satisfy. This is where custom manufacturing becomes essential. When sourcing a Strainers & Baskets solution, engineers should confirm several customization parameters:
1. Dimensional Tolerances: Ensuring the strainer 9 fits perfectly within the existing housing to prevent fluid bypass.
2. Custom Mesh Layers: Combining multiple layers of wire mesh (e.g., a fine mesh for filtration and a coarse mesh for support) to achieve specific performance goals.
3. Handle and Lifting Lug Designs: For larger strainer 9 units, integrated handles or lifting eyes are necessary for safe and efficient removal during maintenance.
4. Magnetic Inserts: In metalworking or hydraulic applications, adding magnetic rods to the strainer basket can help capture fine ferrous particles that might otherwise pass through the mesh.
Kaifil’s expertise in custom stainless steel fabrication allows for the development of specialized strainer 9 components that meet these exact engineering requirements, ensuring that the final product is optimized for the specific challenges of the application.
Maintenance, Cleaning, and Replacement Cycles
The total cost of ownership for a strainer 9 is heavily influenced by its maintenance requirements. While stainless steel strainers are durable, they are not indestructible. A regular maintenance schedule is essential for optimal performance.
Cleaning Procedures
Most industrial strainers are designed for reuse. The cleaning method depends on the nature of the contaminant:
* Manual Cleaning: Removing the basket and using a soft brush or high-pressure water jet to dislodge debris.
* Ultrasonic Cleaning: For fine meshes where particles are deeply embedded, ultrasonic baths can effectively remove contaminants without damaging the wire structure.
* Chemical Cleaning: Using compatible solvents to dissolve resins, oils, or organic buildup.
Identifying the Need for Replacement
Despite regular cleaning, a strainer 9 will eventually require replacement. Engineers should inspect the basket for signs of wire fraying, corrosion pitting, or structural deformation. If the mesh is compromised, the filtration integrity is lost, and the risk of downstream damage increases. Maintaining a stock of replacement baskets is a standard best practice for minimizing downtime during scheduled maintenance or unexpected clogs.
Conclusion: Selecting the Right Strainer 9 Partner
Selecting a strainer 9 is a technical decision that impacts the efficiency and safety of an entire industrial process. By focusing on material grade, open area ratios, and application-specific designs, engineers can ensure they are implementing a robust filtration solution. Working with a professional manufacturer like Kaifil provides the technical support and customization capabilities necessary to address complex filtration challenges. Whether you are replacing an existing component or designing a new system, confirming the technical specifications and performance expectations of your Strainers & Baskets is the most effective way to achieve long-term operational success.
