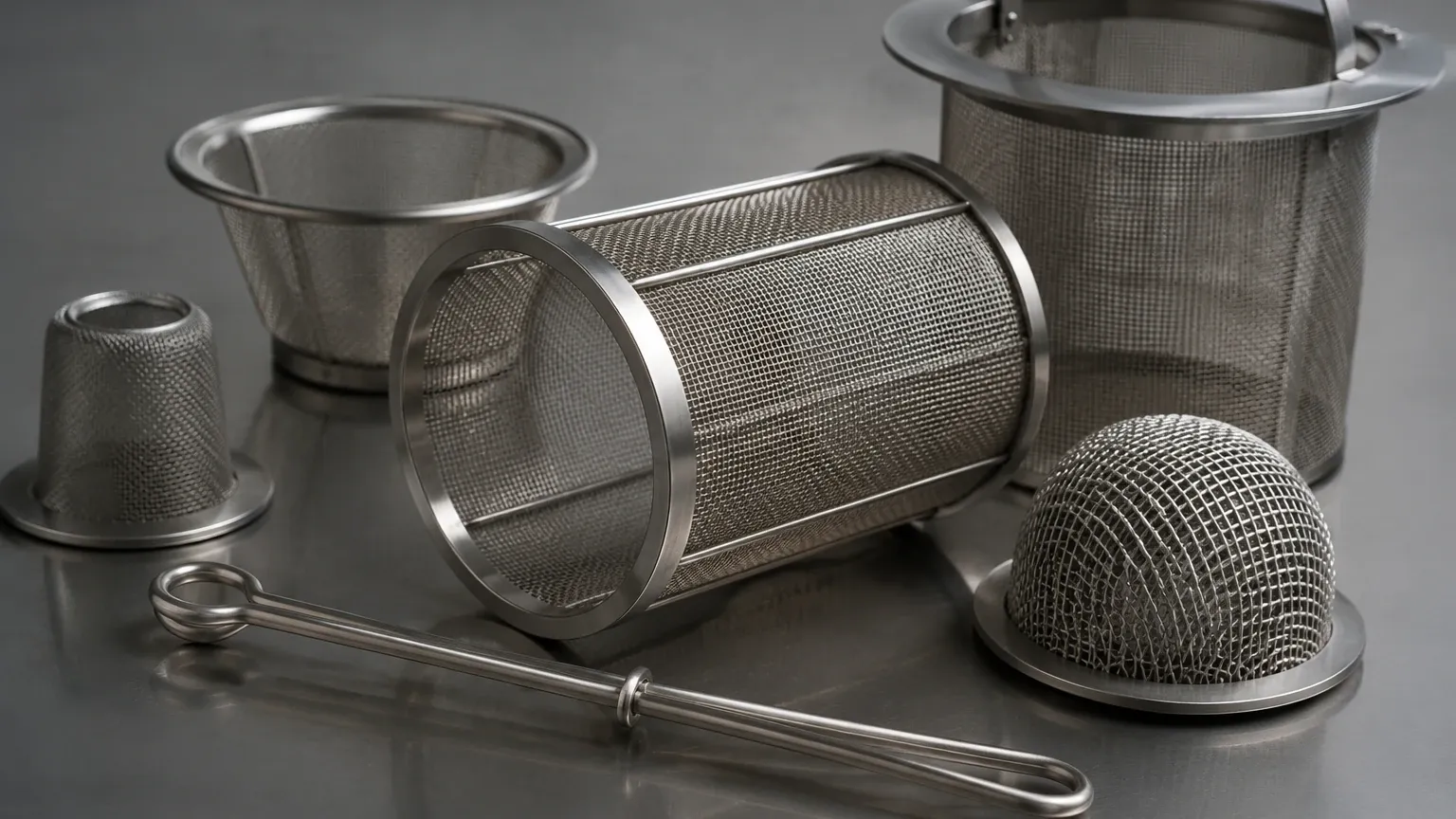

Twitcher Wire Strainers
In industrial fluid handling and processing, the integrity of filtration media is paramount to ensuring product purity and protecting downstream equipment. Among the various mechanical components utilized to maintain the structural stability of filtration systems, twitcher wire strainers represent a specialized segment of tensioning and containment technology. While often associated with agricultural wire tensioning, in the context of high-precision industrial Strainers & Baskets, the principles of "twitching"—or mechanical tensioning—are applied to secure stainless steel wire mesh within robust frames. This ensures that the filtration surface remains taut and effective under the significant hydraulic pressures common in chemical, pharmaceutical, and food processing environments.
For engineers and procurement professionals, understanding the technical nuances of twitcher wire strainers is essential for optimizing system uptime and reducing maintenance overhead. This guide explores the engineering considerations, material requirements, and selection criteria necessary for implementing effective wire strainers in industrial applications.
Understanding the Role of Twitcher Wire Strainers in Industrial Filtration
Industrial strainers are designed to remove coarse particles from liquid or gas streams. The effectiveness of these components depends heavily on the consistency of the aperture size in the wire mesh. When mesh is loosely fitted within a basket or frame, it is susceptible to "fluttering" or deformation caused by turbulent flow. This mechanical stress can lead to work hardening of the stainless steel wires, eventually resulting in fatigue failure or mesh bypassing.
Twitcher wire strainers address this by providing a mechanical means to apply and maintain tension across the wire cloth. In custom-engineered filtration solutions, the term often refers to the internal tensioning mechanisms or the specific wire-reinforced basket designs that utilize high-tensile stainless steel wires to support finer mesh layers. By ensuring the mesh remains under constant tension, these strainers prevent sagging and ensure that the effective filtration area (EFA) is fully utilized.
In high-viscosity applications, such as the filtration of resins or heavy oils, the pressure differential ($ΔP$) across the strainer can be substantial. Without the structural reinforcement provided by tensioned wire components, the mesh could collapse into the support basket, obstructing flow and making cleaning nearly impossible. Twitcher-style tensioning provides the necessary rigidity to withstand these forces while maintaining a lightweight and cleanable profile.
Engineering Considerations for Strainers & Baskets
When specifying Strainers & Baskets for industrial use, several engineering parameters must be evaluated to ensure the component meets the demands of the specific application. These include material compatibility, mechanical strength, and filtration accuracy.
Material Selection and Metallurgy
Most industrial twitcher wire strainers are fabricated from austenitic stainless steels, such as Grade 304 or 316L.
* Grade 304: Suitable for general-purpose applications where basic corrosion resistance is required. It is commonly used in water treatment and food processing where chloride concentrations are low.
* Grade 316L: The "L" denotes low carbon, which is critical for components that require welding. 316L offers superior resistance to pitting and crevice corrosion, making it the standard for chemical processing and pharmaceutical environments where aggressive cleaning agents or corrosive fluids are present.
* Specialty Alloys: For extreme environments, such as seawater filtration or high-temperature chemical reactors, materials like Duplex stainless steel or Monel may be required to prevent stress corrosion cracking.
Mesh Count and Wire Diameter
The performance of the strainer is defined by its mesh count (the number of openings per linear inch) and the wire diameter. A higher mesh count provides finer filtration but increases the flow resistance. Engineers must balance the required micron rating with the structural integrity of the wire. In twitcher wire strainers, the tensioning wire is typically of a heavier gauge than the filtration mesh, acting as a skeleton that absorbs the primary mechanical loads.
The Mechanics of Twitcher Wire Tensioning
The efficiency of a twitcher mechanism in a filtration context lies in its ability to convert rotational or linear force into tangential tension across the wire mesh. In custom basket designs, this is often achieved through a series of internal stays or perimeter tensioning rings.
Preventing Mesh Fatigue
In systems with pulsating flows—such as those downstream of positive displacement pumps—the wire mesh is subjected to cyclic loading. If the mesh is not properly tensioned using a twitcher-style approach, the constant movement will cause the wires to rub against one another at the crossover points. This abrasive action, combined with cyclic stress, leads to premature failure. A properly tensioned strainer eliminates this movement, significantly extending the service life of the basket.
Optimizing Flow Distribution
A taut filtration surface ensures uniform flow distribution. When mesh sags, the fluid tends to follow the path of least resistance, leading to localized high-velocity zones. These zones can cause "particle breakthrough," where contaminants are forced through the mesh apertures due to excessive kinetic energy. Twitcher wire strainers maintain a flat or consistently contoured surface, ensuring that the velocity remains within the design parameters across the entire surface area.
Key Evaluation Criteria for B2B Procurement
Selecting the right twitcher wire strainers involves more than matching a part number. Procurement teams must collaborate with engineering to confirm several critical factors before finalizing a custom order.
1. Filtration Accuracy (Micron Rating): Define the absolute vs. nominal rating required. For protective straining, a nominal rating may suffice, but for critical process steps, an absolute rating is necessary.
2. Pressure Differential Limits: What is the maximum allowable $ΔP$ before the basket must be cleaned or replaced? The structural design of the twitcher mechanism must be rated to exceed this pressure to prevent catastrophic collapse.
3. Cleaning Protocols: Will the strainer be cleaned via backwashing, ultrasonic baths, or manual scraping? The tensioning system must be robust enough to withstand the mechanical stresses of the cleaning process without losing its set tension.
4. Connection Types: Ensure the strainer housing and the internal basket interface are compatible. Common interfaces include flange mounts, O-ring seals, or flat-gasket seats.
Common Risks and Failure Modes in Industrial Strainers
Failure to properly specify or maintain twitcher wire strainers can lead to several operational risks. Understanding these failure modes allows for better preventative maintenance and more robust design specifications.
Bypass and Seal Failure
The most common failure in any strainer system is bypassing, where fluid escapes around the edges of the filter media rather than passing through it. In tensioned wire strainers, this often occurs if the tensioning mechanism distorts the sealing surface of the basket. Precision manufacturing is required to ensure that the application of tension does not compromise the planarity of the flange or the roundness of the basket rim.
Corrosion and Erosion
While stainless steel is corrosion-resistant, it is not immune. High-velocity fluid containing abrasive particles can lead to erosion-corrosion, particularly at the points where the twitcher wires are anchored. Engineers should look for designs that minimize turbulence at anchor points and use materials with appropriate hardness for the handled media.
Mechanical Deformation
If a strainer is subjected to a pressure surge beyond its design limit, the wire mesh may undergo plastic deformation. Once the mesh has stretched beyond its elastic limit, the twitcher mechanism can no longer maintain the required tension. This results in a permanent sag, which reduces filtration efficiency and makes the basket difficult to remove from the housing.
Customization and OEM Solutions from Kaifil
As a professional manufacturer of stainless steel filtration solutions, Kaifil specializes in the production of custom Strainers & Baskets tailored to specific industrial requirements. The complexity of modern fluid systems often demands more than off-the-shelf components.
Customization options include:
* Variable Mesh Configurations: Combining multiple layers of wire cloth with perforated metal backups for maximum strength and fine filtration.
* Specialized Tensioning Designs: Engineering twitcher wire strainers that can be adjusted or replaced without discarding the entire basket assembly.
* Precision Machining: Ensuring that all contact surfaces are machined to tight tolerances to prevent bypassing and ensure ease of installation.
* Material Certification: Providing full traceability for stainless steel grades, which is essential for compliance in the pharmaceutical and food and beverage industries.
By working closely with an OEM partner like Kaifil, engineers can develop filtration components that are optimized for their specific flow rates, chemical exposures, and mechanical constraints.
Technical Checklist for Engineers
Before initiating a quote for twitcher wire strainers or industrial baskets, ensure the following data points are confirmed:
* Fluid Properties: Viscosity at operating temperature, density, and chemical composition.
* Flow Conditions: Minimum, normal, and maximum flow rates (GPM or $m^3/h$).
* Contaminant Profile: Particle size distribution, concentration (PPM), and the nature of the solids (deformable vs. hard).
* Operating Environment: Maximum operating pressure and temperature, as well as potential for hydraulic shock.
* Regulatory Requirements: Compliance with FDA, 3-A Sanitary Standards, or ASME Pressure Vessel codes where applicable.
In conclusion, twitcher wire strainers are a vital component in the landscape of industrial filtration. By providing the necessary tension to maintain mesh integrity, these devices ensure that strainers and baskets perform reliably under the most demanding conditions. Focusing on material quality, mechanical design, and application-specific customization will result in a filtration system that protects equipment, ensures product quality, and minimizes total cost of ownership.
