Where Do You Put Lead Tape on Wedges
In the realm of industrial filtration and mechanical separation, the term "wedge" often refers to the precision-engineered profile wires used in Wedge Wire Screens. However, for engineers and maintenance professionals working with high-speed rotating filtration equipment or vibratory separators, the question of "where do you put lead tape on wedges" is a technical inquiry regarding dynamic balancing and vibration dampening. While lead tape is a common tool in various mechanical fields for fine-tuning weight distribution, its application in industrial filtration requires a deep understanding of centrifugal forces, fluid dynamics, and structural integrity.
This article examines the technical necessity of balancing industrial screen assemblies, the specific locations where weighting materials like lead tape are applied to wedge-based components, and the engineering considerations that ensure long-term performance in demanding environments.
The Engineering Context of Wedges in Industrial Filtration
Before addressing the placement of weighting materials, it is essential to define what "wedges" represent in an industrial B2B context. In filtration, the "wedge" is the V-shaped profile wire that forms the heart of a screen. These wires are resistance-welded onto support rods at each contact point, creating a robust, non-clogging surface with precise slot openings.
When these screens are fabricated into cylindrical baskets for centrifuges or flat panels for high-frequency vibratory sieves, they become integral parts of a moving system. Any slight mass asymmetry in the screen assembly can lead to excessive vibration, bearing wear, and eventual structural failure. This is where the concept of adding mass—often through lead tape or welded counterweights—becomes critical for operational stability.
Where Do You Put Lead Tape on Wedges for Vibration Control?
In industrial applications, the placement of lead tape or auxiliary weights is dictated by the principles of rotational dynamics. If you are troubleshooting a vibrating centrifuge basket or a misaligned vibratory screen, the question of where do you put lead tape on wedges depends on the specific harmonic frequency and the axis of imbalance.
1. The Outer Support Flange

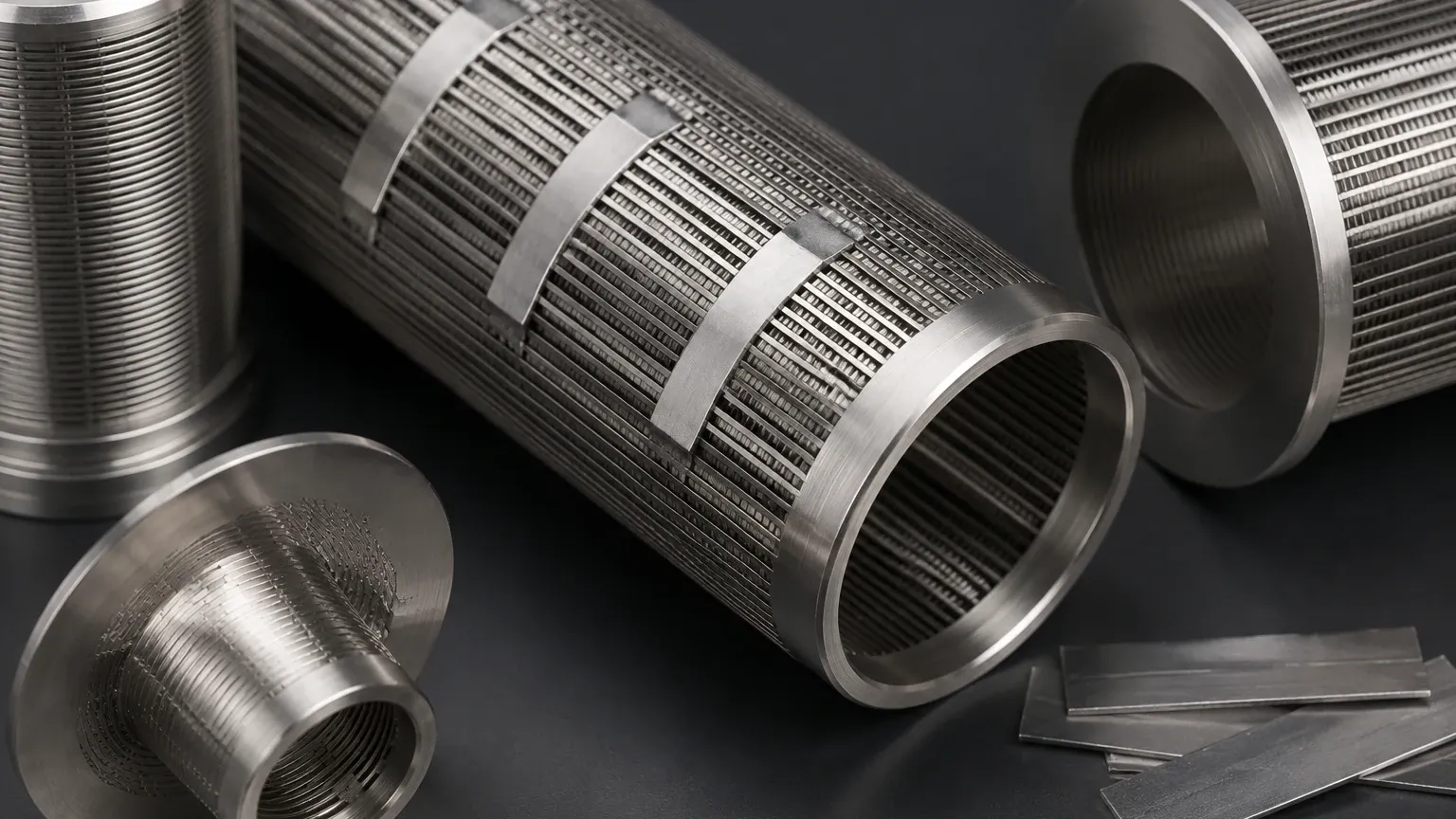

For rotating wedge wire baskets, the most common location for adding balance weights is the outer support flange or the reinforcing rings. Placing lead tape here allows for the maximum leverage in correcting an imbalance because it is furthest from the axis of rotation. Engineers typically apply the tape to the "light side" of the assembly, identified through a dynamic balancing machine.
2. The Trailing Edge of Support Rods
In some specialized filtration assemblies, the wedges (profile wires) are supported by heavy-duty bars. If the imbalance is localized, lead tape may be applied to the trailing edge of these support rods. It is vital that the tape is placed on a non-filtering surface to avoid obstructing the flow of media or contaminating the filtrate.
3. The Underside of the Mounting Plate
For flat wedge wire panels used in shakers, the tape is often applied to the underside of the mounting frame. This helps in dampening the resonance that can occur when the screen hits its natural frequency during startup or shutdown cycles.
Technical Considerations for Securing Wedge Wire Screens
While lead tape is an excellent diagnostic tool for identifying where weight needs to be added, it is rarely a permanent solution in heavy industrial environments. The high-pressure washdowns, chemical exposure, and thermal cycling common in sectors like food processing and chemical manufacturing can degrade adhesives.
When optimizing Wedge Wire Screens, engineers must consider the following:
* Centrifugal Force: In a centrifuge, the G-force can be high enough to strip adhesive-backed tape from the surface. For permanent installations, the "lead tape" placement serves as a template for where stainless steel weights should be permanently welded.
* Material Compatibility: Lead is soft and can react with certain acidic or alkaline process fluids. In pharmaceutical or food-grade applications, lead is strictly prohibited. In these cases, 316L stainless steel strips are used instead of lead tape.
* Slot Integrity: Any weight added must never interfere with the slot openings. The precision of the V-wire geometry is what prevents blinding and ensures efficient backwashing.
Performance Impact of Improper Weight Distribution
Failure to correctly identify where do you put lead tape on wedges during the prototyping or maintenance phase can lead to significant operational risks. In high-speed filtration, an unbalanced screen assembly causes:
1. Mechanical Fatigue: Continuous vibration leads to micro-cracks at the weld points between the profile wire and the support rod.
2. Reduced Filtration Accuracy: Vibration can cause "flutter" in the screen surface, momentarily widening slot openings and allowing oversized particles to pass through.
3. Bearing and Seal Failure: The most common casualty of an unbalanced wedge wire basket is the drive system. Excessive radial loads from an unbalanced mass will drastically shorten the mean time between failures (MTBF) for bearings.
By using lead tape to find the optimal balance point, maintenance teams can stabilize the equipment, ensuring that the filtration process remains consistent and the hardware remains intact.
Why Precision Manufacturing Matters for Balance
The need for post-production balancing is often a reflection of the manufacturing quality of the screen itself. High-quality Wedge Wire Screens are manufactured with automated resistance welding that ensures uniform mass distribution across the entire surface.
At Kaifil, the focus is on precision. By maintaining strict tolerances on the wire profile and the spacing of support rods, the resulting screen components are inherently more balanced. This reduces the need for field adjustments and simplifies the installation process for OEM equipment manufacturers. When the initial fabrication is precise, the question of where do you put lead tape on wedges becomes a matter of fine-tuning rather than corrective surgery for a poorly made component.
Material Selection: Lead Tape vs. Stainless Steel Alternatives
In the B2B industrial sector, the choice of balancing material is as important as its placement. While the search for "where do you put lead tape on wedges" might lead to temporary fixes, professional filtration solutions require more robust materials.
* Stainless Steel Strips: For most industrial applications, small strips of stainless steel (matching the grade of the screen, such as 304 or 316) are the preferred weighting material. They are welded to the support structure, providing a permanent and sanitary solution.
* Tungsten Putty: In some laboratory-scale filtration tests, tungsten putty is used instead of lead tape because it is denser and non-toxic, allowing for more precise weight placement in smaller areas.
* Adhesive-Backed Aluminum: For low-temperature, non-corrosive environments, aluminum tape can serve as a temporary vibration dampener on the external housing of a wedge wire assembly.
Best Practices for Customizing Wedge Wire Screen Assemblies
When ordering custom filtration components, it is beneficial to work with a manufacturer that understands the dynamic requirements of your application. If your process involves high-speed rotation or intense vibration, specify these parameters during the design phase.
Customization options that impact balance include:
* Reinforced End Rings: Heavily machined end rings provide a stable foundation for the screen and offer a dedicated surface for balancing weights.
* Variable Support Rod Spacing: In some cases, support rods can be strategically spaced to enhance the structural rigidity of the "wedge" assembly in specific zones.
* Surface Treatments: Electropolishing or chrome plating can change the mass of the screen slightly. These treatments should be applied before the final balancing process.
Maintenance and Replacement Cycles for Industrial Wedges
Even a perfectly balanced wedge wire screen will eventually require maintenance. Over time, the abrasive nature of slurry or the corrosive impact of chemicals can wear down the profile wires, leading to a shift in the center of mass.
Regular inspection should include:
* Checking for Wear Patterns: Uneven wear on the wedges can indicate that the assembly is no longer balanced.
* Inspecting Balance Weights: If you have previously determined where do you put lead tape on wedges (or their permanent welded equivalents), ensure these weights are still securely attached.
* Slot Measurement: Use feeler gauges to ensure that vibration has not caused the slot openings to deviate from their specified micron rating.
Conclusion: Optimizing Filtration Through Precision and Balance
Understanding the technical nuances of Wedge Wire Screens is essential for any engineer tasked with maintaining industrial separation equipment. While the initial question of where do you put lead tape on wedges may seem simple, it opens the door to a broader discussion on mechanical harmony, manufacturing precision, and operational efficiency.
By focusing on high-quality construction and proper dynamic balancing, industrial facilities can maximize the lifespan of their filtration components, reduce downtime, and achieve superior product purity. Whether you are fine-tuning a prototype with lead tape or specifying a high-performance stainless steel basket for a global chemical plant, the principles of balance and precision remain the cornerstones of successful industrial filtration.
